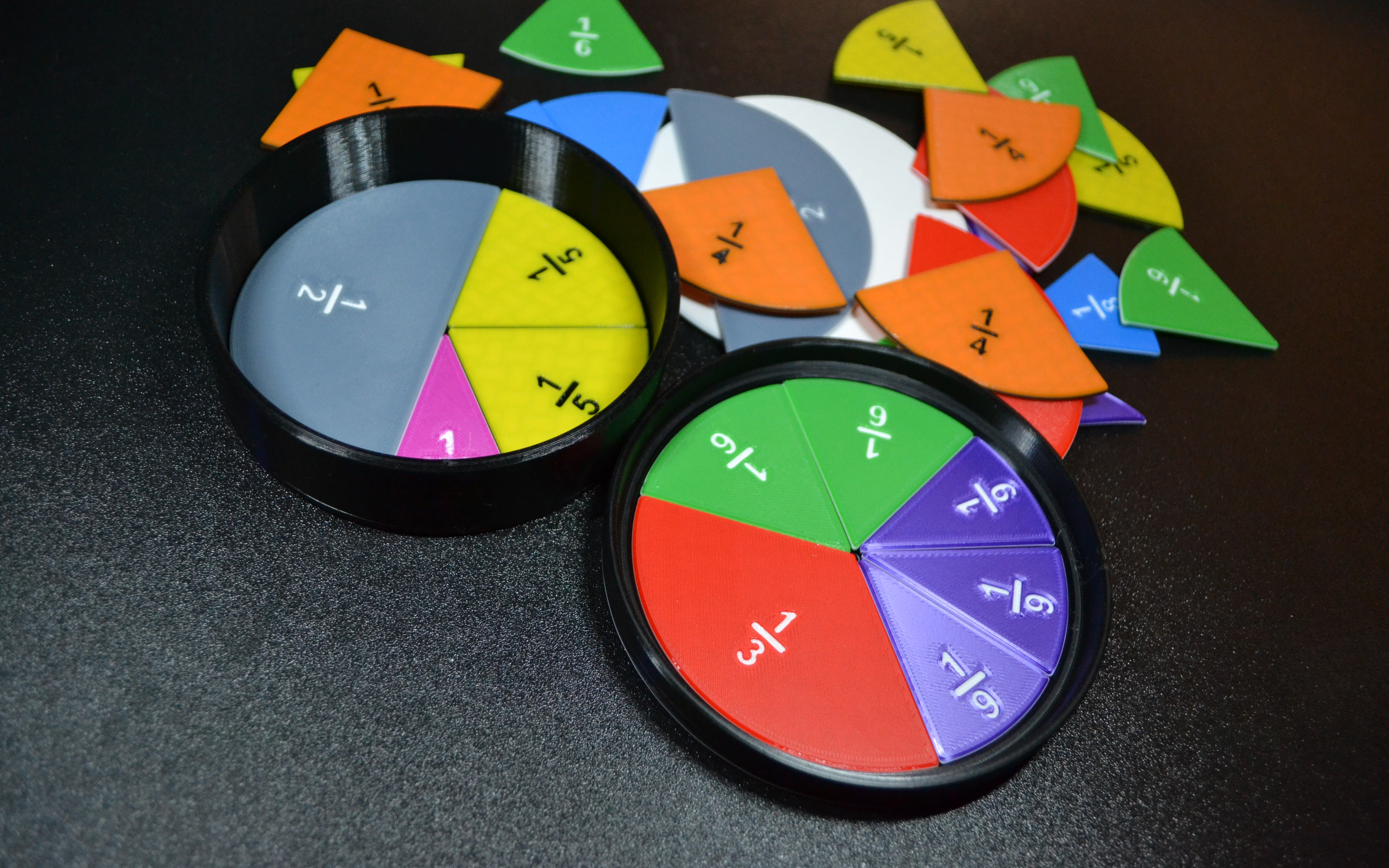

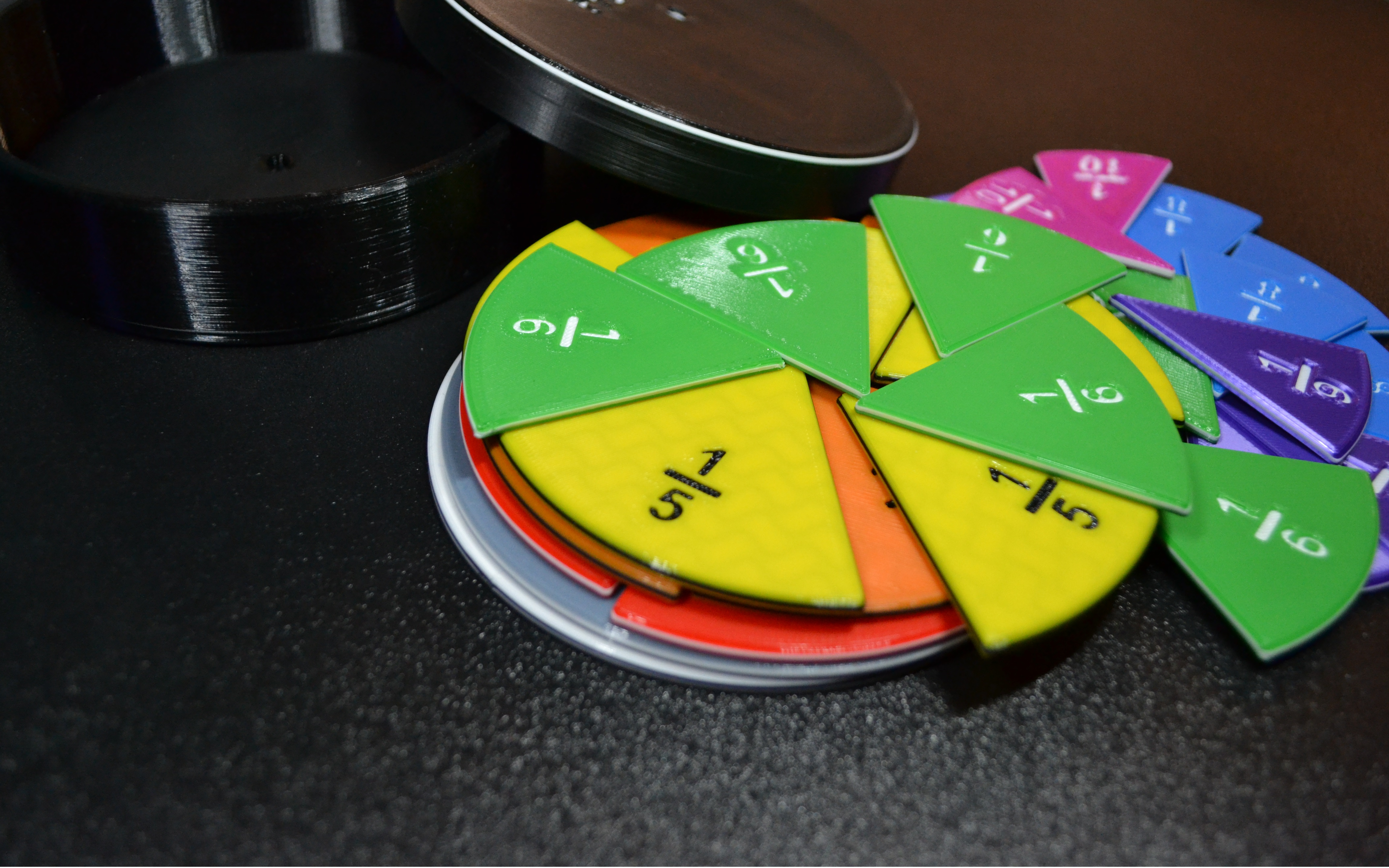

Compact Math Pie Fractions

[Updated 2025-10-02: released additional part: “1-7 pie", a requested missing fraction for the set, description updated.]

[Updated 2024-10-14: released versions: “blank lid, symbol lid, fraction circles lid, circle fractions lid” , renamed files to: “pie fractions lid” and “case body”, added new folders for organization]

Notes:

• An alternate design aimed for larger parts for younger children can be found here:
  • Math-Pie-Pieces-Fraction-Circle

• Simple to print fraction circle designed to teach kids in math
• Learn basic fractions, equivalency, and angles through pie slices
• About 3mm thickness per piece
• Comes with a lid for the pie case body
• Both the lid and case body can be used as a dish for a fraction circle
• All the pie pieces can be carried in the container
• Includes: 1/1, ½, ⅓, ¼, 1/5, 1/6, 1/8, 1/9, and 1/10 (***added 1/7 piece fraction, see update)

Printing:

• I printed with 0.4noz, 0.2layerh, 10% gyroid infill, mix of PLA, but mostly PETG
• It is suggested to change the bridging angle (45 degrees recommended) so that the orientation of the pie slice's lettering that overhang will print in better quality (For Prusaslicer>Print Settings>Infill>Advanced>Bridging angle)
• If desired, color changes start at 1.00mm (and change back after another 1.00mm to original color) for lettering to stand out (be sure to double check the color in the slicer!)
