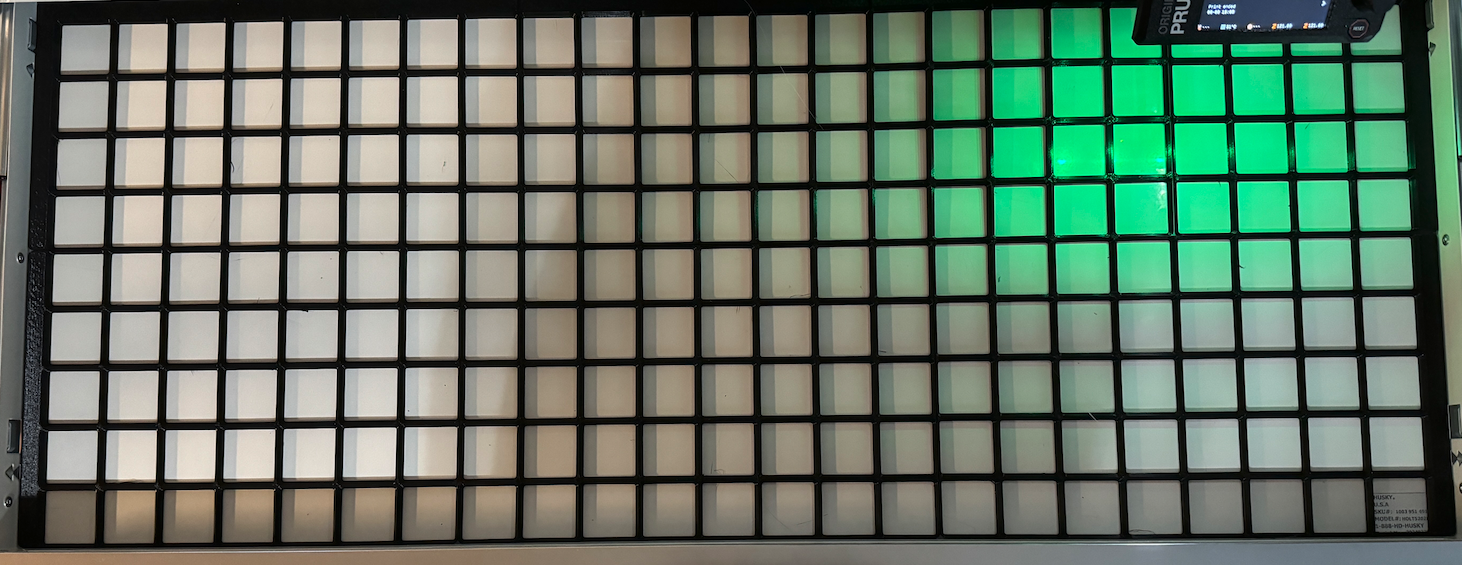

Husky 52" 2 Drawer Workbench Gridfinity Baseplates
Zamów wydruk tego modelu
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Organizers
- Licencja
- Creative Commons — Attribution — Noncommercial — Share Alike
- Fits the HOLT5202BJ2 drawers perfect when printed with PLA
- While you could rotate 180 degrees this assumes you want no gap on the front drawer edge
- Since there is limited Z clearance I chose the minimal baseplate so they are staggered to aid keeping them in place
- Using the prusa slicer fast .4 profile I changed the infill to lightning, top/bottom solid layers to two, and infill to 10%
- Model files naming convention is row, column I.E. 2-3 is the bottom right most
- If you want to generate your own, I used 13.75mm left/right padding and 27.5mm top padding
Created using the fusion 360 plugin https://github.com/Le0Michine/FusionGridfinityGenerator
