Python AMS front cover

10/09/2024

I downloaded the files for the enclosure and pieced them together for reference. then I made a few changes to my front cover. I believe it will now fit in the enclosure. No guarantees since I do not have an Enclosure. (may at some time in the future, but that is a long time away). If you want to try them, they are named …..4 enclosure.stl

Note - I recommend NOT placing dries in the front if you want to try this. it may mess up the air flow and/or overheat the cover.

9/21/24

I just noticed I had uploaded the wrong STL files, my apologies, I have now uploaded the correct ones.

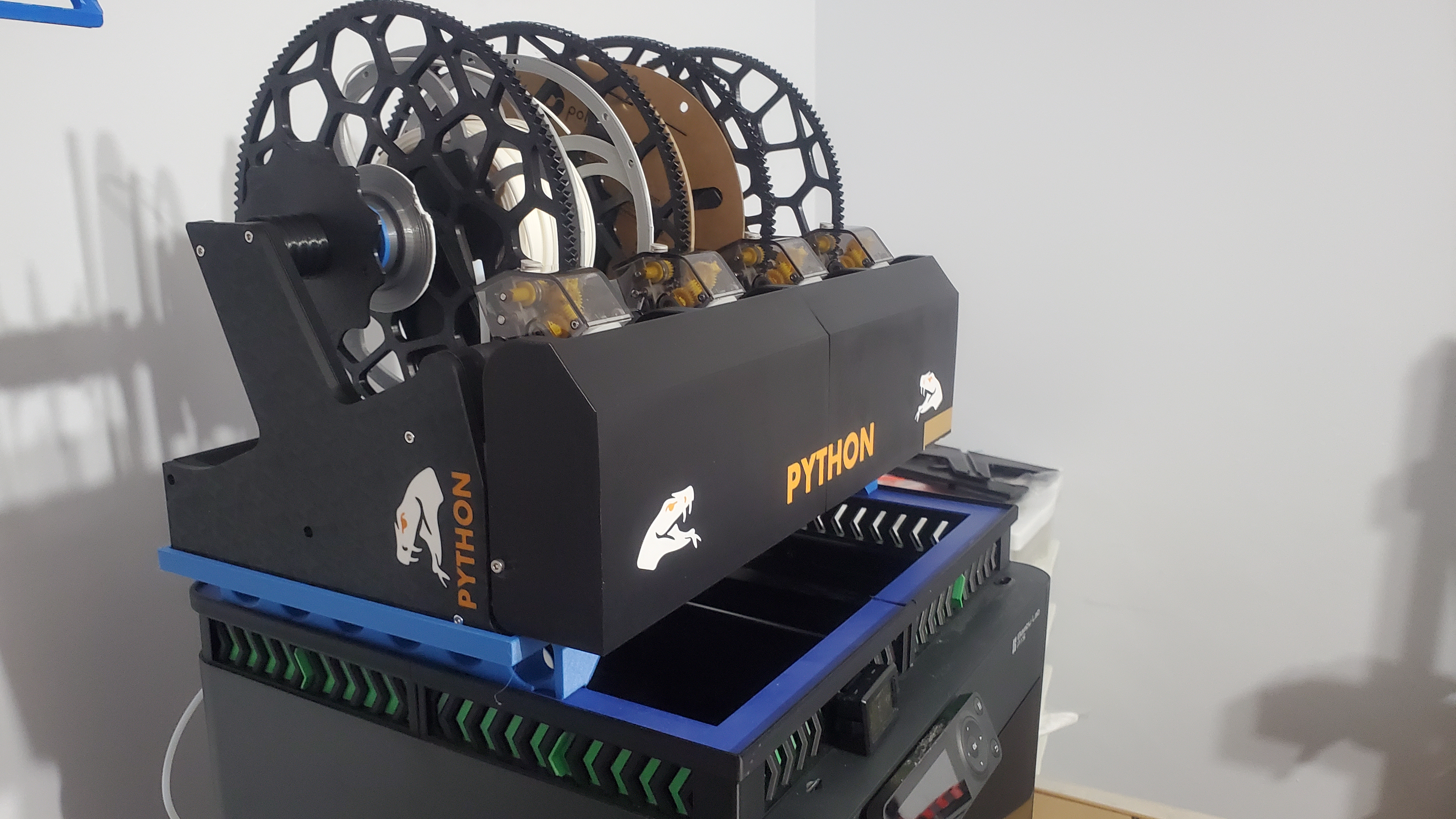

I wanted something that looked a little bit better than the feeder motors and front frame of the new Python AMS upgrade, so I made this.  (don't mind the oops in the corner, I forgot to move the purge tower out of the way and am too cheap to re-print it.)

Python AMS - Ultimate Bambu Lab AMS by humebeam | Download free STL model | Printables.com

I made it in 2 parts to fit my Prusa printers and printed it on my mk4 with mmu3, in three colors. The painted areas are recessed .01mm deep so they are easy to paint in Prusa slicer.

It requires strong double back foam tape, 2 M3x12 screws, and 4 M3x15 screws, and 4 M3 square nuts to assemble and install. This is the Tape I used:

Amazon.com: EZlifego Double Sided Tape Heavy Duty(Extra Large 16.5FT), Nano Adhesive Mounting Tape Wall Decor,Sticky Picture Hanging Adhesive Strips Poster Tape : Office Products

The 2 M3x12 hold the 2 halves together.

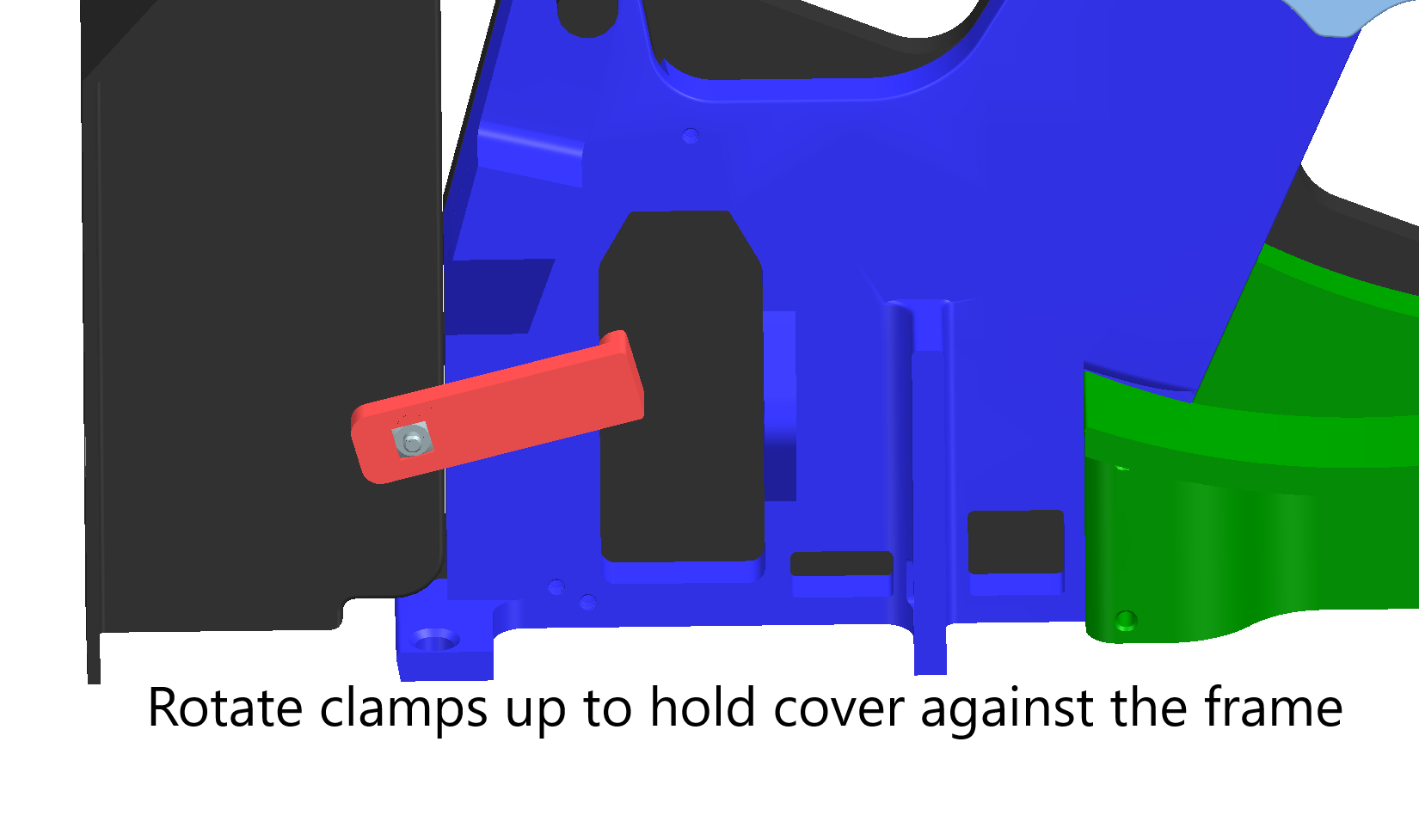

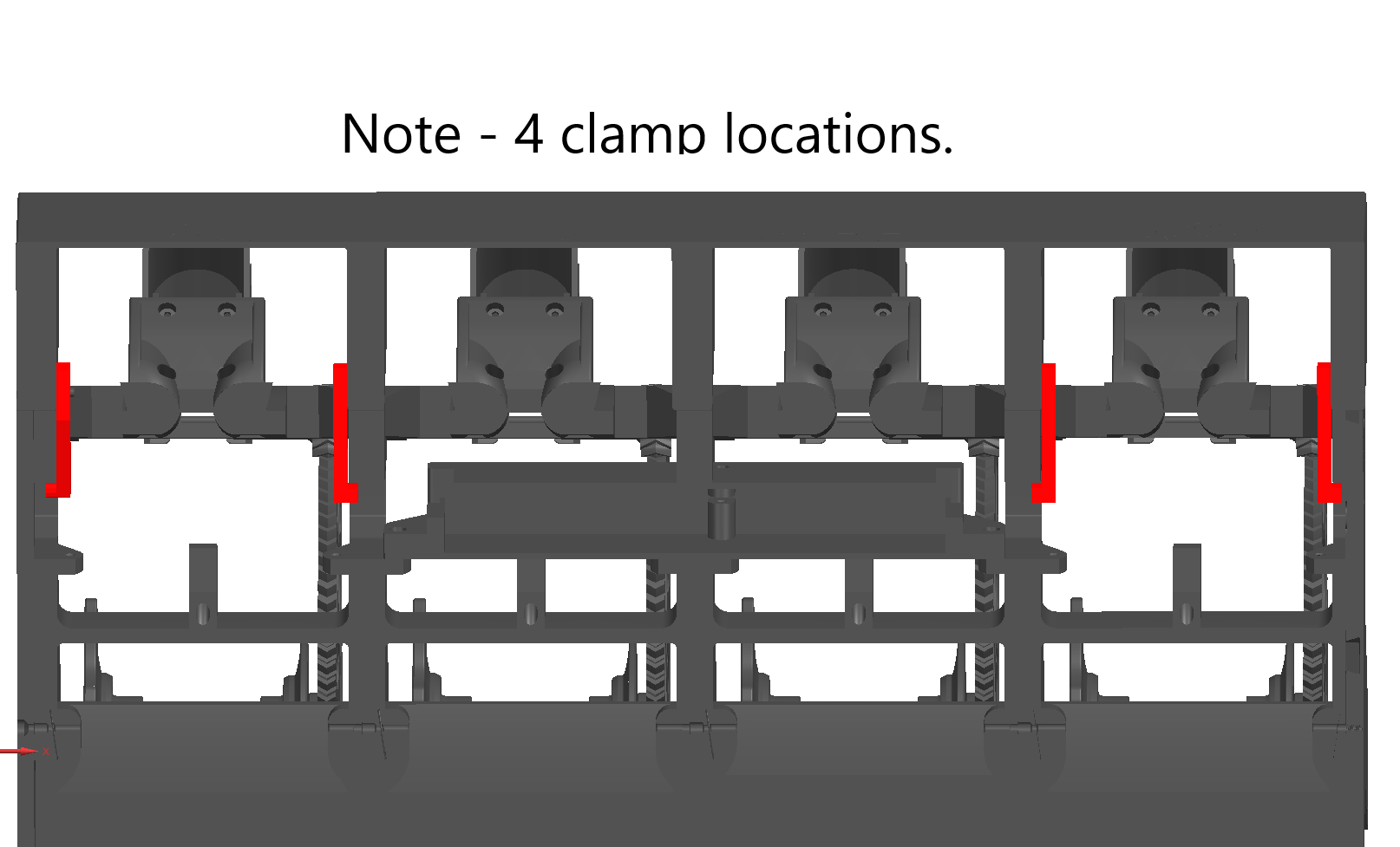

I used the double back tape to attach it to the 5 Python frame members and the 4 M3x15 screws, square nuts and 4 clamps to secure it onto the front of the Python just in case the tape ever fails.

I have no idea if this will fit in the Python enclosure because I don't have one….

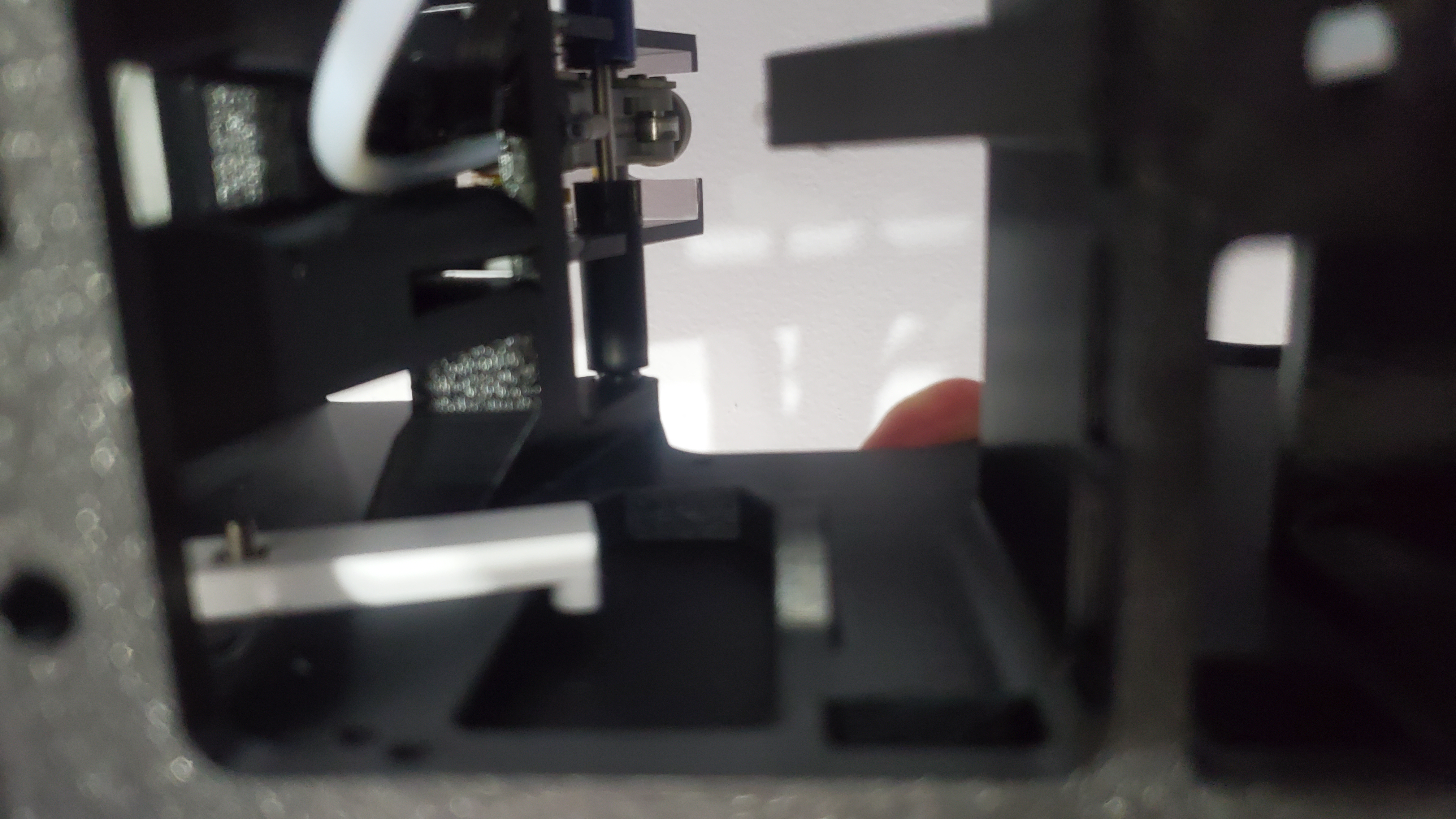

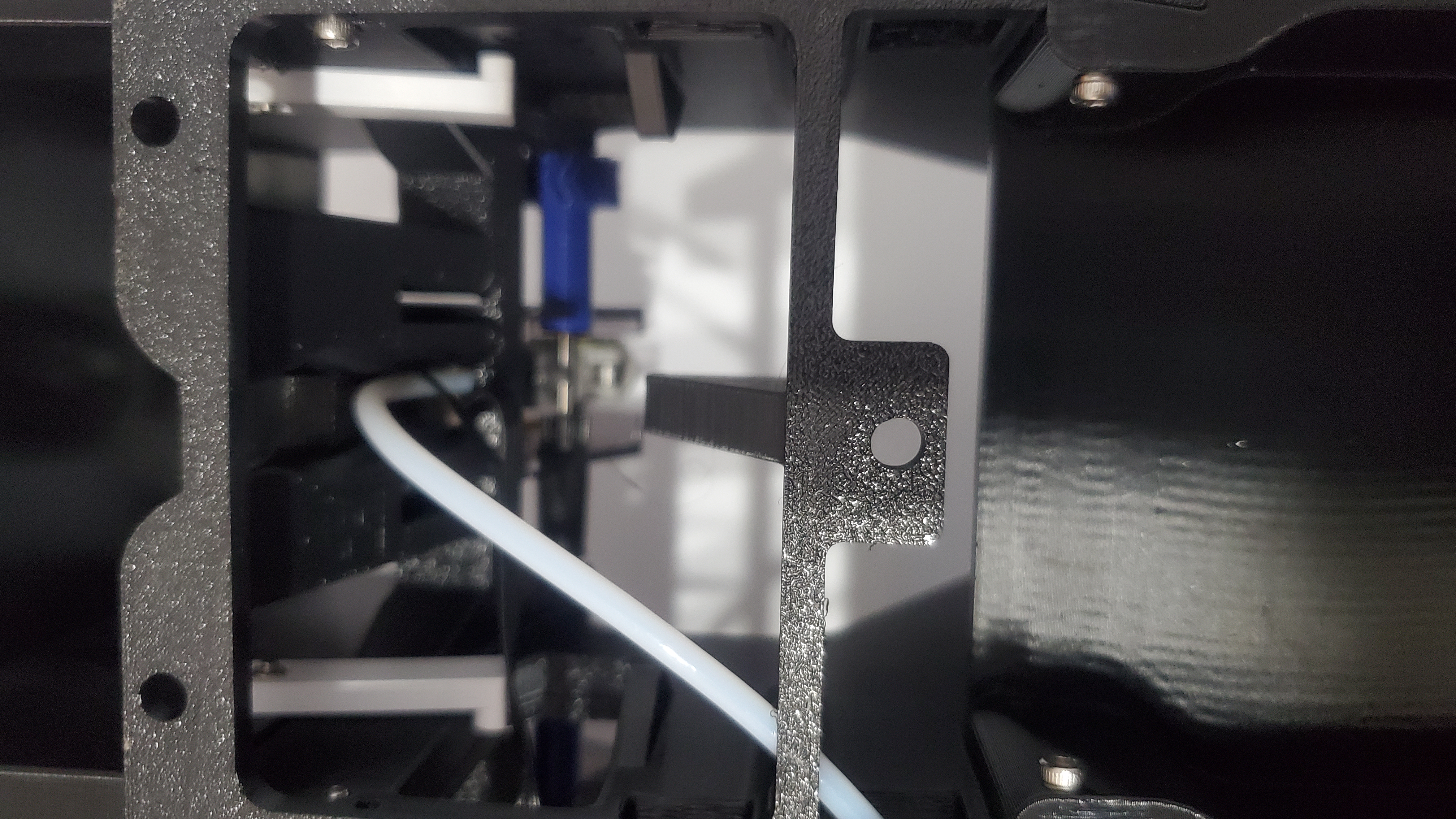

9/17/2024 I added a few pictures to help explain how I hold it onto the Python frame.
