Frame for the acrylic “enclosure” included with the Circuitmess Chatter 2 (a Lora text messaging device compatible with Meshtastic firmware.) Features a nice satisfying power switch slider, and reinforcement for the flimsy top section of the acrylic. The optional back cover makes the device an even thickness, and could perhaps be used to hold a GPS or a rechargeable battery.
Print all parts in the given orientation.
- 1pc frame (with supports) or frame-no-antenna (with supports)
- 1pc power-switch

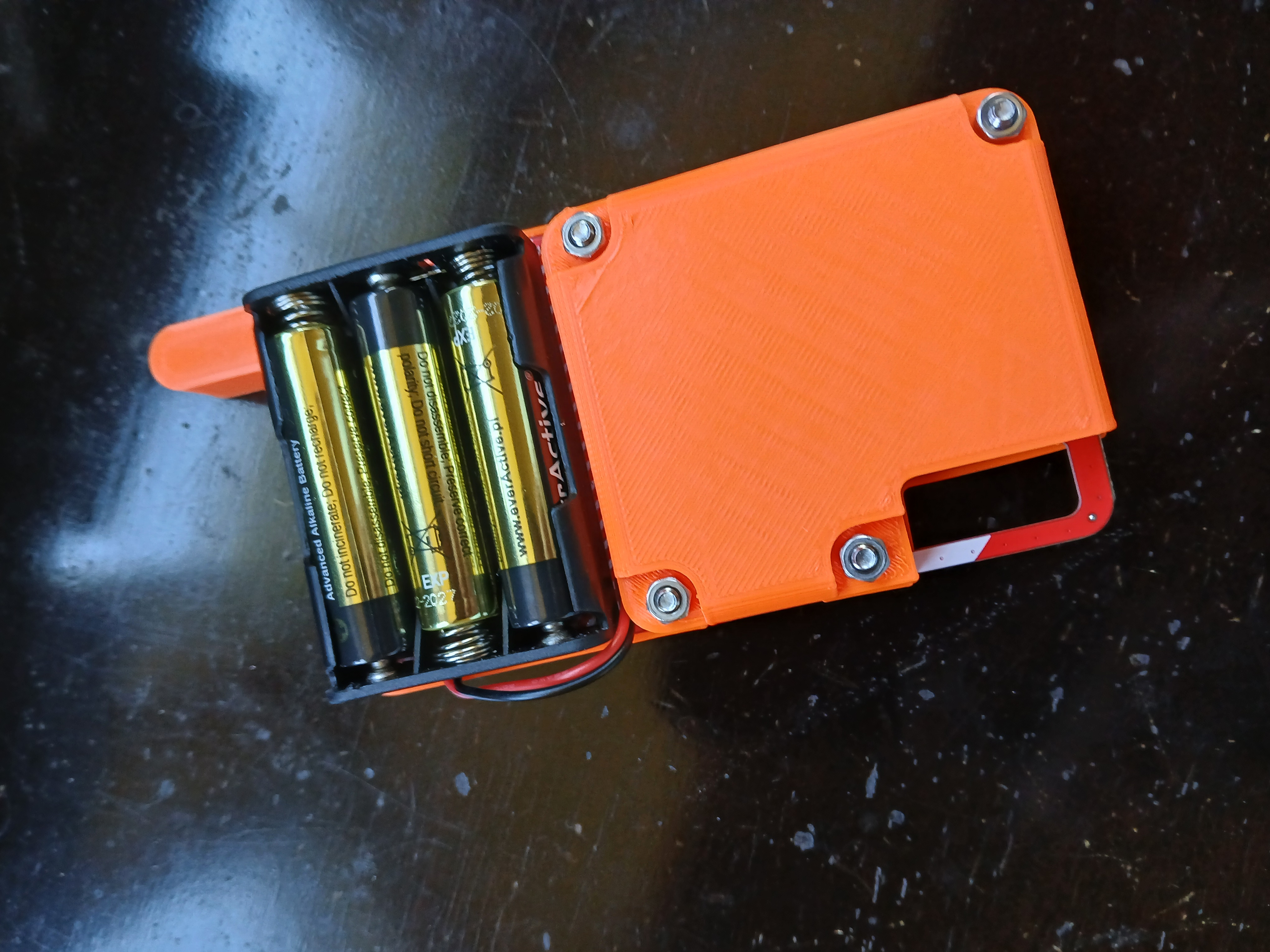

- optional: 1pc back
Requires 4pc M3x20-25mm screws and 4pc M3 nuts. Omit all the screws and spacers that came with the kit. If using the optional back cover, use 25mm long screws (same as the popular TonyG Meshtastic cases) and omit the back acrylic part that came with the kit.
