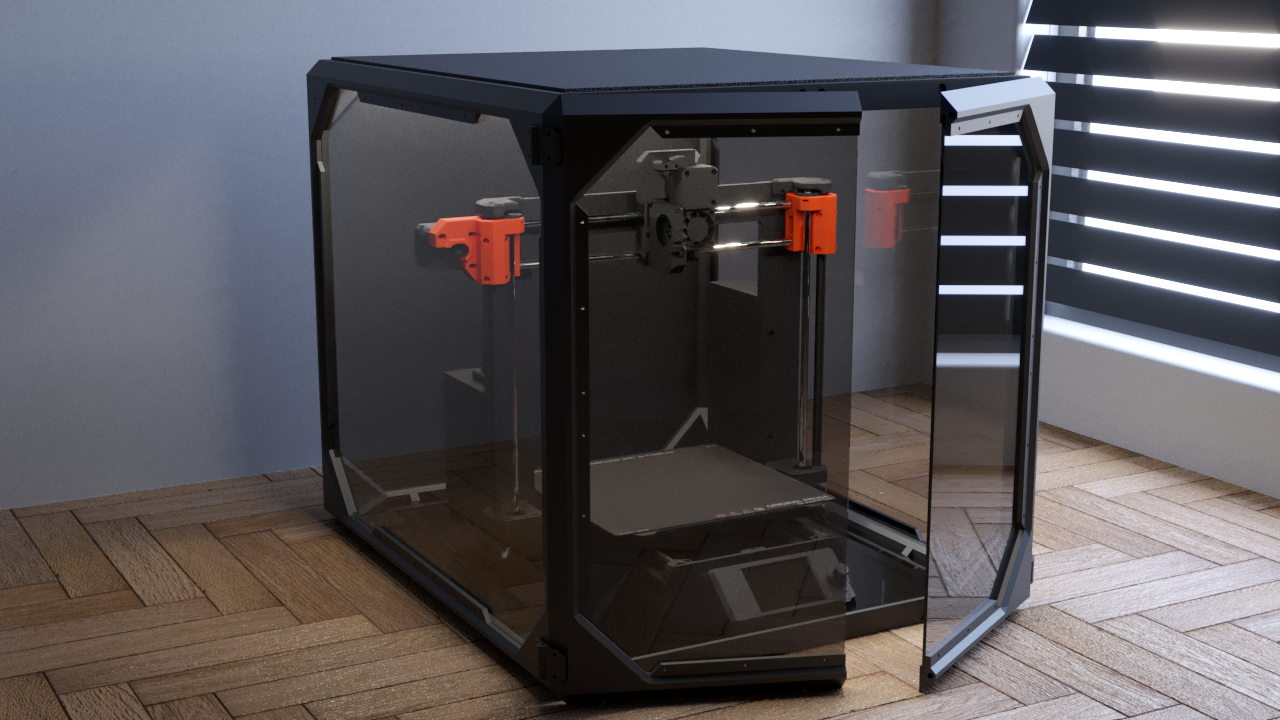

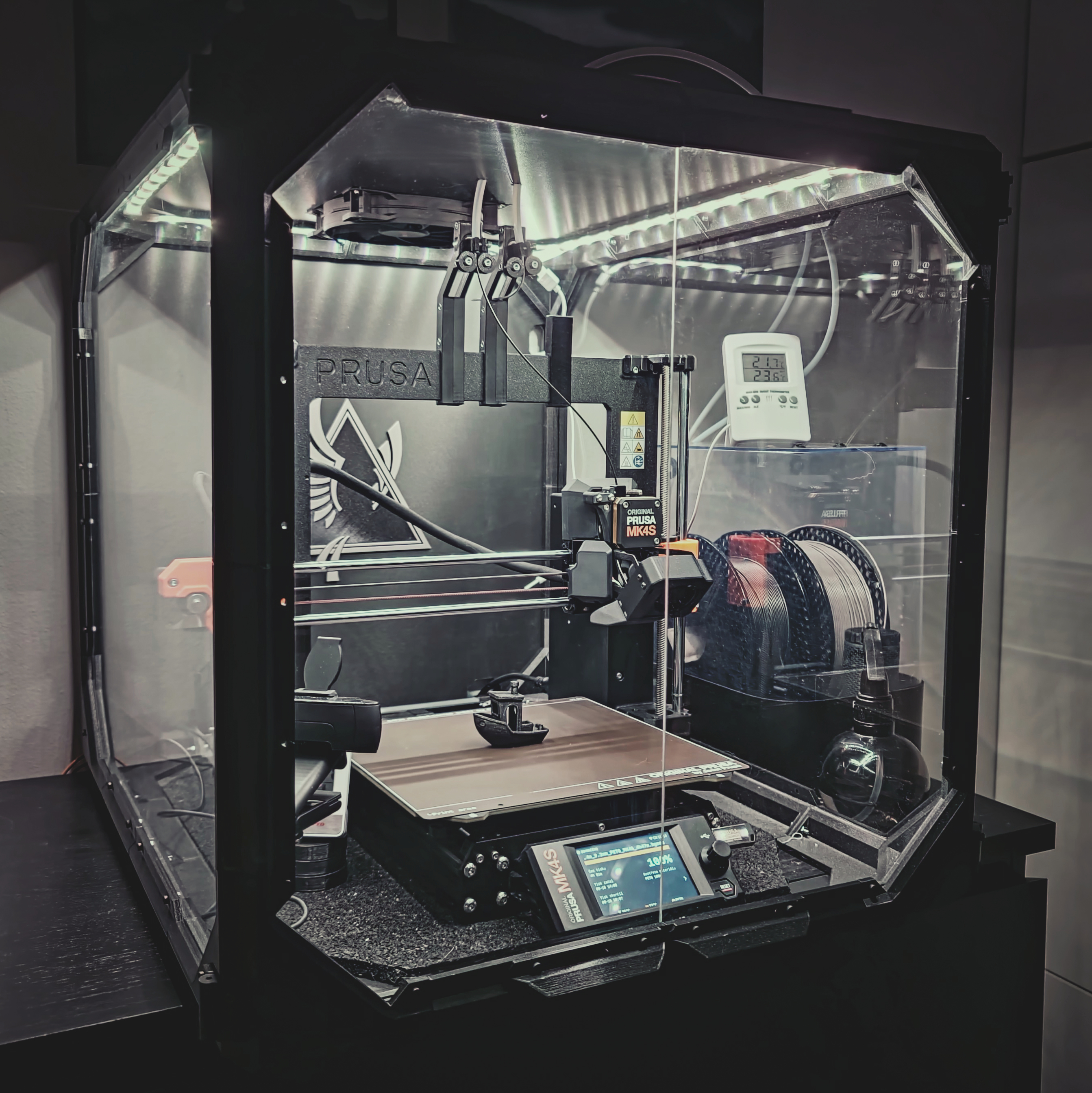

Printed Enclosure Project for Prusa MK4/S - PrintClosure
Info:
External dimensions - 520x520x620 (XYZ)
Internal dimensions - 490x580x490 (XYZ)
Can be printed even on smaller footprint printers (like Prusa Mini).

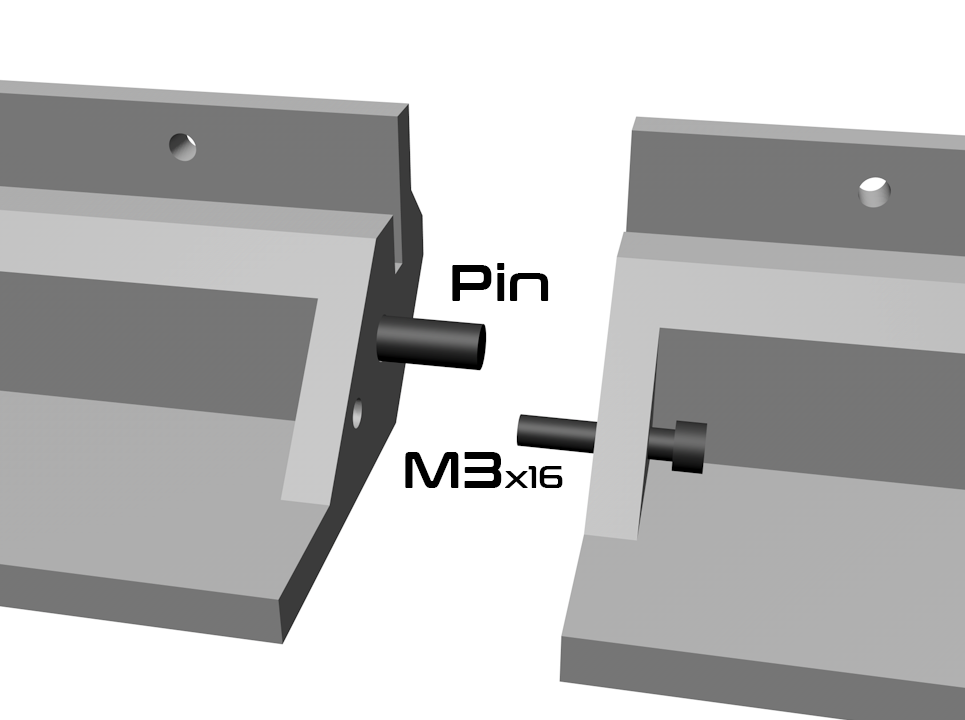

Uses printed pins and standard M3 Screws for connecting individual parts.
For back and top panel, i used Hardened PVC Foam, 3mm thick (but you can use Glass, Acrylic or anything you might like)

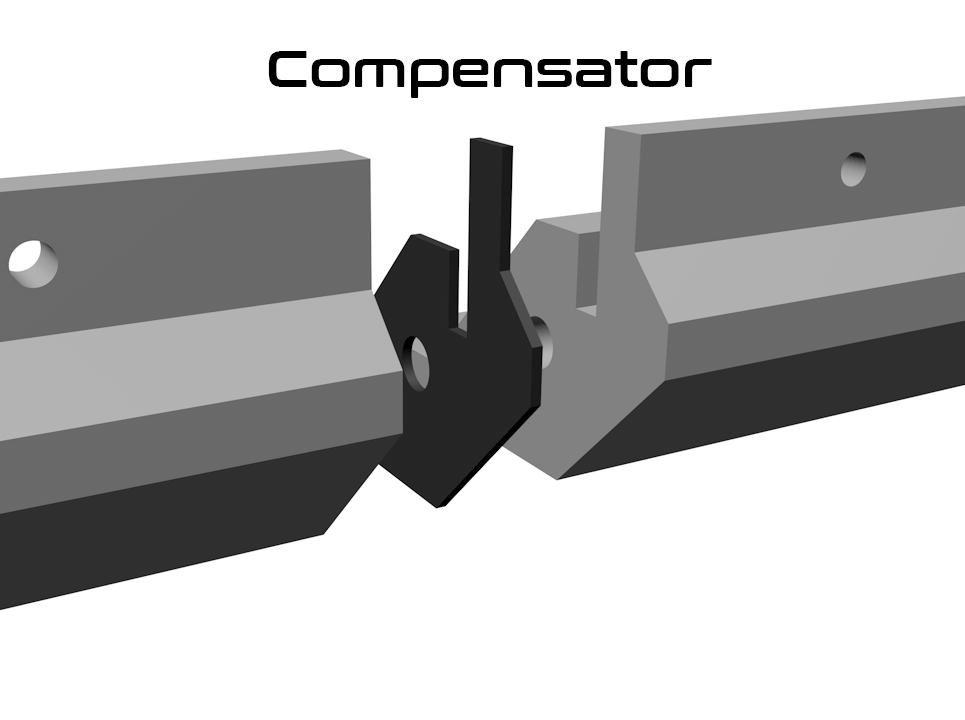

Compensator parts included (for compensation of plastic shrinkage due to the heat)
Print info:
All parts together costs ~ 2kg of PETG Filament (depends on your print settings).
Printed and tested for enough structural stability with:
2 perimeters
15% Gyroid infill
Please consider using brims (due to sharp corners).
Additional parts:
These Printed Hinges
2x 480mm x 580mm Acrylic glass or standard glass 3mm thick for side panels
2x 240mm x 480mm Acrylic glass or standard glass 3mm thick for doors
24x Threaded Heat Inserts (These or similar) for hinges and corners (bigger holes inside parts X1 and X2)
8x 10x2mm Neodymium magnets (These or similar)
Back panel (of your choice) - 480x480x3mm
Top and Bottom panels (of your choice) - 510x410mm (min) to 580x480mm (max)
~60 M3x10 Screws (~20 minimum) (Side panels)
~30 M3x16 Screws (~24 minimum) (Connecting individual parts)
8 M3x25-30 Screws (For corners)
~100 M3 Nuts (~50 minimum)
(You don't have to use every hole, but more screws = more structural integrity)
Additional extensions coming soon
