The housing developed for programmable logic controllers is a practical and efficient solution for those seeking to integrate automated control in various applications.
Click in the link below and access all files for download in PCBWay directory.

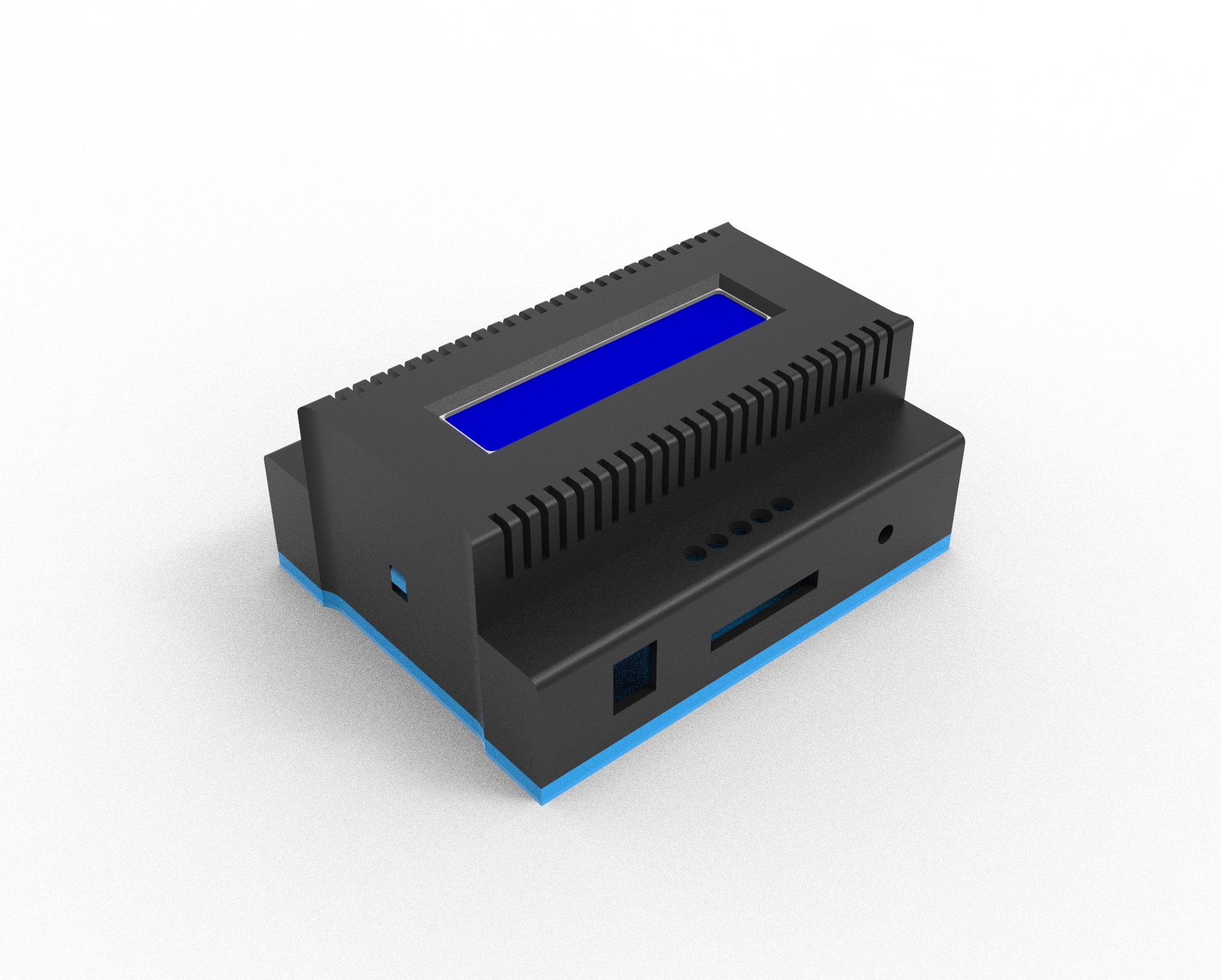

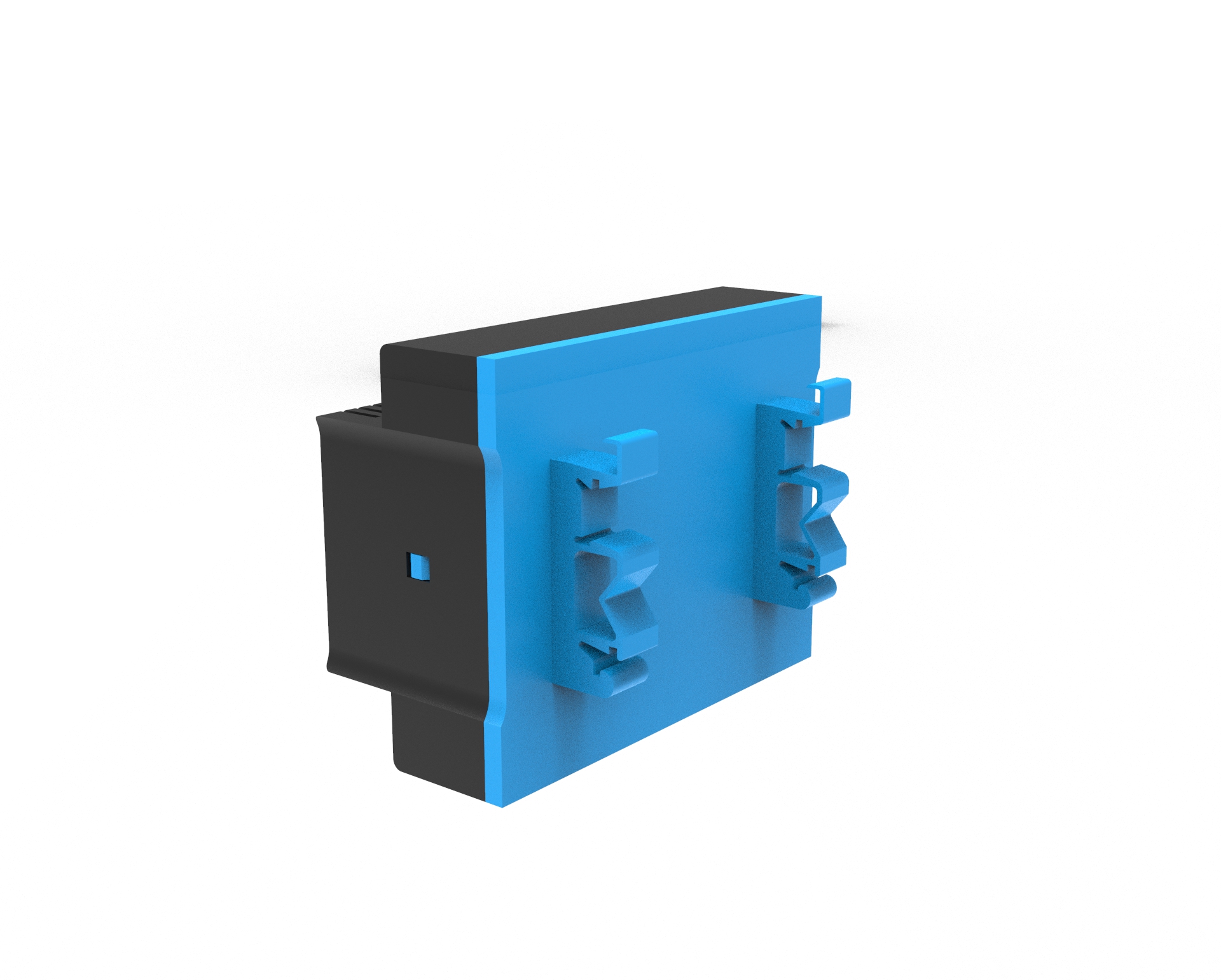

Designed to facilitate the implementation of electronic projects, it is compatible with 25mm DIN rails, allowing easy installation in electrical panels and industrial environments. In addition, the design includes a 16x2 LCD display and four control buttons, providing an intuitive interface for monitoring and adjustments.
With 24V power outputs and connection for up to four relays, this housing offers versatility and practicality for the development of automatic controllers, allowing users to access and customize the design according to their needs, with the option of 3D printing.
https://www.pcbway.com/project/shareproject/Electronic_Enclosure_for_Programmable_Logic_Controller_0515e436.html
By purchasing this housing, developers gain a robust and adaptable structure, ideal for creating reliable and professional automation systems.
Below we will present the complete project documentation.
