Mounting frame for Android player

Mounting frame for https://www.ebay.com/itm/10-1-1080P-HD-Ultra-thin-Android-8-1-Quad-Core-GPS-Wifi-TV-TPMS-DAB-Mirror-Link/312554000052?hash=item48c5ab8eb4:g:DlIAAOSwBZ5coaIZ
The frame has install points for

• the player itself
• the GPS antenna
• the ambient light sensor

• the USB ports
  and should have enough holes and slots for cable management. The stand mount hole is designed for the stand from https://www.ebay.com/itm/12V-24V-9-Quad-Split-Monitor-IR-4x-4PIN-Reversing-Rearview-CCD-Camera-Truck-Bus/273191543629?epid=22007507836&hash=item3f9b7c234d:g:UAwAAOSwXY5ZVcFN (I happened to have a unused stand from that) with the diference that tightening the stand to the frame is done turning the screw counterclockwise (the square metal plate pushes against the frame)

  Print Settings

Printer Brand:

Prusa

Printer:

Rafts:

No

Supports:

Resolution:

0.20 mm

Infill:

Filament:
[

ClasOhlson PLA ](http://www.amazon.com/s?url=search-alias&field-keywords=ClasOhlson+PLA&tag=thingiverse09-20) White

Notes:

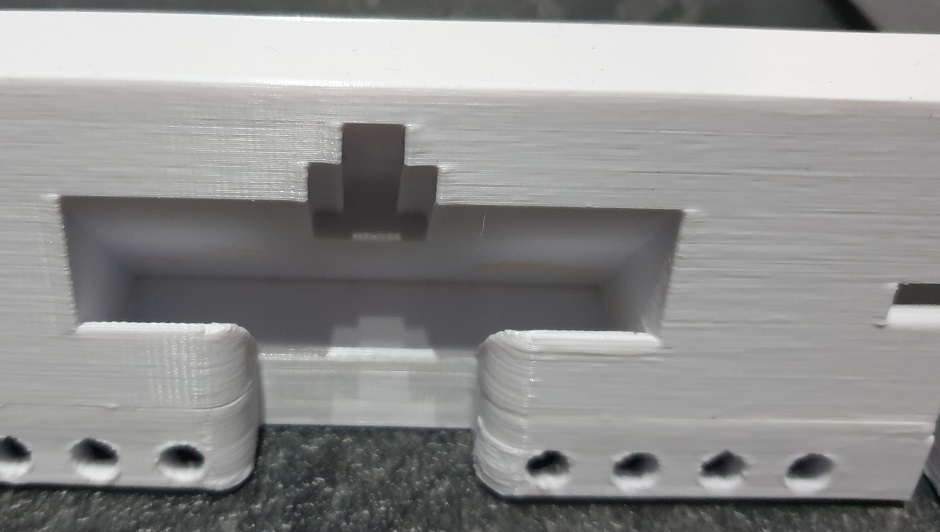

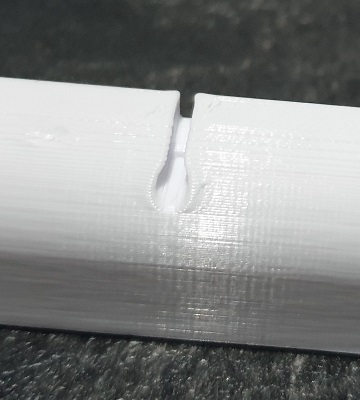

Unfortunately my Prusa i3 MK2.5S/MMU2S decided to layershift during the print at height 3.8 mm and as this was a 13+ hour print, I decided to print just the missing part and glue the parts together in order to have 1st version for dimensions checking

Post-Printing

Needs some sanding
