sicksplit

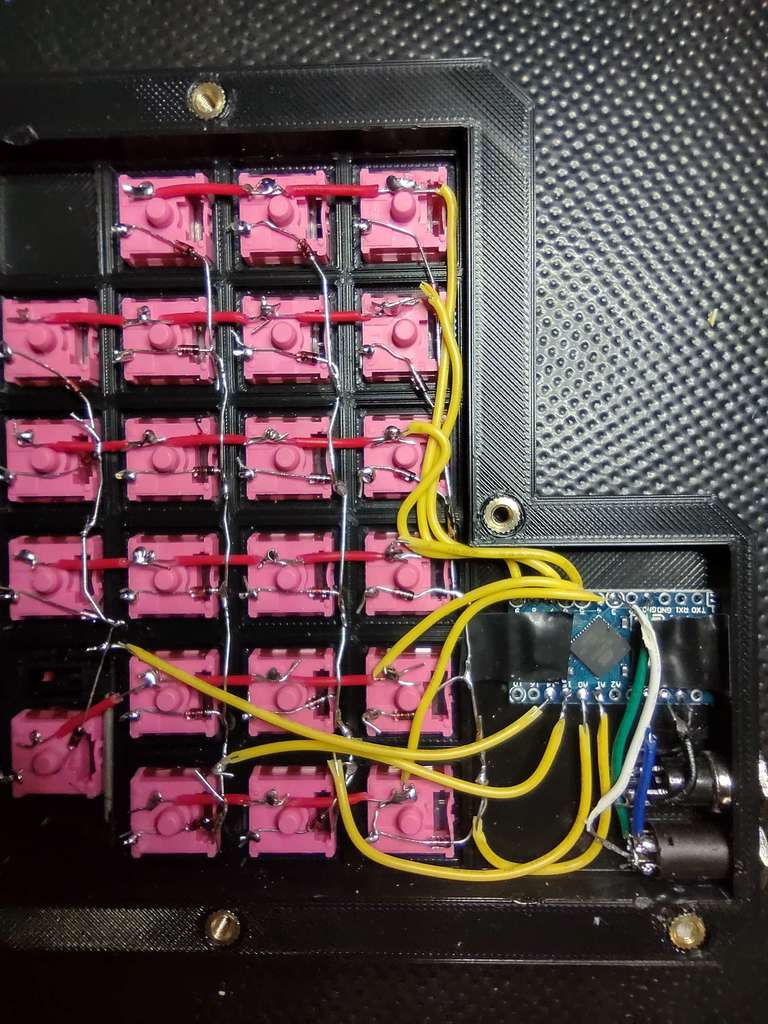

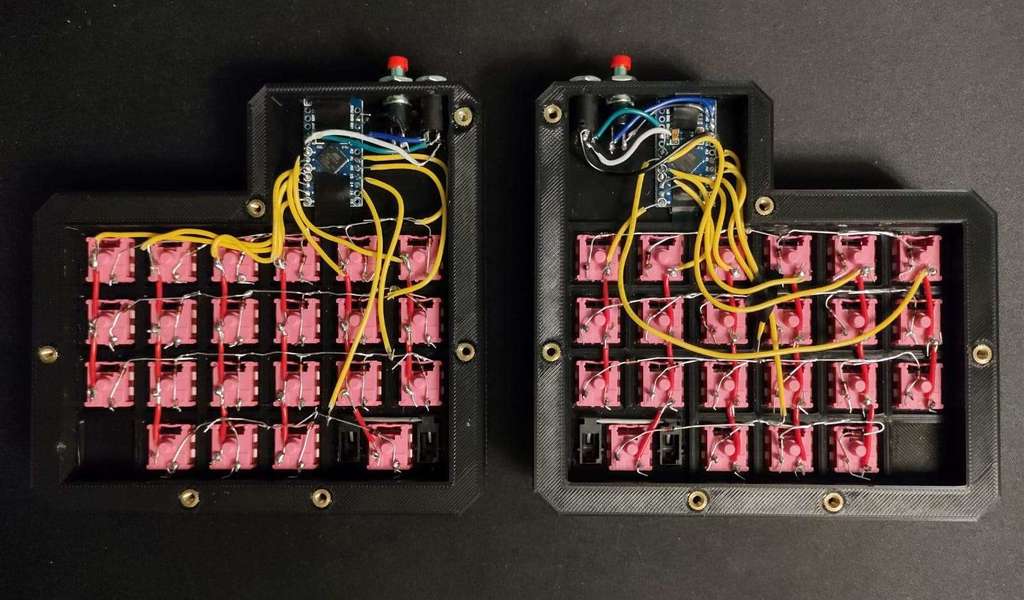

This is my first attempt at creating an handwired mechanical keyboard from scratch. It is a 44 keys split ortho keyboard that I made to play FPS videogames (mainly quakeworld). To build it it's needed:

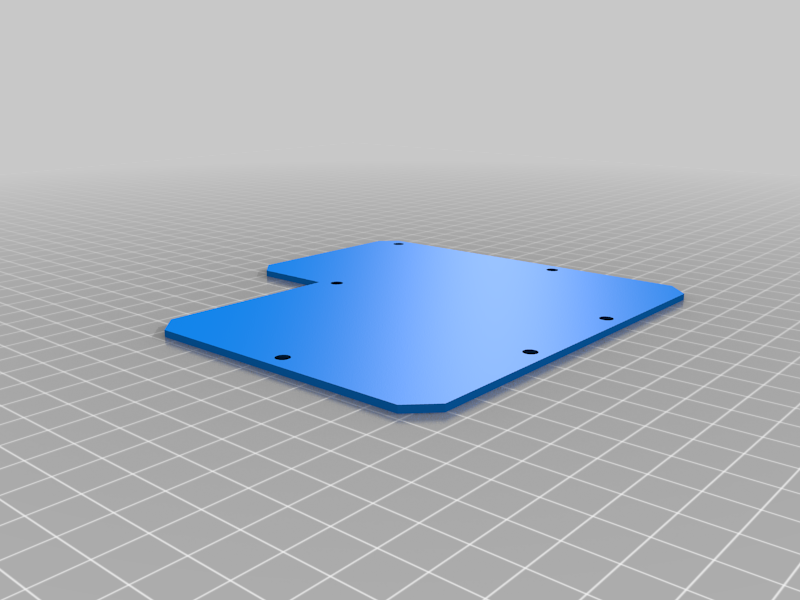

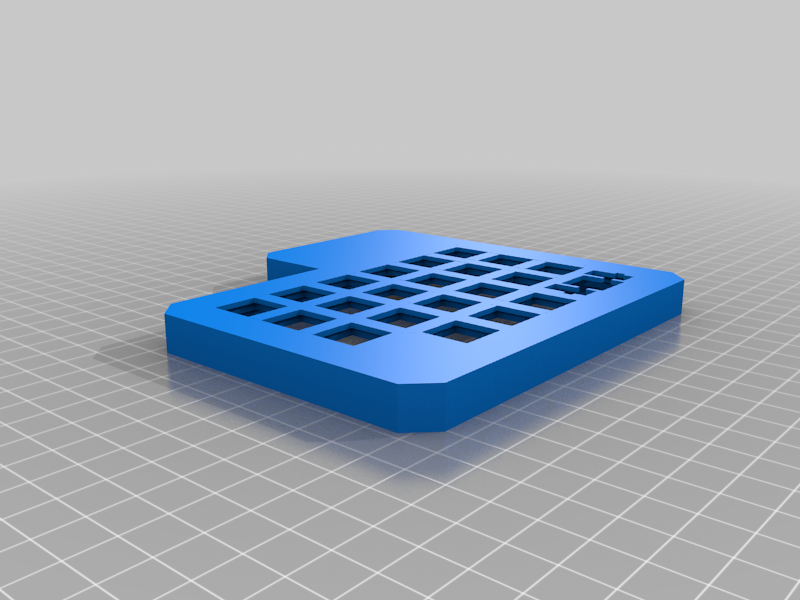

1. To 3D print both halves and both bottom parts (I've put only the left stl files, just mirror them in the slicer, this is how I printed mine)
2. 44 diodes like these: https://www.amazon.it/gp/product/B07ZCVQ6KJ/
3. 44 MX switches like these (any type will do): https://www.amazon.it/gp/product/B08XXN1DLV/

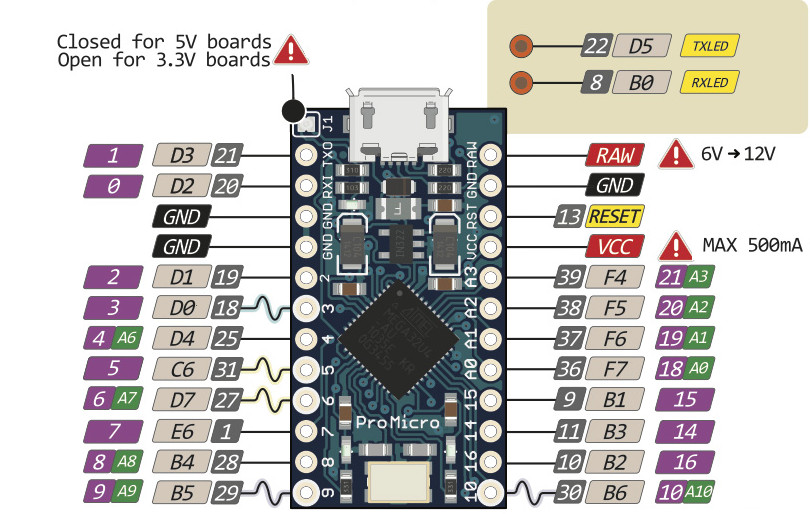

4. 2 arduino pro micro (or clones) like these: https://www.amazon.it/gp/product/B07FXCTVQP/
5. 12 M3x5mm hot-inserts and relative M3 flat headed screws
6. 2 cherry mx plate-mount stabilizers, any brand will to, I took this: https://www.amazon.it/gp/product/B07K8FHCQJ/

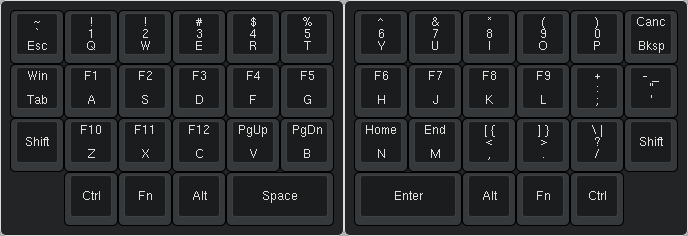

7. flash qmk firmware (I've included mine as an example but any compatible firmware and any keymap can be used)

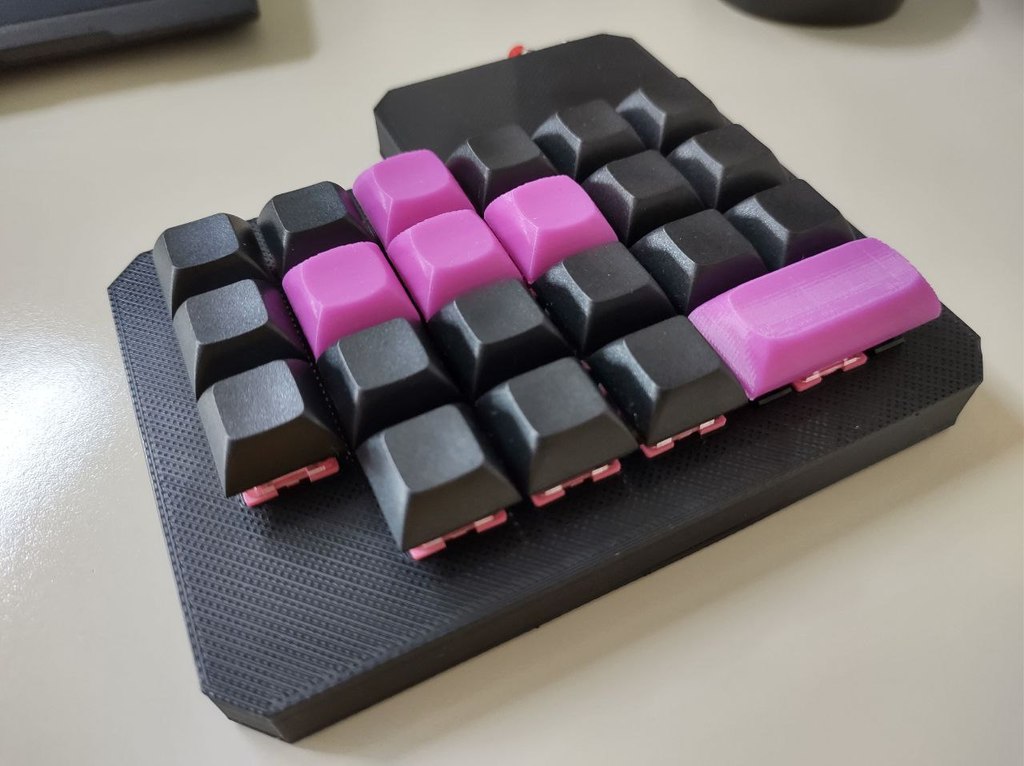

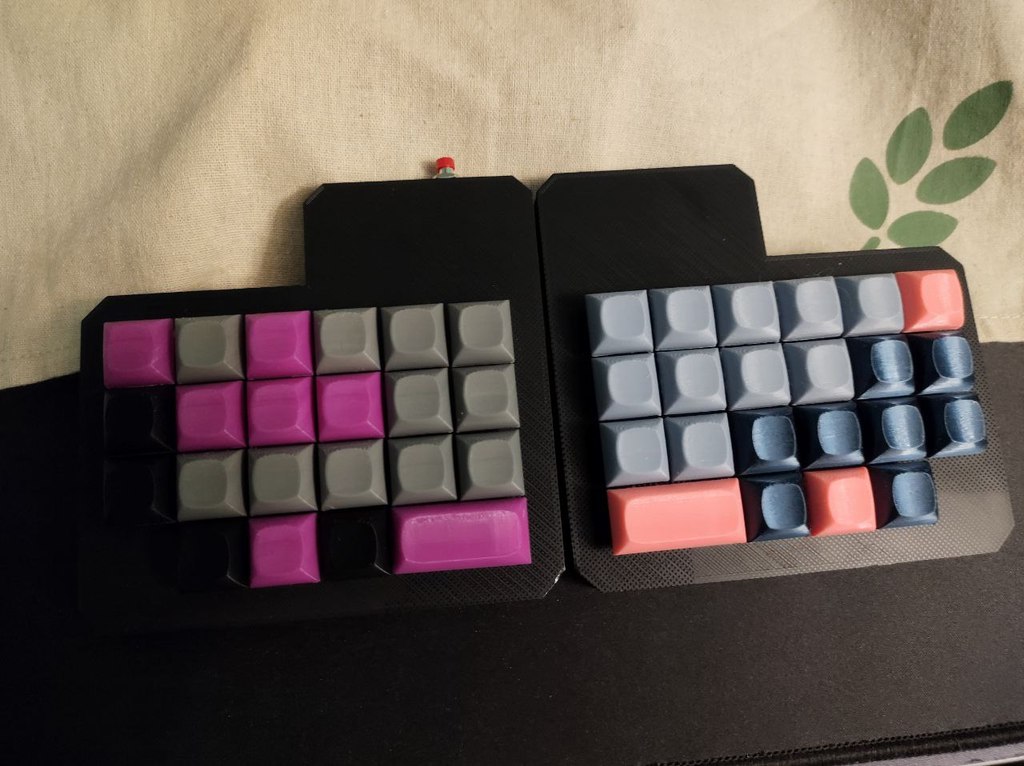

8. 22 x 1U mx keycaps and 2 x 2U mx keycaps (those in the pictures are all 3D printed)
9. 1 TRRS cable
10. 2 female jacks for the TRRS connector, I've used these: https://www.amazon.it/gp/product/B09WMR4F27/
11. 2 reset buttons, not mandatory, but handy to reflash the firmware, I've used these: https://www.amazon.it/gp/product/B07XRKN3F3/

Print Settings

Printer Brand:

Creality

Printer:

**Rafts:**

No

Supports:

**Resolution:**

0.2

Infill:

**Filament:** SUNLU PLA black

Notes:

Category: Computer
