Hinge and Standoffs for Raspberry Touchscreen Case RPI 4B
Zamów wydruk tego modelu
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Accessories
- Licencja
- Creative Commons — Attribution

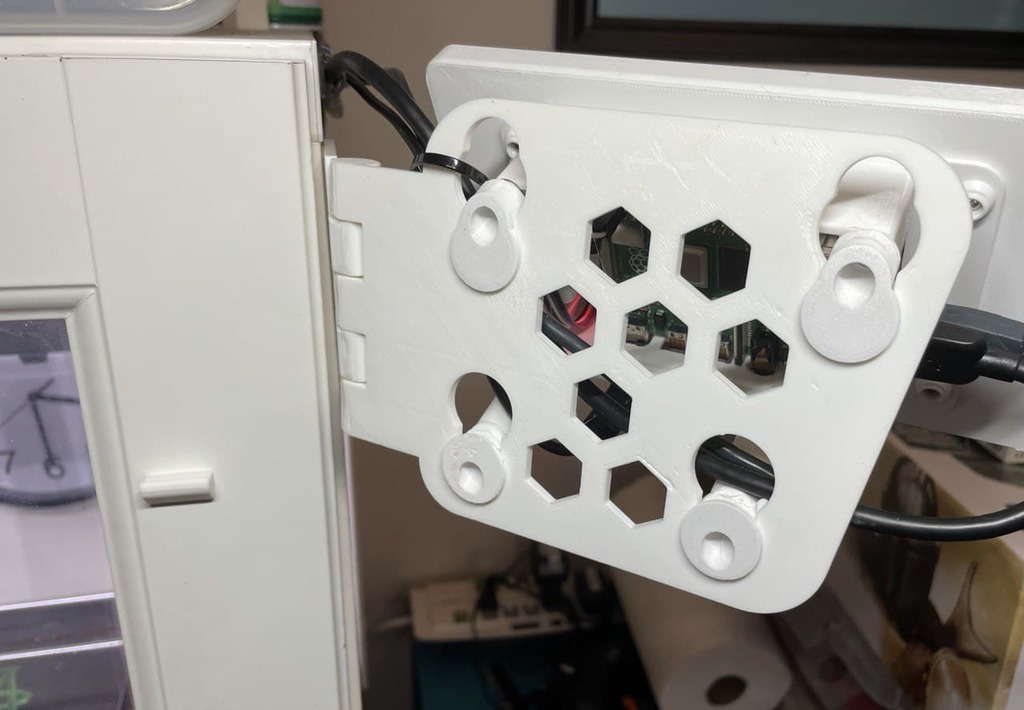

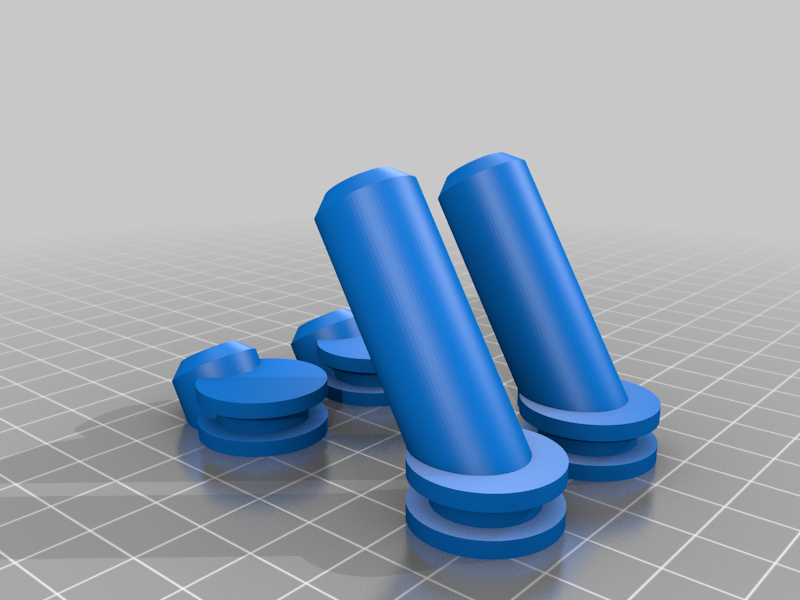

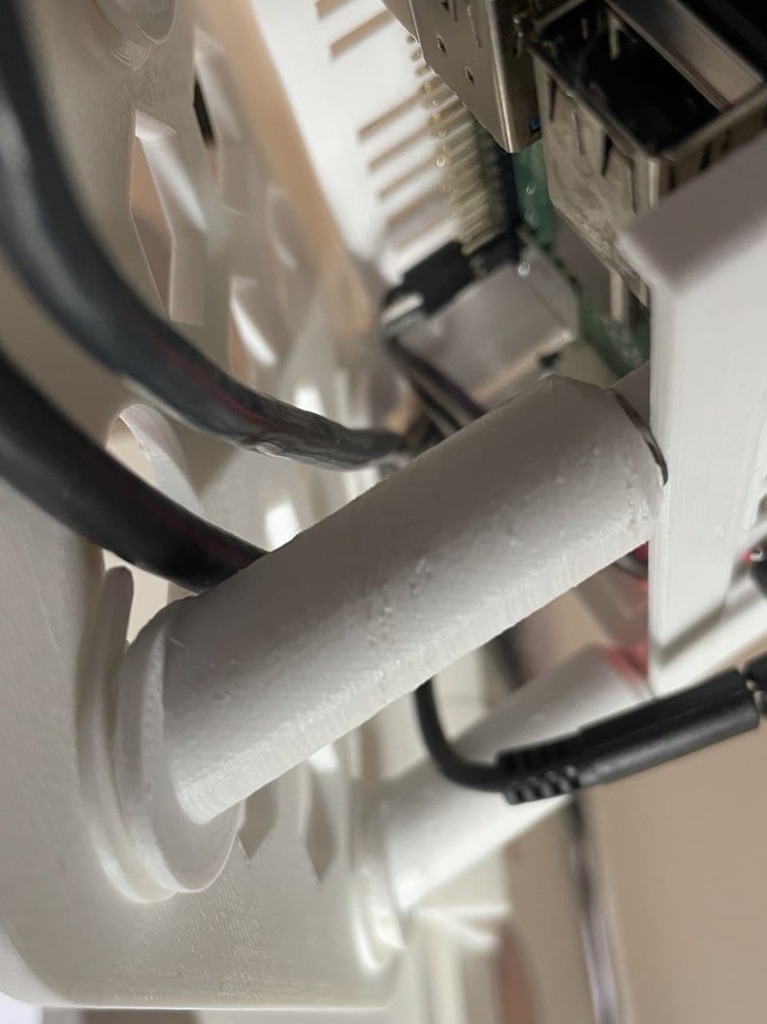

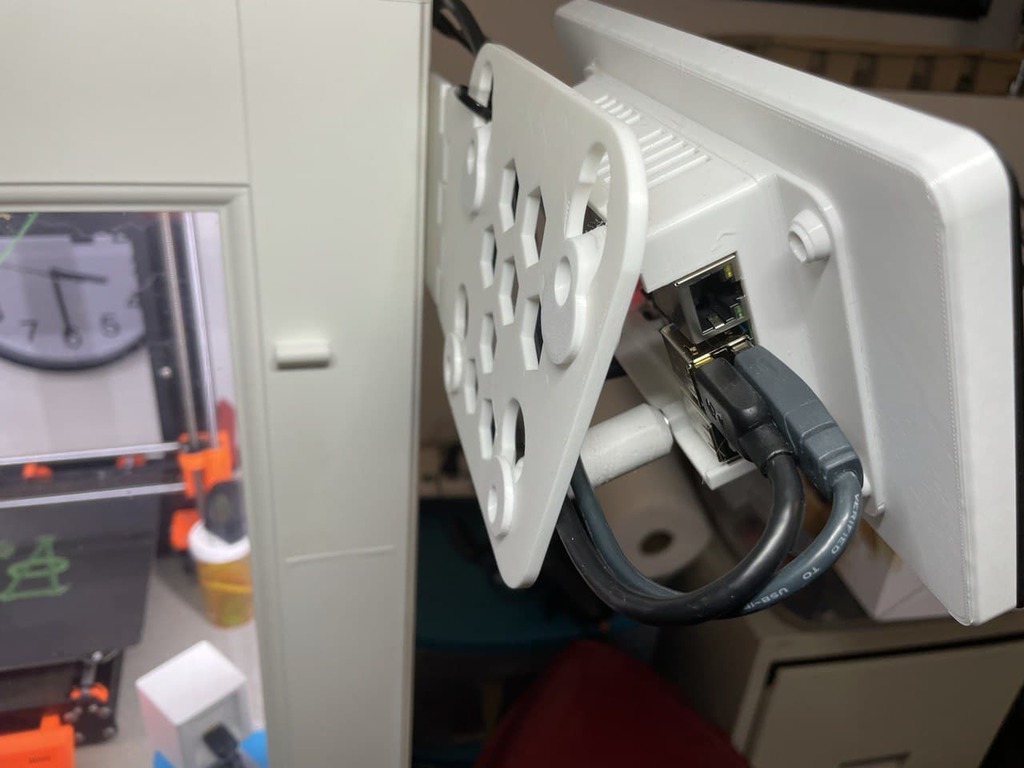

This is to use with @Jacaeiro's excellent RPi 4B case. The standoffs screw into the back of the front part. With long enough screws, probably can use the back, but I chose to leave it off for additional air flow (and since I wouldn't really see it).

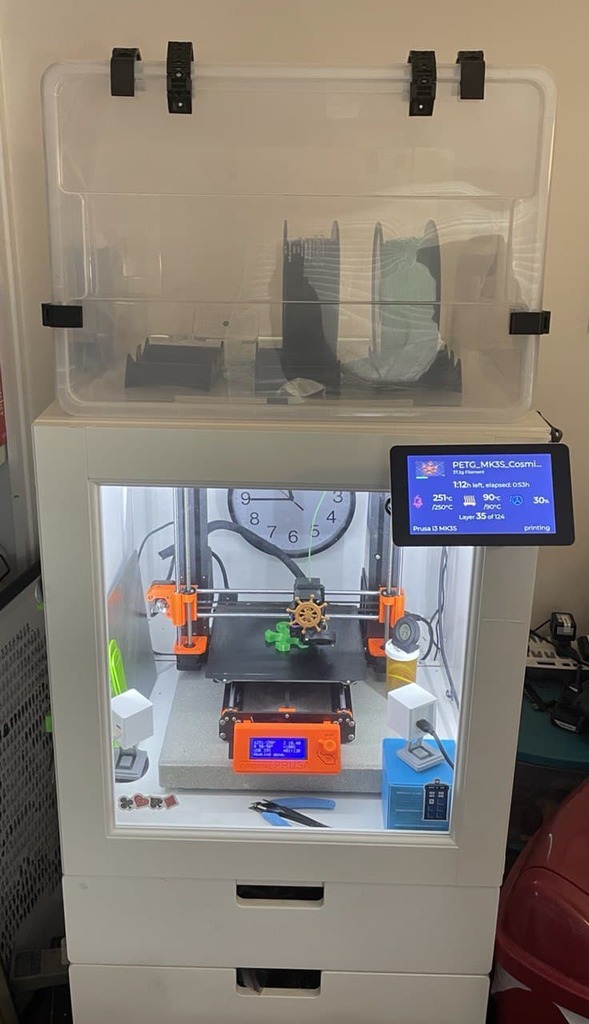

I used Gorilla Tape to secure this to my cabinet. That stuff is very strong.

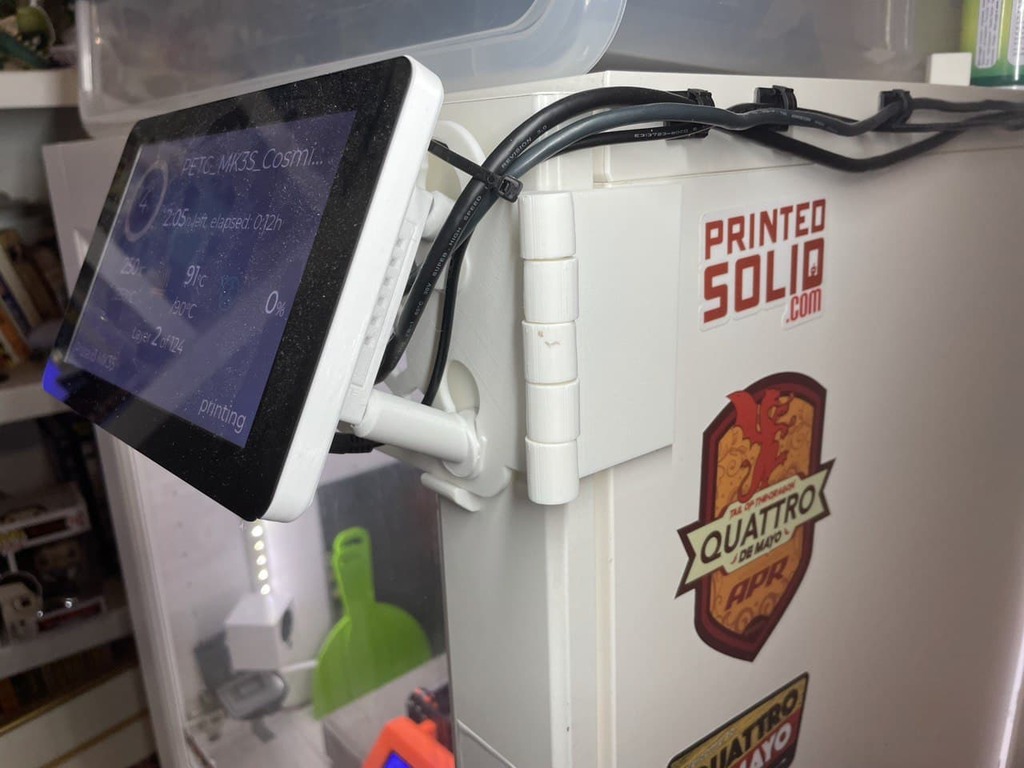

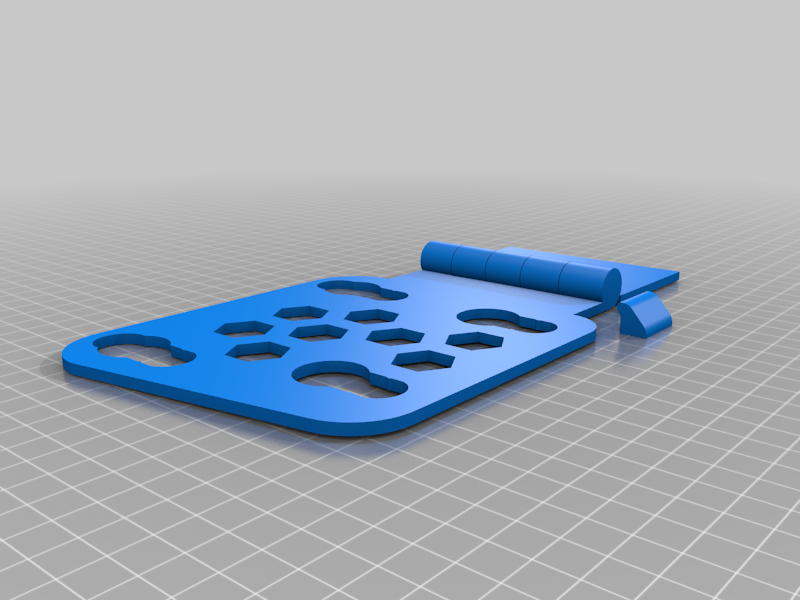

Since it sags a little because of play in the hinge, I included a little 'ledge' I used to help keep it more level when it's in place in front of my cabinet door.

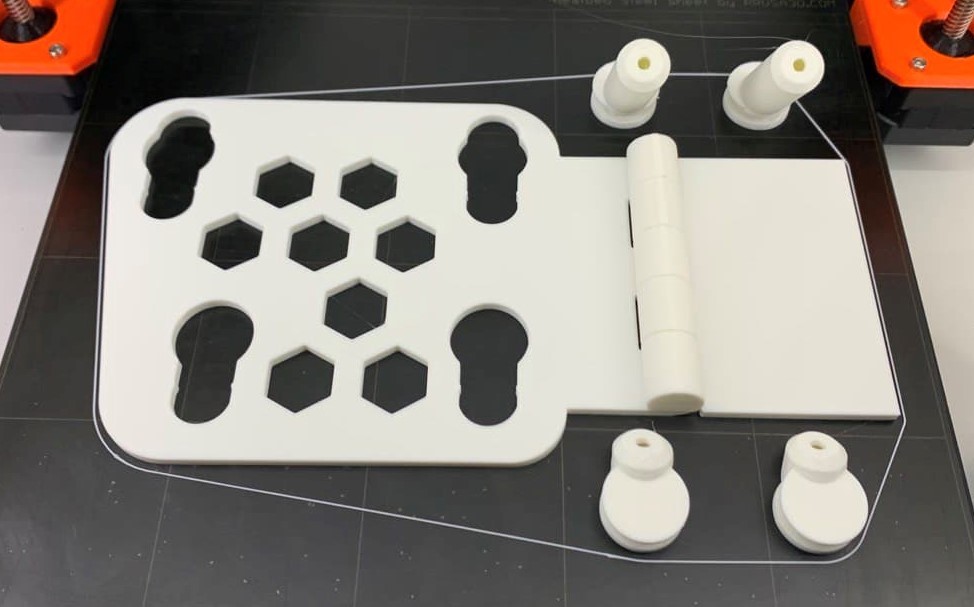

Print Settings
Printer Brand:
Prusa
Printer:
I3 MK3S
No
Supports:
No
.30
Infill:
50%
