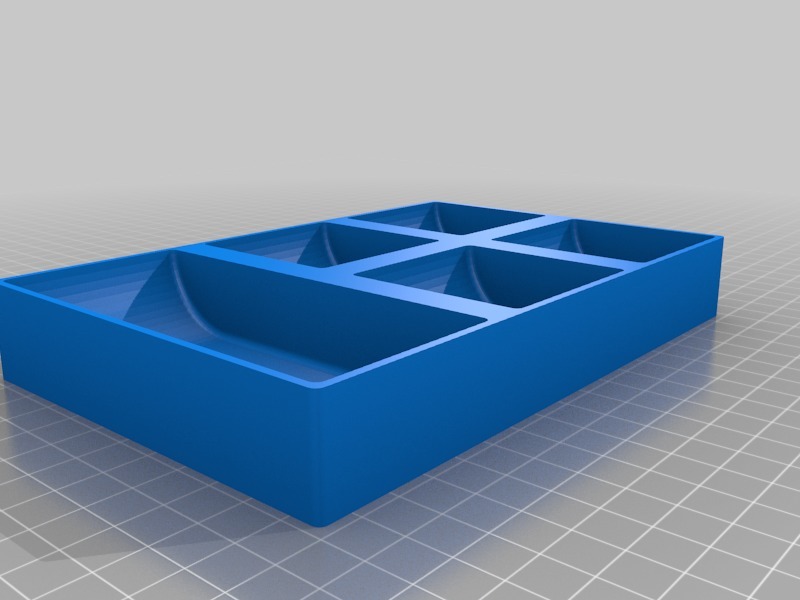

This screw tray was designed to collect the screws when taking electronics apart ;) It's a bit higher (22mm tray inside) to keep a decent amount of them. The rounded edge on the inside is to get the screws out easier. At the bottom of the tray are magnets and rubber feet.
The big compartment of the tray is without magnet.
Dimensions:
outer dimensions: 174x114x25mm
small compartment: 50x50x22mm
big compartment: 110x50x22mm
Post-Printing

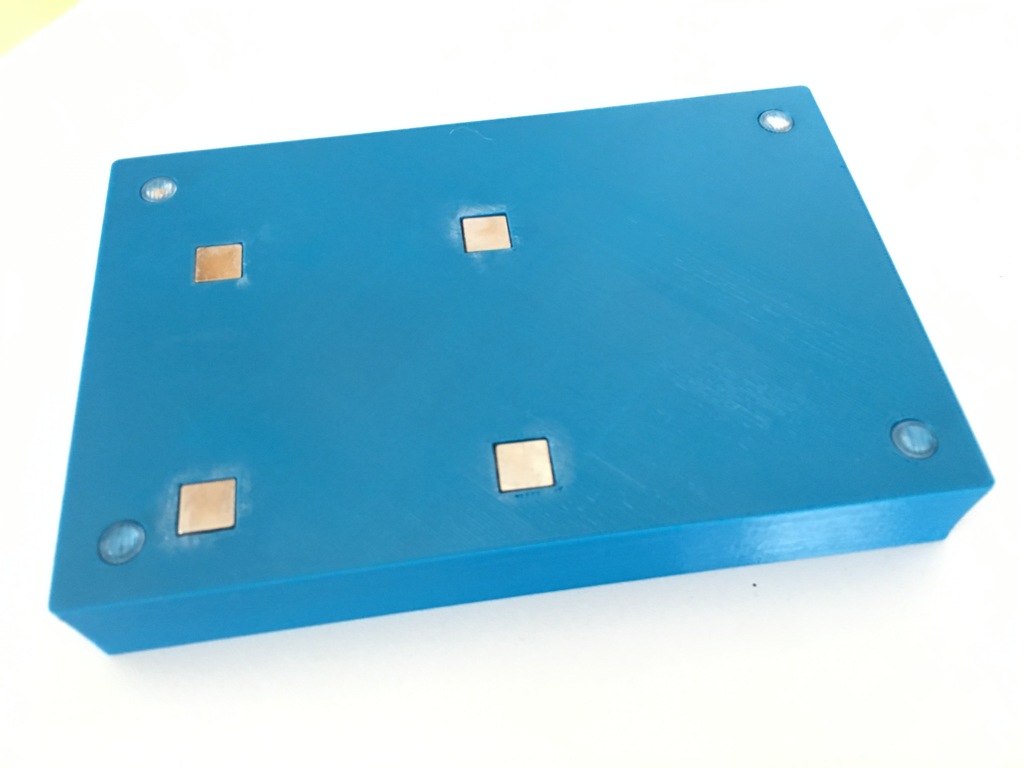

After printing the box clue the rubber feets and magnets in place. I used magnets with a size of 10x10x1mm and rubber feets with a diameter of 9mm.
