Wrapping Paper Table Mount

A helper tool to keep your gift wrapping paper in place while wrapping gifts. This is the first version of the model, and it is not perfect.

I plan to add a few more improvements to this model as I get them completed and tested, including:

• Support for adding a TPU plate to the stopper and mount (so it's better for your table)
• Support for replaceable holders if you have rolls of different sizes

The current roll holder is supports cores bigger than 25 mm in diameter.

Printing instructions

• Holder L & R: Print with the flat side down. The holder should not need supports. You might need to print it on the side depending on how your printer handles the stopper slot. Then you might need some supports.
• Screw: Print with the head down
• Stopper: Print with the flat side down

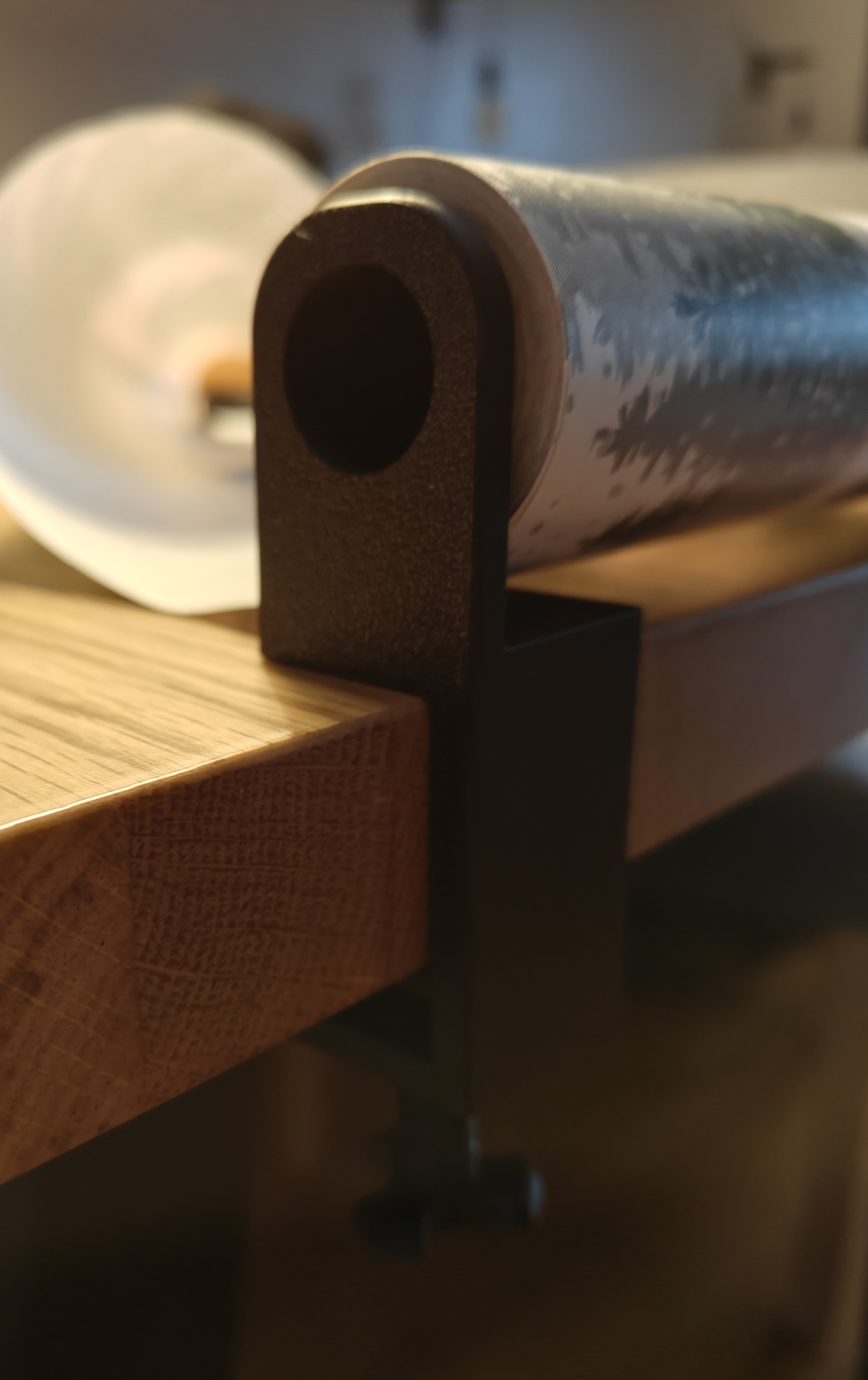

The model in the picture is printed on a Bambu P1S with:

• Filament: Bambu PLA Basic
• Infill: 15%, Gyroid
• Supports: Yes
• Adhesion: No

Assembly:

You will need to print

• 1x Mount L
• 1x Mount R
• 2x Stopper
• 2x Screw

1. Add the stopper to the slot on the holder diagonally and then twist it into place

 2. Screw the screw in from the bottom and slot it into the stopper. It might be a bit hard to screw in the first few times, but it should loosen up after a little bit.

Credits:  Icons in cover image is provided by Icons8 - 3D Printer - 3D Printing Filament - Stopwatch

Please message me if you have any questions, ideas or improvements to any of my models.
