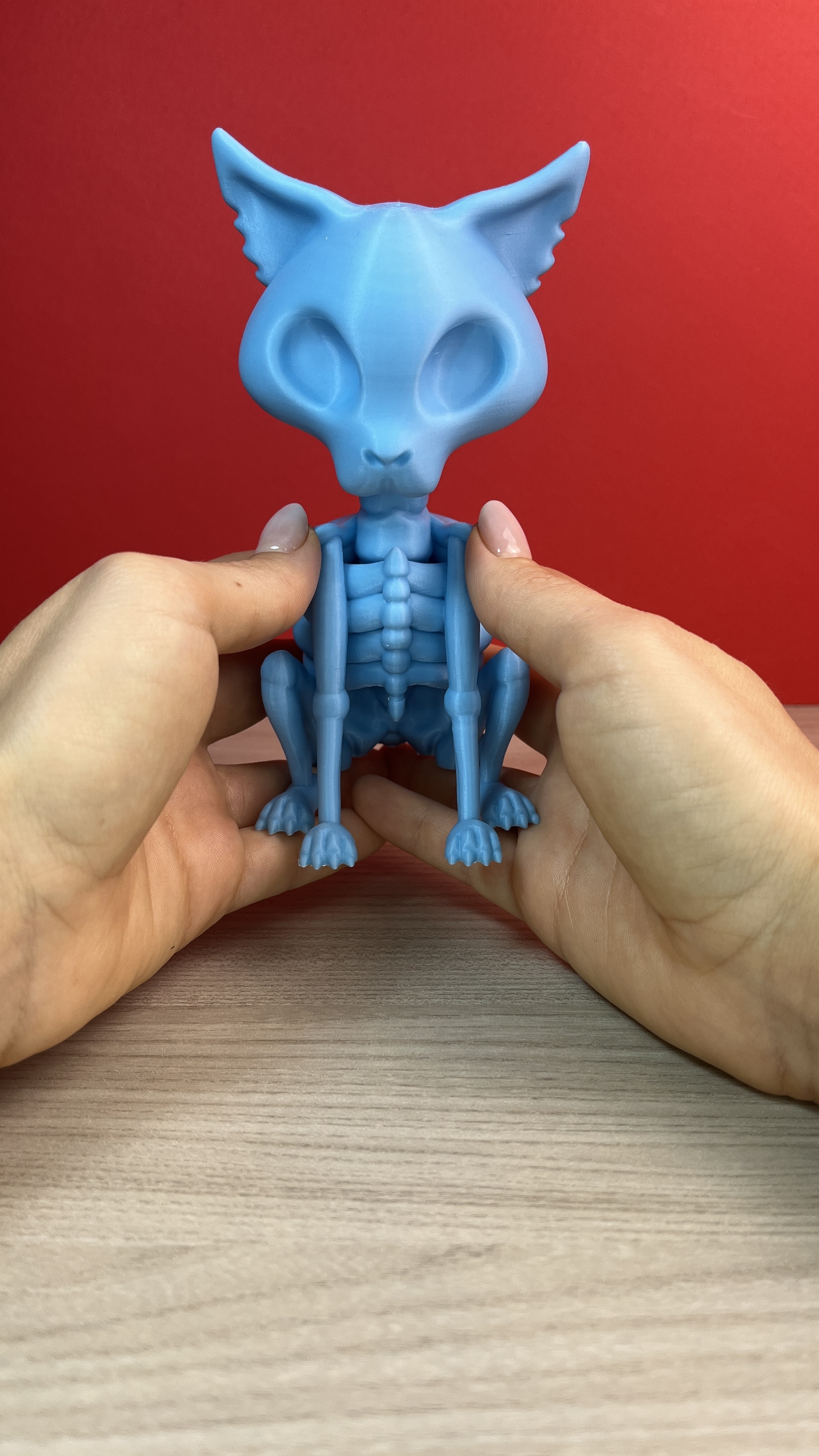

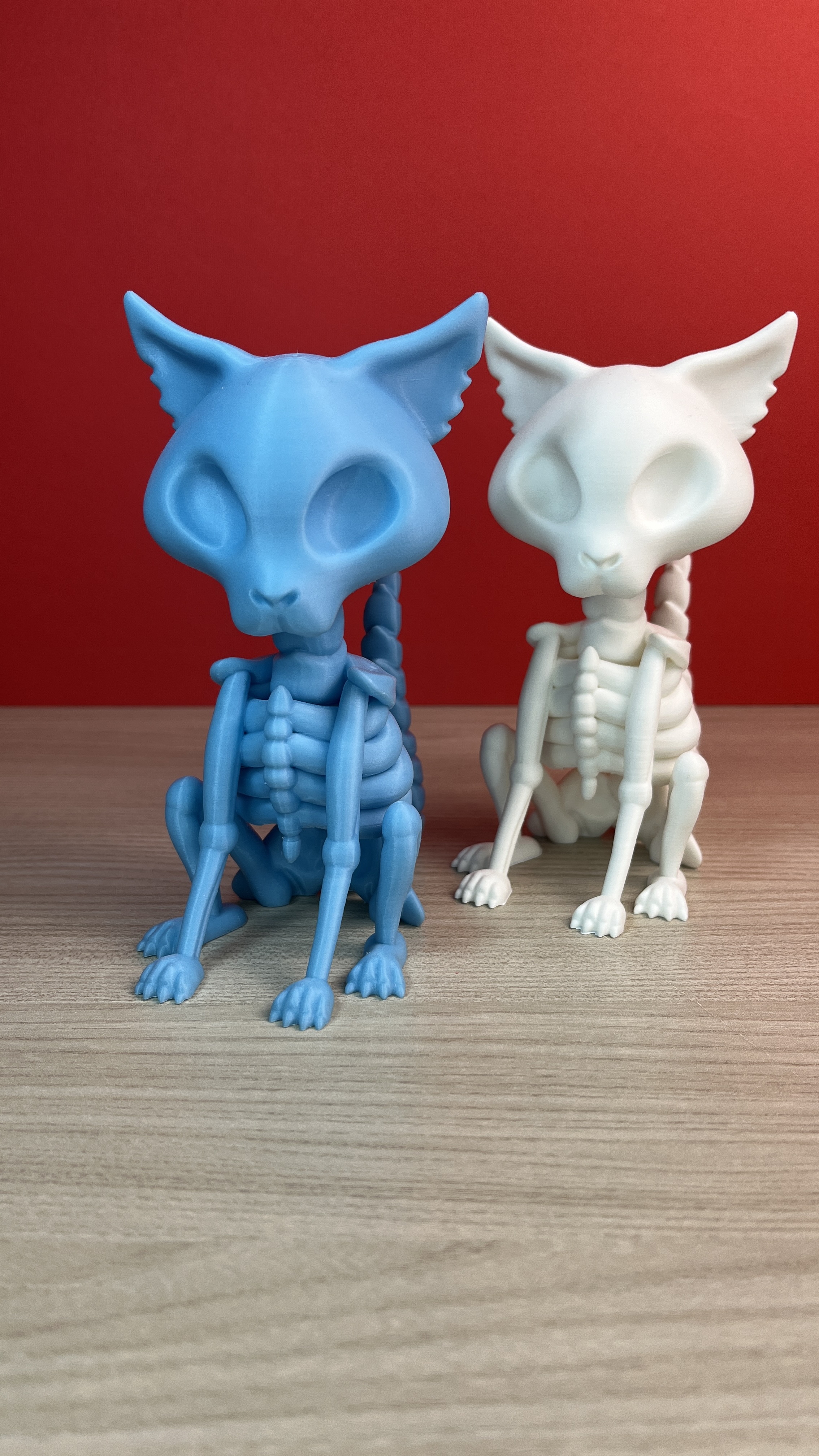

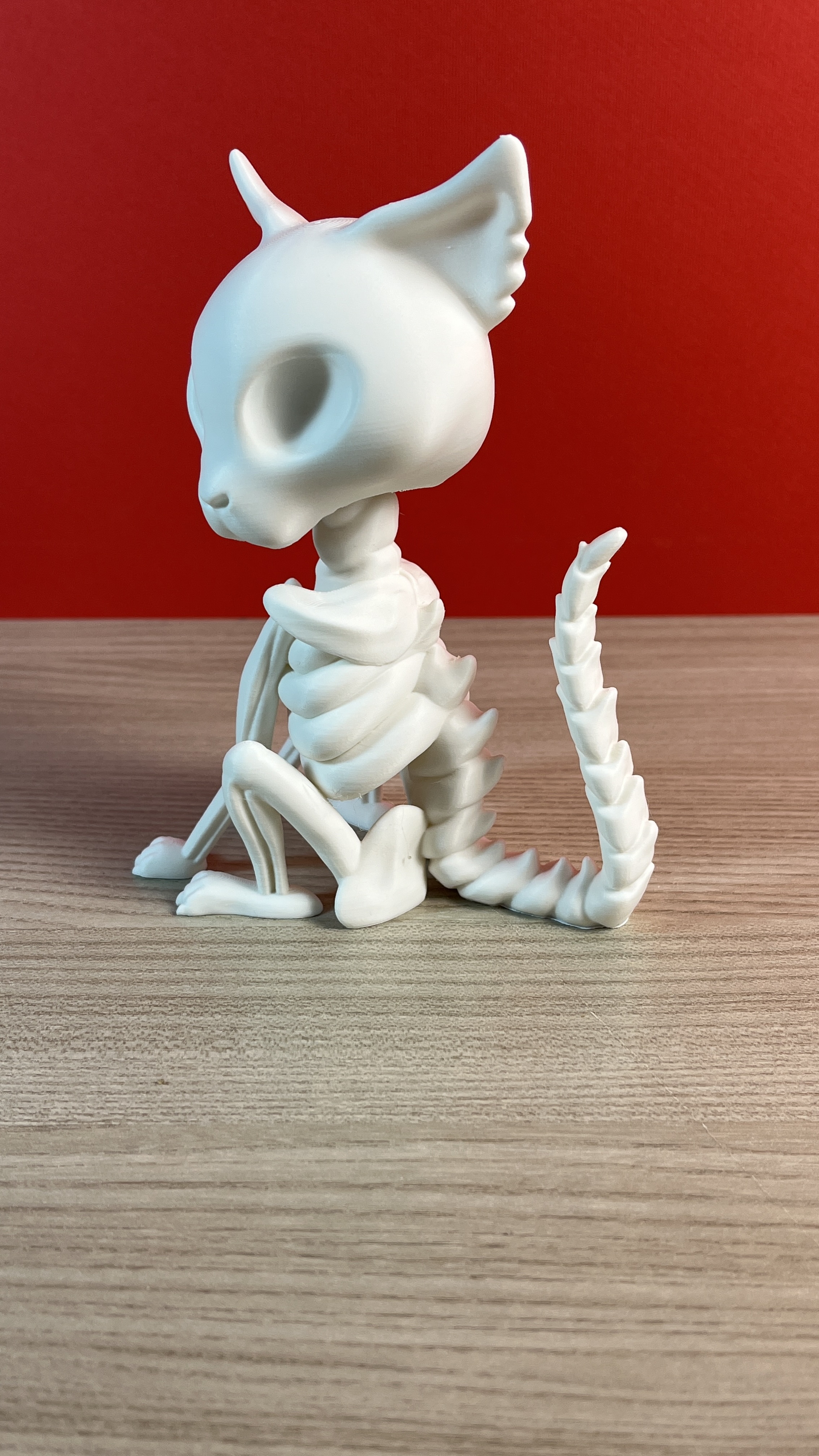

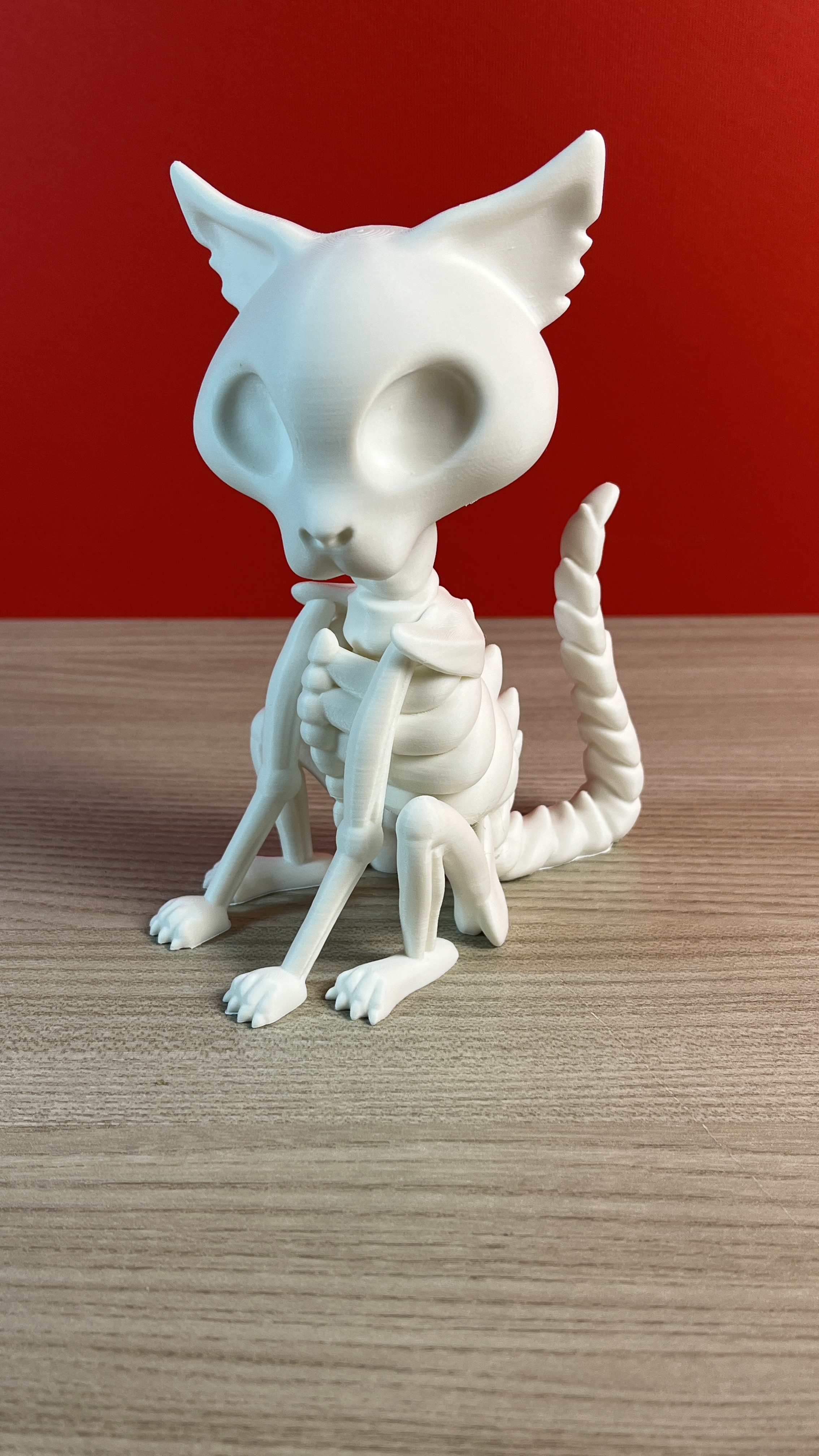

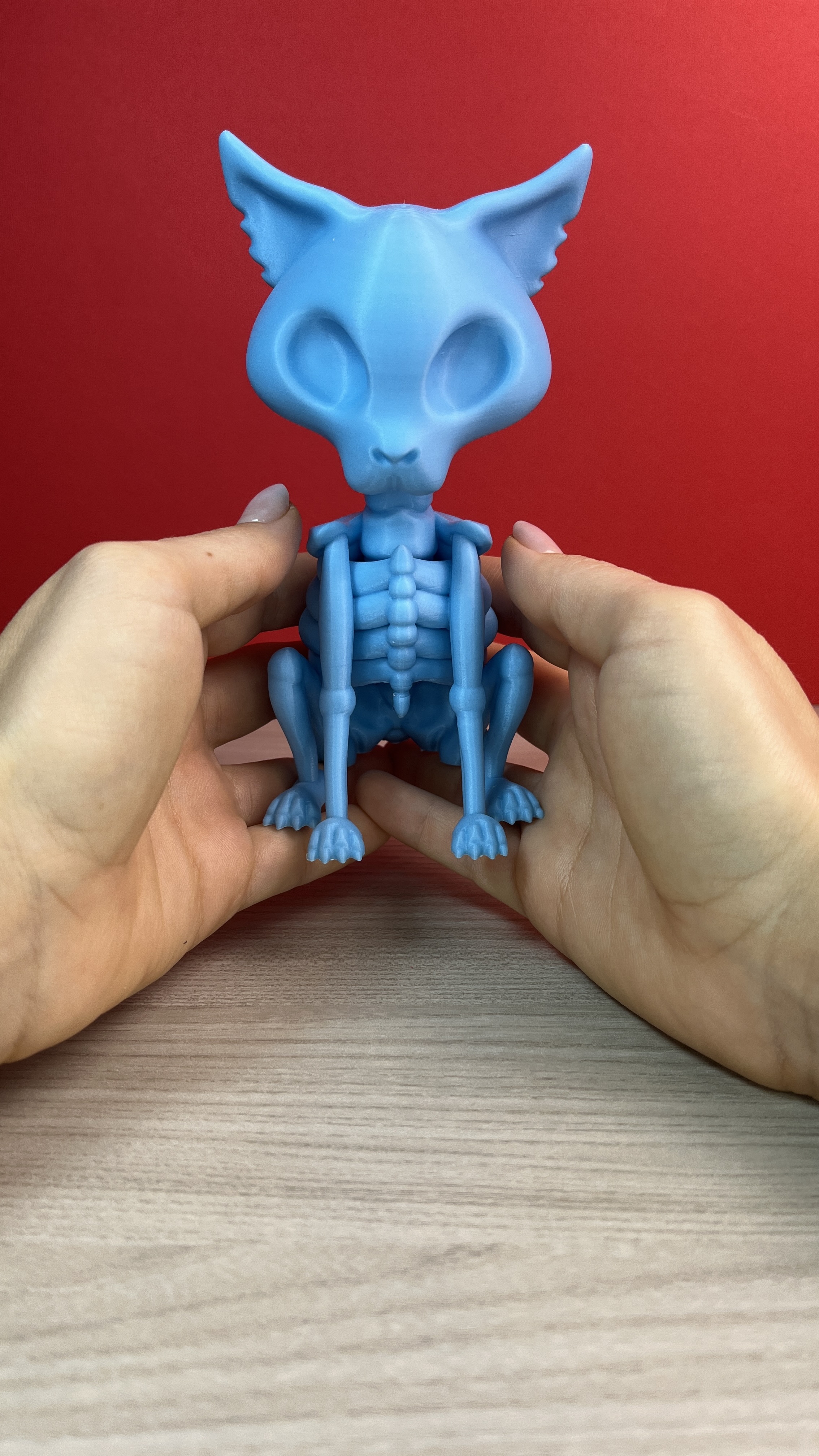

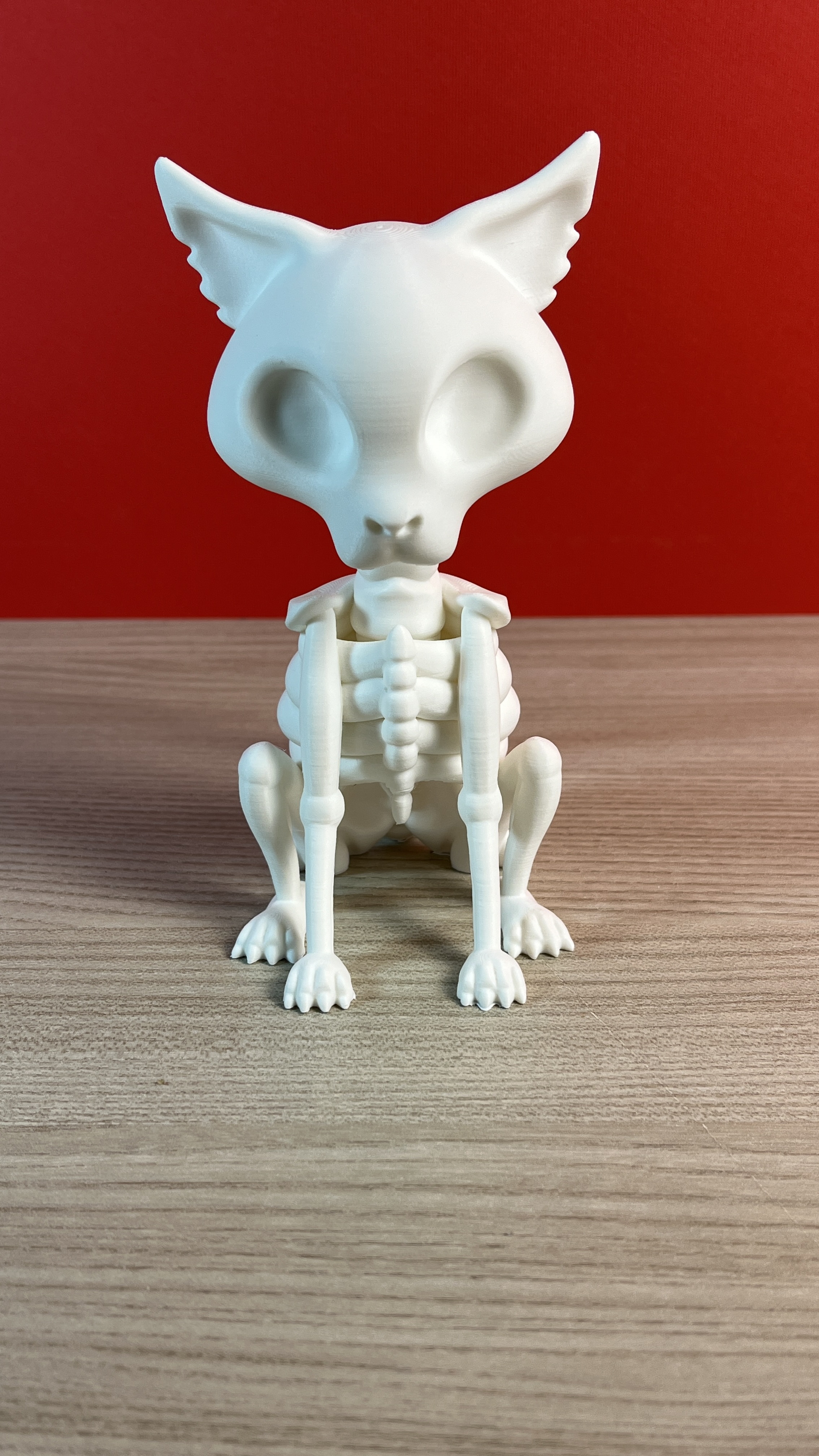

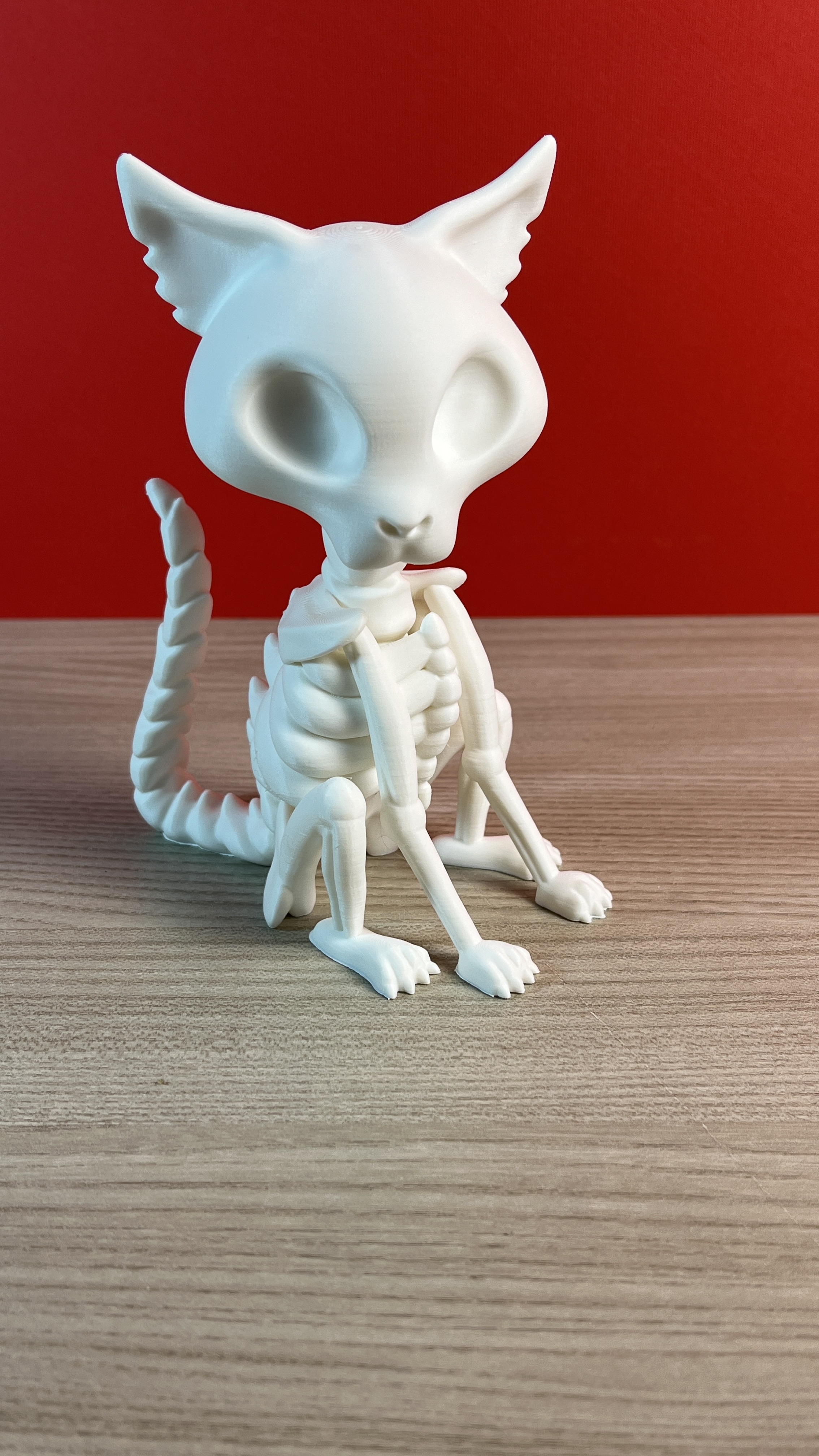

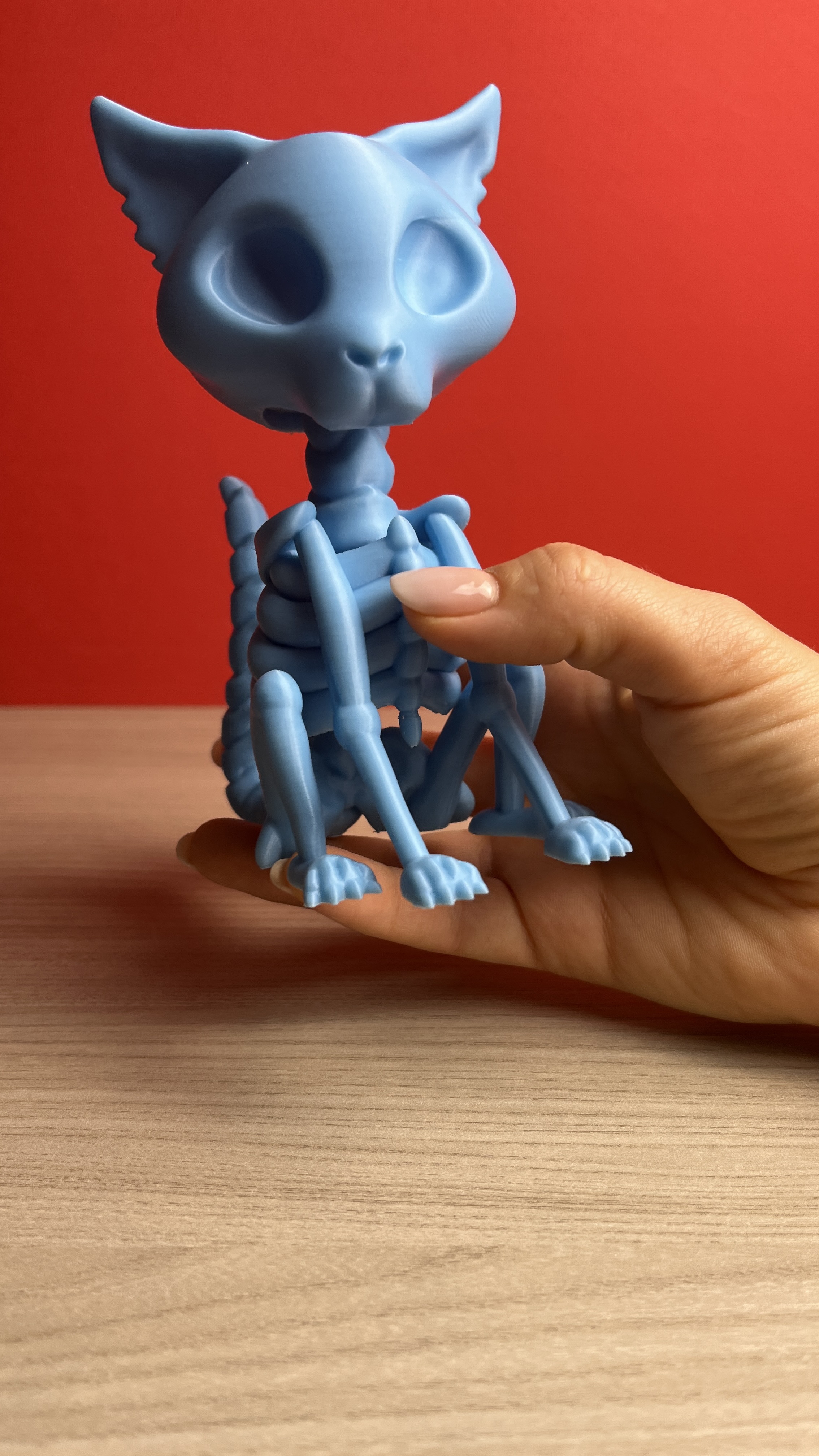

Skeleton Cat Bobblehead

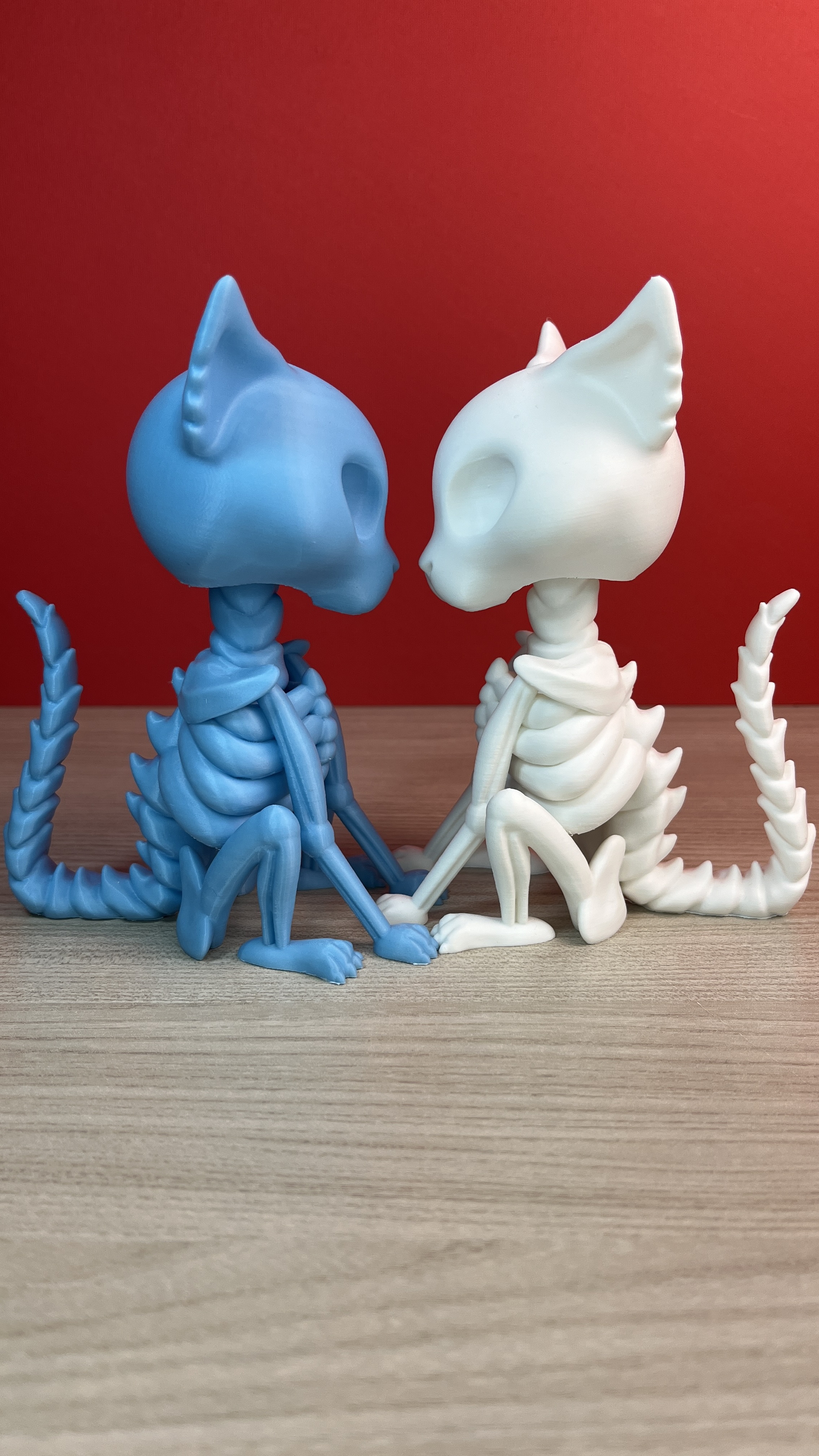

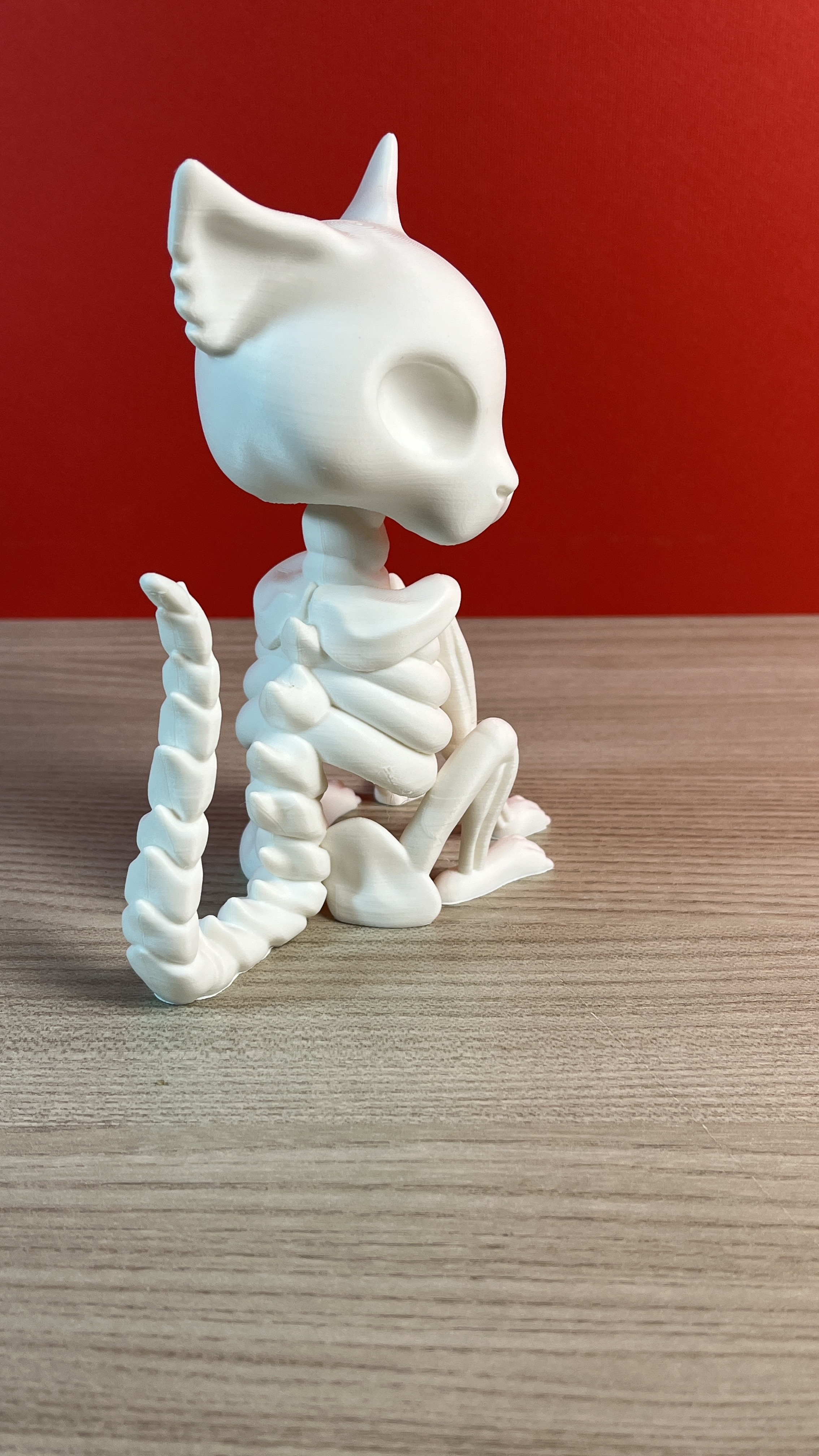

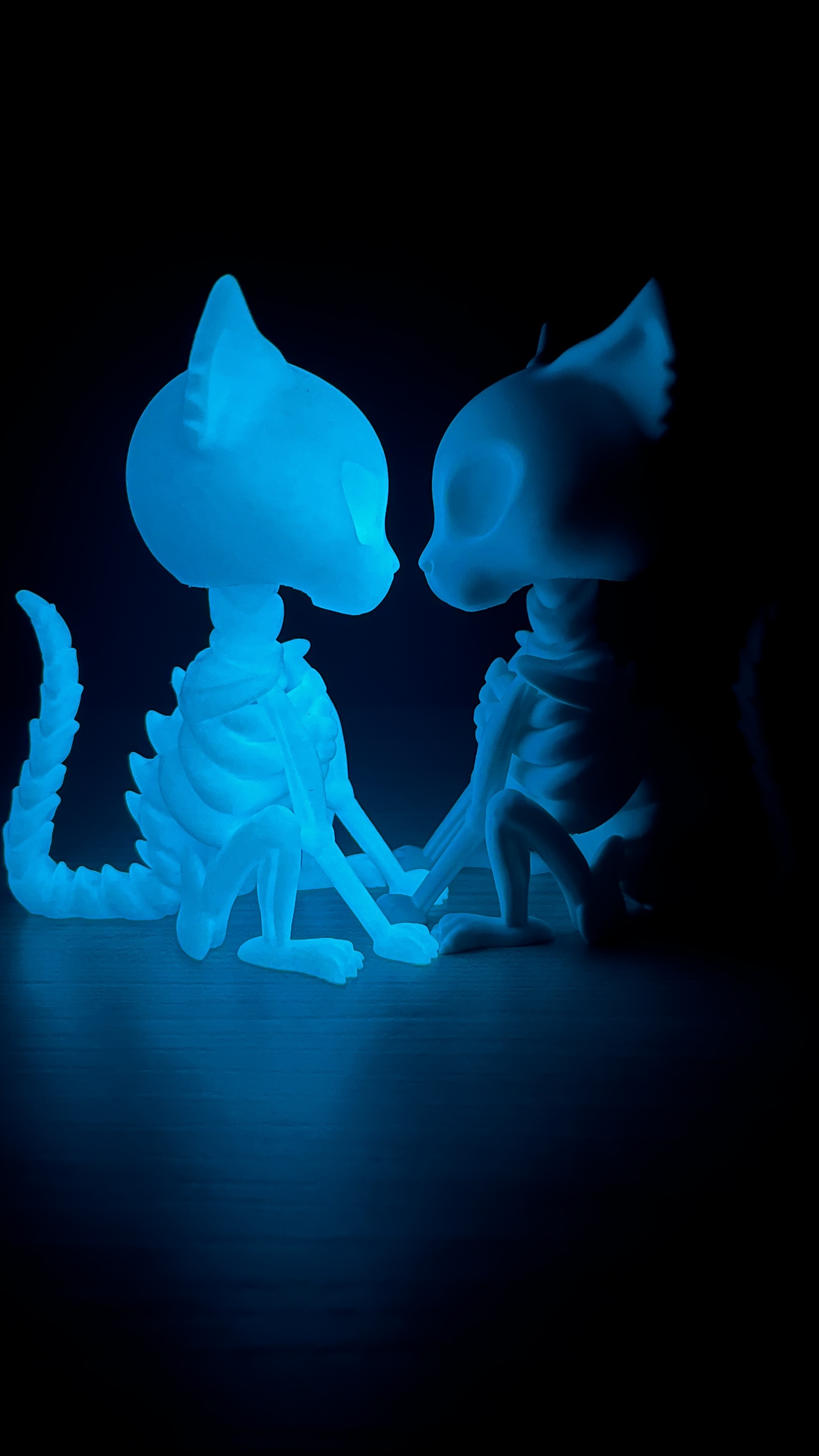

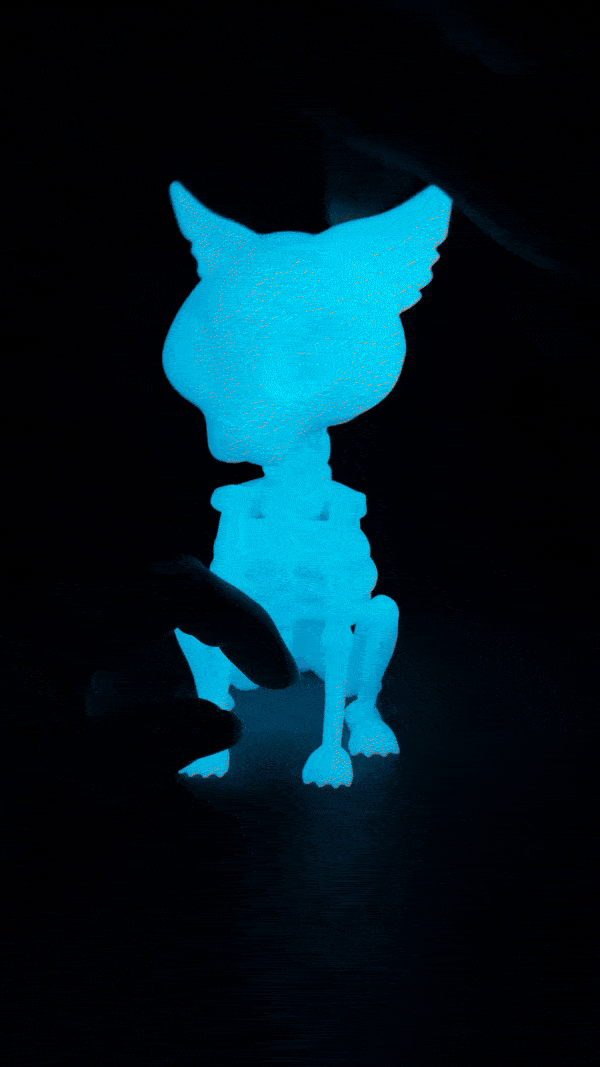

Finally, this 3D printed skeleton cat is available! 🐱💀 Composed entirely of 3D printed parts (head, body, and spring), you can use glow-in-the-dark filament for an even more stunning effect. Printed with Bambulab P1S. 🌟

Assembly Instructions

Components (all 3D printed): Body, Spiral, Head

Important: Two versions of the spiral are available, with different tolerances for the snap-fit pin located on the model's neck.

Step-by-Step Instructions

Select one of the two spiral versions based on the desired fit with the snap-fit pin on the model's neck. The version with a larger tolerance allows for easier assembly (and is usually removable but may be slightly loose), while the version with a smaller tolerance ensures a more stable connection (note: it cannot be removed after the first insertion).

Insert the selected spiral into the model's neck via the snap-fit mechanism. Caution: the protruding end of the spiral must face upwards.

Remove any 3D printing supports from the head.

Spread some glue along the inside perimeter of the cylindrical section of the head, where it will contact the spiral. Attach the head to the spiral.
