Oy! I was looking for a Sorting tray to sort out all my Mtg cards without taking too much space, I found one for catan cards and went to work.
•I design the model to accommodate cards without sleeves, its a perfect fit for those! But I actually printed it with the X axis 110% to fit sleeved cards (like in the screenshot) .

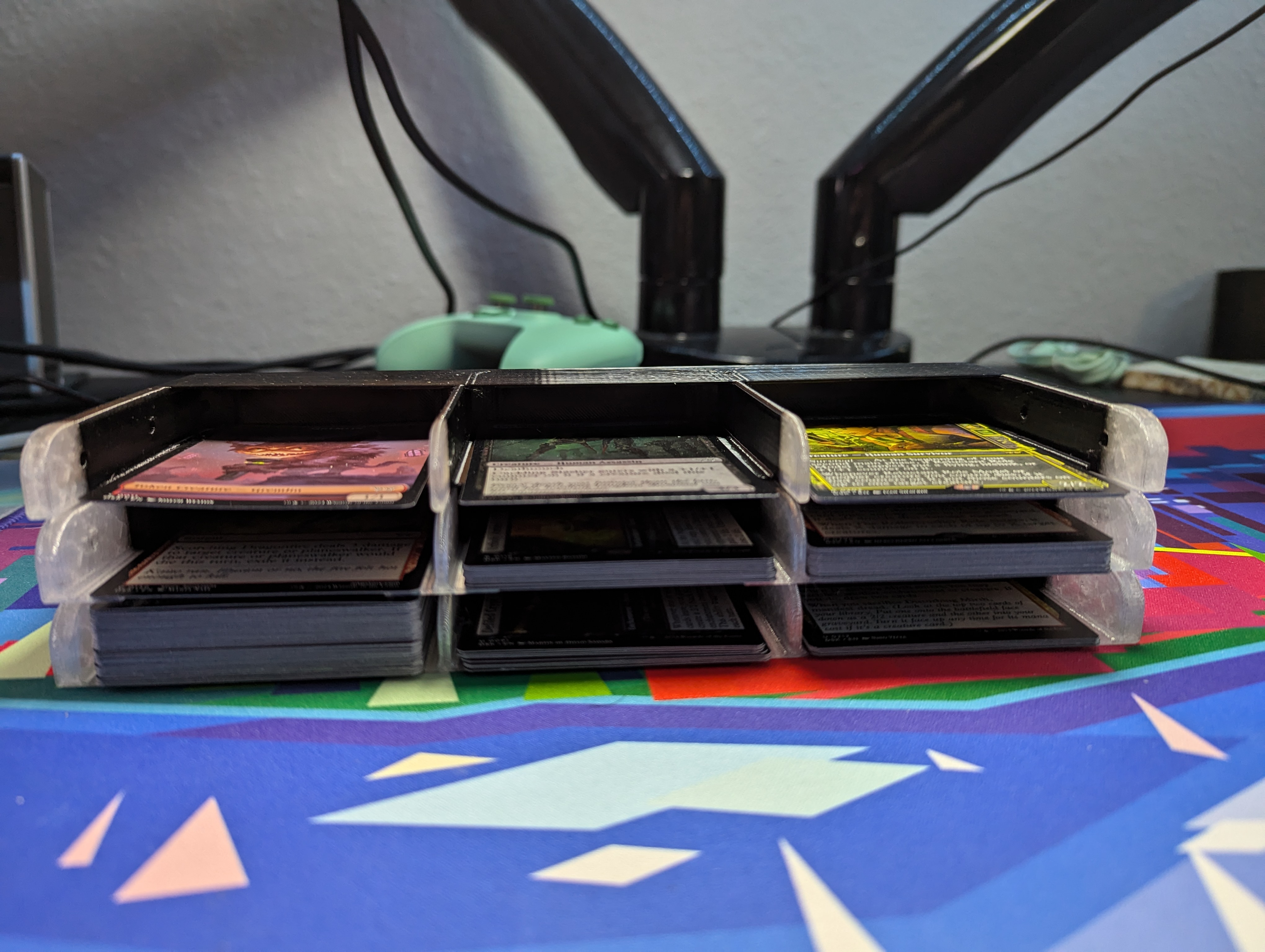

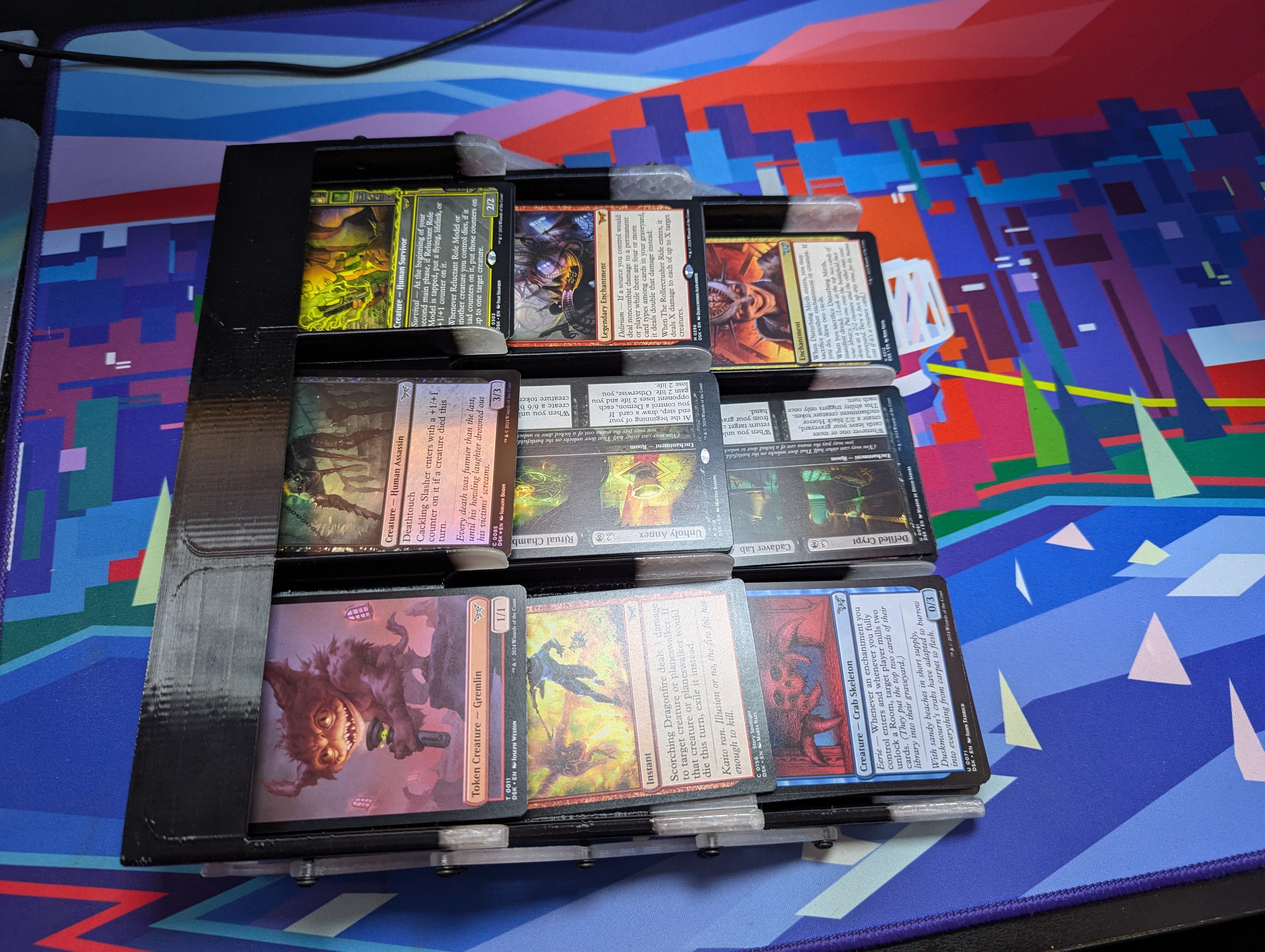

•Every box fits 45 cards without sleeves, 9 boxes x 45 = 405 cards (the bottom left box in the photos have 45cards)
•As a future project I might scale it lot more to fit 9 sleeved commander deck because why not : sounds fun?
Numbers of parts to print
- 2x Tray1and2
- 1x Tray_Top
- 1x Box
- 4x Bar2
- 2x Bar1
The original says : Additionally 14x M3x7 countersunk screws and 14x M3 washers are needed.
I only had 14x M3x8 and it worked fine , washer needed still.
My print was printed with Black PETG and Transparent PETG , but PLA would be fine. My printer just like PETG more.
