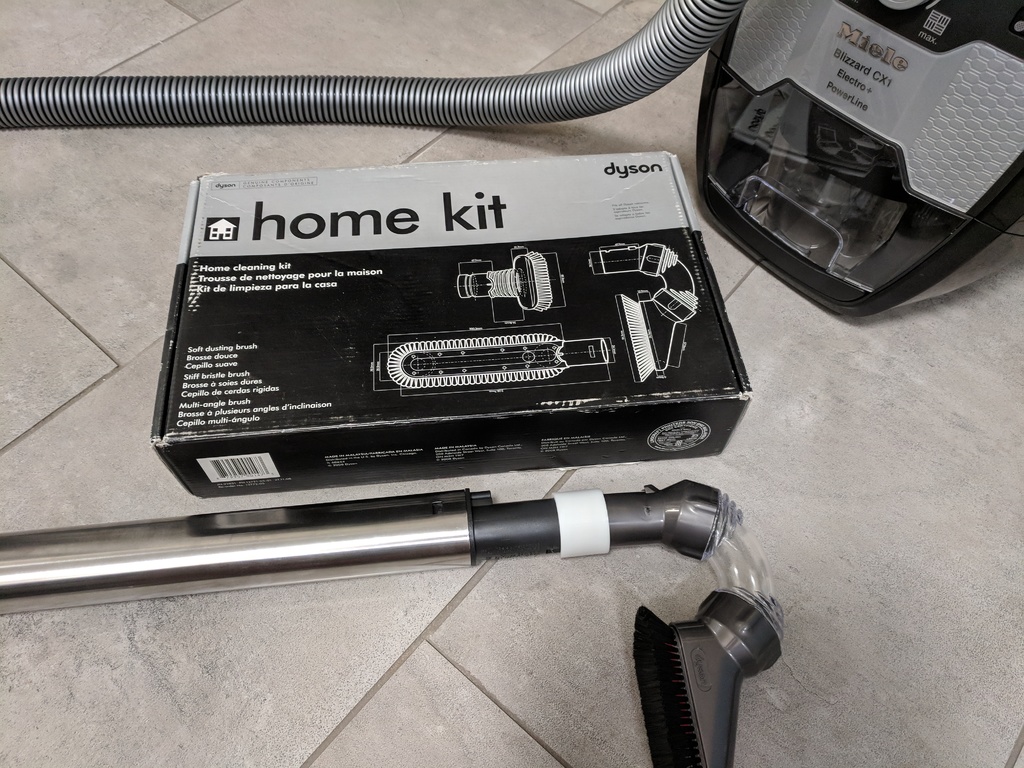

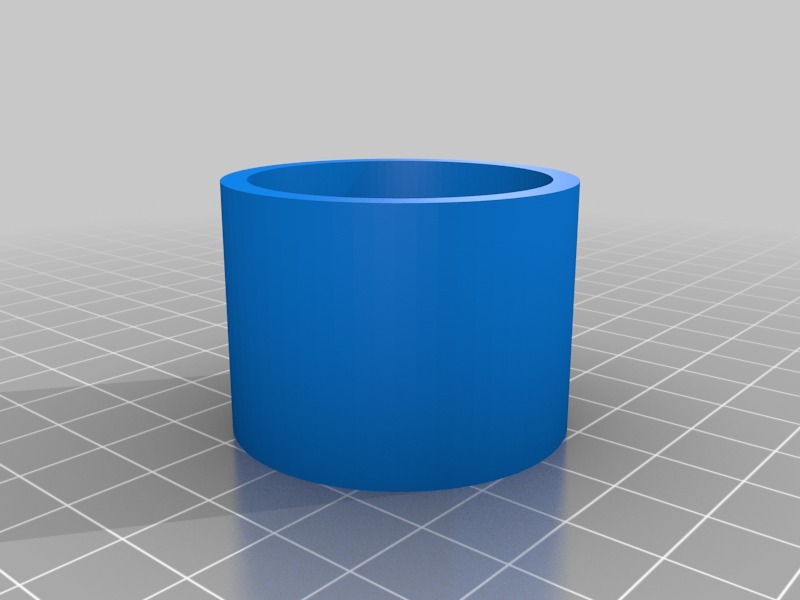

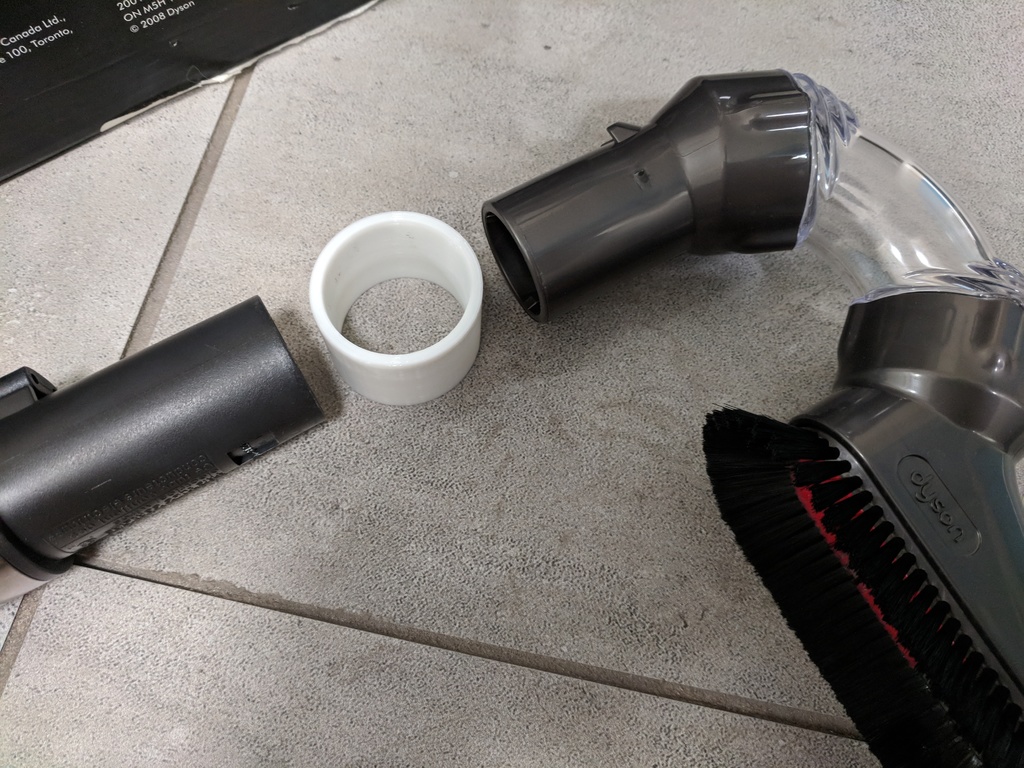

I switched from a Dyson vacuum to a Miele and wanted to reuse the Dyson Home Kit attachments with the Miele vacuum. It's just a simple cylinder that fits the Miele Hose and the Dyson attachments and has minor tapering in the tube to hold both ends snugly.

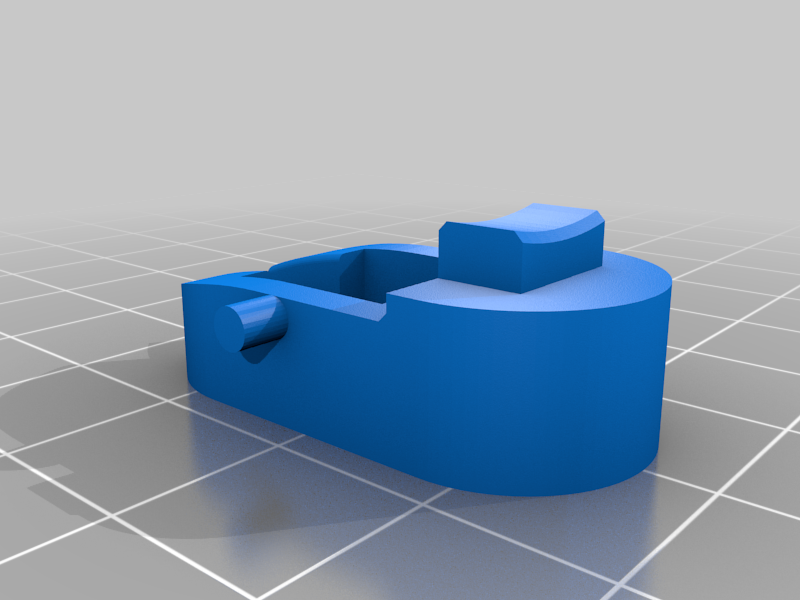

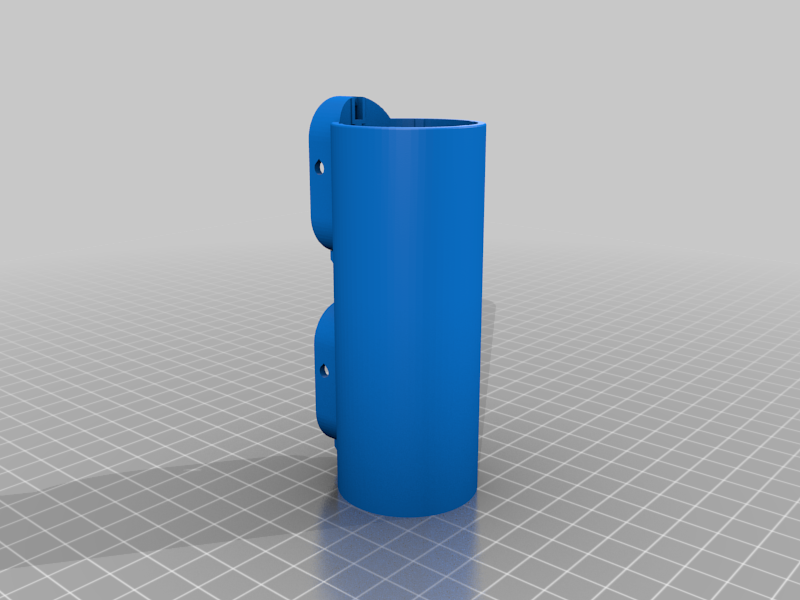

UPDATE 7/2020: I've since gotten better at CAD work and created a new design that allows locking. It requires a bit more filament and 2 springs from click pens, so I'll leave version 1 available. Print out all the v2 models and snap the locks into the adapter body putting a spring in between each lock.
Print Settings
Printer:
BIBO 2
Rafts:
No
No
Resolution:
.1
50%
Notes:
I used concentric as the external fill pattern with 5 top and bottom layers and 2 side layers. Printed with PLA.
Measure
Measured the diameter of the Miele hose end, and the diameter of the Dyson attachment end.
Original Design work in Tinkercad
Opened up Tinkercad and made a tapered cylinder with a top equal to the measured diameter and set the bottom about 1mm wider. Duplicated this, flipped it, and stacked it on top for an hour glass sort of shape. Turned this into a hole and placed it within a normal cylinder.
