Feather Tiny box
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Electronics
- Licencja
- Creative Commons — Attribution — Noncommercial — Share Alike
This is a very small box for the Adafruit Feather micro controllers. if you dont need space for a lot of electronics, this might be all you need.
Hardware:
- M3 Flat head

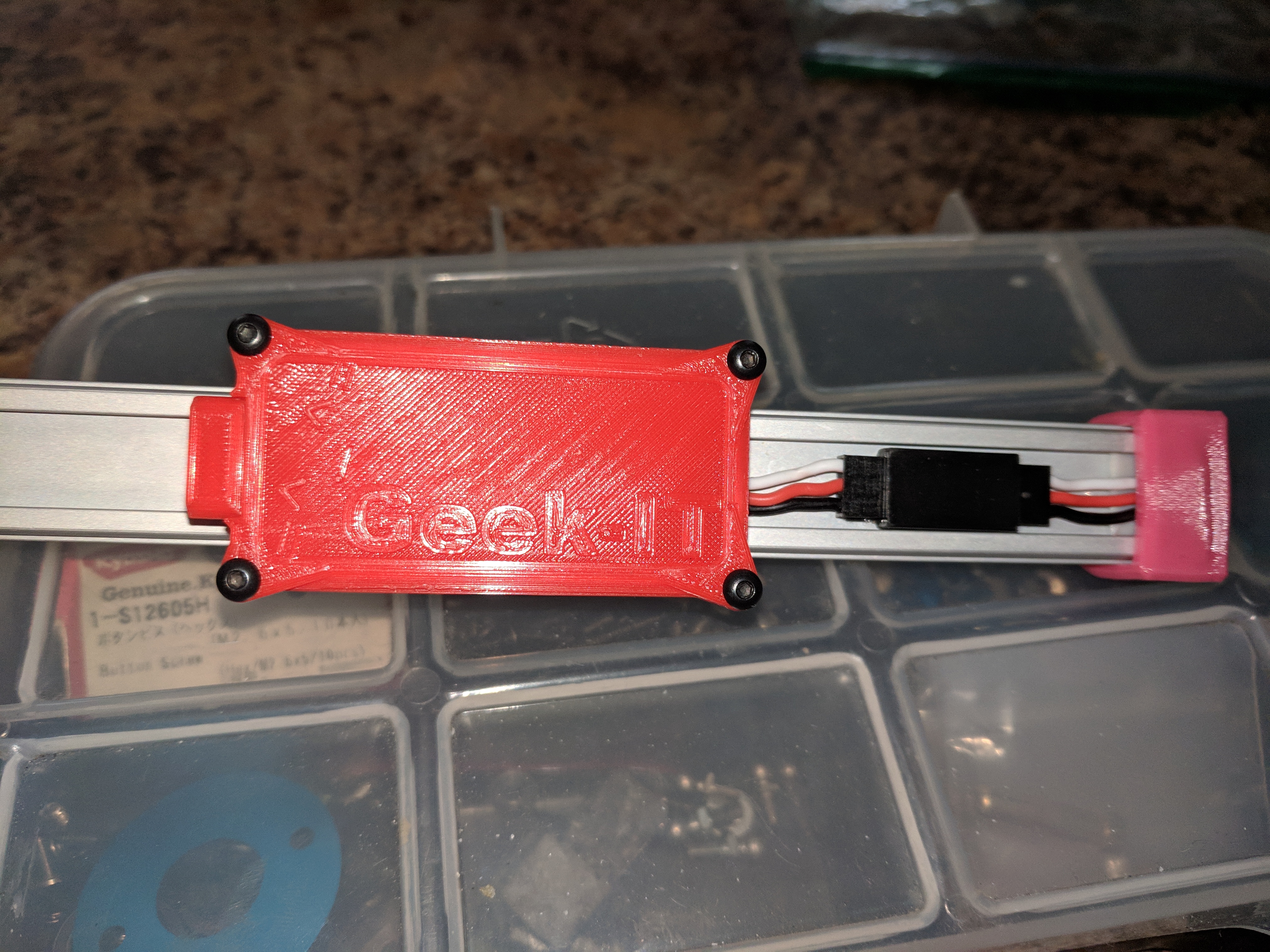

M2.6x5 button For mounting, There are 2 M3 countersunk holes in the bottom, I used these to mount slider blocks but could be used to screw it to any number of things.

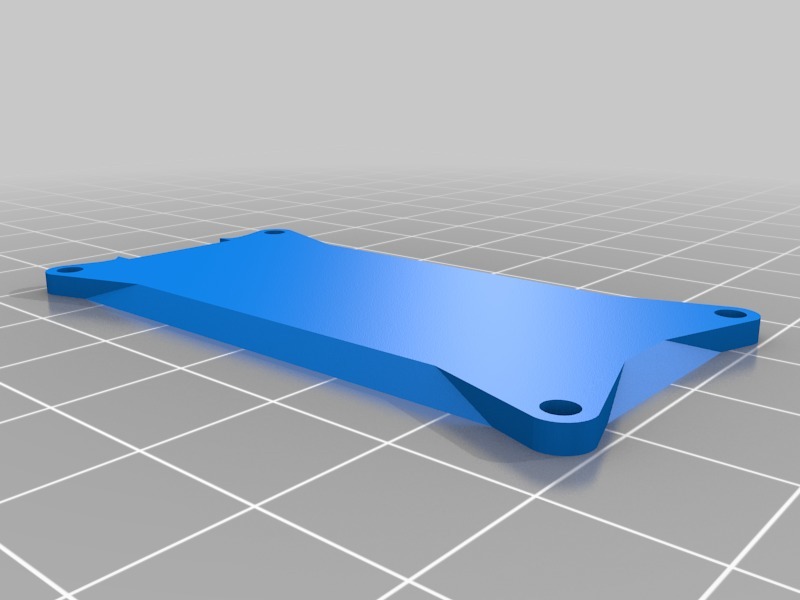

To bolt on the top, i used some M2.6x5 screws that i had from RC, partially because i had them, partially because they were adorable as all frig. i think a slightly more "standard" M2.5 would also fit. Not that that is a easy standard either.

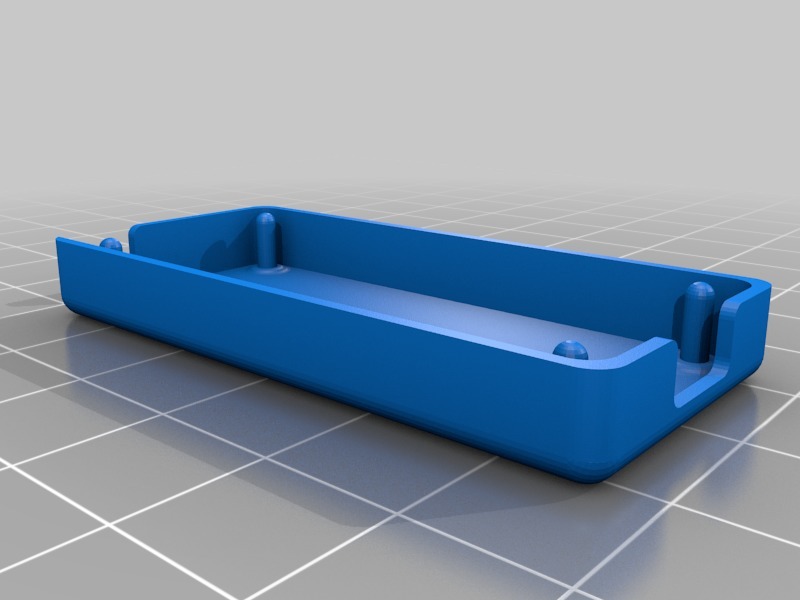

One thing i never went back to adjust that could be fine tuned is the clips on the side of the bottom to secure the board in without screws.
Print Settings
Printer:
LulzBot Mini
Rafts:
No
No
Resolution:
.2
.2
Filament: N/A PLA
Notes:
My printer was able to bridge without supports. YMMV
Category: Electronics
