Version1 (beta)

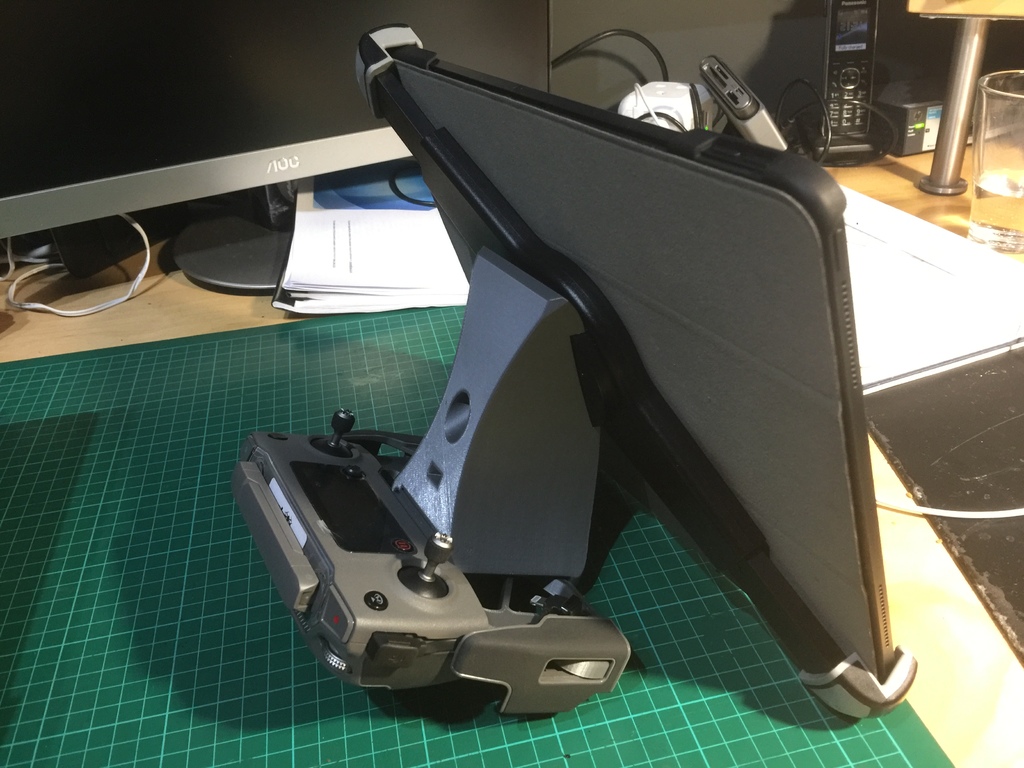

I wanted to use my iPad pro 12.9 (2018) with my DJI Mavic 2 Pro. I looked at getting a Mavmount bracket, but thought I could simple make something, at least for the short term.

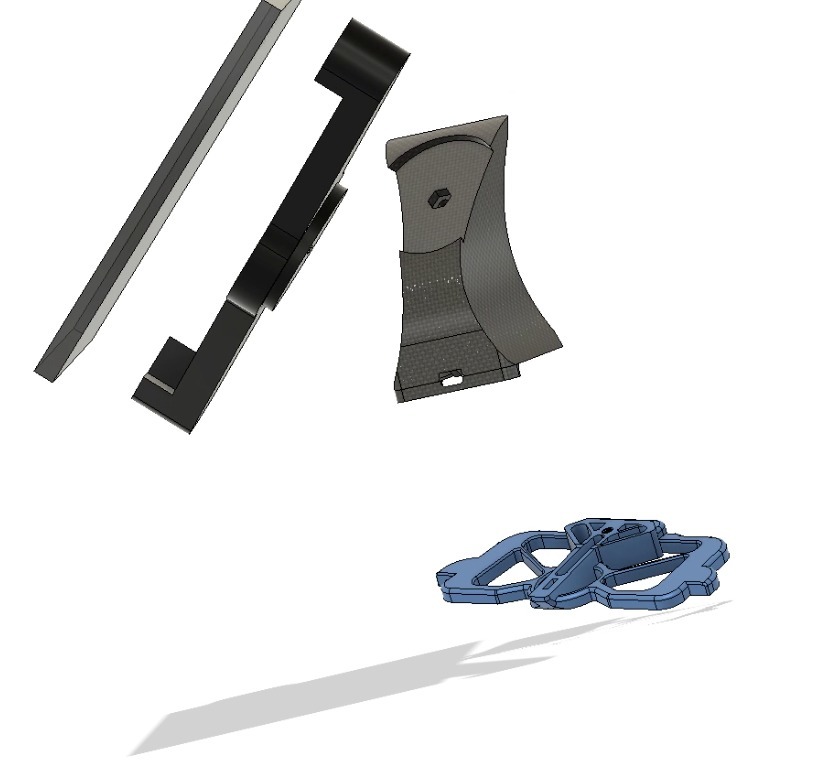

Using supergimps excellent Base plate - https://www.thingiverse.com/thing:2964758
together with an existing iPad bracket https://www.amazon.co.uk/gp/product/B07NNDQYXB/ref=ppx\_yo\_dt\_b\_asin\_title\_o07\_s00?ie=UTF8&psc=1

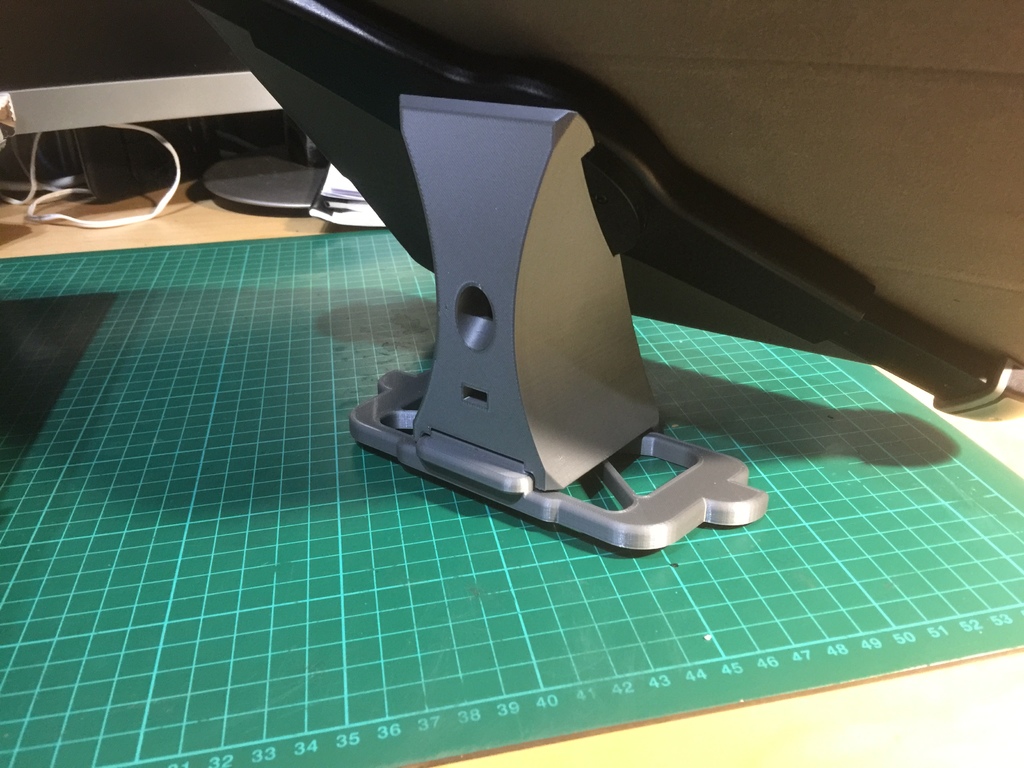

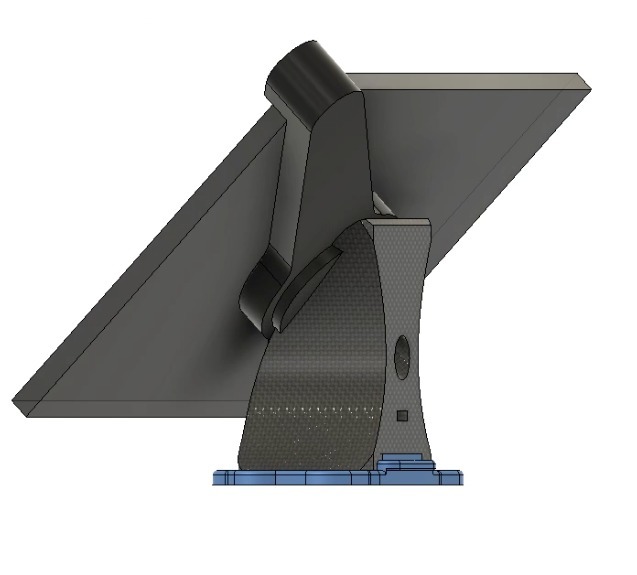

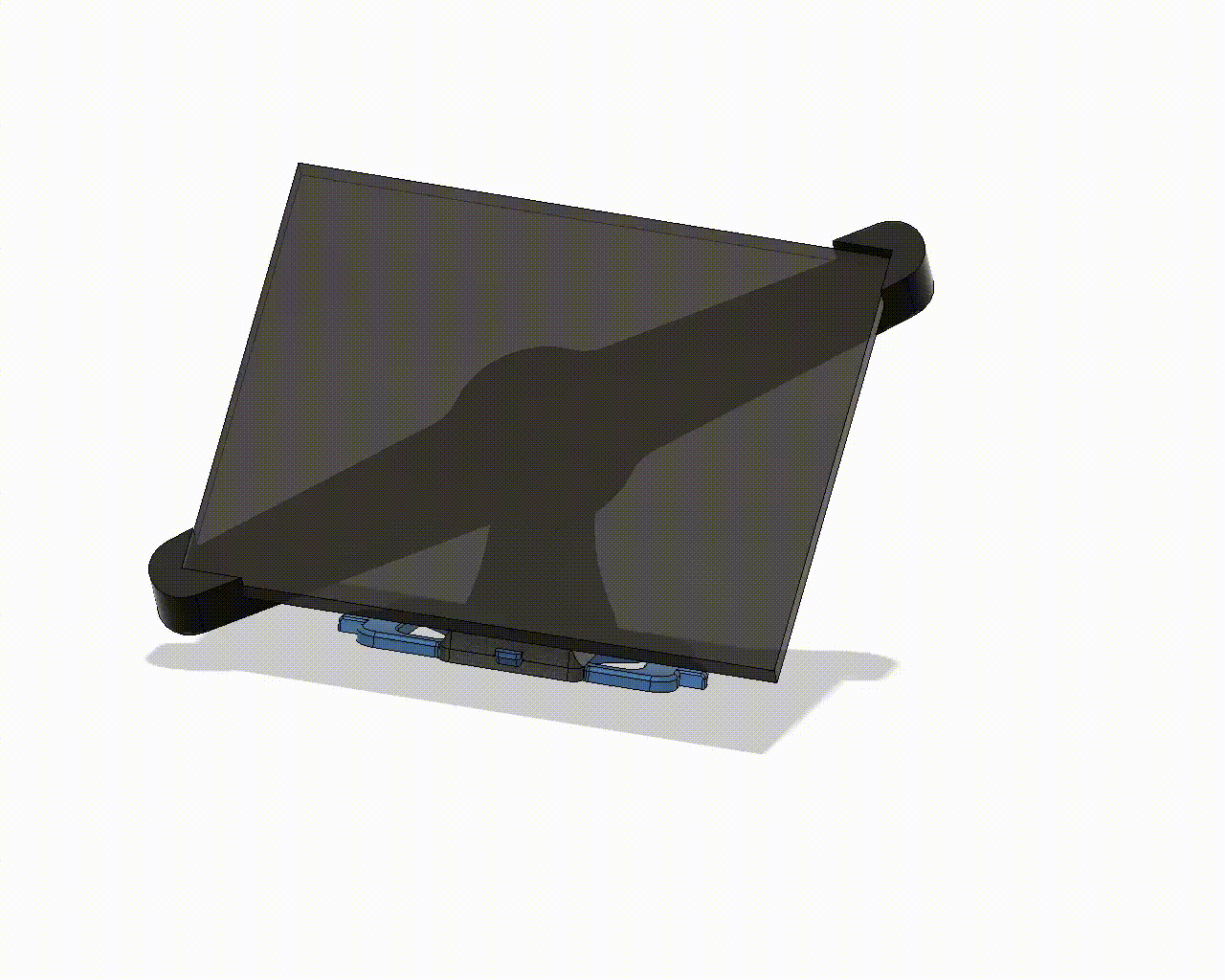

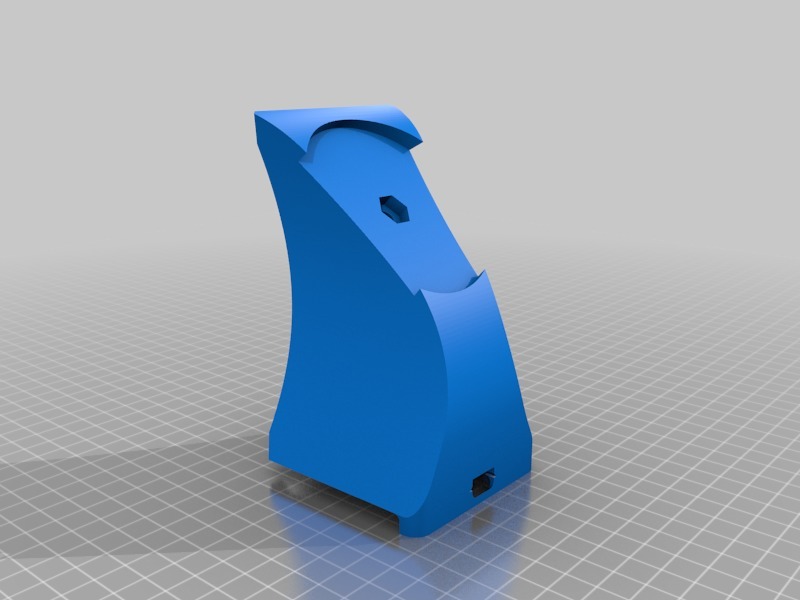

i used fusion360 to create a simple bracket to join the two parts together.
Although its a tight fit, I’ve also used a bit of hardware ( nuts/bolts/washers) to secure things
Hardware
iPad holder to stand
1/4” 20TPI 1” long hex head bolt
Washer & nut
Base plate to stand
M6 X40 bolt
Washer and Nut
Print Settings
Printer Brand:
Prusa
Printer:
I3 MK3S
No
Supports:
Yes
0.28
Infill:
3% Gyroid
Filament:
Prusament PLA Grey
Notes:
initial print using settings above is more for testing, ,i would increase the infil and perimeters
