Sanding tool
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
A drill bit sanding tool
- Ocena
- 4,667 / 5
- Polubienia
- 150
- Pobrania
- 503
- Wydruki
- 3
- Wyświetlenia
- 2939
- Oceny
- 3
Aktualizacja u źródła:
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Tools
- Licencja
- Creative Commons — Attribution — Noncommercial
Purpose:

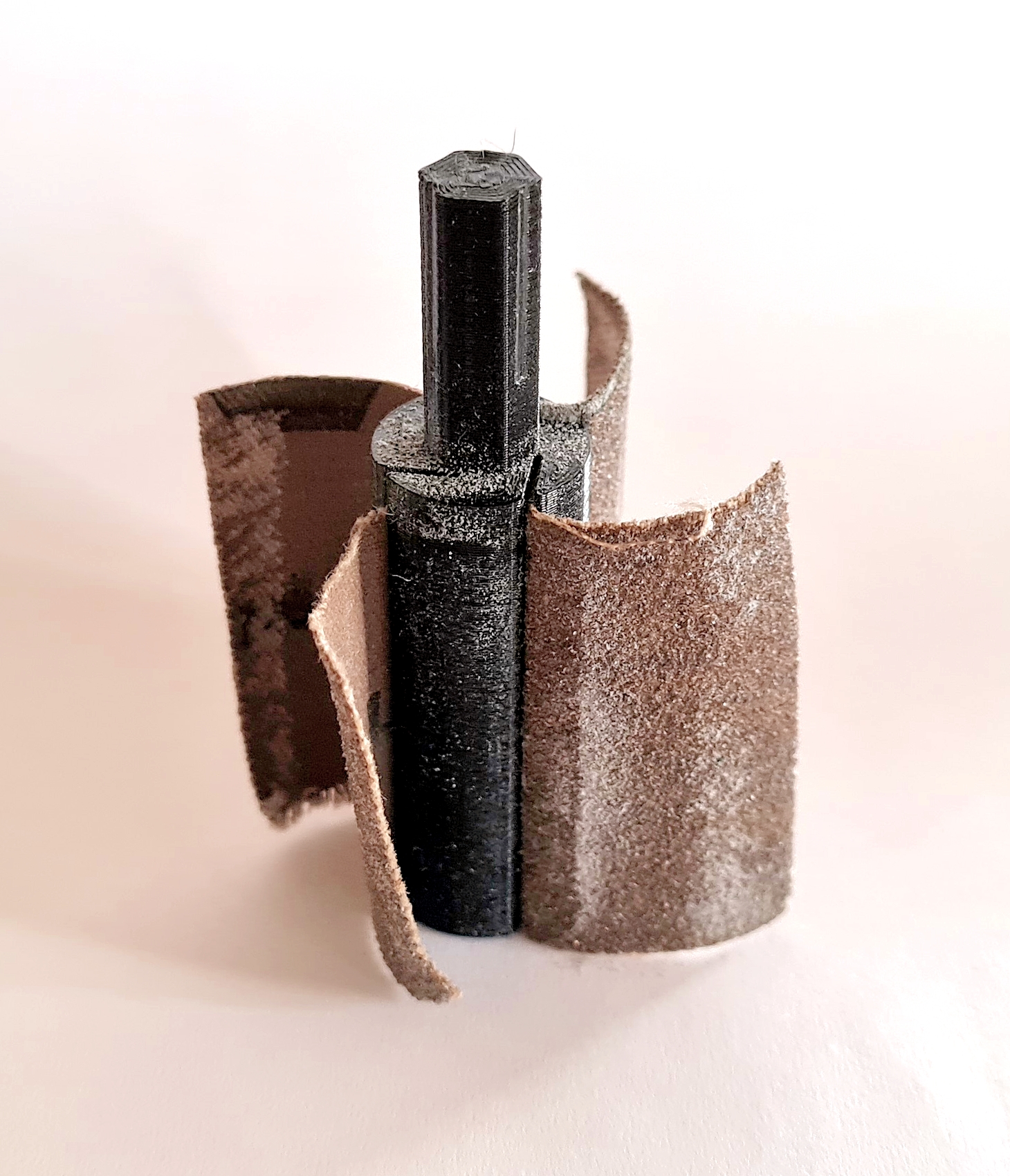

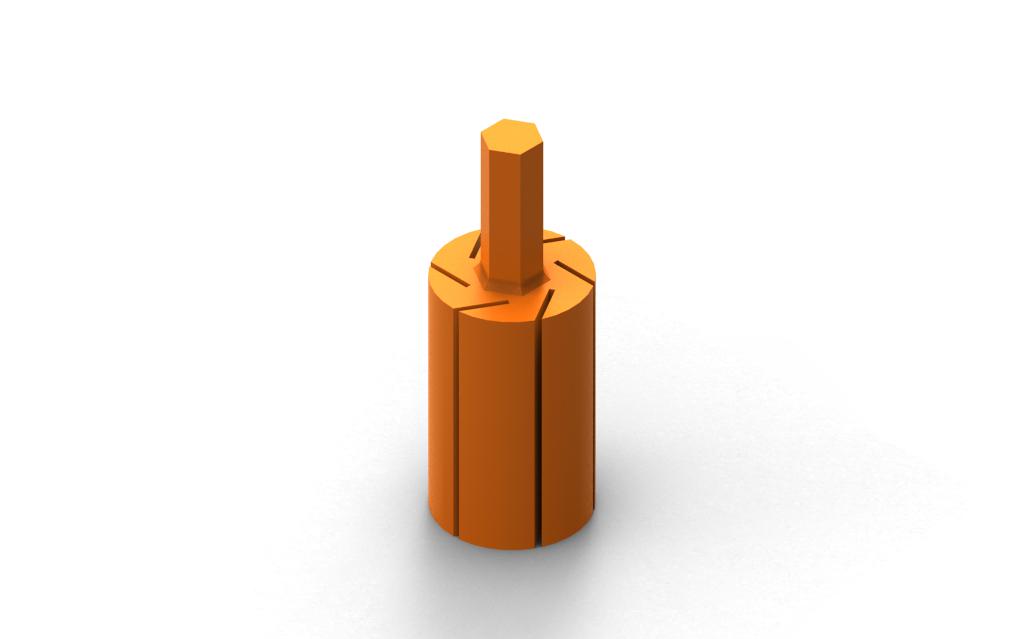

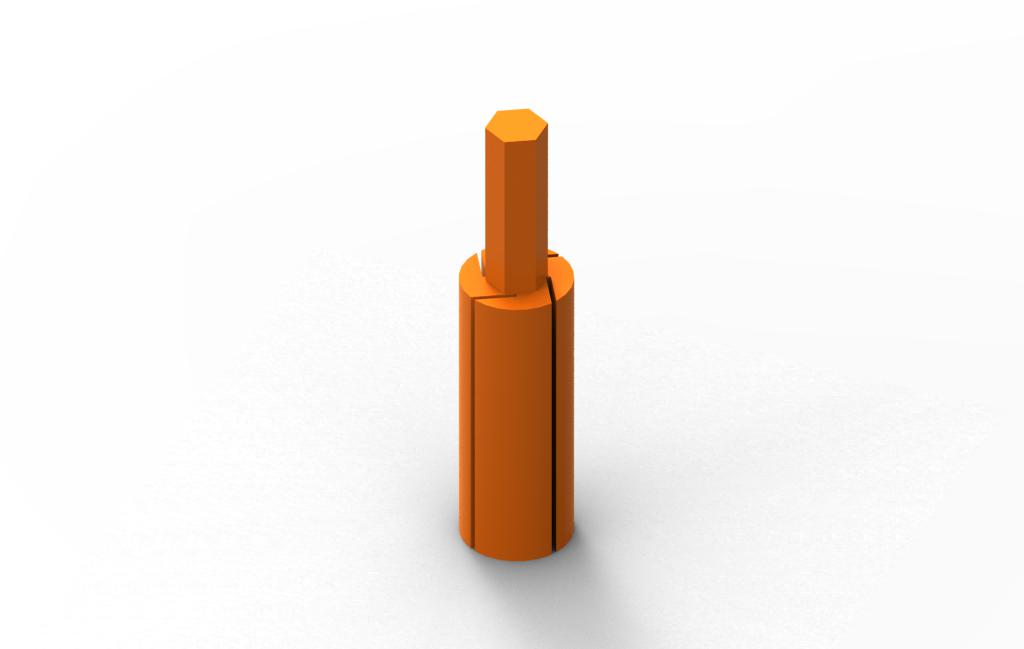

This is a sanding tool for the drill with a hexagonal connection for a better torque transmission.
I know, there are some similar tools already available, but I couldn't find one which fits to the thickness of my sandpaper. For this reason I made my own.
Comments:
I puplish several tools which differs in diameter, length and slot width. Files in the same folder differs only in the slot width that you can choose the right one which fits best to your sandpaper. The slot width is mentioned in the file name.
If you are interested in other sizes, please let me know and leave a comment.
The tool must rotate clockwise. Turning counter-clockwise will not work.
The hexagonal size is not compatible with tool bits!
Print settings:
Material: PLA
Layer height: 0,2mm
Infill: 25%
Perimeters: 3
Brim: no
Support: no
Update from 2021-12-31:
Version D24x40mm added
Update from 2022-01-07:
Version D32x40mm added
