VzBoT - Diffuser for AirBox

VZBOT 235 AWD - CNC kit

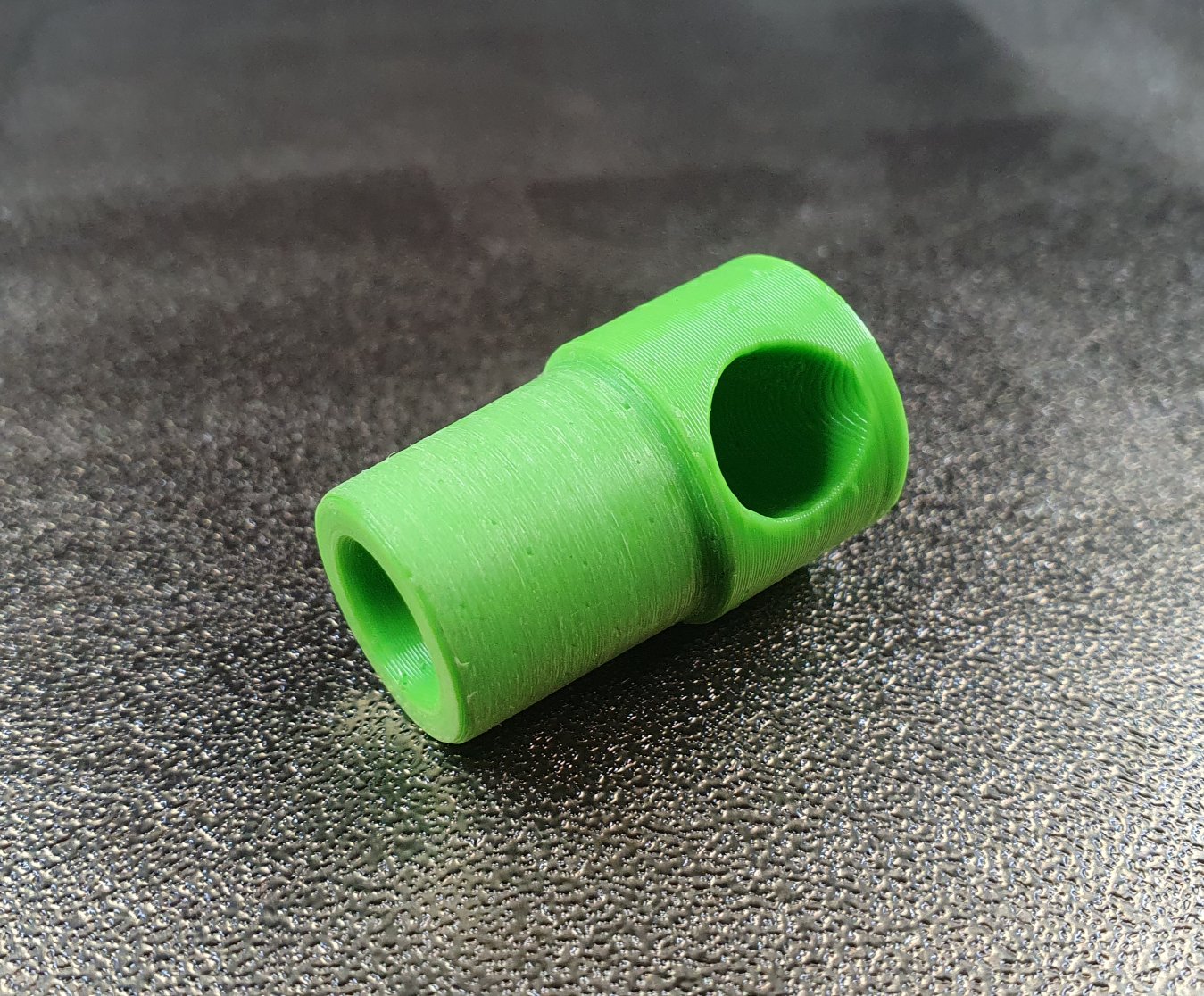

Diffuser for AirBox - smaller air flow - 66% of the original intake area.
When printing large parts with sharp corners from ABS and ASA,
the edges of the model came off the PEI (swing - well known).
It didn't work without blowing because there are a lot of overhangs and bridges
that can't be printed without cooling.

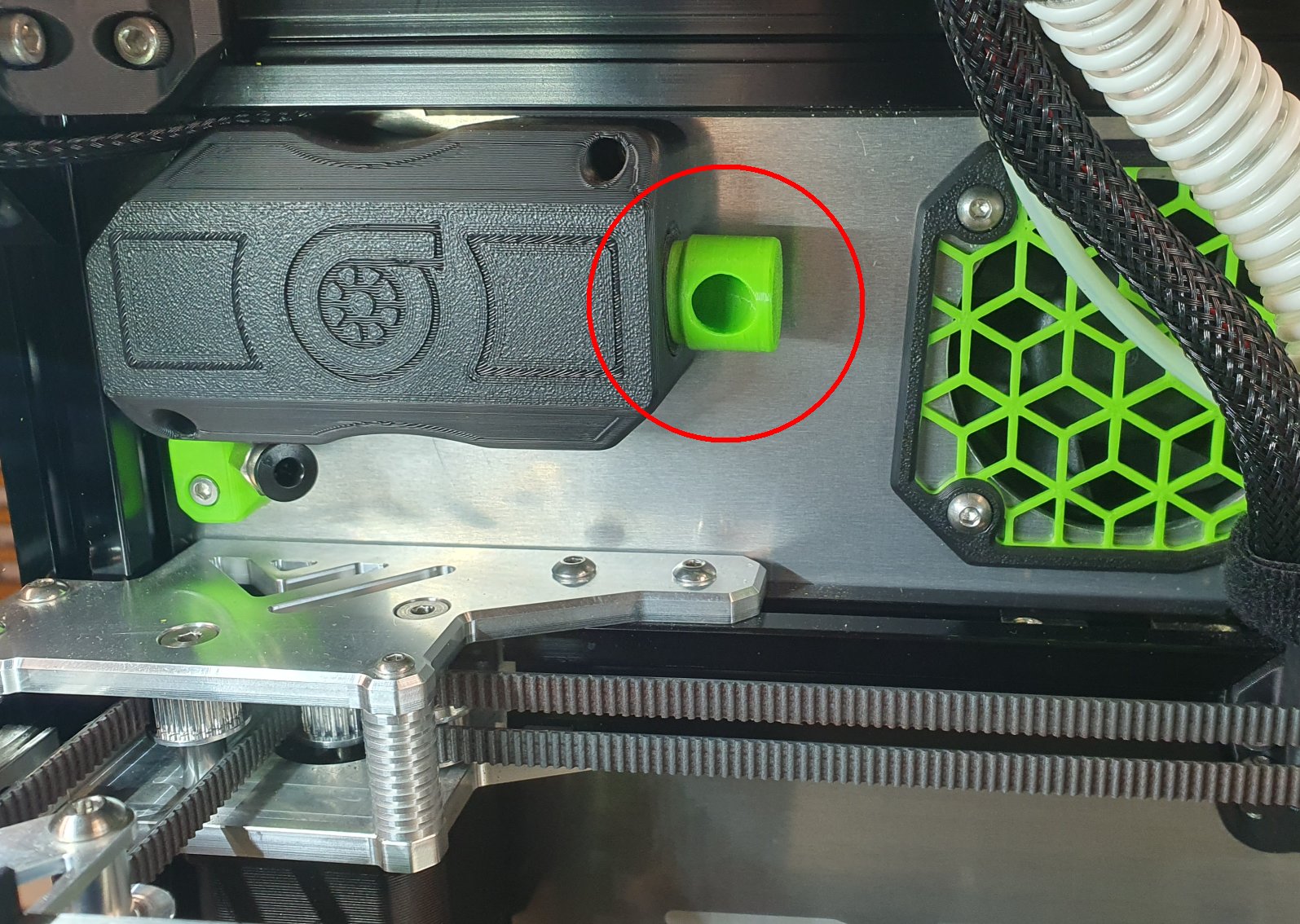

The diffuser reduces the intake flow of cooling air to 66% of the original state,
the intake is turned to the center of the hotbed where warmer air is drawn in.
With this step, we achieved that the performance of the turbine will not be so violent
with the cold air from the back of the aluminum plate.
Simple solution and it works!

Print from ABS, ASA, PC or PA (CF)
