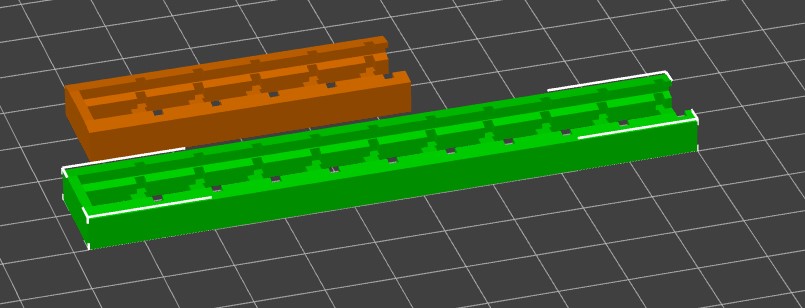

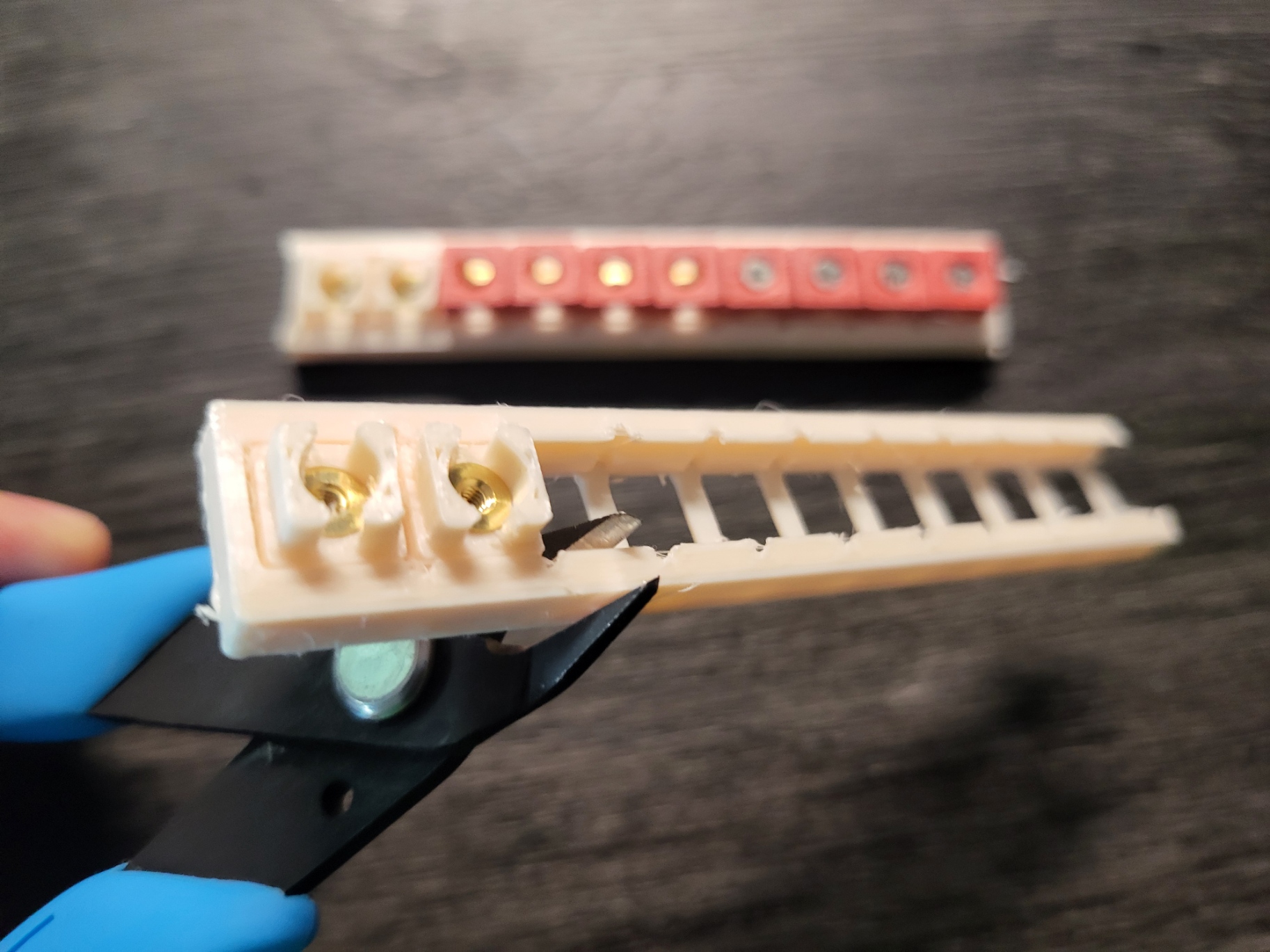

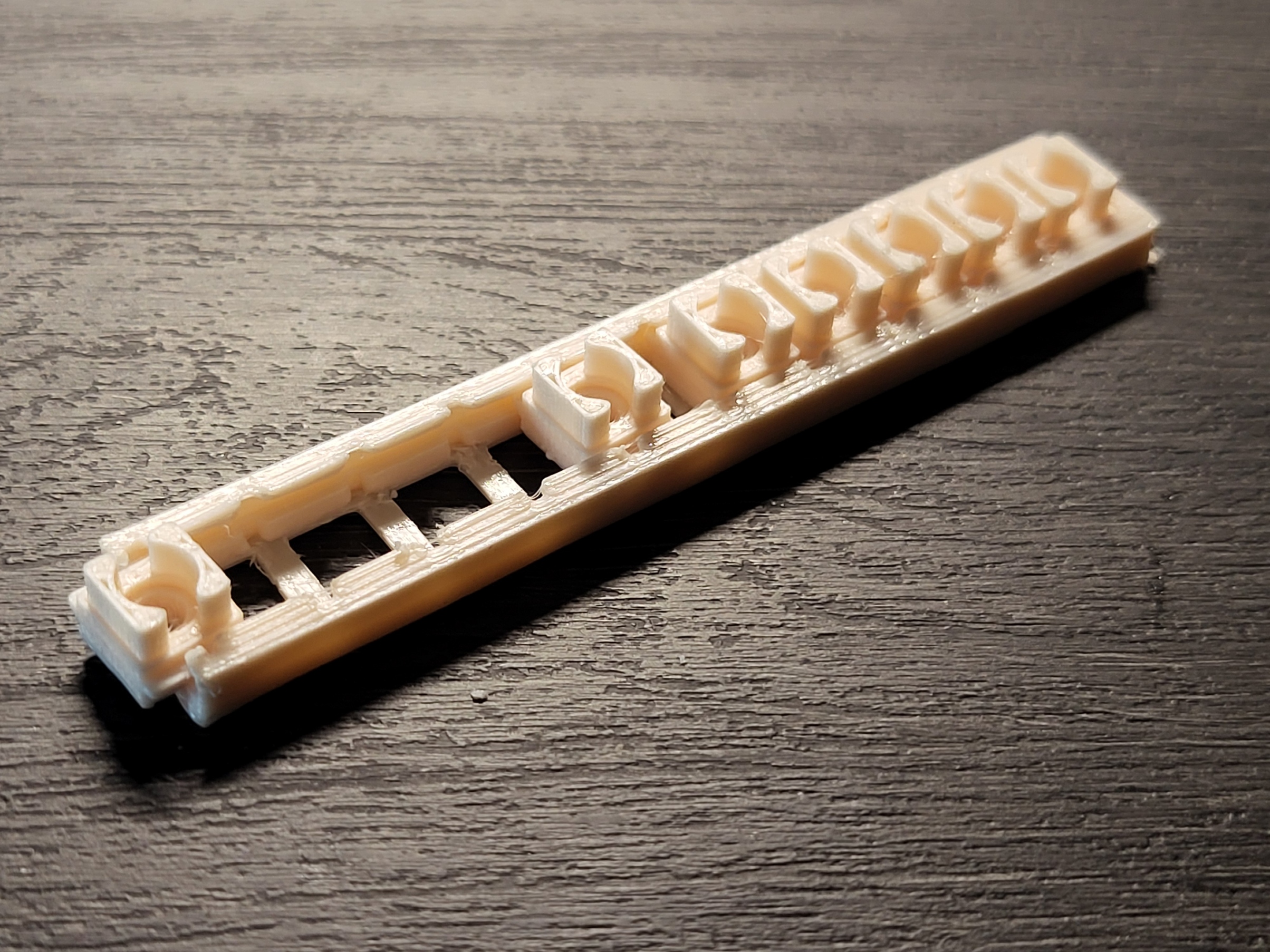

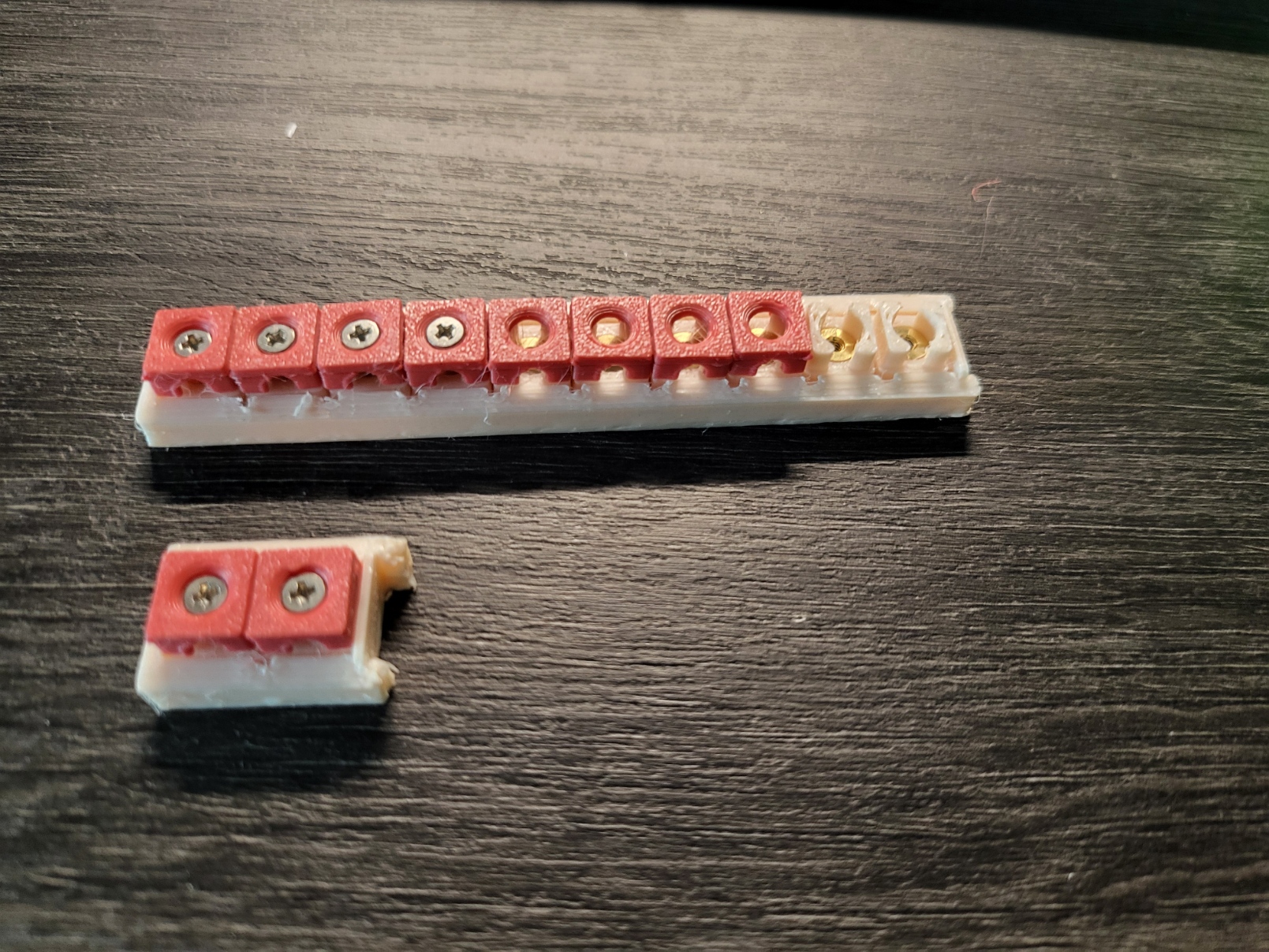

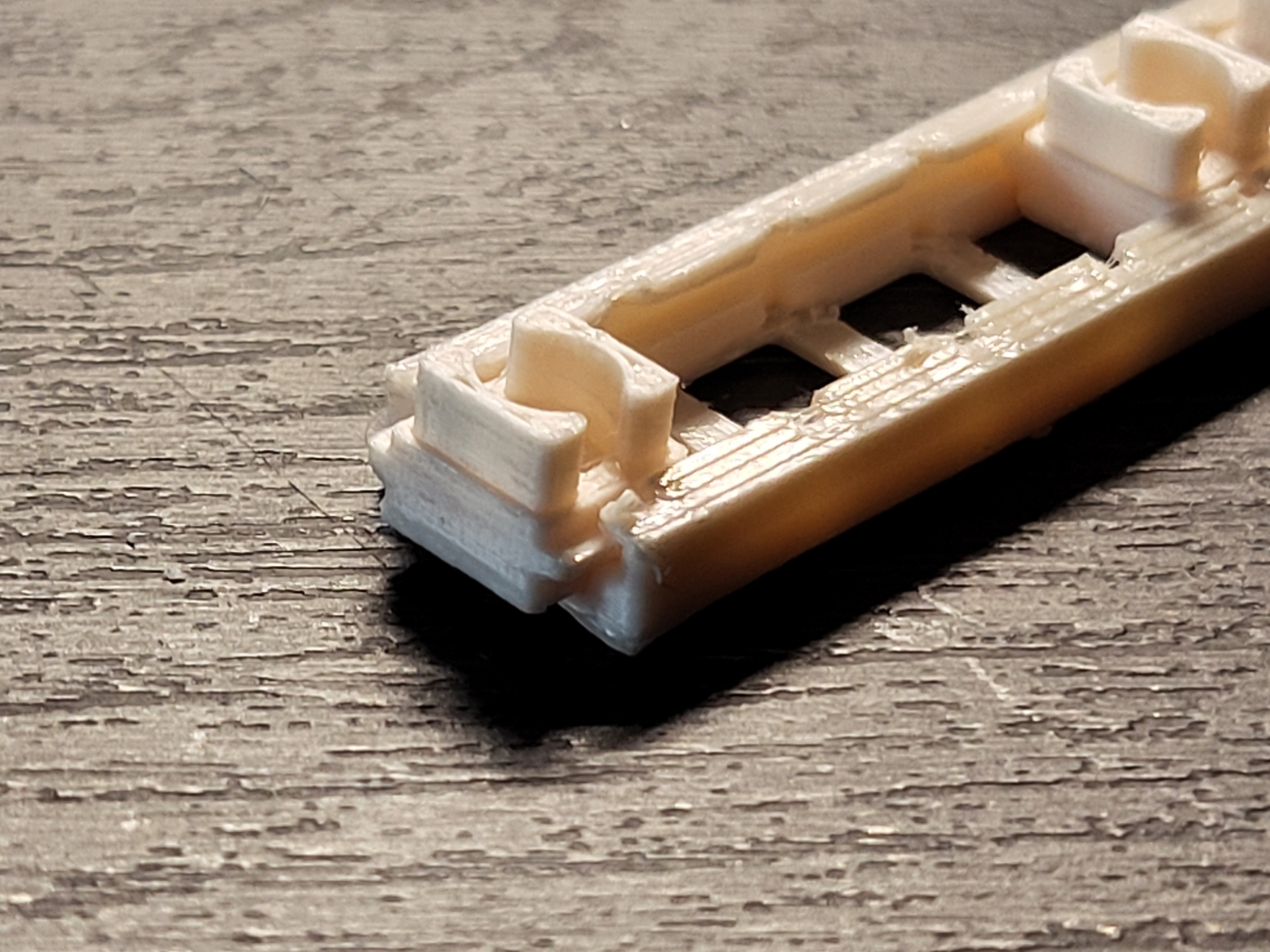

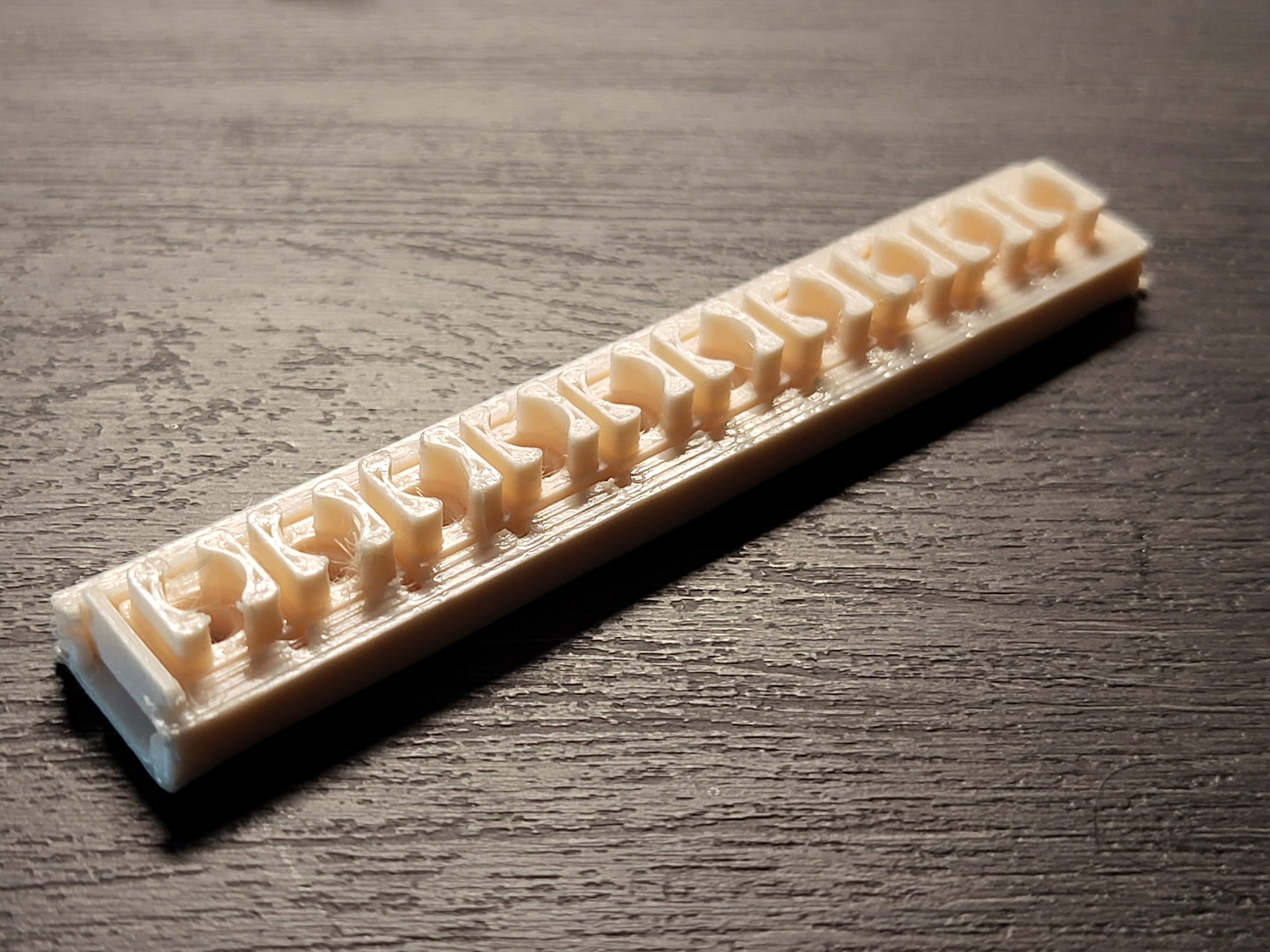

This terminal block is designed to offer flexibility and convenience for various electronic projects. While the spacing between terminals is fixed, the number of terminals is customizable, with a maximum of 10 terminals per block. It can be cut to size using either a slicer cut tool in your 3D printing software or a physical cutting tool.

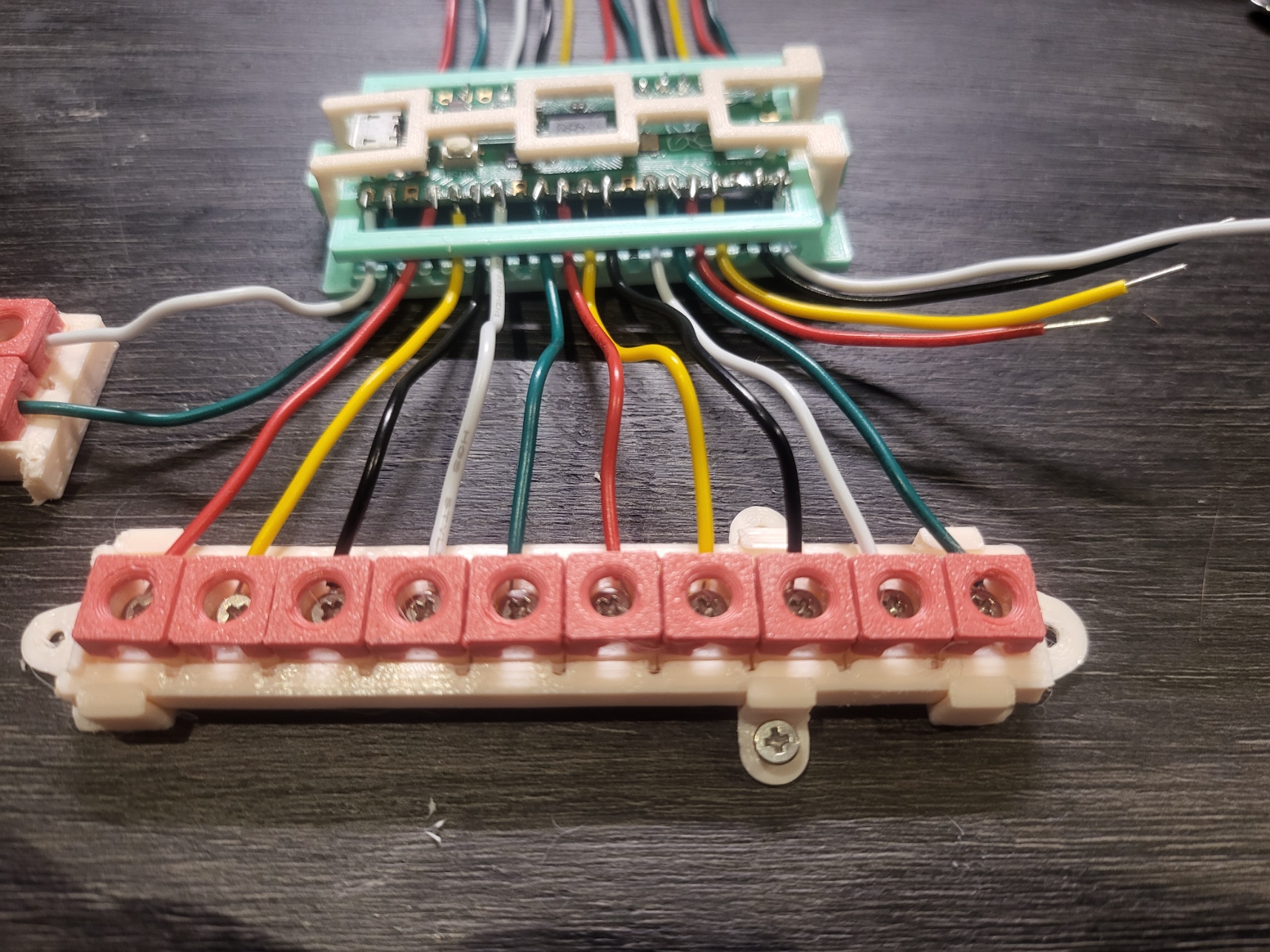

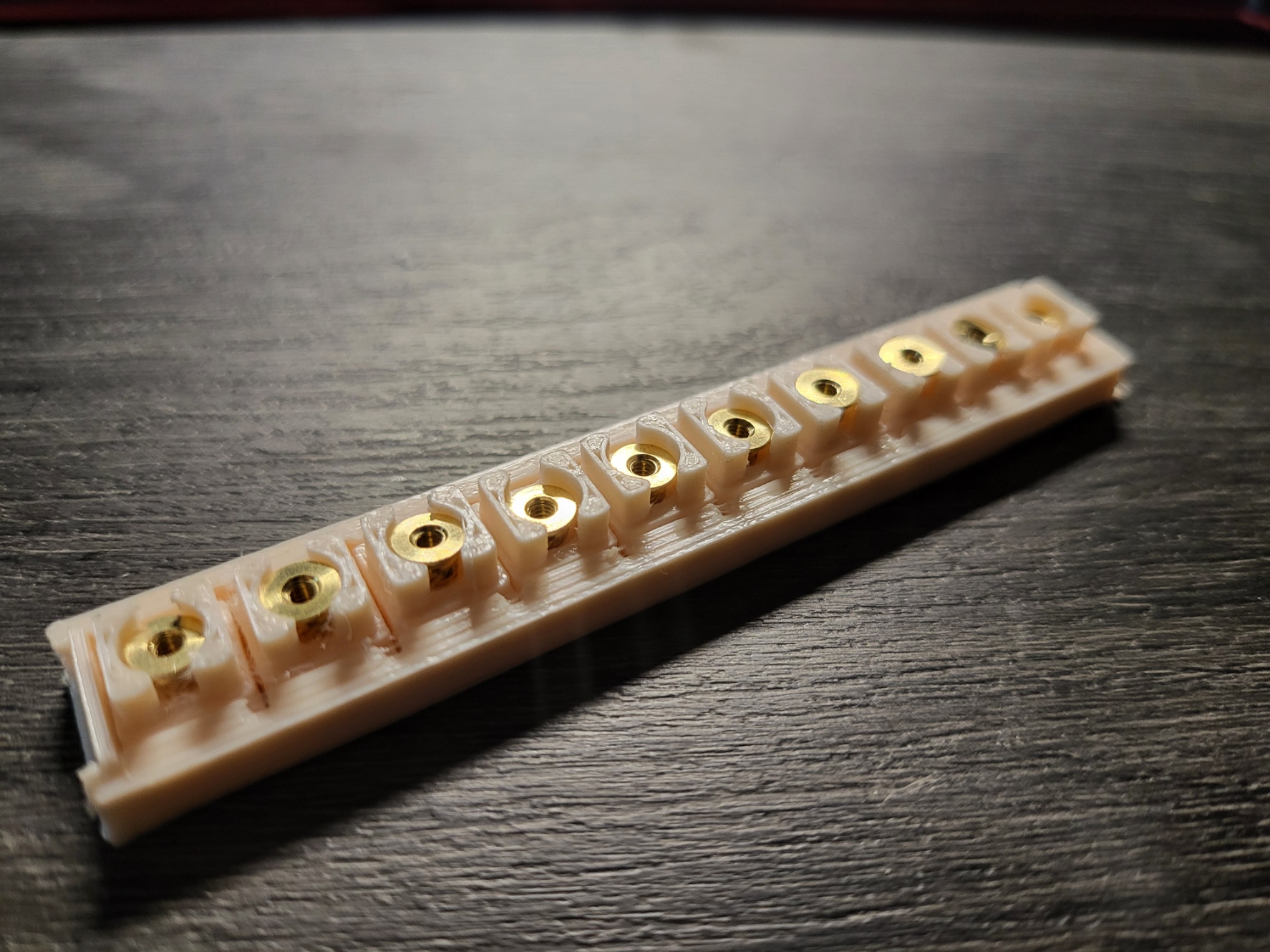

The terminal block uses flat-headed melt-in insertion nuts (M2xL3.5xOD3.6) and M2 screws of 4 mm for secure connections. Additionally, it comes with 4 types of clamps available for M2 and M3 screws, offering different configurations to suit your needs. Perfect for organizing and managing multiple connections in a neat and efficient manner, ideal for prototyping and DIY electronics.
flat-headed melt-in insertion nuts (M2xL3.5xOD3.6):

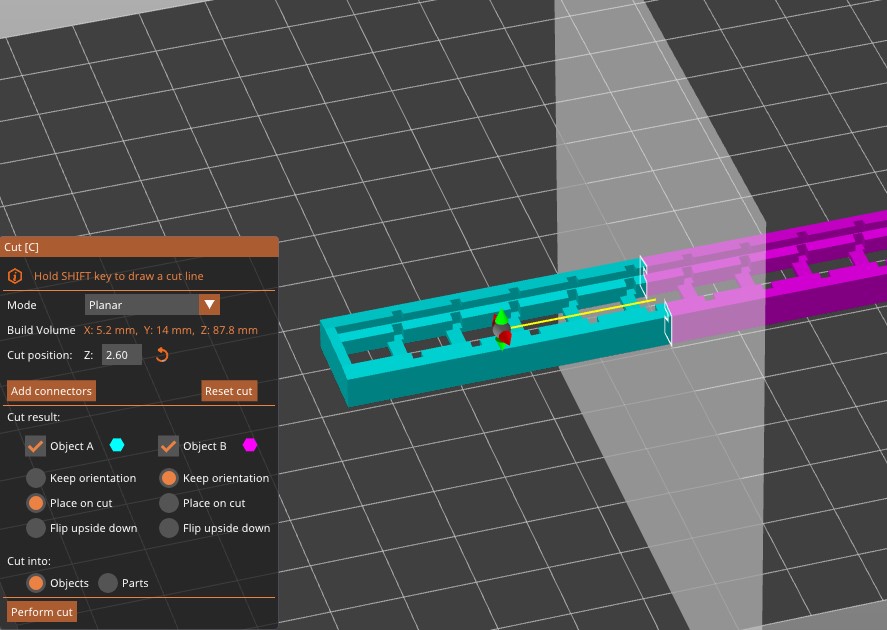

Slice cut tool: select piece and hit C

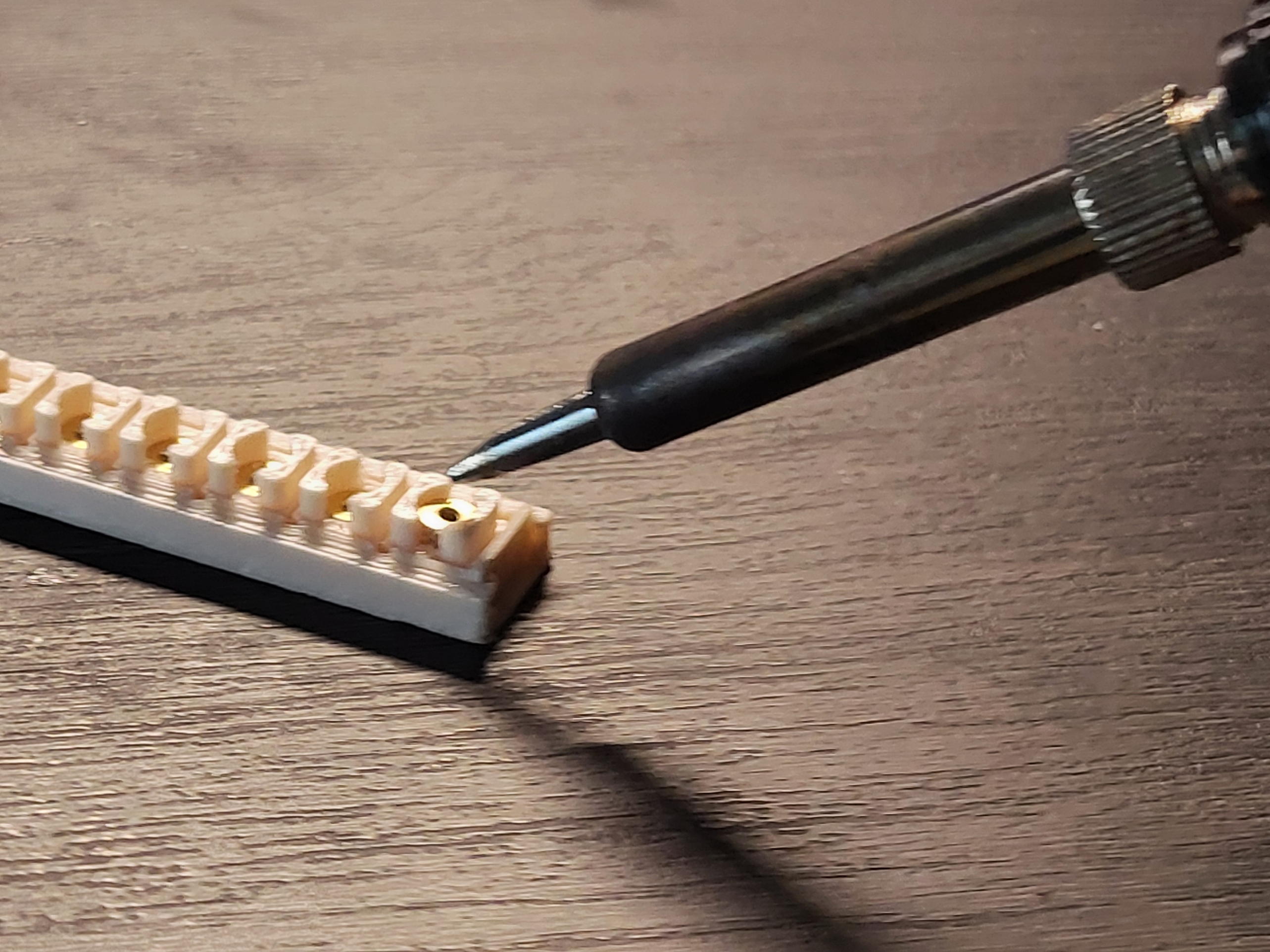

I use 180 ºC for nut inserts:
