Cone - The shape shifter

Title: Cone - The shape shifter - A Hands-On Mathematical Exploration

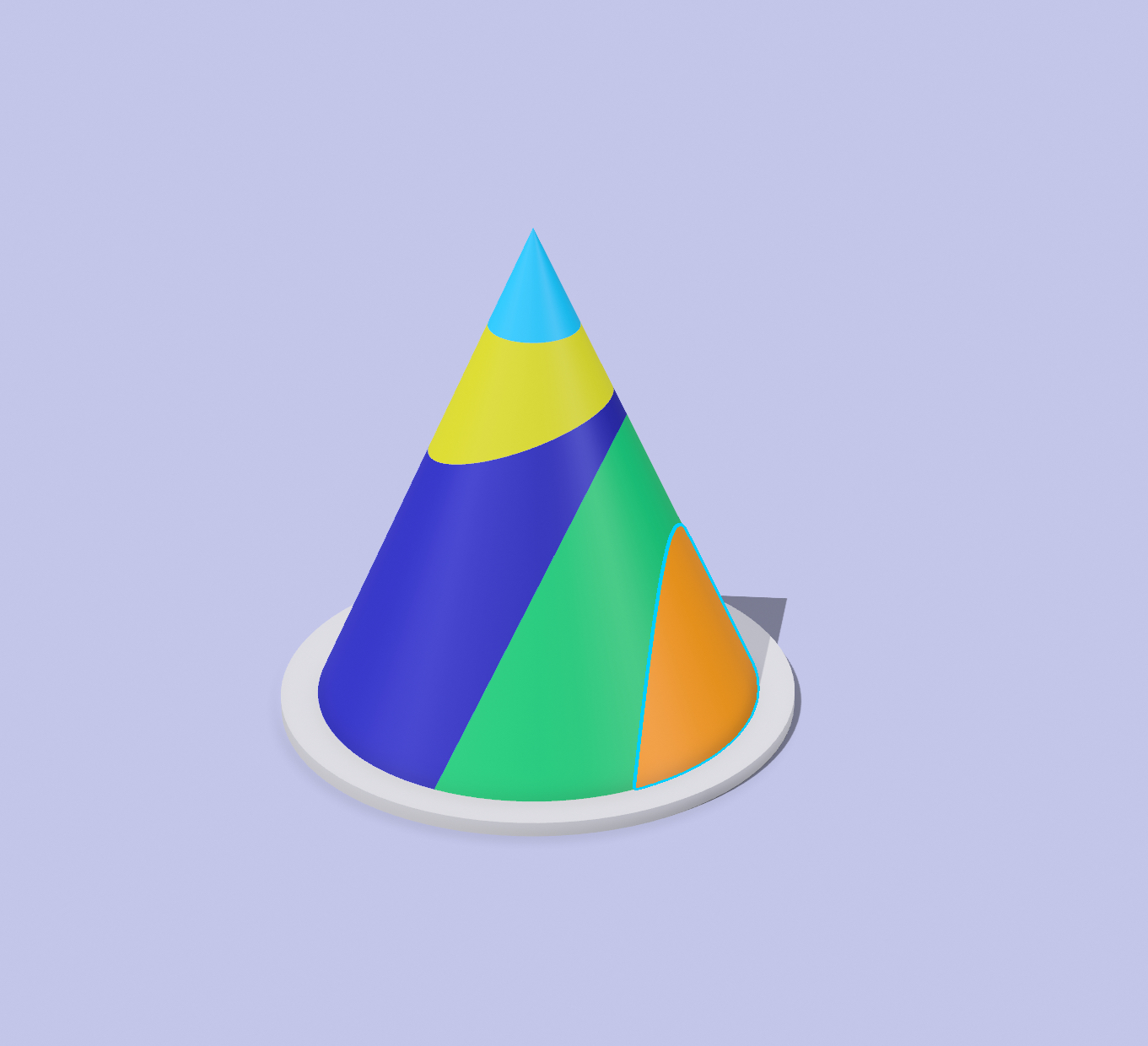

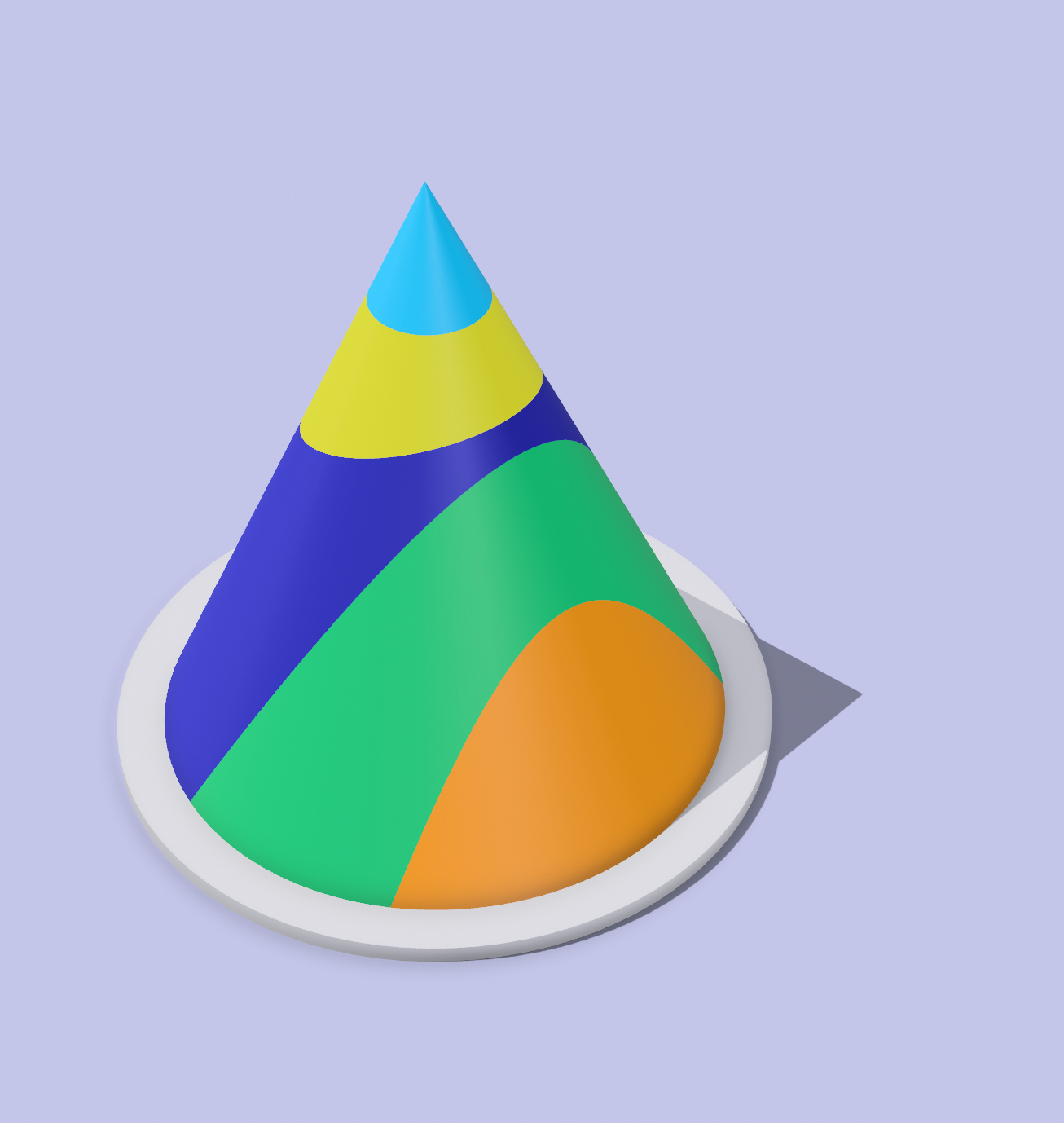

The Cone - The shape shifter is an innovative 3D model that visually demonstrates the fundamental principles of conic sections—one of the most important topics in geometry and algebra. When you cross-cut the cone at different angles, the model reveals distinct mathematical curves, including circles, ellipses, parabolas, and hyperbolas, offering an interactive learning experience for students, educators, and math enthusiasts alike.

Functionality and Educational Purpose:

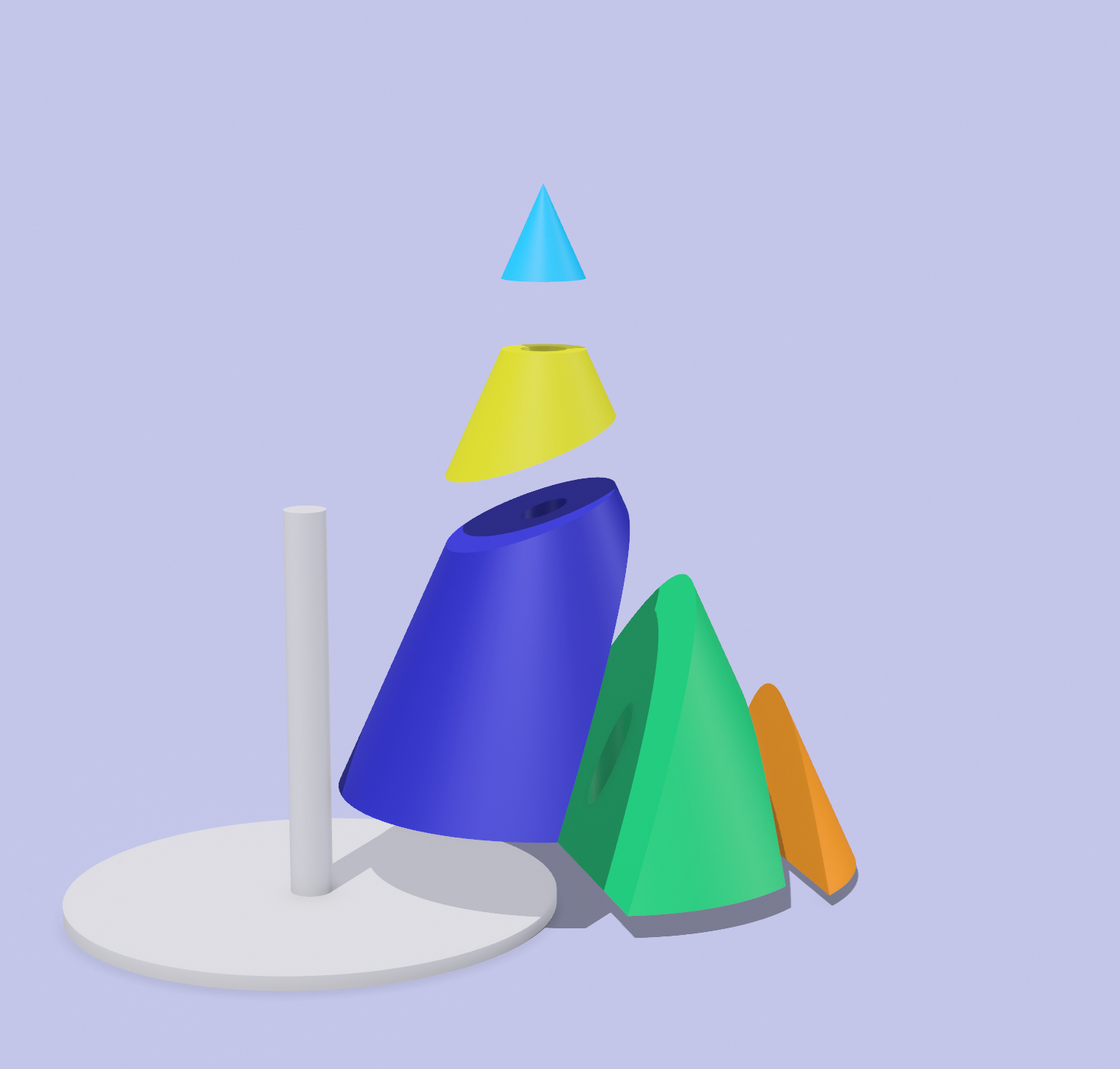

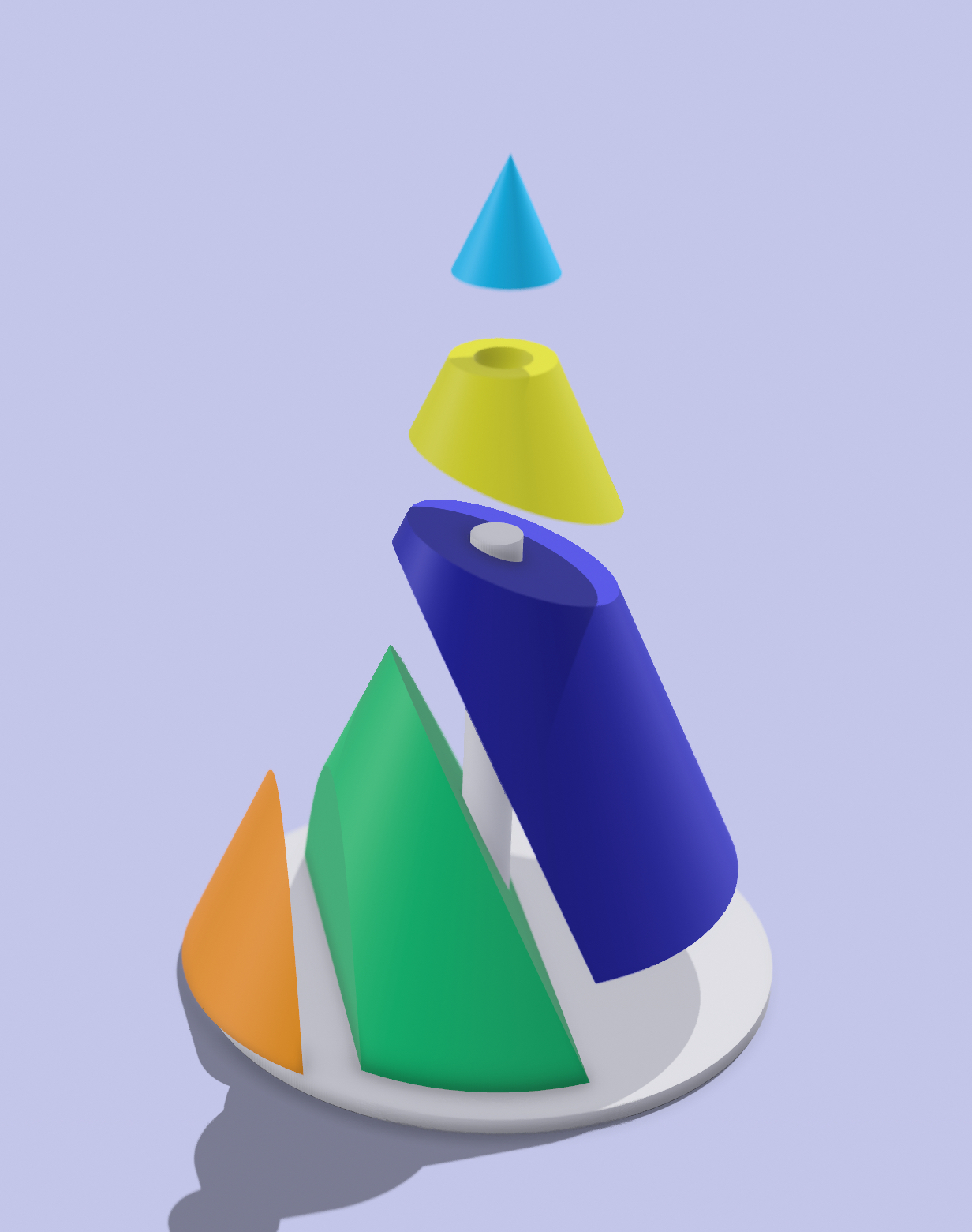

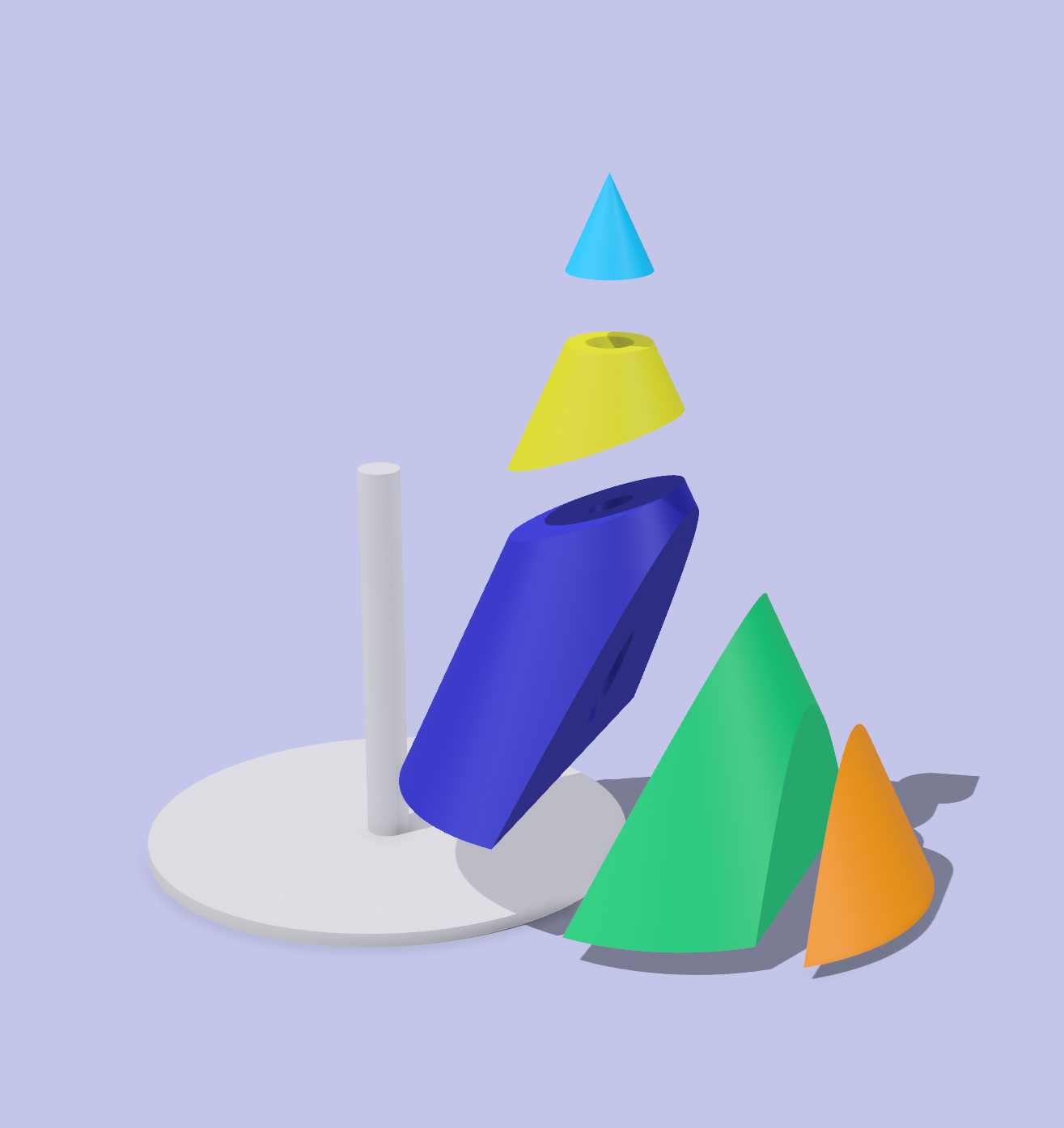

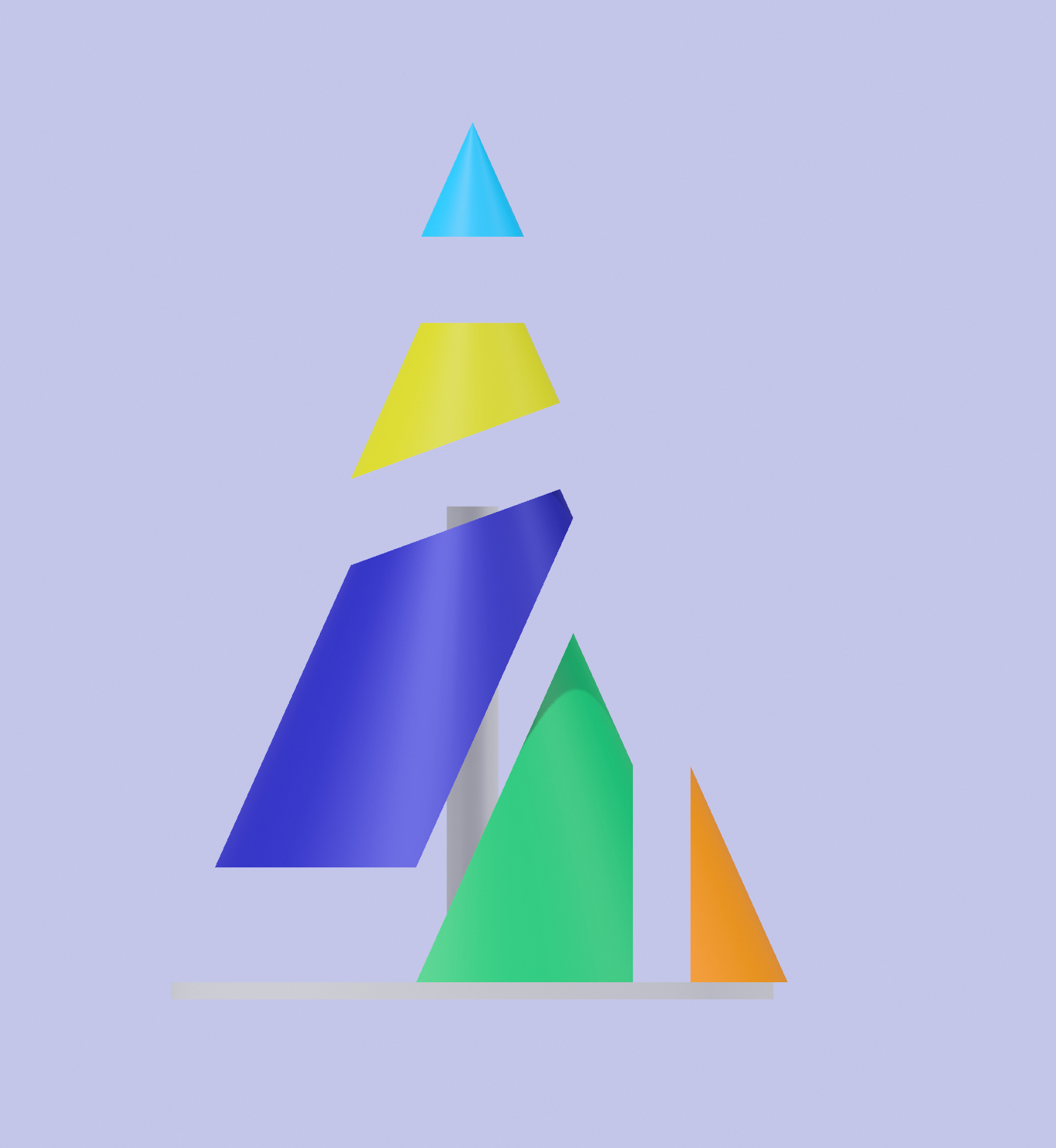

This model takes the user through the journey of discovering how slicing a cone at various angles results in different shapes—each with unique properties:

• Circle: A horizontal cut through the cone’s axis forms a perfect circle.
• Ellipse: A slanted cut produces an ellipse, showing the extension of circular geometry.
• Parabola: The parabola is made from a plane intersecting a cone at an angle parallel to the slant edge, illustrating its common use in physics and engineering.
• Hyperbola: The hyperbola is made from a plane intersecting both halves of a double cone, but not passing through the apex, representing the intersection of two cones and showing applications in satellite dishes and orbits.

This model serves as an excellent teaching tool, allowing students to visualize the transition between shapes and understand their significance in real-world applications like optics, orbits, and physics.

History and Origin of Conic Sections:

The study of conic sections dates back to Ancient Greece, around 300 BCE, where mathematician Apollonius of Perga first identified and described these shapes in his treatise titled Conics. Apollonius built upon the earlier work of Euclid and Archimedes, contributing groundbreaking concepts that connected conic sections with algebra and geometry. Today, these shapes are still vital in mathematics and applied sciences, demonstrating how ancient knowledge laid the foundation for modern fields like astronomy, engineering, and architecture.

Applications of Conic Sections:

Conic sections aren’t just theoretical constructs—they have a wide array of real-world applications:

• Parabolas are used in satellite dishes, headlights, and radio antennas due to their reflective properties.
• Ellipses describe planetary orbits, illustrating how celestial bodies move in space.
• Circles and hyperbolas find their place in diverse areas like design, architecture, and even in GPS technology.
This makes the Conic Geometry Sculptor an indispensable tool in showing how abstract mathematical ideas translate to tangible, everyday objects and technologies.

Print Settings:

• Printer Type: FDM (Fused Deposition Modeling)
• Layer Height: 0.2 mm (for a smooth surface finish on the cone)
• Infill: 15%-20% (low infill to balance strength with material efficiency)
• No Supports Required: This model is designed with geometry that naturally avoids overhangs, making it easy to print without additional support structures.
• Filament Type: PLA or PETG (for strong, non-toxic prints)
• Recommended Build Plate Adhesion: Use a brim to ensure that the base of the cone stays securely attached to the print bed.

Customization Tip: You can print the Cone - The shape shifter in different filament colors to better illustrate each section—use green for the circle, blue for the ellipse, red for the parabola, and yellow for the hyperbola.

By incorporating both the historical context and its practical applications, the Conic Geometry Sculptor becomes more than just a model—it’s a bridge connecting ancient mathematics with the cutting-edge technology of today’s world. This 3D-printed model will elevate your understanding of geometry and can become a central piece in any STEM classroom or educational setting.
