I found that when I printed Silly's double-plunger SLAB parts, the turnaround collides ever so slightly with the grip, causing the grip to push outwards and friction on the action. I noticed there is a difference between this and the regular SLAB - the grip on the regular SLAB does not have the lip as much over the metal rails which is why this isn't a problem, but on the double SLAB, the grip has a lip that extends past the inner edge of the rail. This causes the issue on prime. I added a slight notch on the lip to prevent the collision, and it works great.

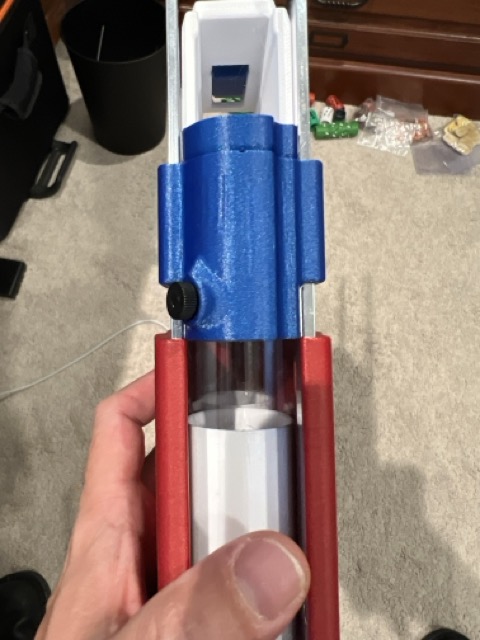

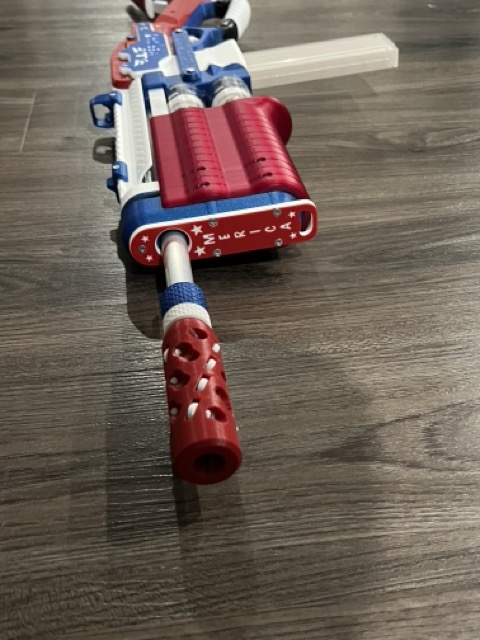

Fully assembled pictures are of my mod. Third picture is of Silly's version, you can see there is a mm or so overlap between the parts. Otherwise, can confirm, the Double SLAB version provides high morale.
Printing, you still shouldn't need supports, even with PETG. Print with the same orientation and settings as Silly's version - 5 wall loops, and 20% Gyroid infill.
Edit: I added the double SLAB front plate I made, because I didn't really know where else to put it and didn't think it warranted its own post. This seemed like a gap in the currently available parts for the double and since I made it, you all should be able to print it too. Looks just like the one in my pictures except minus the text.
Also added the mod sight I made which is a sort-of faux red-dot sight. I liked the aesthetics of it better; this is the one you can see (sort of) in the pictures. Print this on the back face with supports.
