Magnetic Encoder Knob

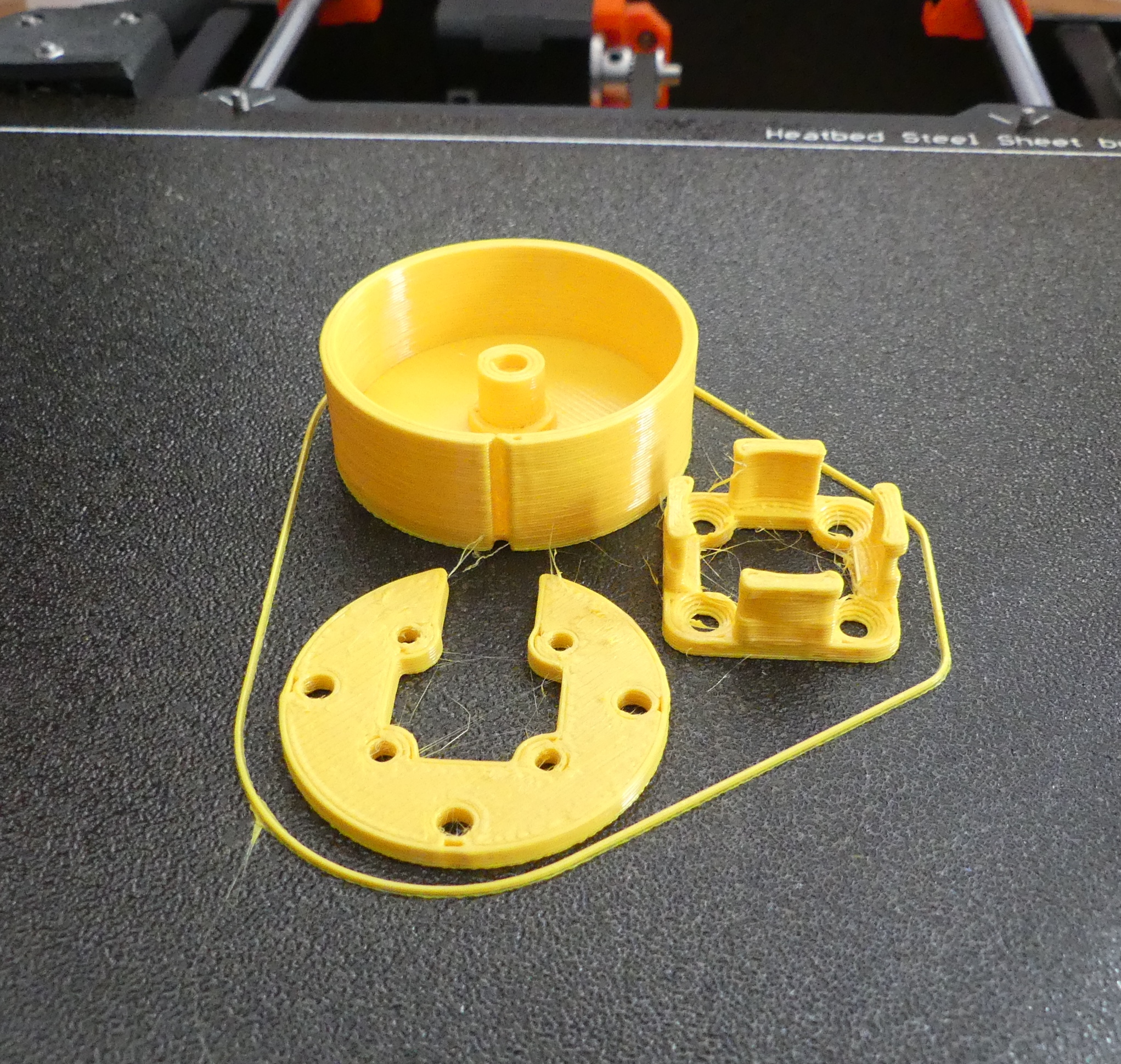

I remixed the knob from here https://github.com/scottbez1/AS5600Knob because a 4 x 2mm diametric magnet was included with the sensor.

Bought the sensor from HERE.

Thanks for the included Fusion 360 file of the STL-Parts to scottbez1.

For further information, code and files you will find under the github link.

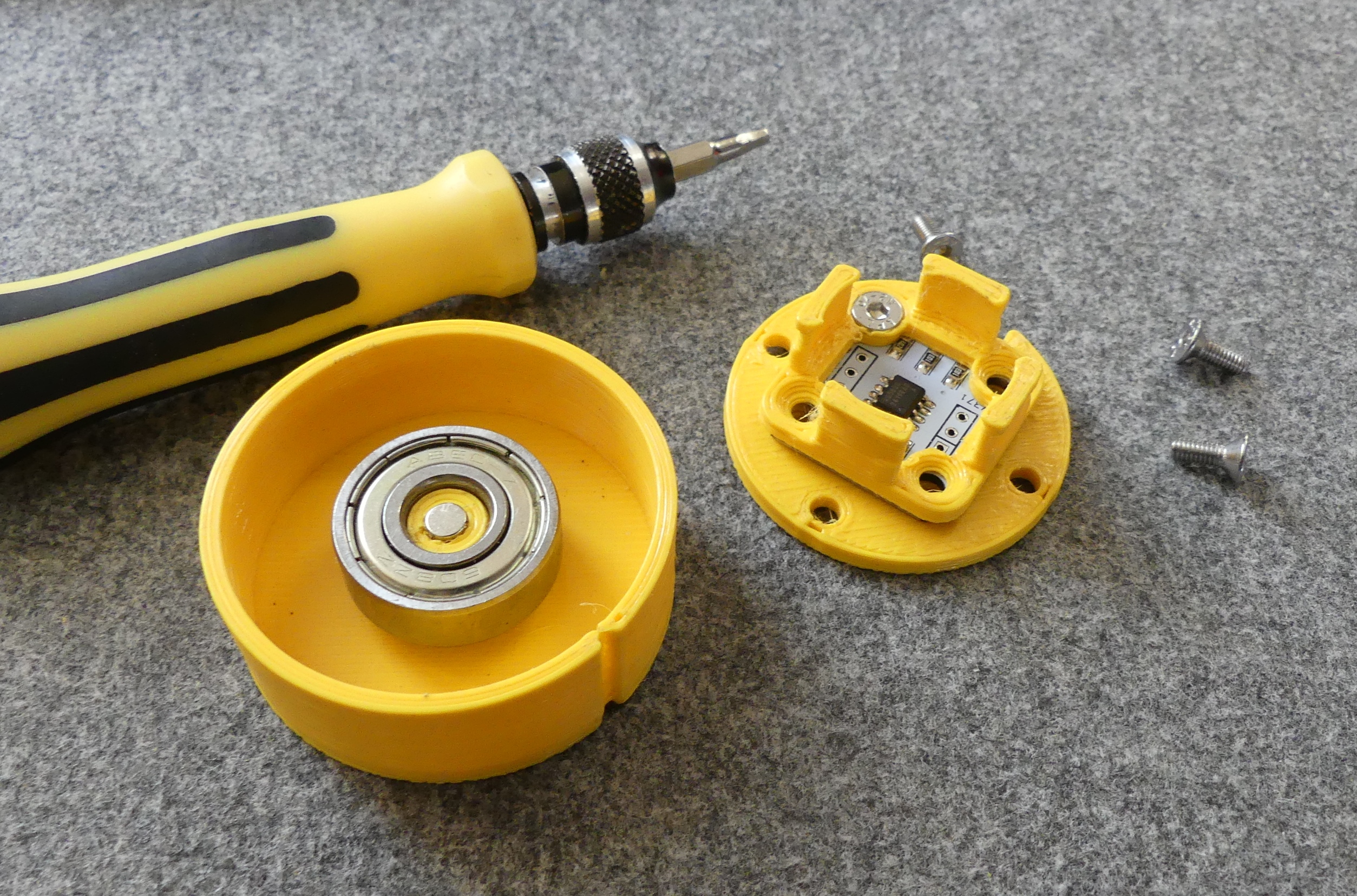

Parts:

TTGO T-Display board

AS5600 Sensor board

4 x M3 8mm Countersunk screws

1 x Ball bearing type 608

4 x Wires

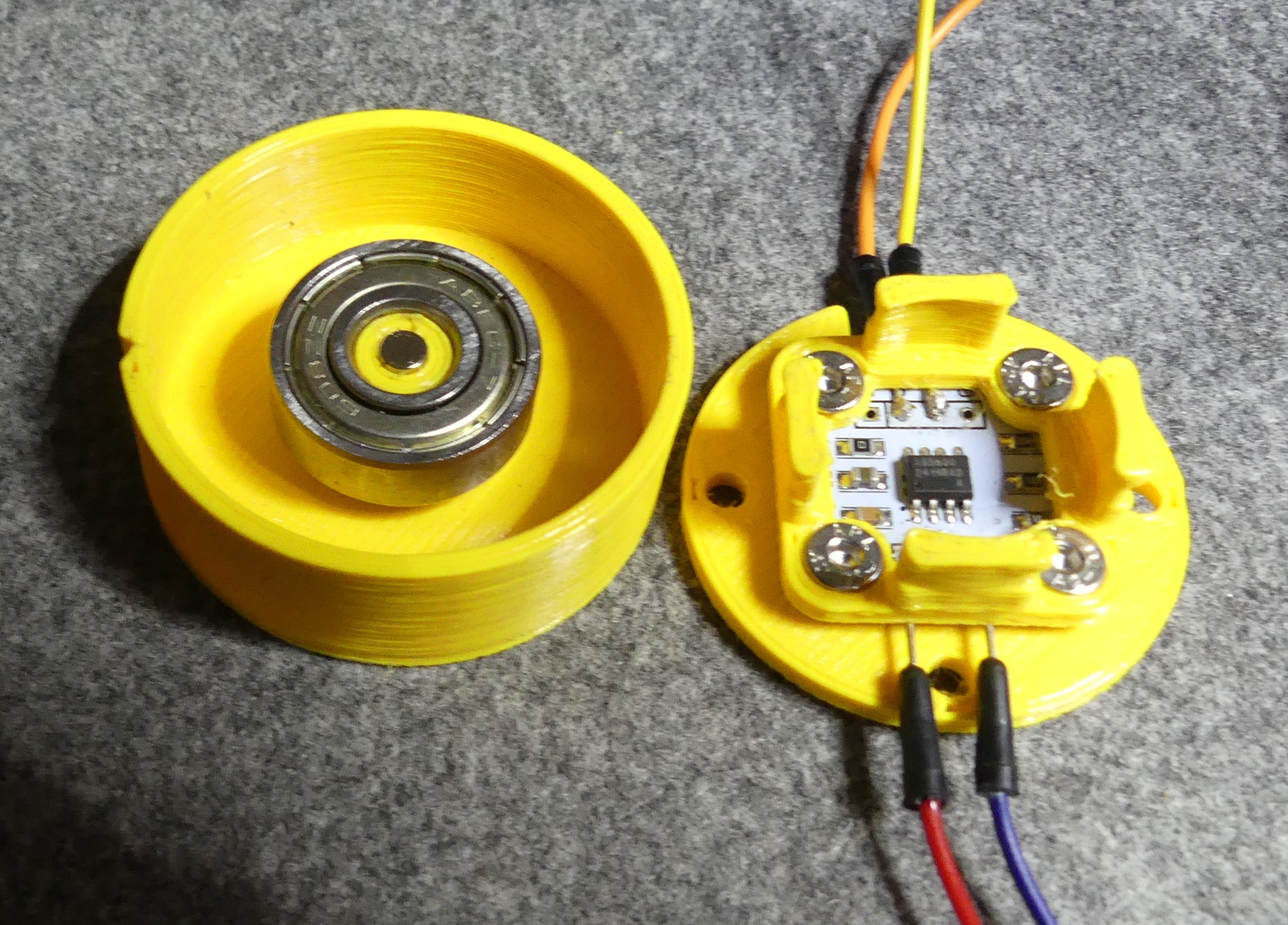

Connections from the sensor:

SCL → GPIO22

SDA → GPIO21

Vcc→ 3.3V

GND → GND
