Frame clamping jig
Zamów wydruk tego modelu
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Tools
- Licencja
- Creative Commons — Attribution

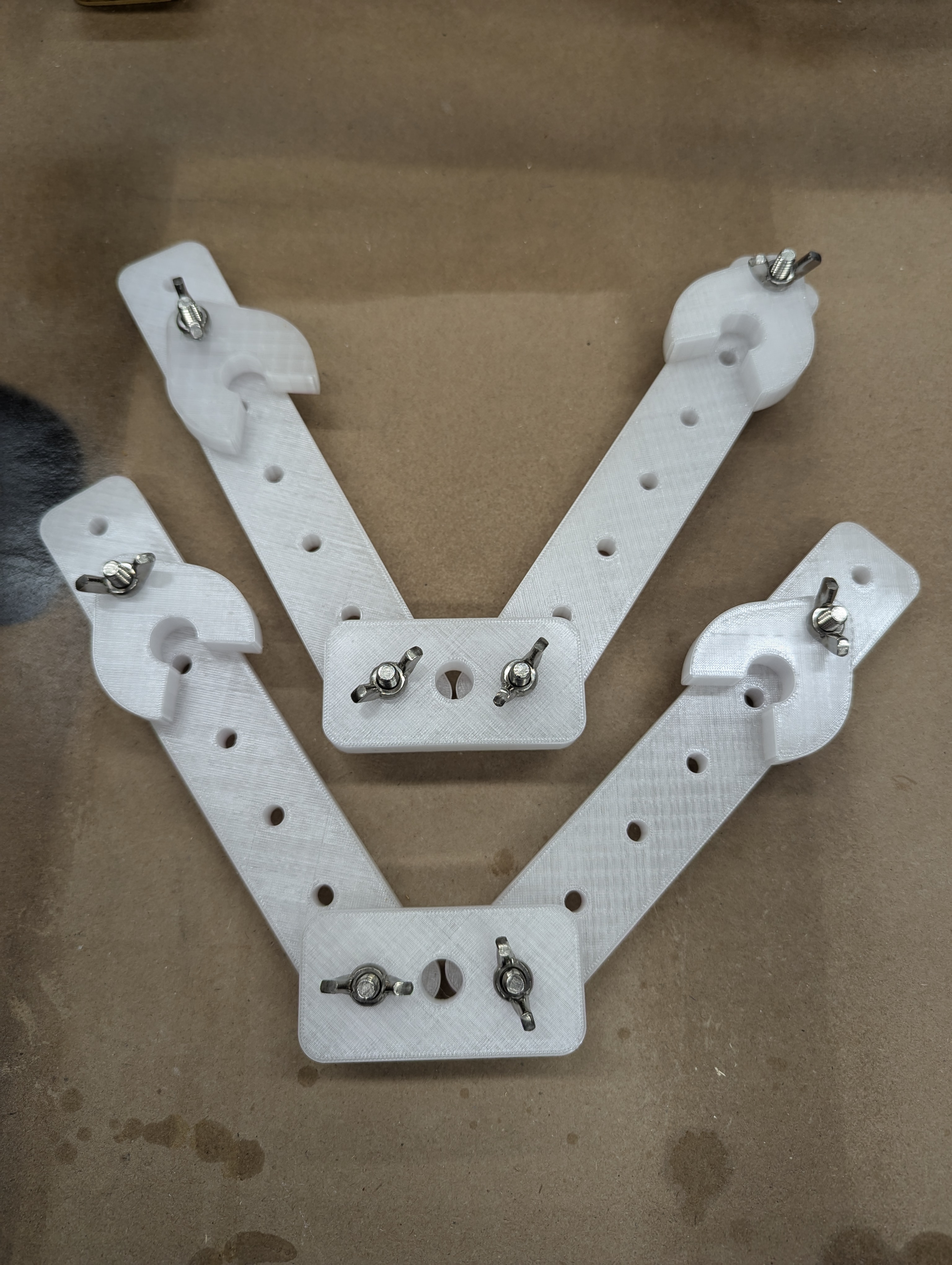

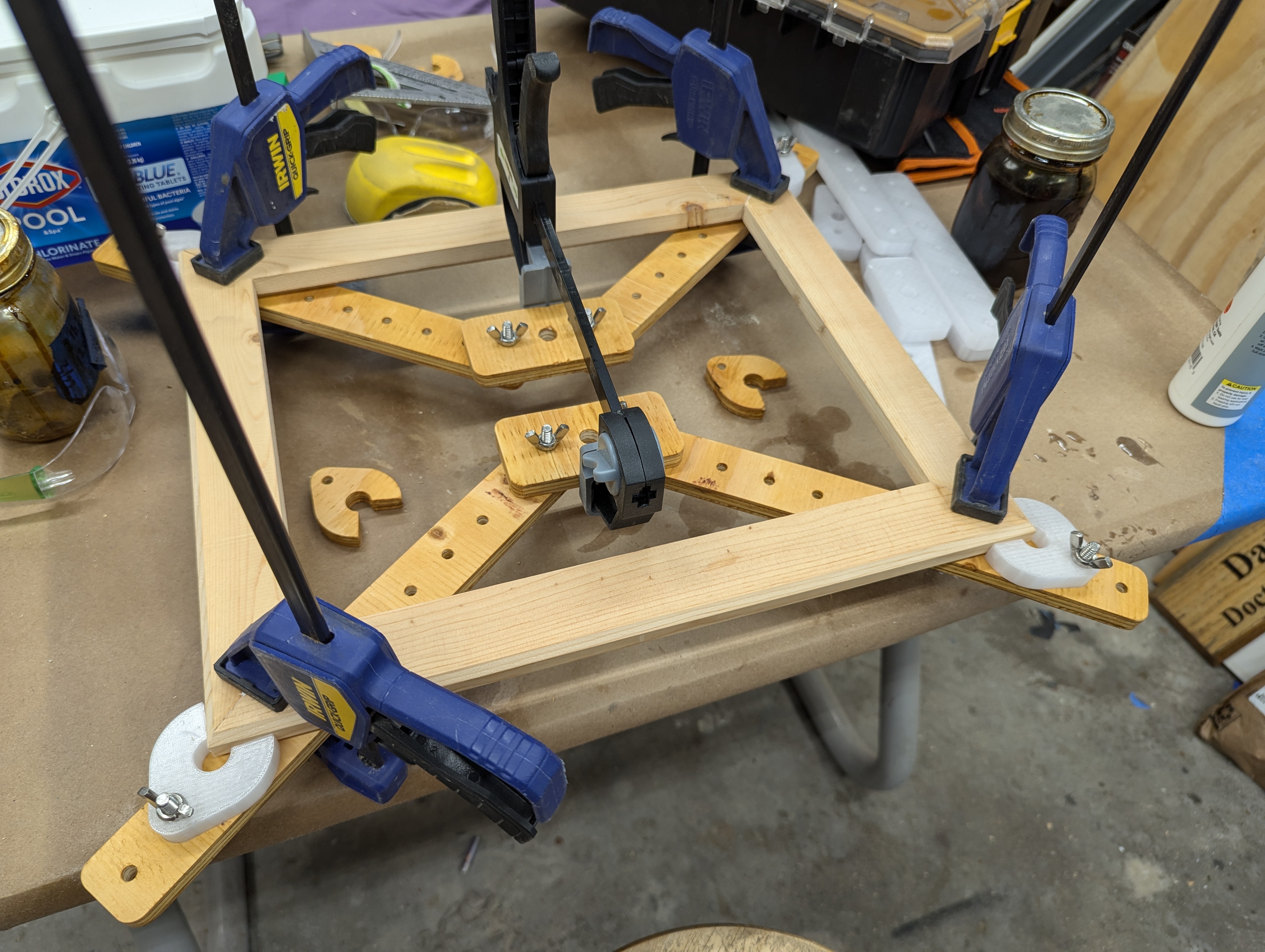

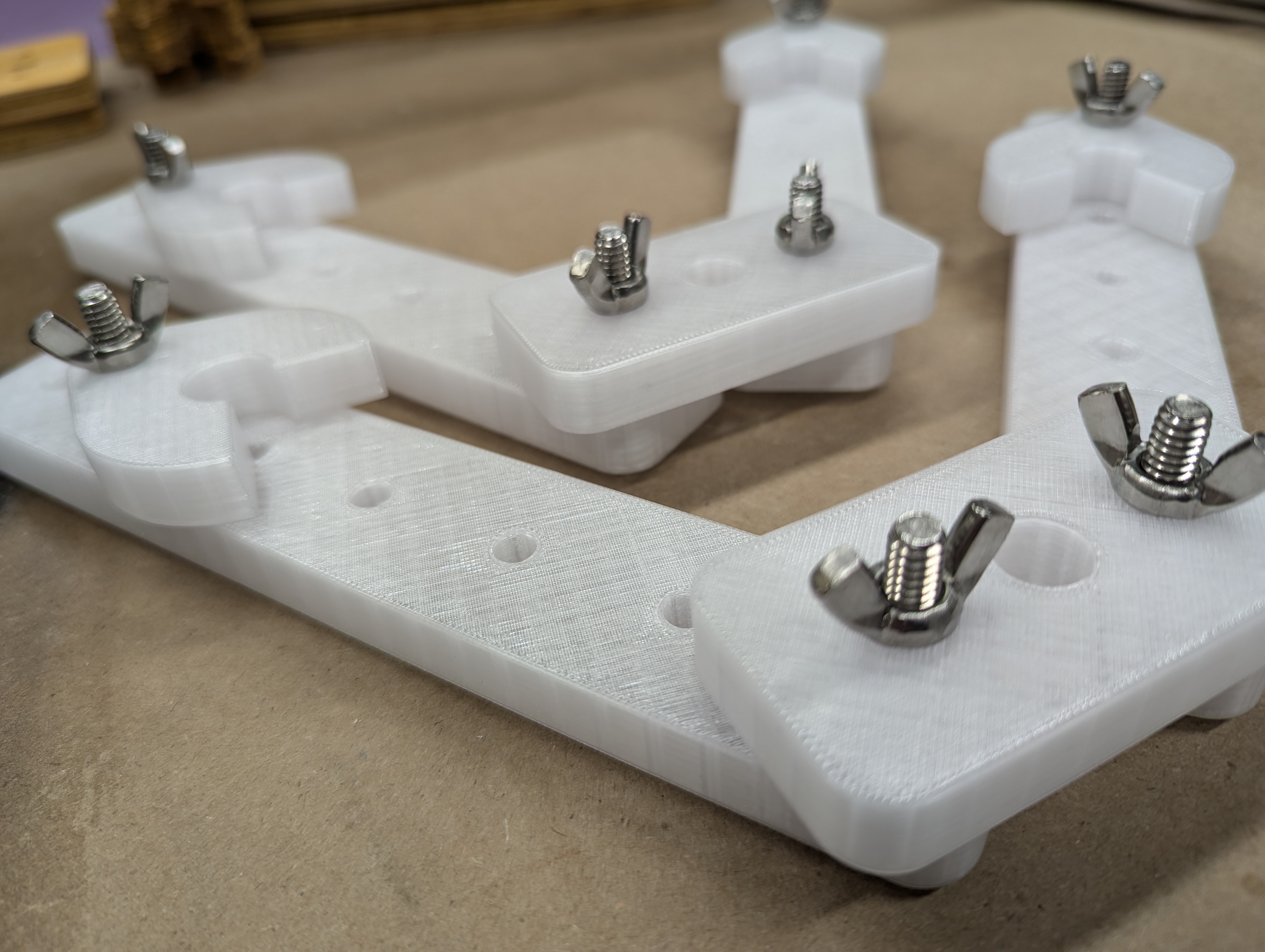

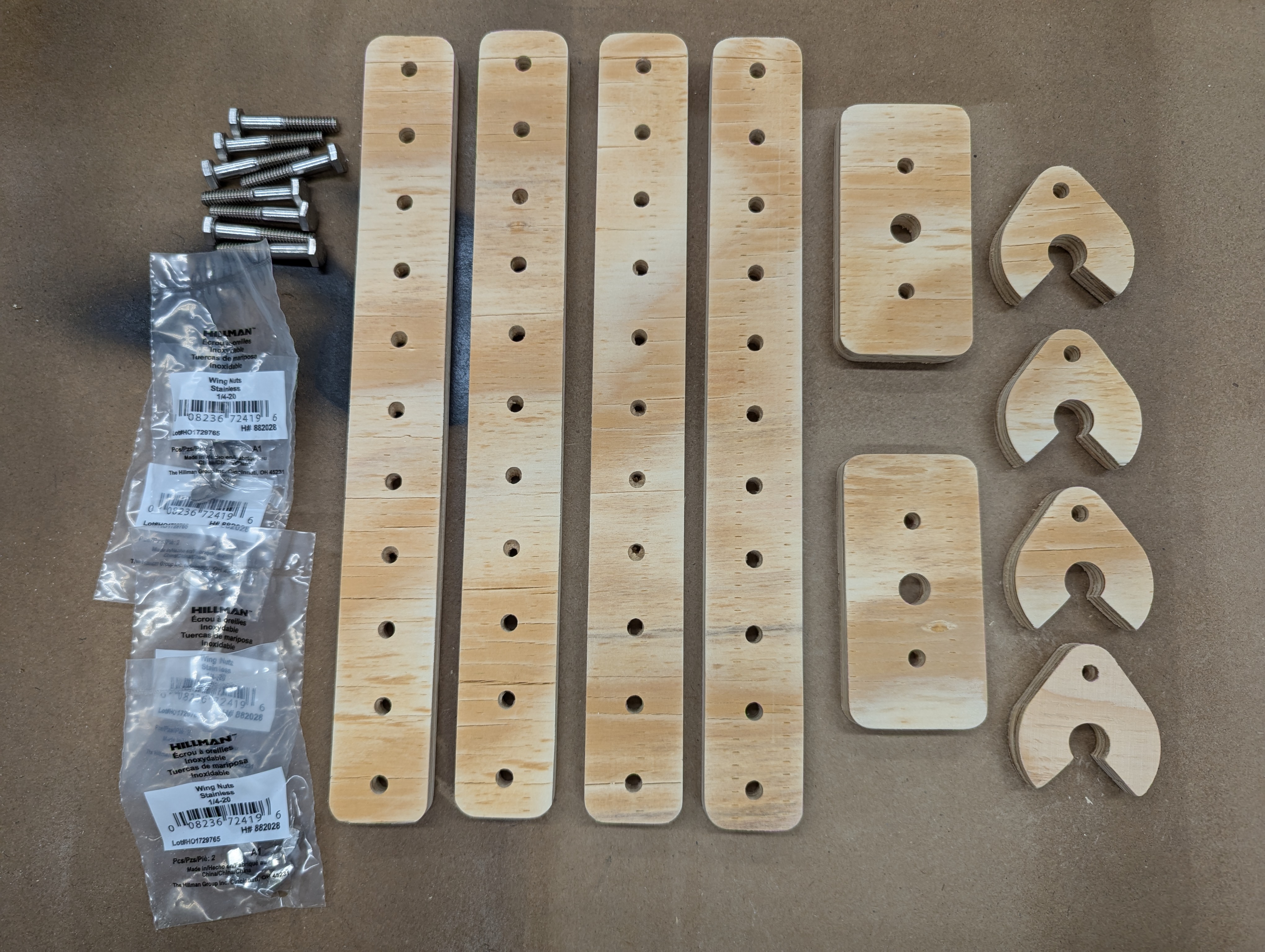

I saw a number of different jigs for clamping frames and decided to design my own. Having both a router and a printer, I made a single openscad file that can be used for both and all settings are parametric. I mixed and matched some of the wood pieces I cut with some of the printed pieces off the Bambu. I sized everything for ¼-20 1.5 inch bolts/wingnuts (8 of each) but M6 hardware would probably work fine without adjustments. The photos are of a 200mm set printed and a 300mm set cut on the CNC router.
