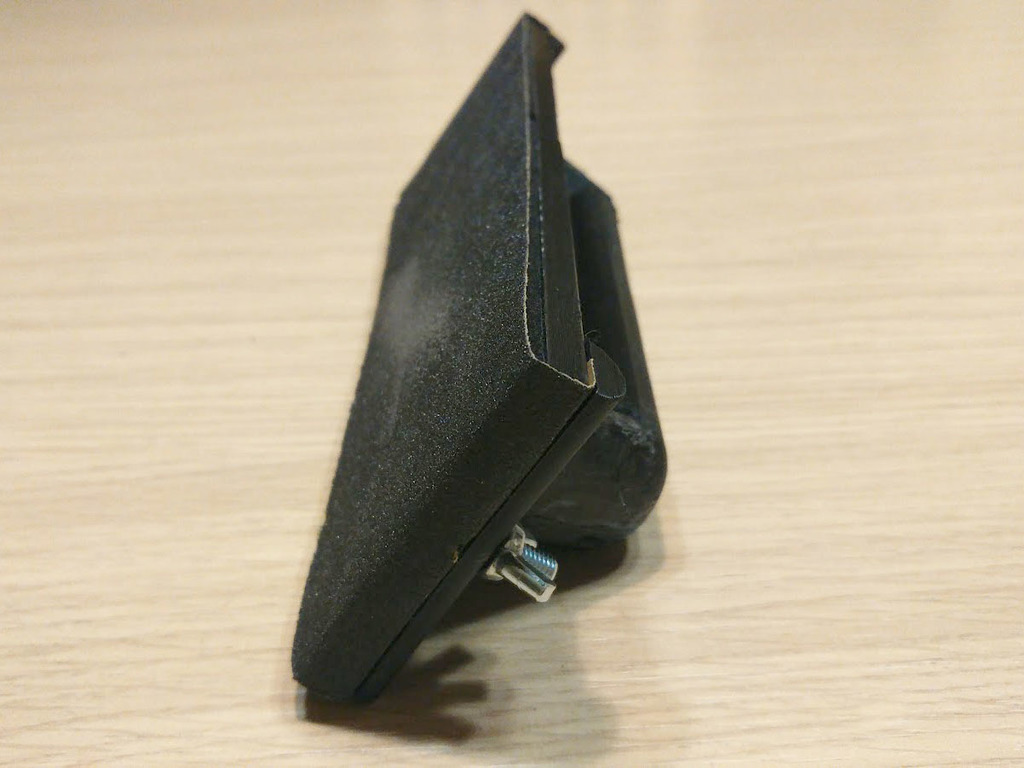

A handy sandpaper handle (pun intended), especially dimensioned for optimal use of 23 x 28 cm sandpaper sheets. Cut each 23x28cm sheet into four 23x7 stripes, and secure a stripe with butterfly nuts on each side.
Base size: 20 x 7 cm.
Print Settings
Rafts:
No
Supports:
No
0.30
Notes:
Required Parts
* 200 x 70 mm EVA foam anti-slip pad (or two 100 x 100 mm as usually sold)- M5 x 30 screws with hexagonal head (2 pcs)
M5 butterfly nuts (2 pcs) #### Glueing
If printing in ABS, melt some ABS scrap parts in acetone, and use the goo to glue the parts.Use a gas mask, and work in a well ventilated area!
#### Additional Print Details

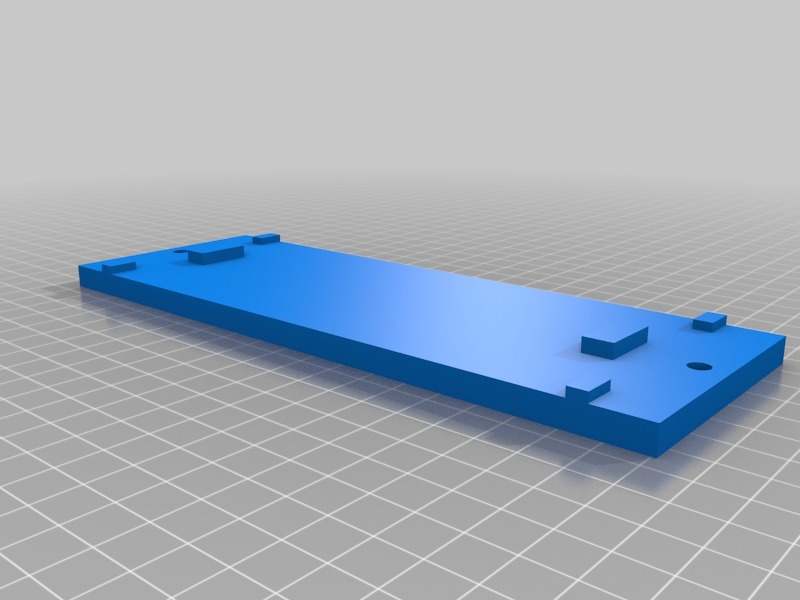

##### Base
The base has to be rigid, so use the following settings (especially if printing in ABS):
3-4 shell perimeters

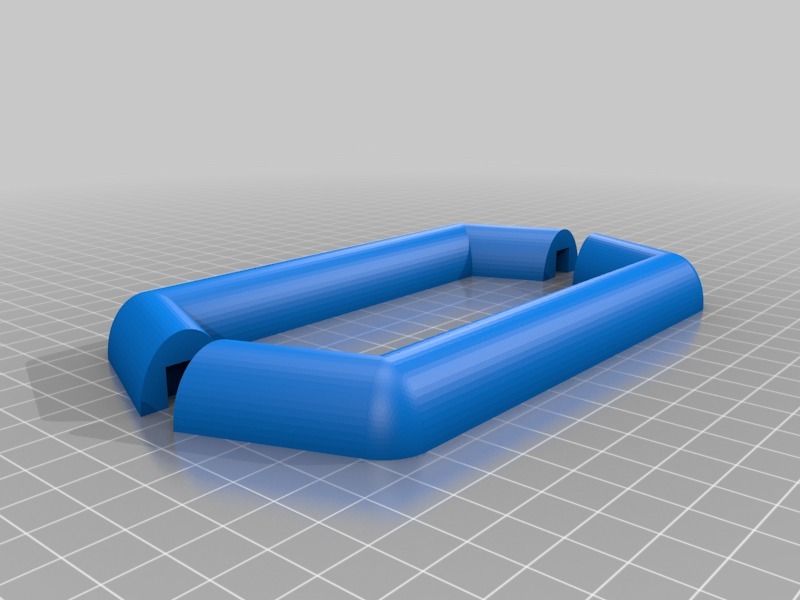

50% infill ##### Handle
5-10% infill

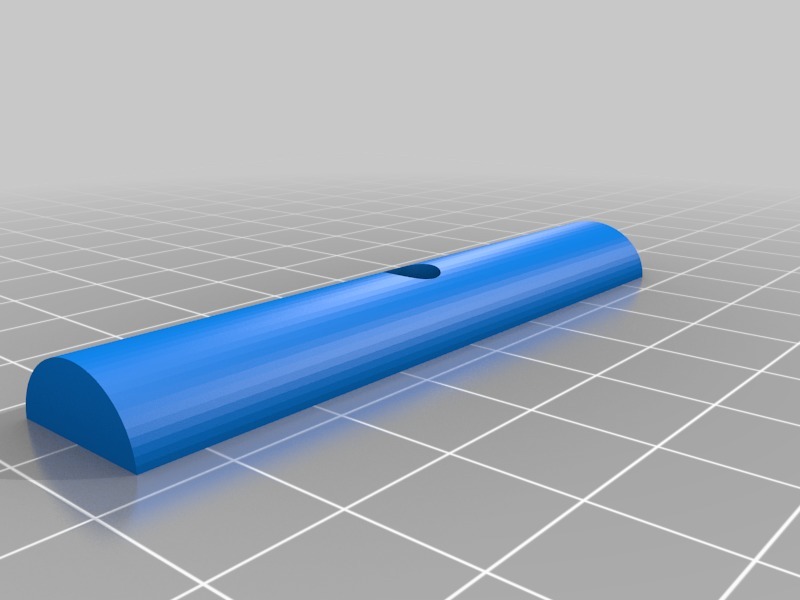

Glue the two parts together, and then glue the handle to the base ##### Holder Bars
4 shell perimeters
- 80-90% infill
