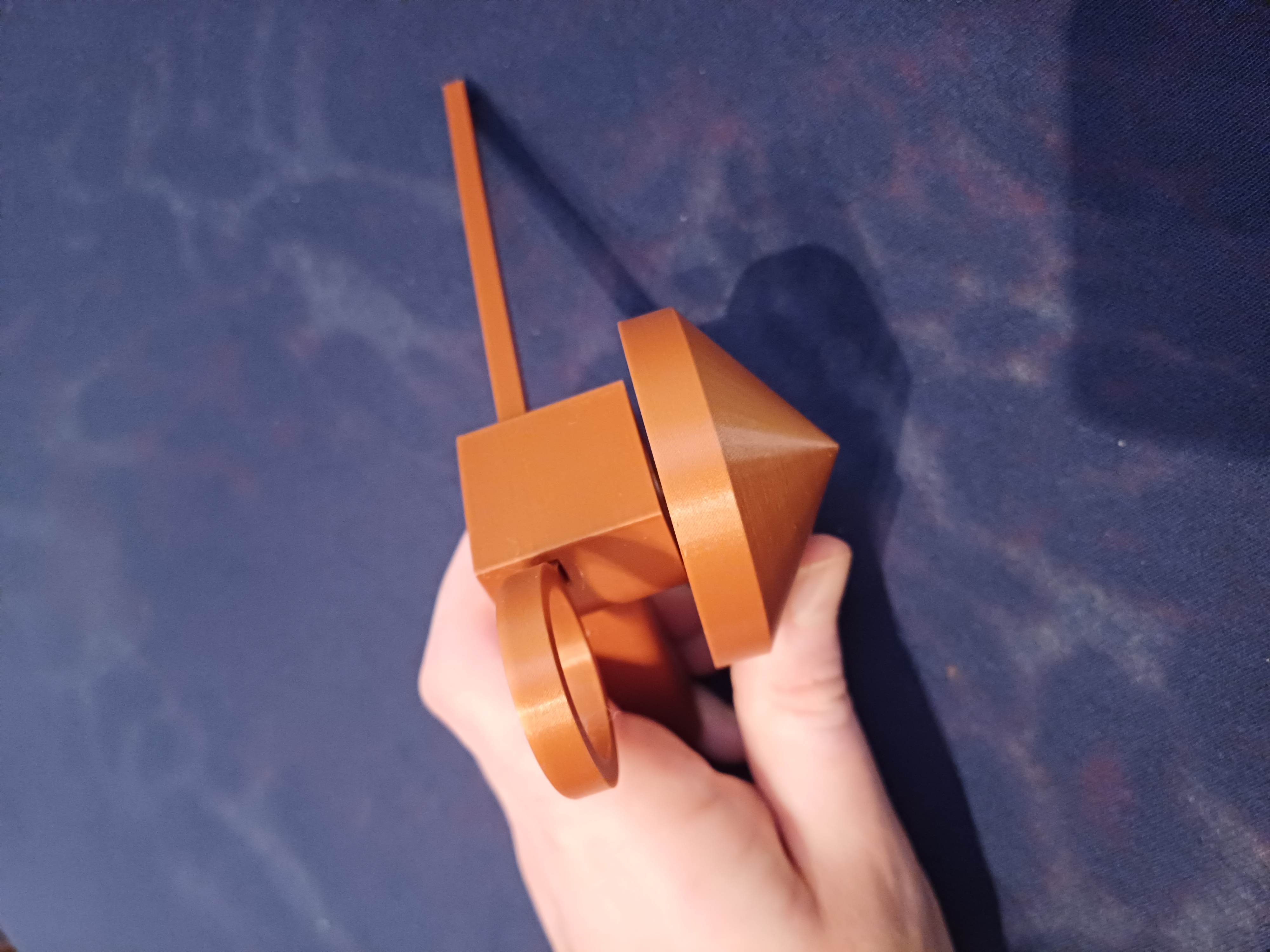

Geared puller spinning top
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Other Toys & Games
- Licencja
- Creative Commons — Attribution
When I was child I have that kind of toy, in that time it was made from iron (maby alluminium or smth, don't know I was child xD), so I think, can I design smth like this by my own, and here it is.
Printing:
-layer high: 0,2mm (this is important to rotor in mechanism get free after printing);
-infil: I printed spinning top with 5%, and rest with 15% for strengh of parts, but feel free to experimenting with it;
-I recomend to use PLA fairly dryed (out of box work for me), you dont want stringing every walls must be smooth to mechanism could work;
-take on mind that this is very precise print, if you printer have problem with 0,3mm gabs, it can't work;

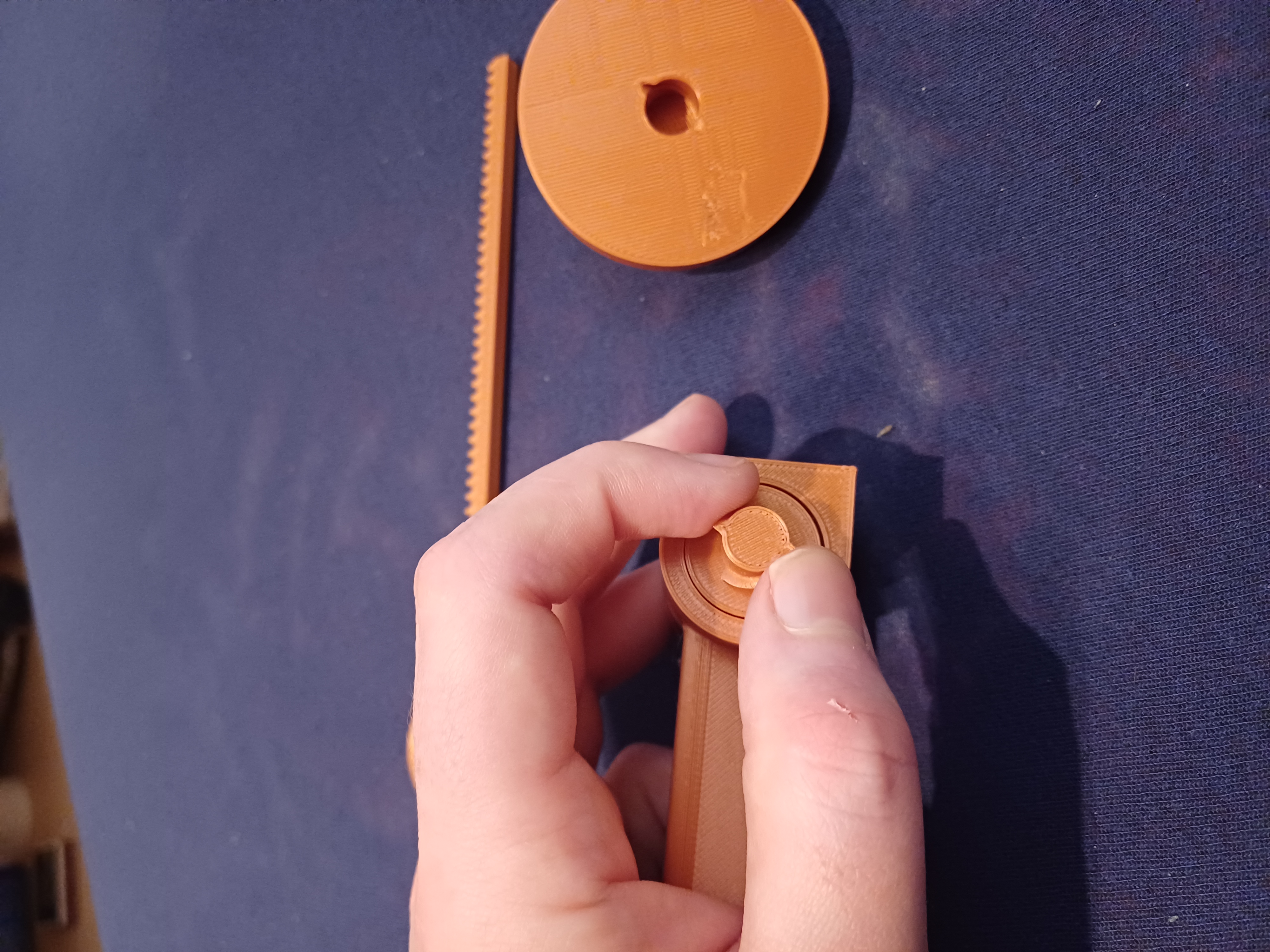

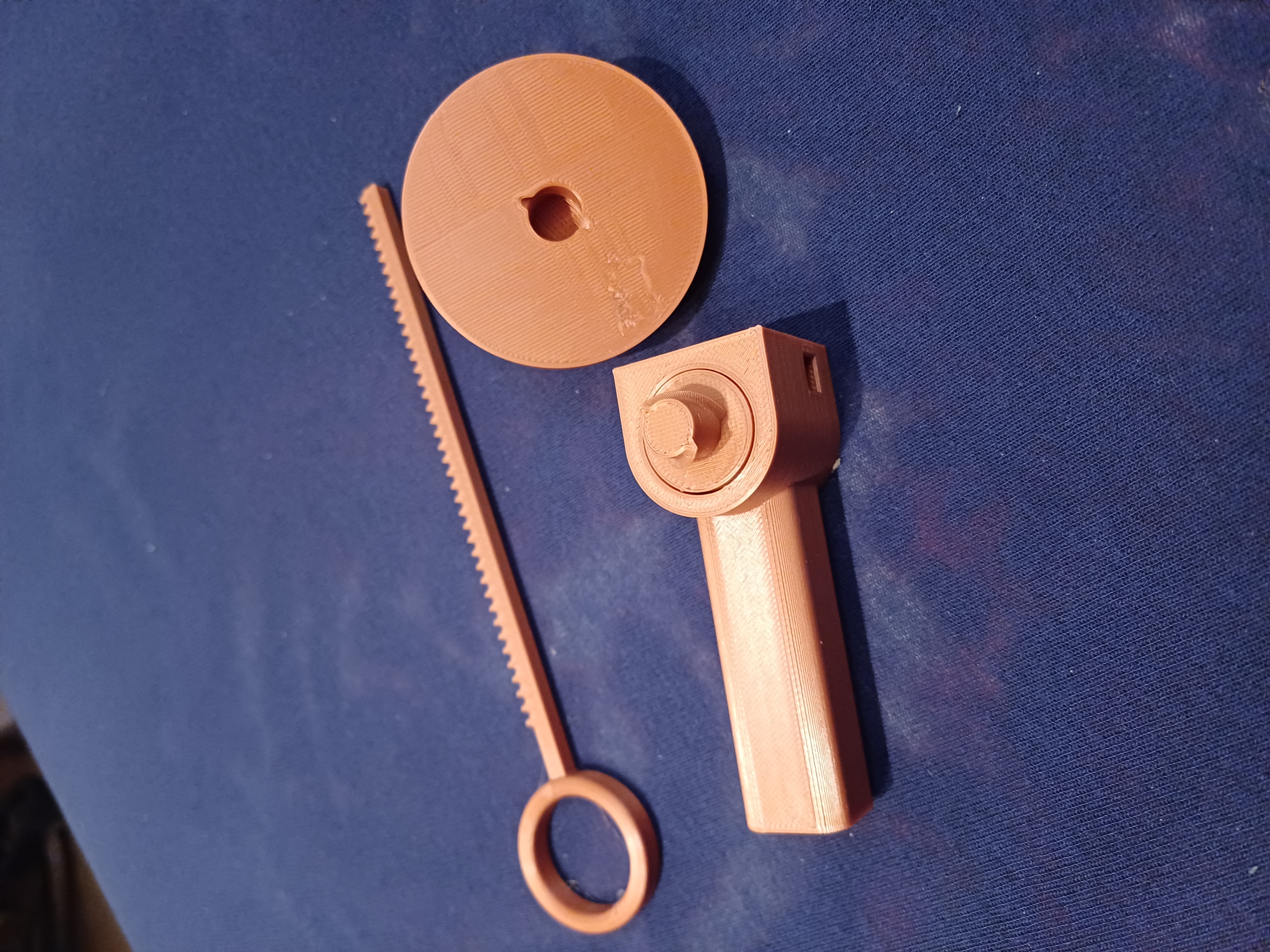

After printing rotate the rotor in mechanism to relise it, it can be little hard, you can place on spinning top to use it to rotate mechanism (when you doing this remember to not place in puller this can brake mechanism)
