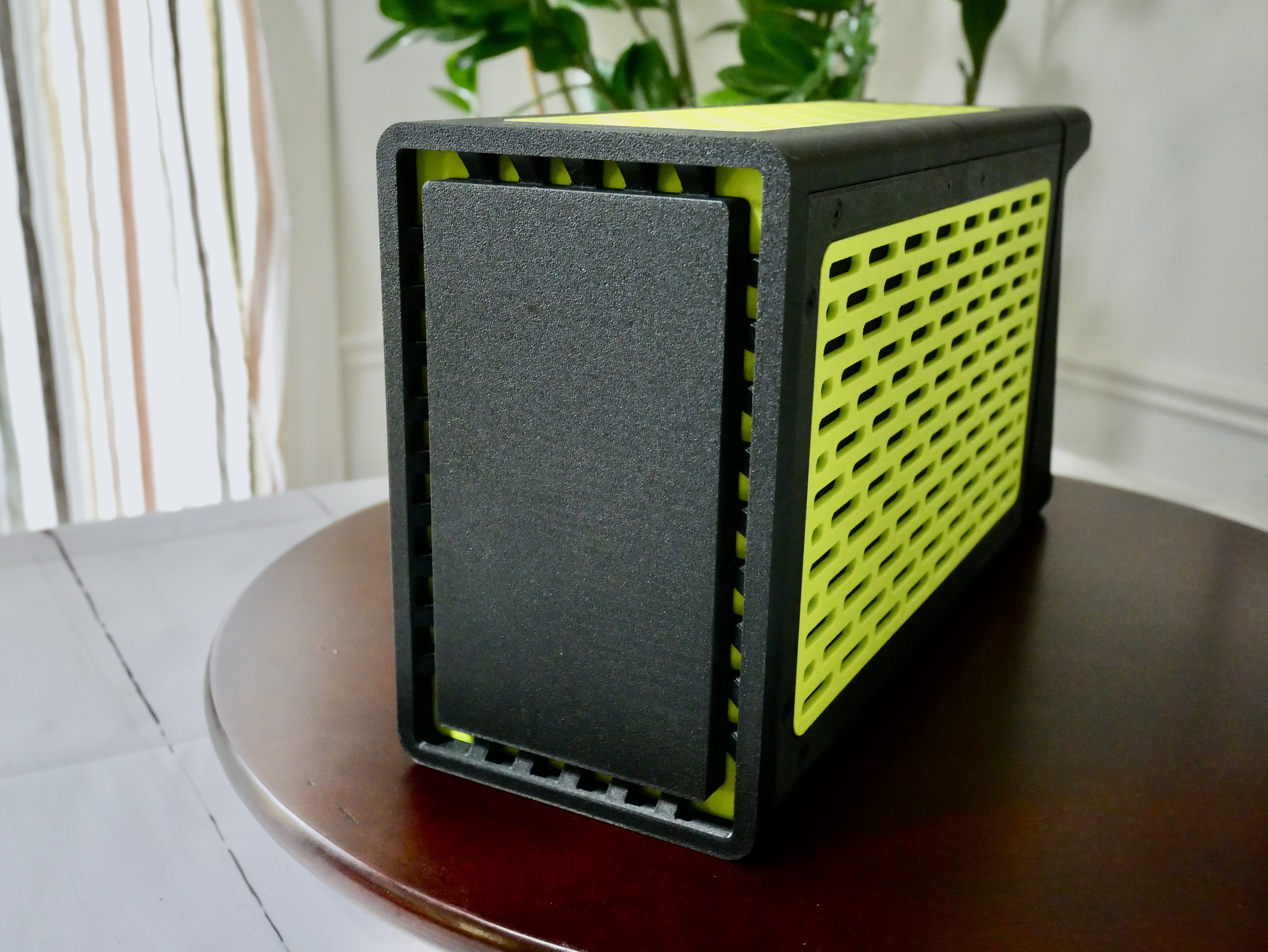

Thorzone Mjolnir inspired case.

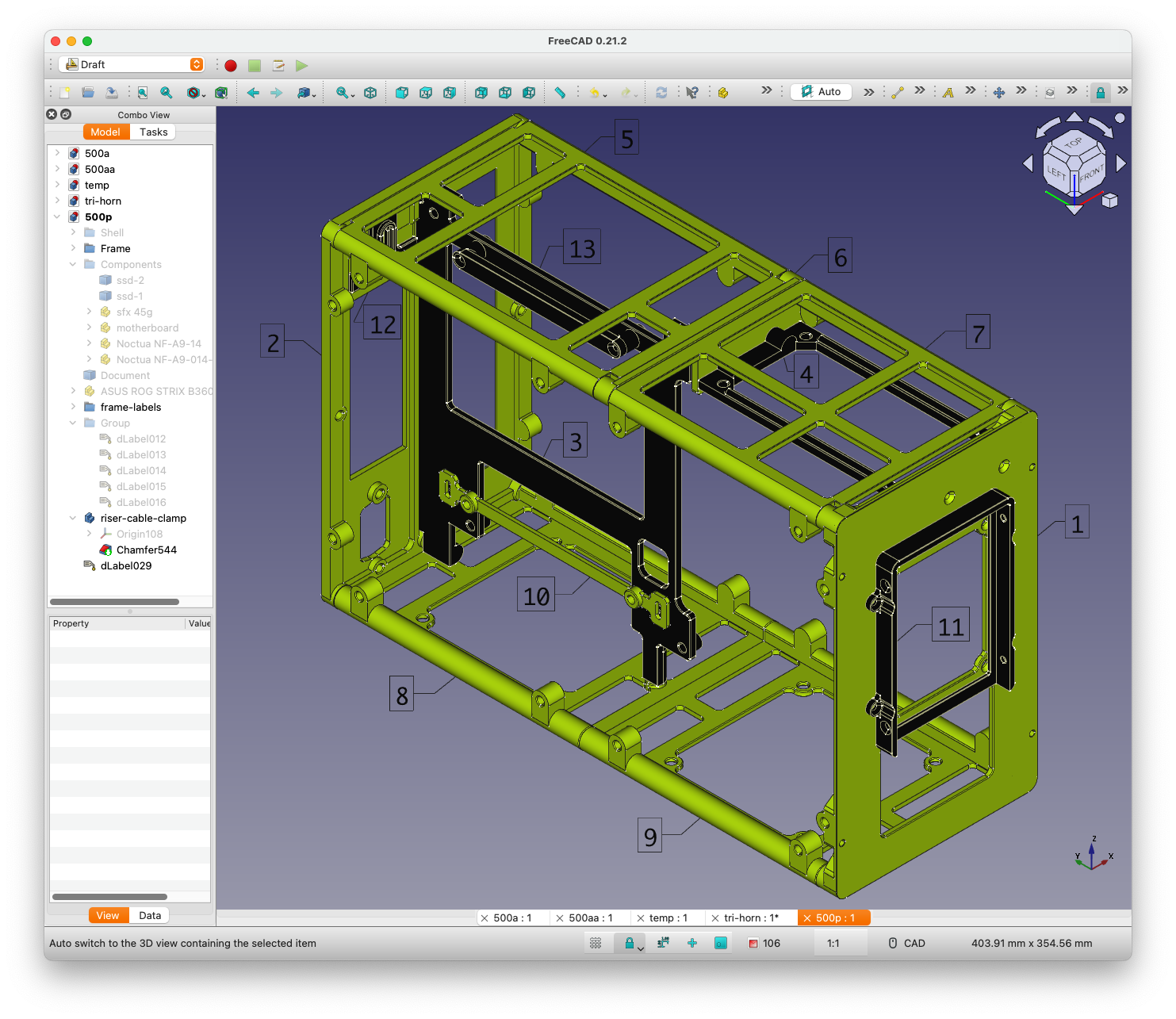

Case is held together and reinforced by threaded rods providing the needed stiffness and structural integrity
Most parts prints flat and only a couple needs minimal supports.
Black parts are printed with PETG-CF, fluorescent yellow parts in PETG.
See BOM for build options, restrictions and limitations.
BOM: https://docs.google.com/spreadsheets/d/1zpB_R5Lbgo24C_kbTzNHzBGFCThlIZ7kVYzCRKdZP_w/edit?usp=sharing
Printing requirements:
1) 300x300 bed, widest part is 298.2, longest 197.4 and tallest is 162mm.
2) Flow calibrated, for proper fit.
3) Skew calibrated, for properly squared parts, otherwise case may be twisted and screw holes not aligning.
4) PLA not recommended as PC components generate heat which will cause parts to deform, use PETG or better in terms of heat tolerance.
parts.zip contains images of printed parts, arrows indicate location of heat set inserts
assembly.zip contains a README file as an assembly guide, also contains images of build for reference
