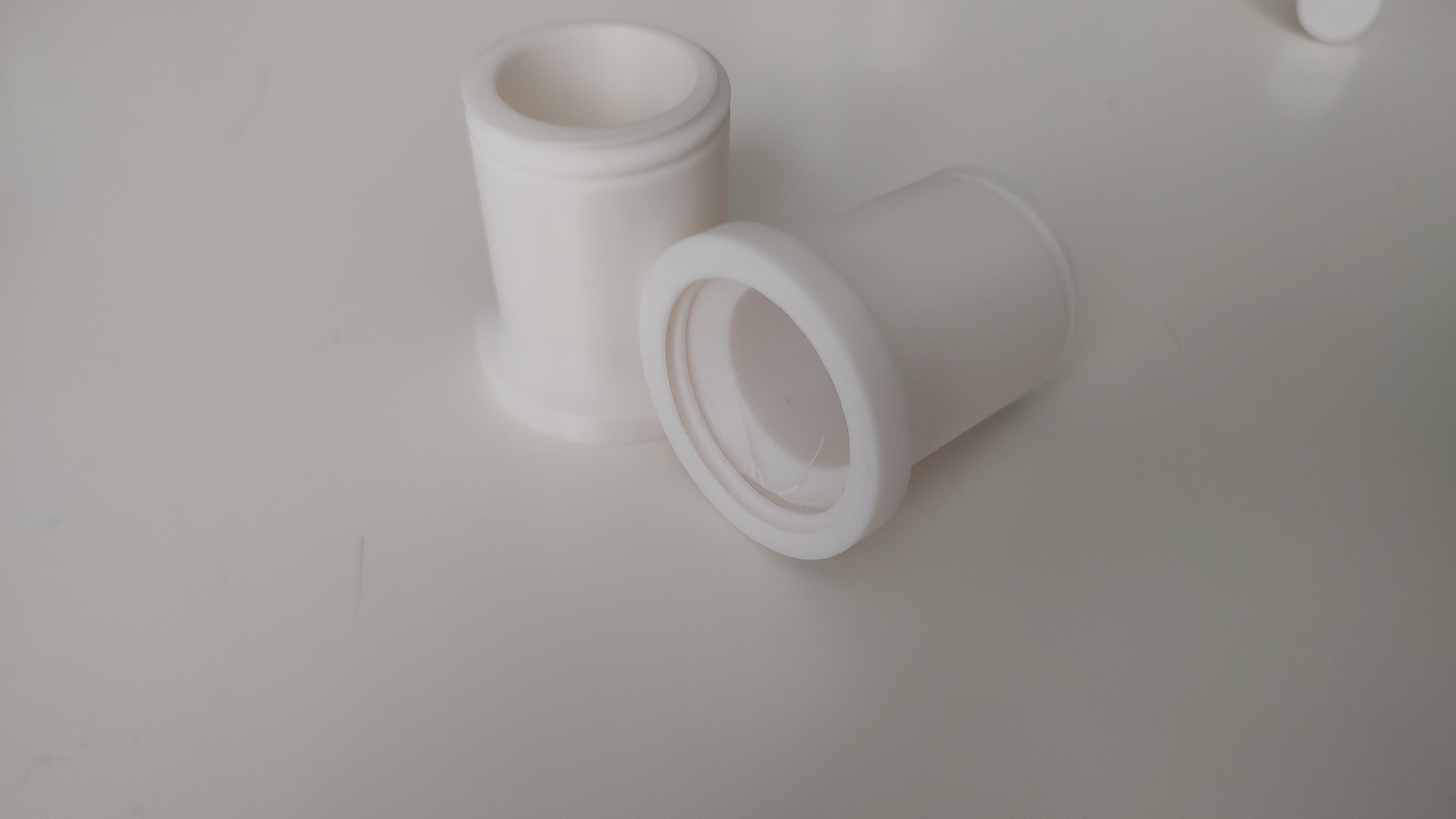

Customizable cable management tubes that screw together to hide unsightly cables! I designed these to clean up the cables coming out of the back of my computer, they can be used for anything else.
The internal diameter is 30mm, but I plan on making thicker versions in the future.
How do I make Custom lengths?
(note: an Onshape account is required, which can be made for free)
- Go to this link and log in or sign up for Onshape.
- click make a copy to edit.
- Click Owned by me, then Open, then create public document.
- On the far right side, click on the box with an X labeled variable table.
- Adjust the value to whatever length you want
Printing Info
Orient the models with the larger end toughing the bed. if your printer struggles with printing tall things, I recommend a brim or similar. NO SUPPORTS REQUIRED
Post-processing
If the threads didn't print right, you may want to use a knife or deburring tool to take care of any extra material. Other than that, they should be good straight off the printer.
If you have any questions, please leave a comment and I'll try to help.
