This calibration tool is for 3D camera tracking of synchronised multi-camera video footage.
It includes:

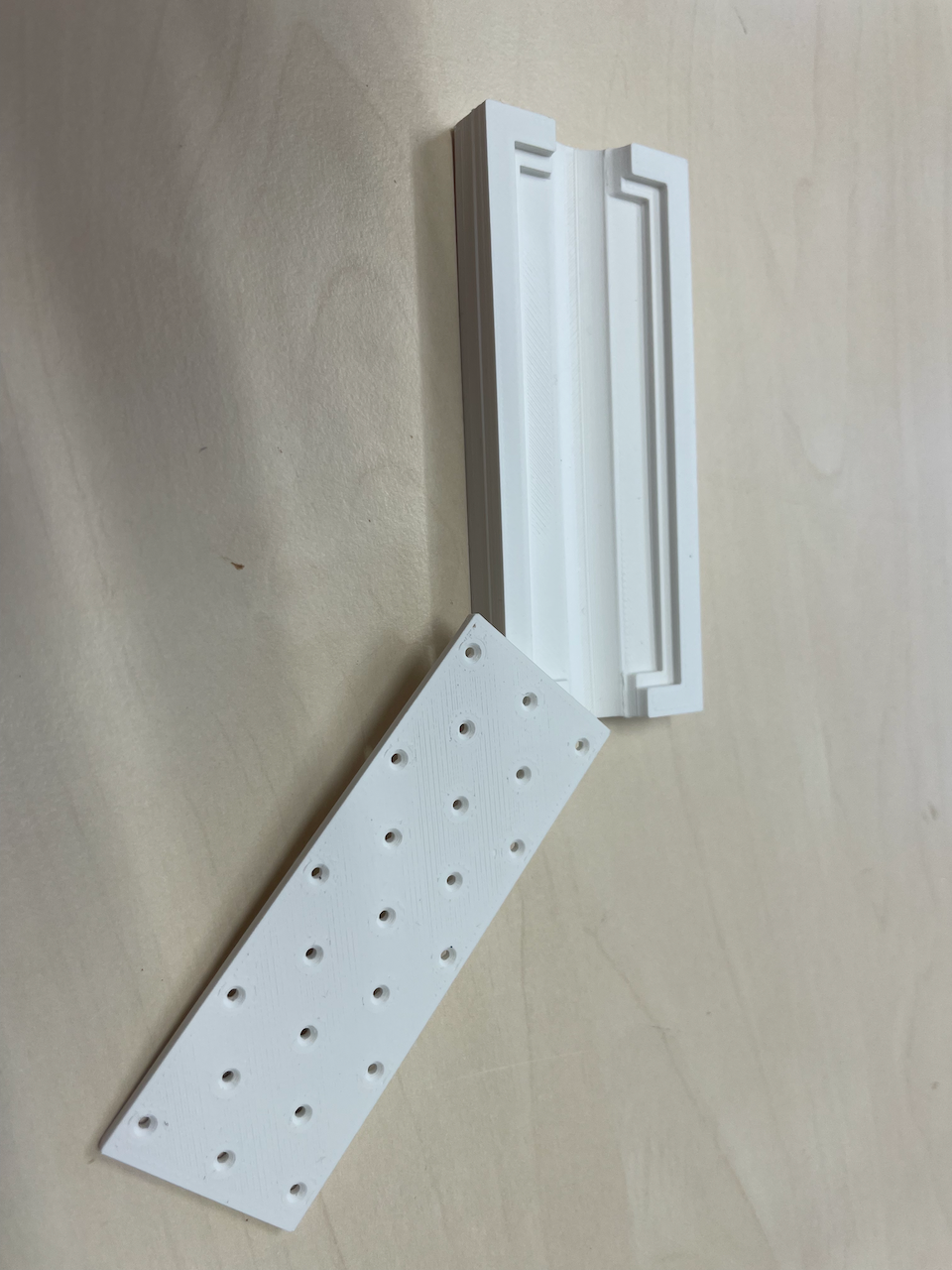

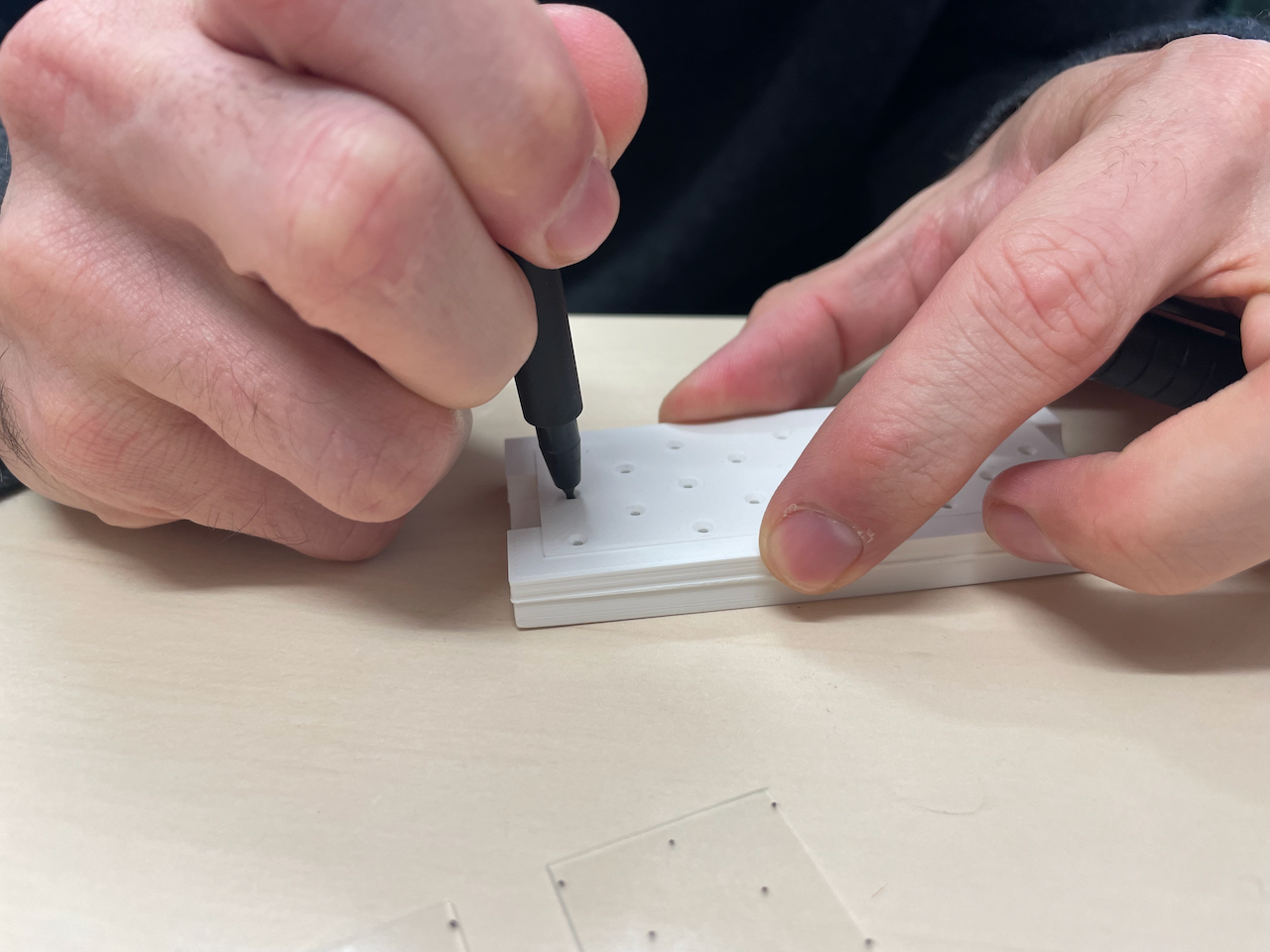

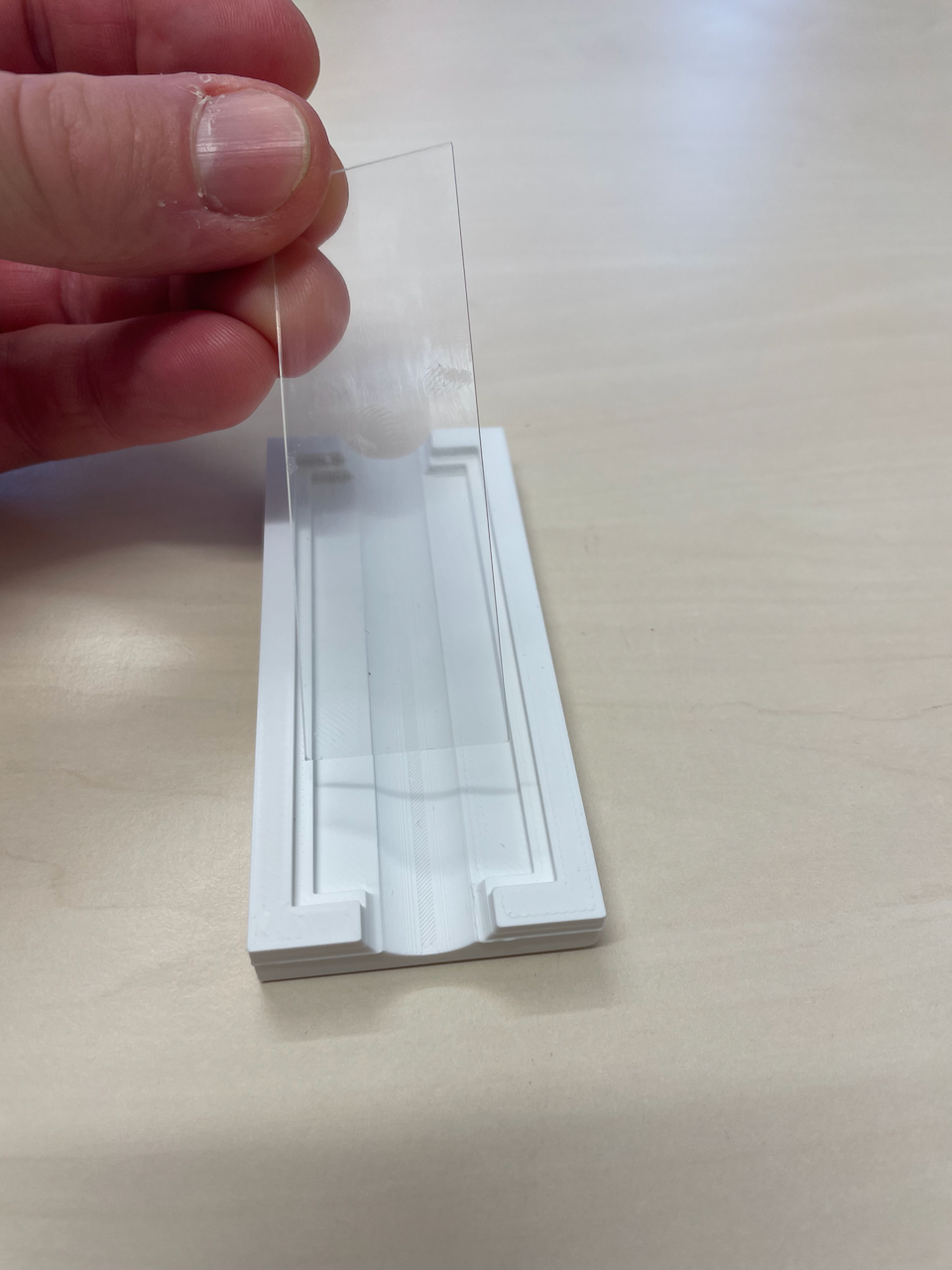

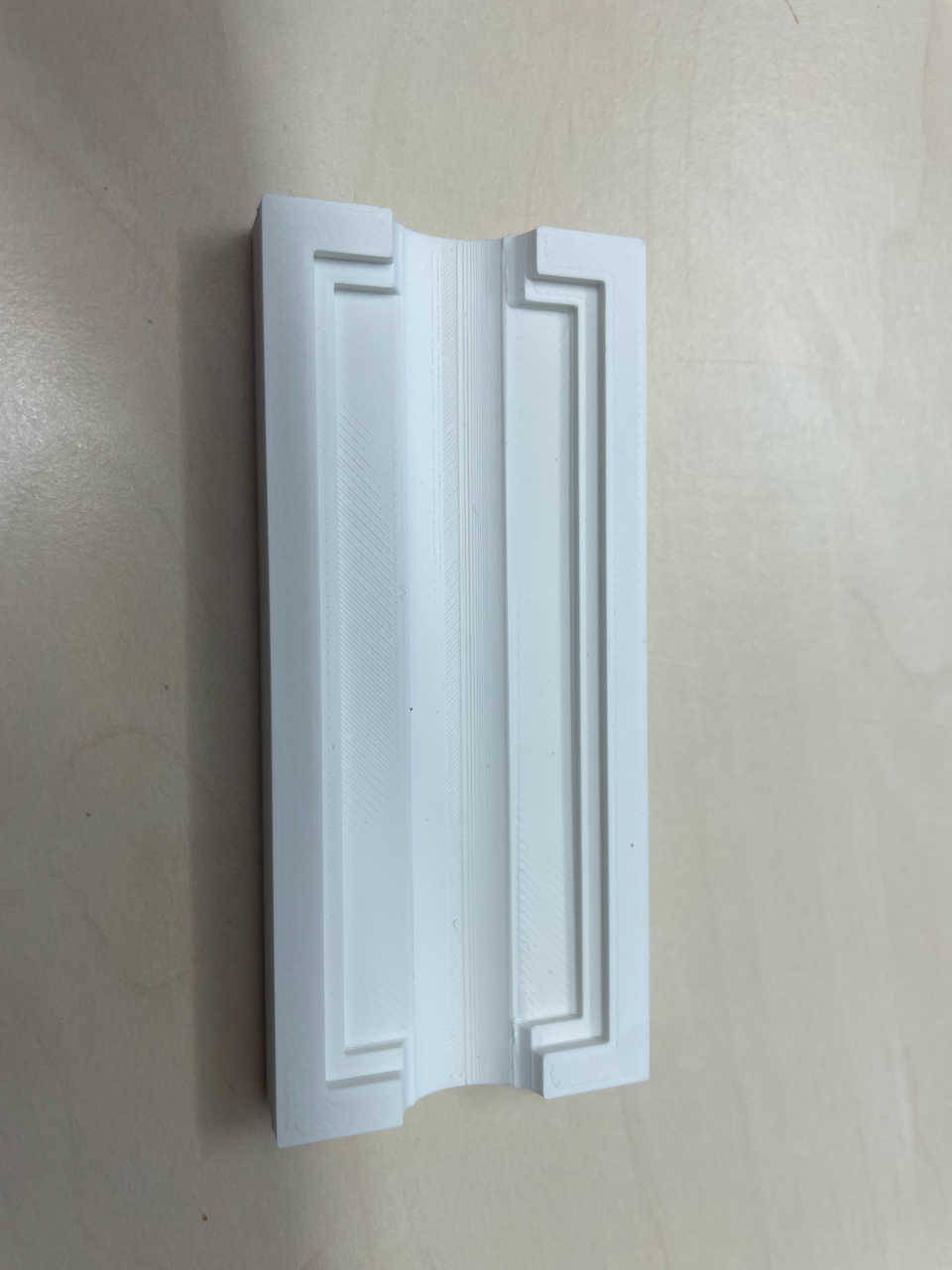

A paint box with a template to draw the points needed for calibration on conventional object slides from the lab.

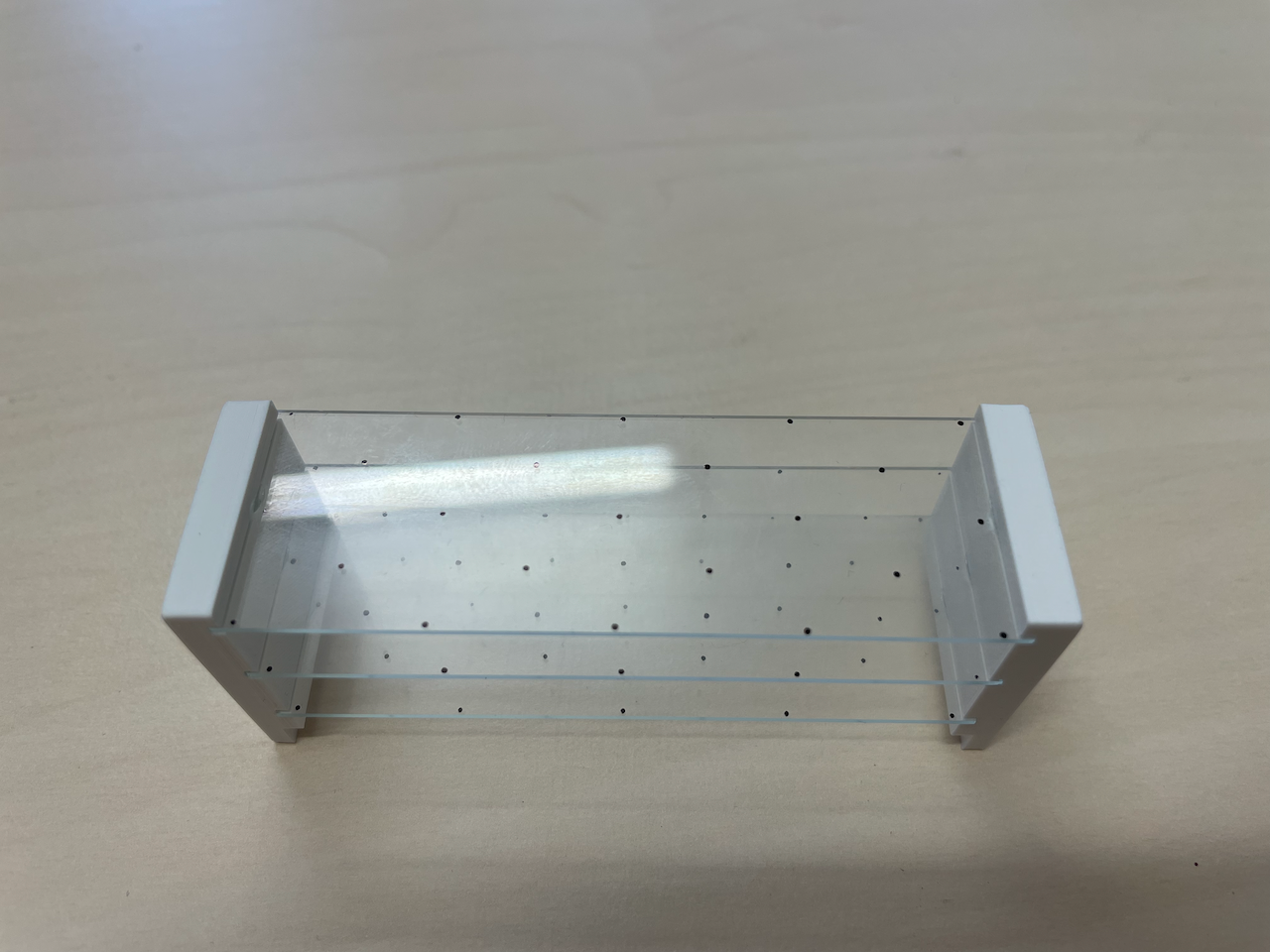

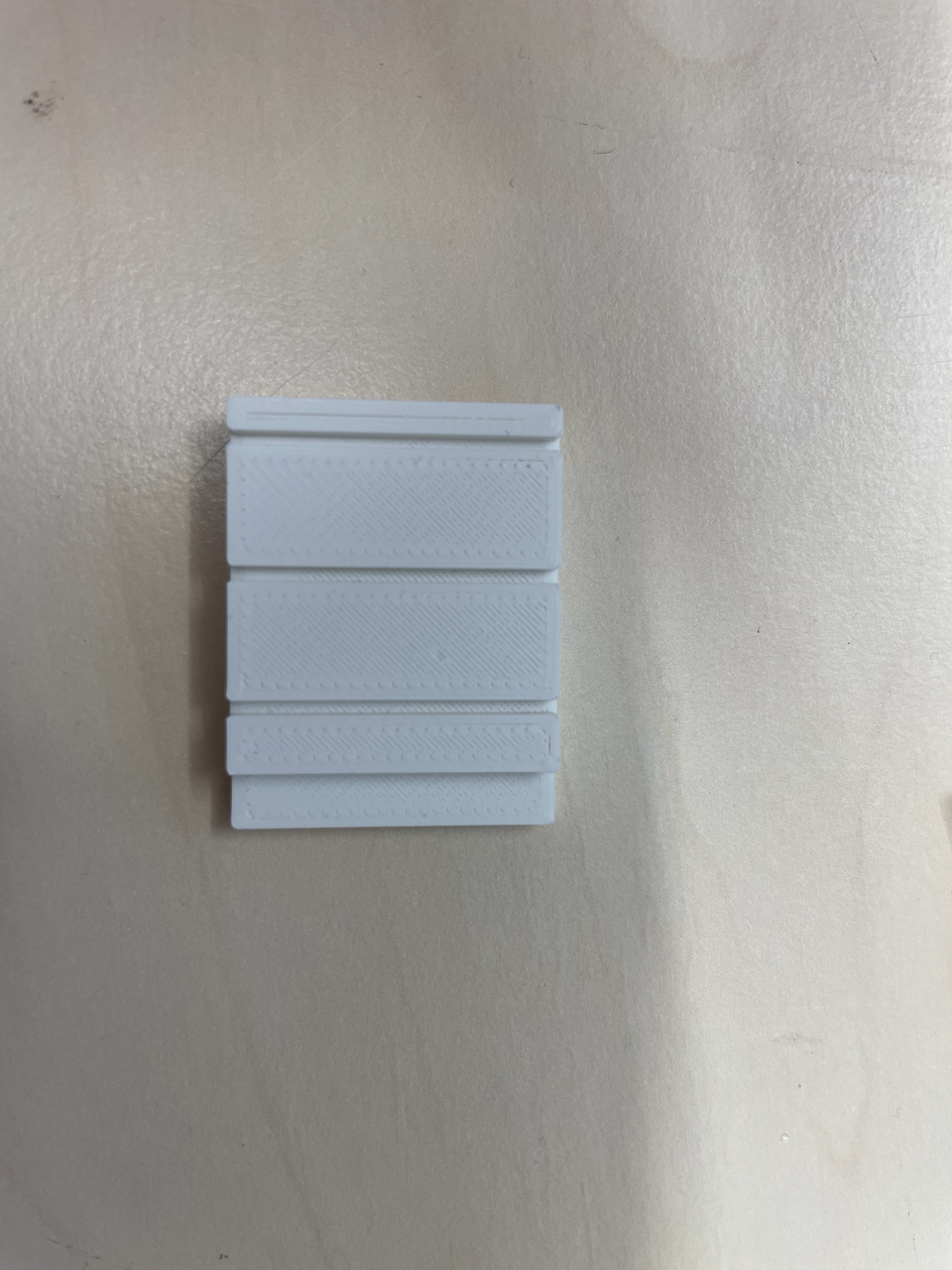

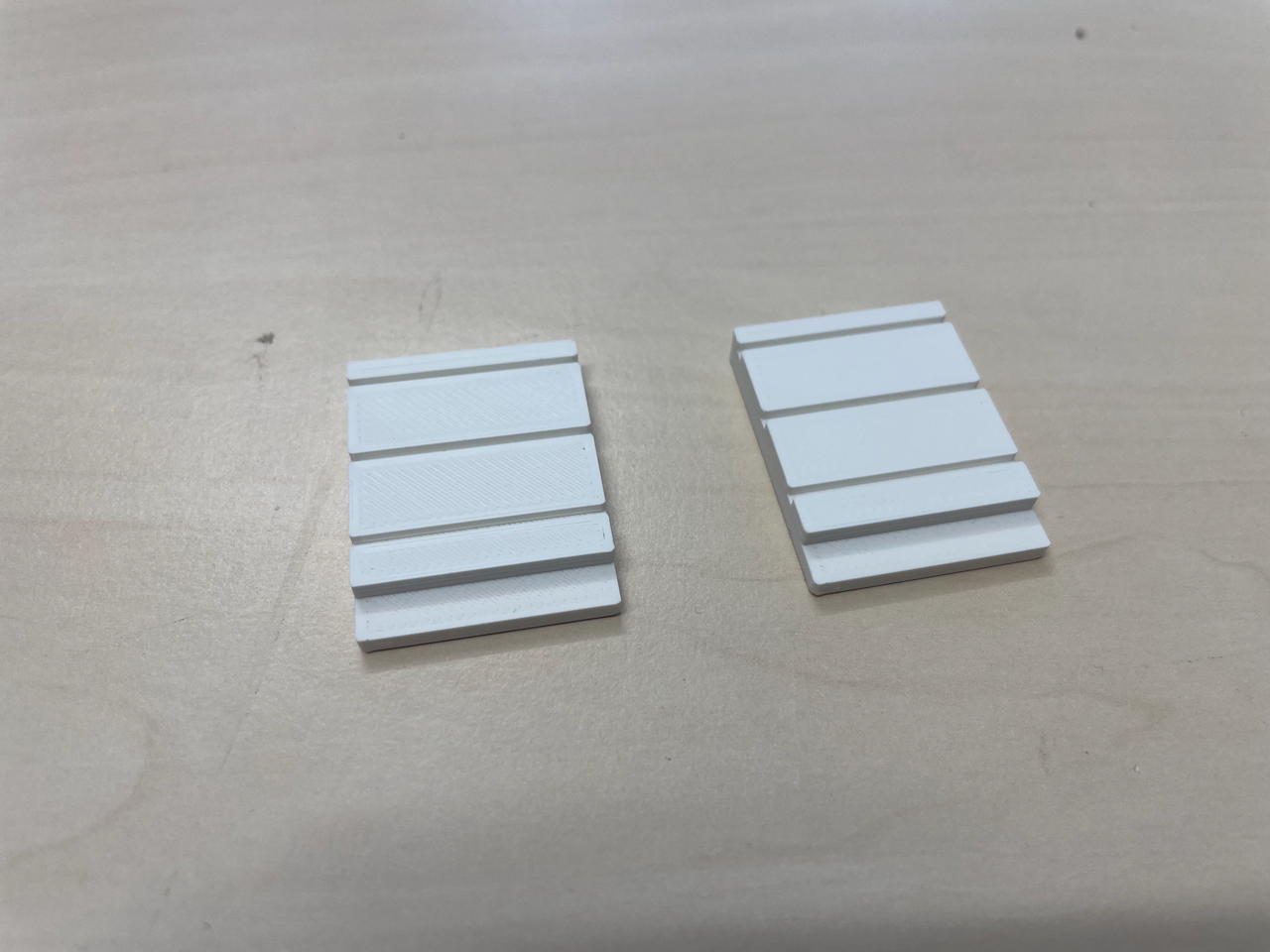

Two holders to stack the painted slides.
This should improve the synch-error you get in single-level printing calibration stands, but of course is more difficult to use.
The 3D models (3mf/stl) are available you only need common microscopy object slides (3x) for lab use and a pen that can write on glass. Everything else is self-explanatory following my added images …
… I added a drop of super glue to hold the slides in place in the stack.
The order of calibration points (make sure to keep this order exactly) and the corresponding xyz-coordinates (.pdf and .csv) for your calibration software will follow soon.
I printed this model in PLA on my MK4 with 0.10, which went out fine.
Enjoy!
P.S. When you re-mix the model make sure to update the xyz coordinates and calibration point when necessary.
