A little disclaimer, this is the first time ever I upload a model, feel free to add positive feedback how to improve :D
Since a few months I built myself a little networkcloset and I wanted something to manage the cables so it looks clean. Looked around and couldn't really find something I like so designed my own.
Designed to guides cable Vertical, vertical to horizontal and any direction to the back of the rails (optional). Made all options in both a version that mounts under the 19inch rack ears as well as on top. Al versions have a slot in the front to push cables into the guide.

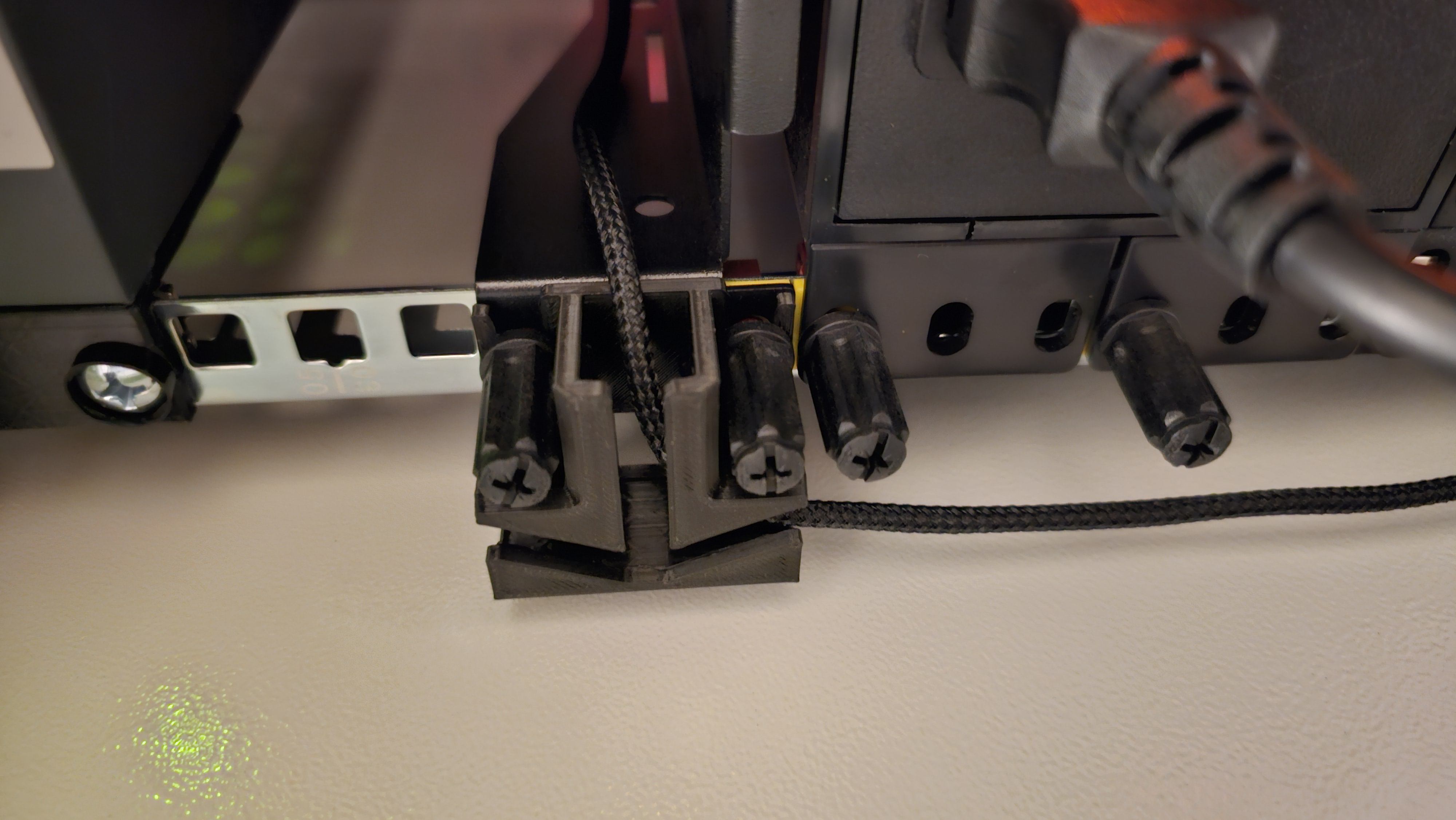

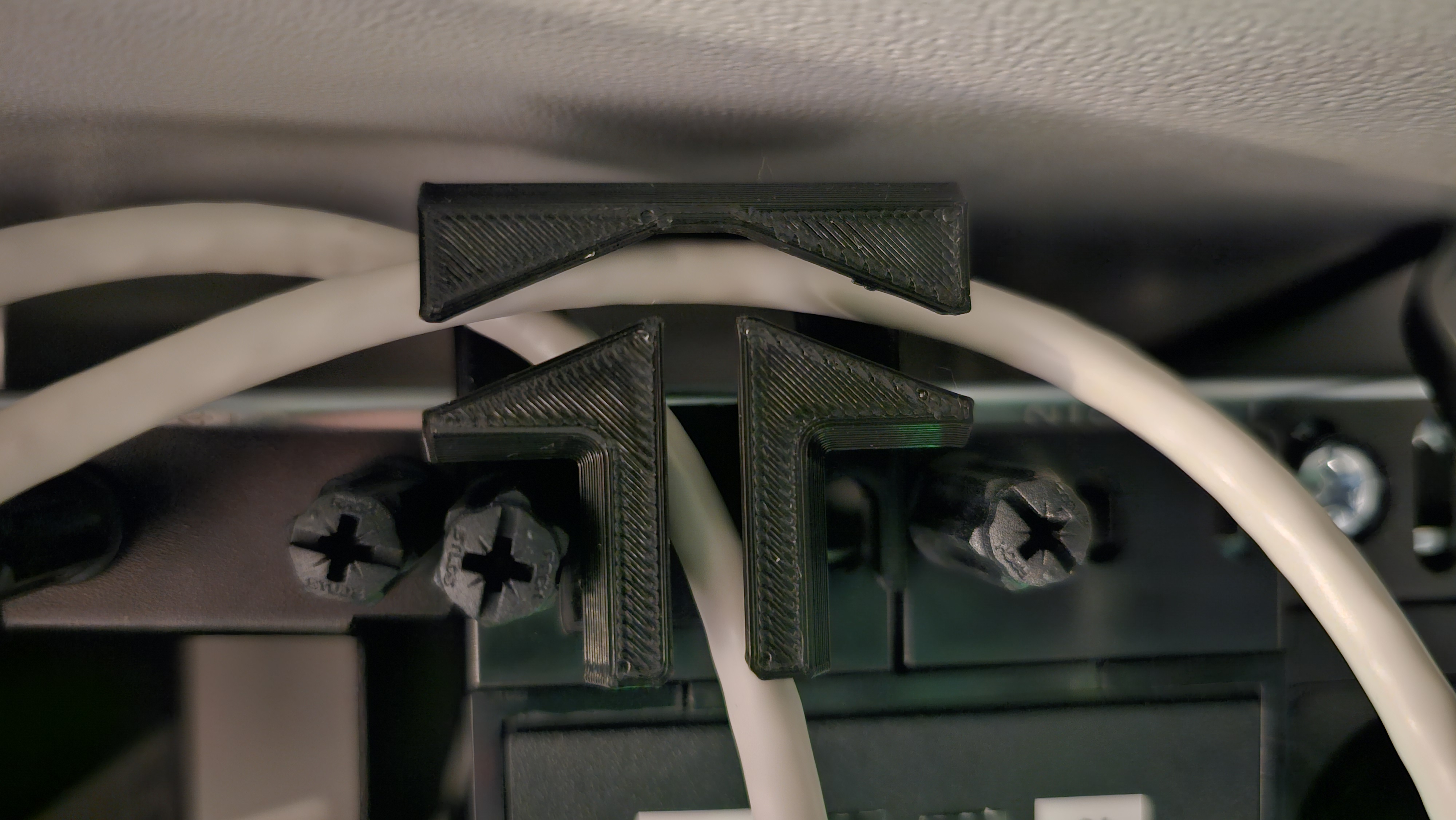

Pictures as made of the design the mounts on top of the rack ears and all options for guiding cables (file: 1U_CableManagement_design01_c). Tested with rackstuds as those things make building a networkcloset easy. :D
