Children's night LED light Bear

Three optional expansion options:

1. the possibility of choosing light intensity (with resistor Rx and extra slide switch)

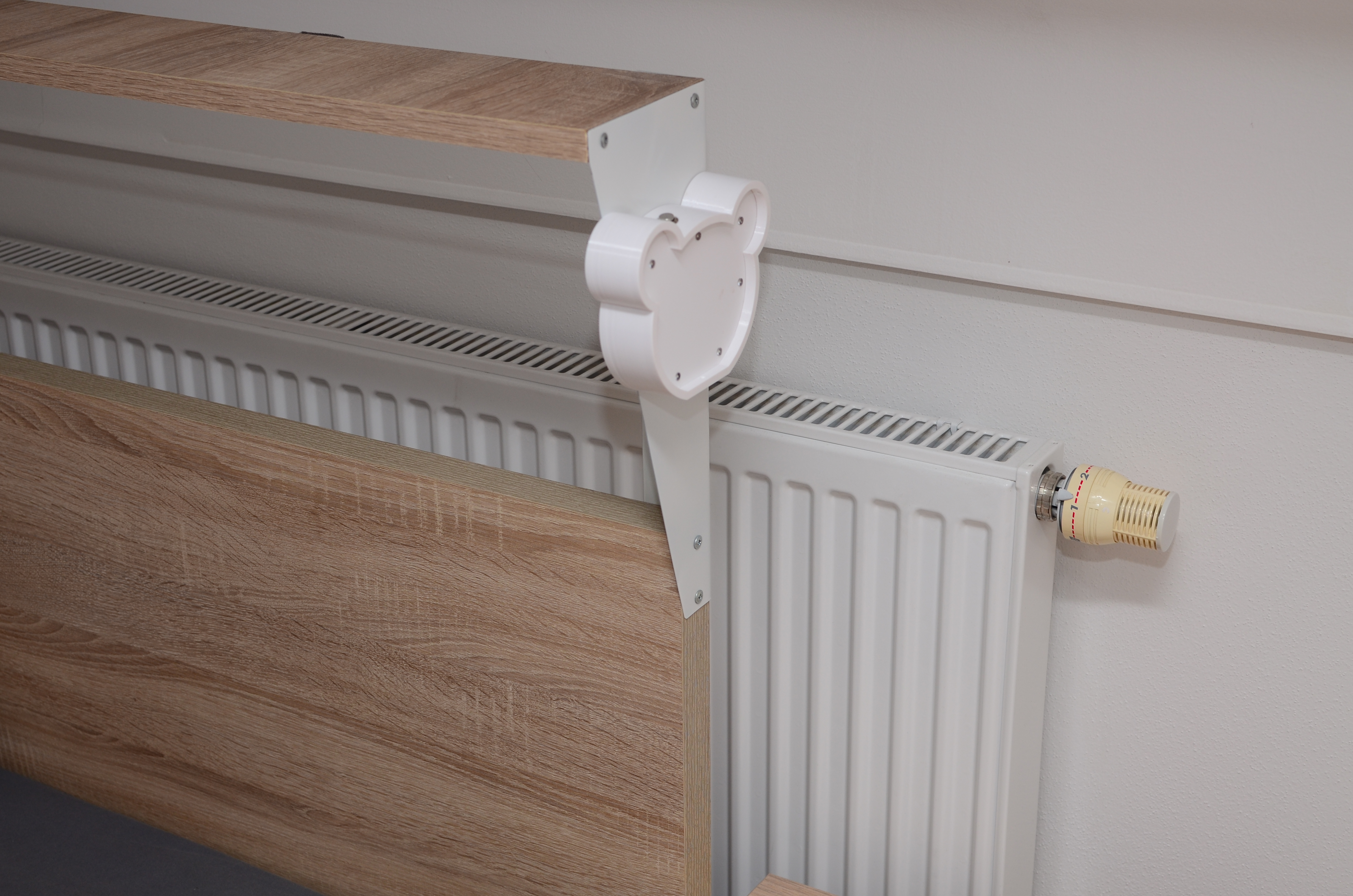

2. the possibility of inserting magnets for installation on the wall
3. for greater dispersion of light, the possibility of inserting a diffuser

Reccomended print setup:

• PLA od PETG, layer height 0,2 mm, 2 perimeters, 15 % infill

Optional

• use a dual color printing for front part (less backround red light) - white and black filament
• you can instert magnets (Ø7x8 mm to the front part, 4-6 pcs)

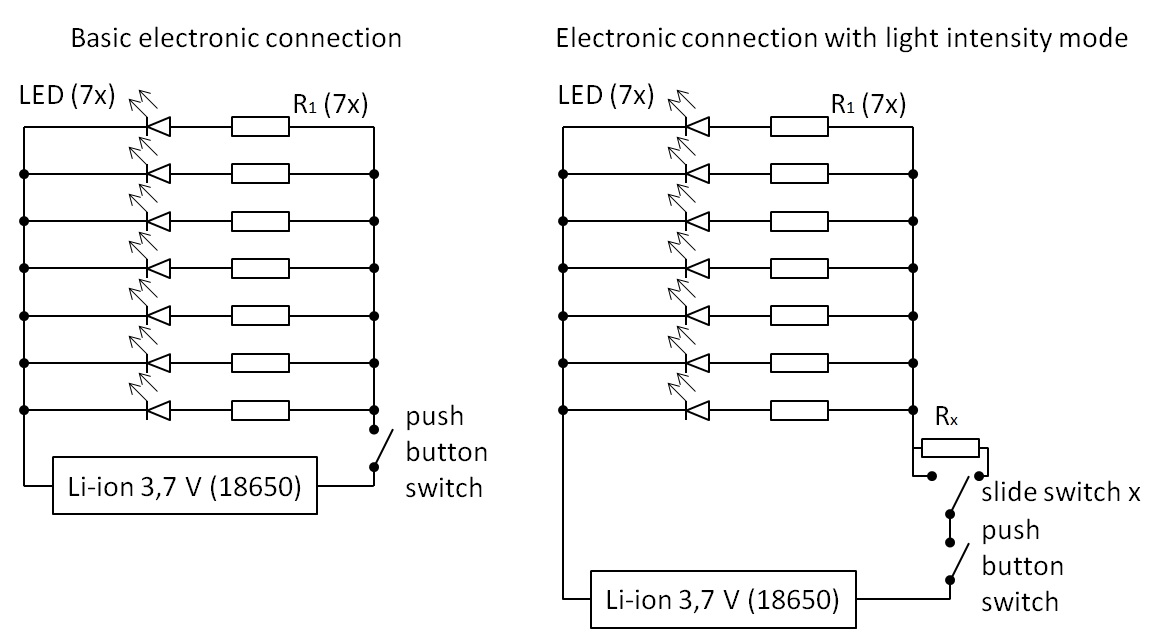

Electronic components:

• 7x resistor R1 100R 0,6W
• 7x red LED 2,0V 20mA 5mm
• Li-ion battery 3,7 V (recommended type 18650)
• 18650 battery holder
• push button switch

Optional

• slide switch
• resistor Rx 100R 1W

Completing:


• print all parts (optional front part with dual color and magnet insterts)

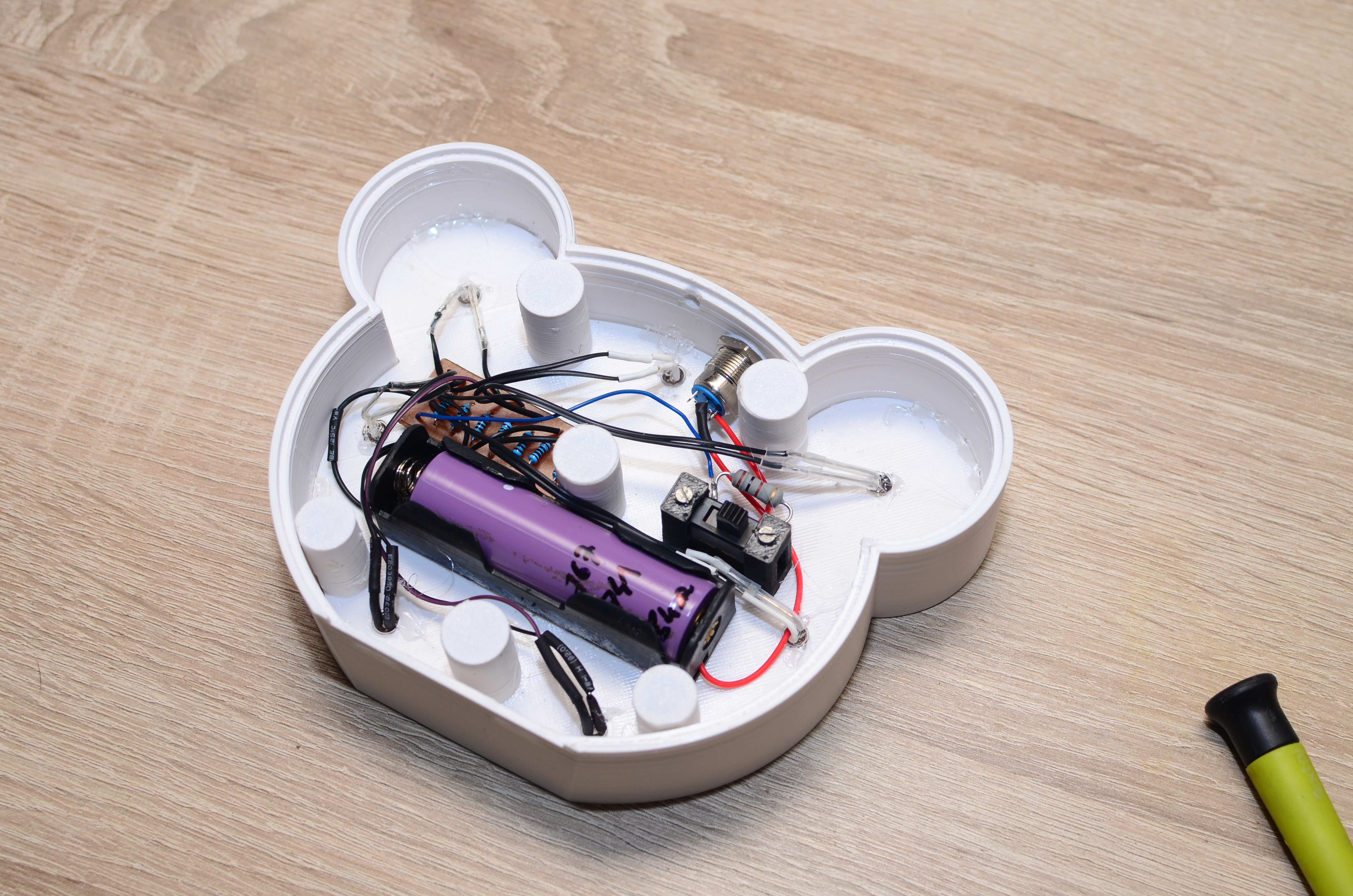

• pre-complete electronic connection (without push button) on the front part
• insert and glue front part to main body
• insert push button and complete electronic connection

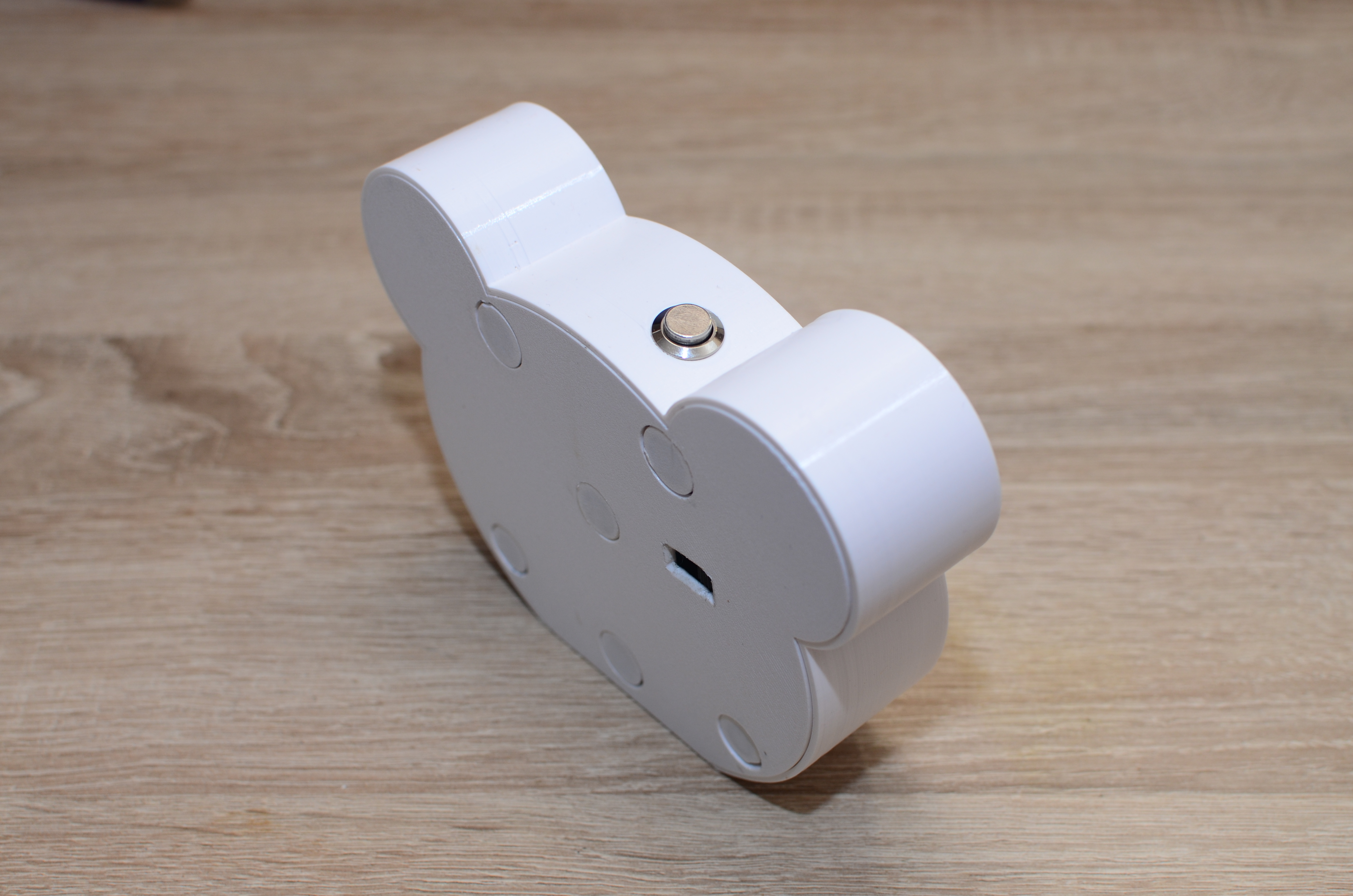

• snap the back cover into place

Note:

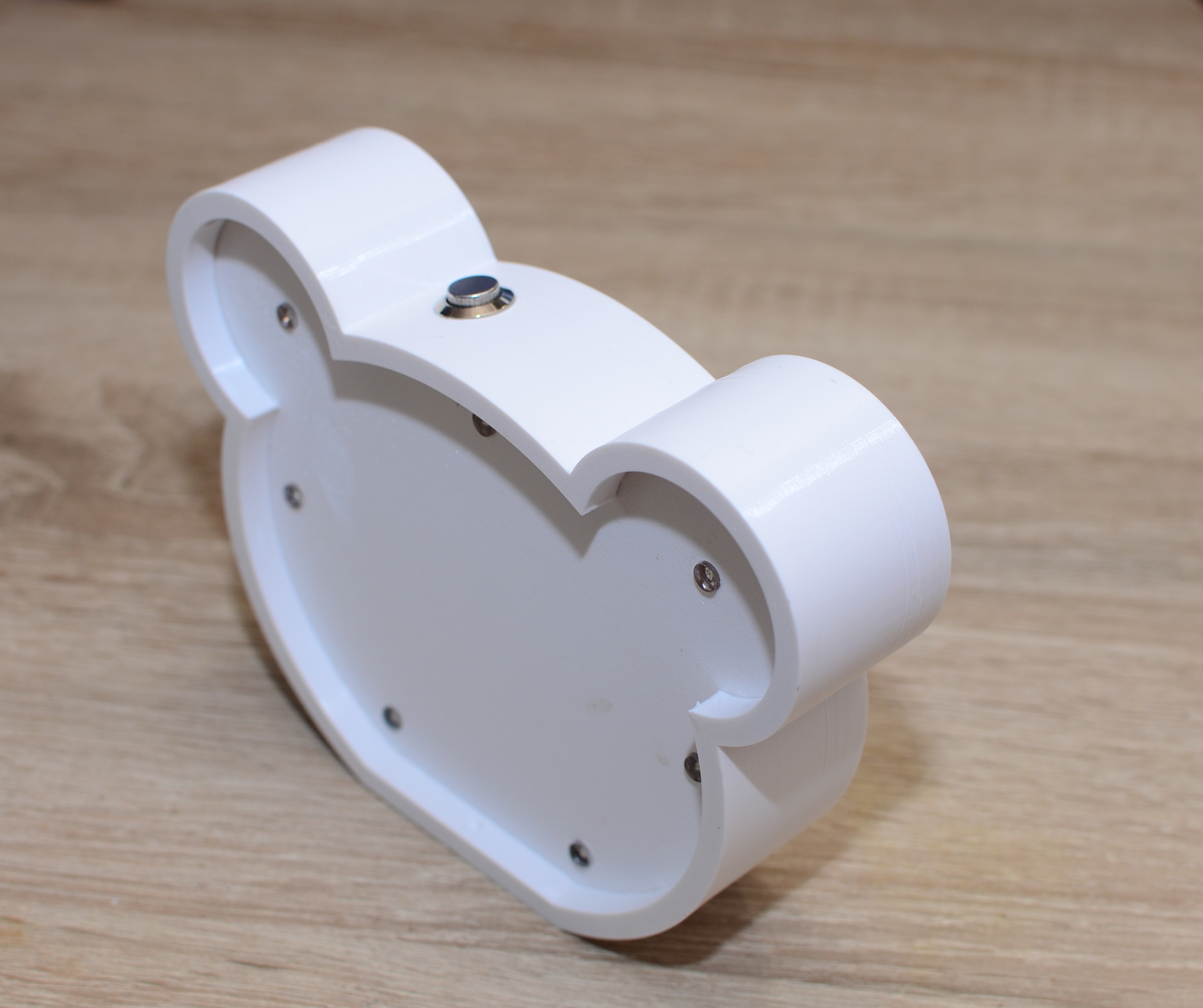

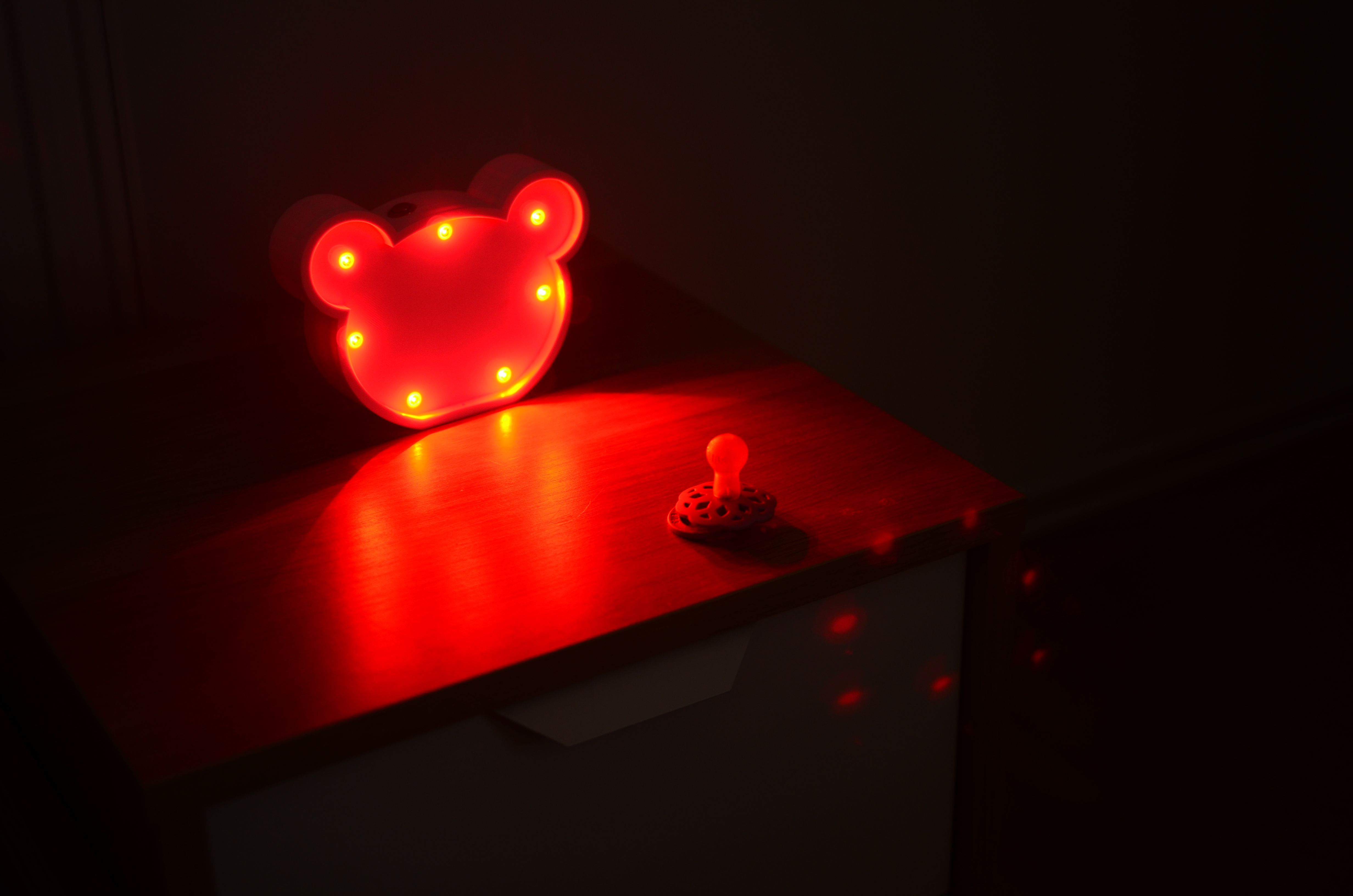

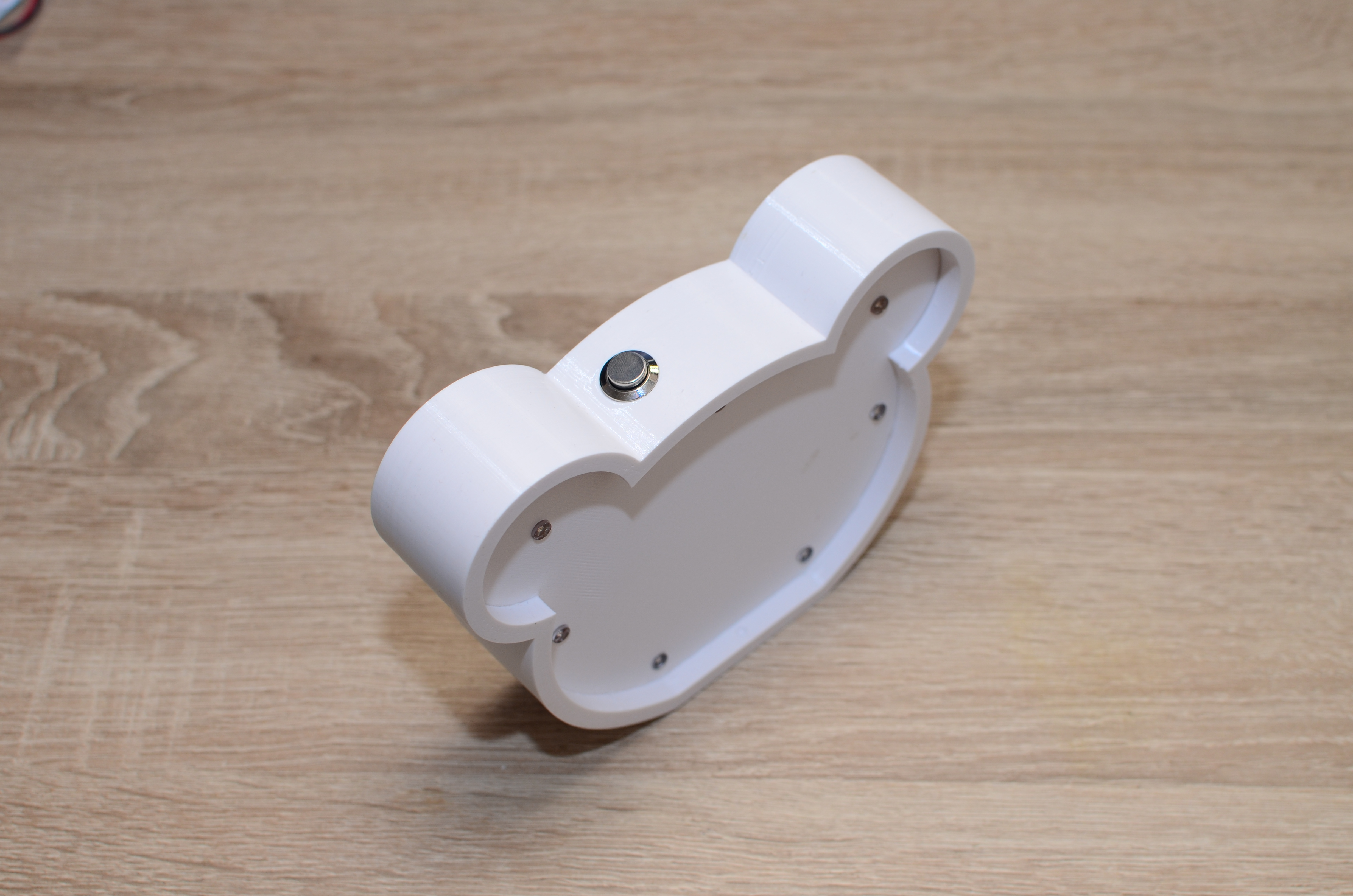

My model on the photos:

• without diffuser
• without double colored front part

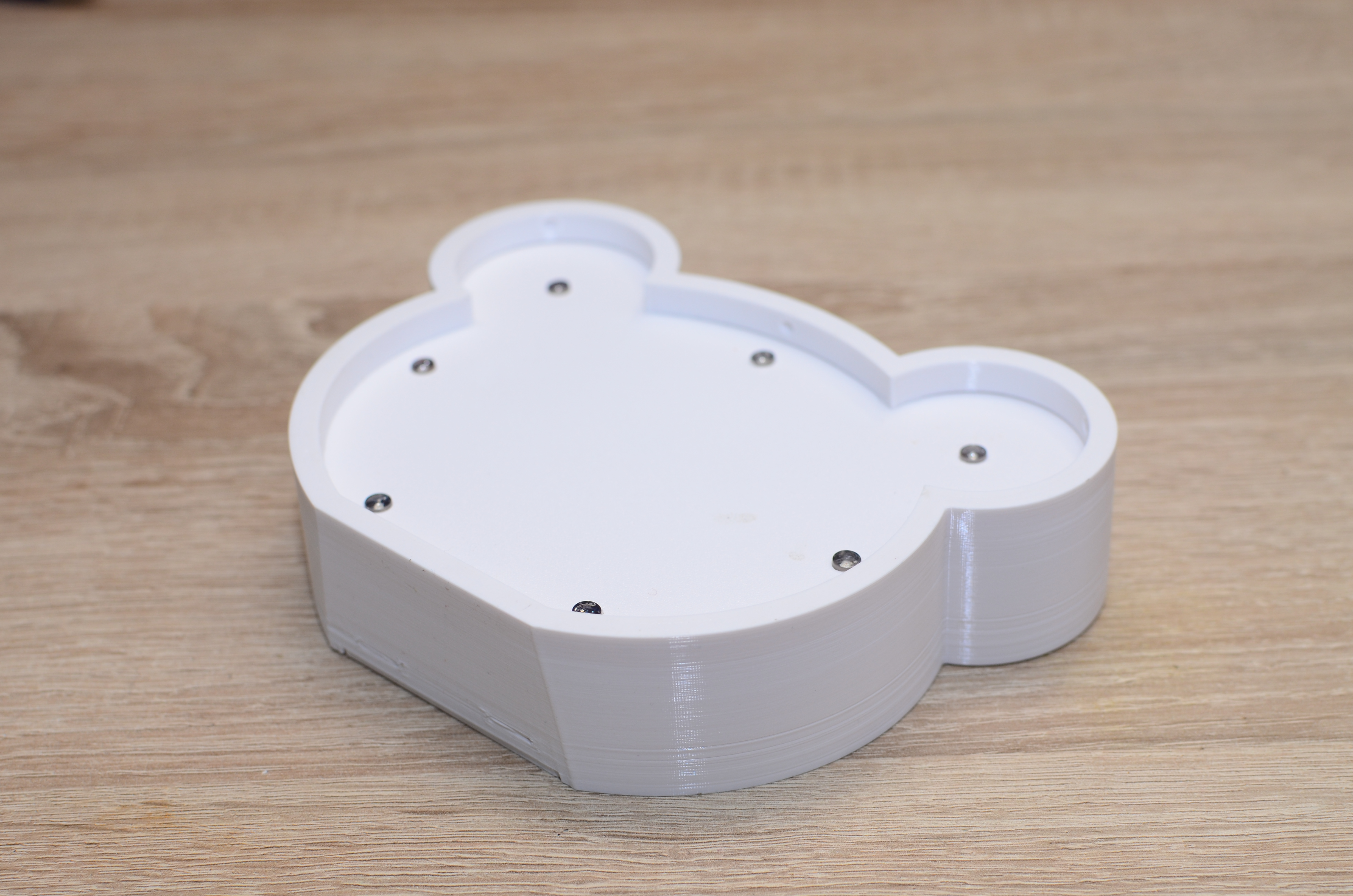

• with inserted magnets
• with the possibility of adjusting the light intensity
