Intro
*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*
I have been getting in to electronics / esp32s for a while now. I did a large order for all supplies I may need, and have 100 of each common type of resistor. I needed a good way to store them filament-efficiently, and found JohnOldmans model and loved that it used a lot less filament than the sliding drawers (Screwfinity) I was printing.
Specs
*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*

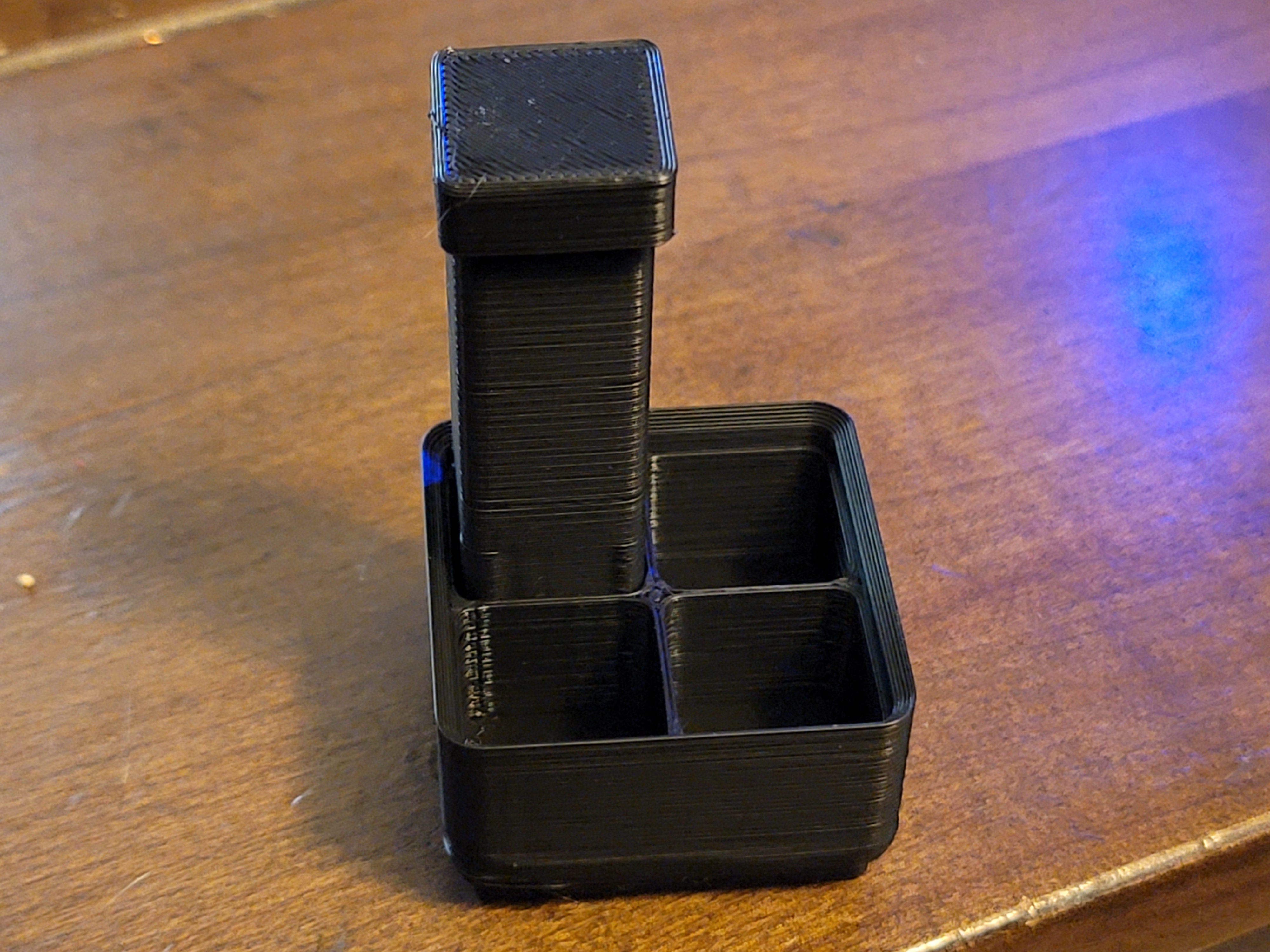

Each tube is ~ 63.5mm tall with cap and ~16mm wide. The tube when inserted in to the bin come to about ~69mm tall.
I made the tube larger, they fit (tightly) 100 resistors. If you're trying to use the caps/tubes for JohnOldmans models - they won't work.
The bins have magnet holes, I believe they fit 6x2mm magnets (actual measurement of diameter: 6.50mm, 2.6mm deep).
Future Plans:
*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*
- Add more bin options
- Feel free to suggest things :)
