A note clipper for those who like to have notes in view, easy to reach, put in, take out in a second. You can also slide your notes on the sides to reorganize.
This design already exist on the market to sell, but if we can make it for cheap...
If you liked it, feel free for a tip!(link on my page)
Print Settings
Printer Brand:
Creality
Printer:
Ender-3 v2
No
Supports:
No
0.2
Infill:
100
Notes:
-I recommend to put everything together with superglue.

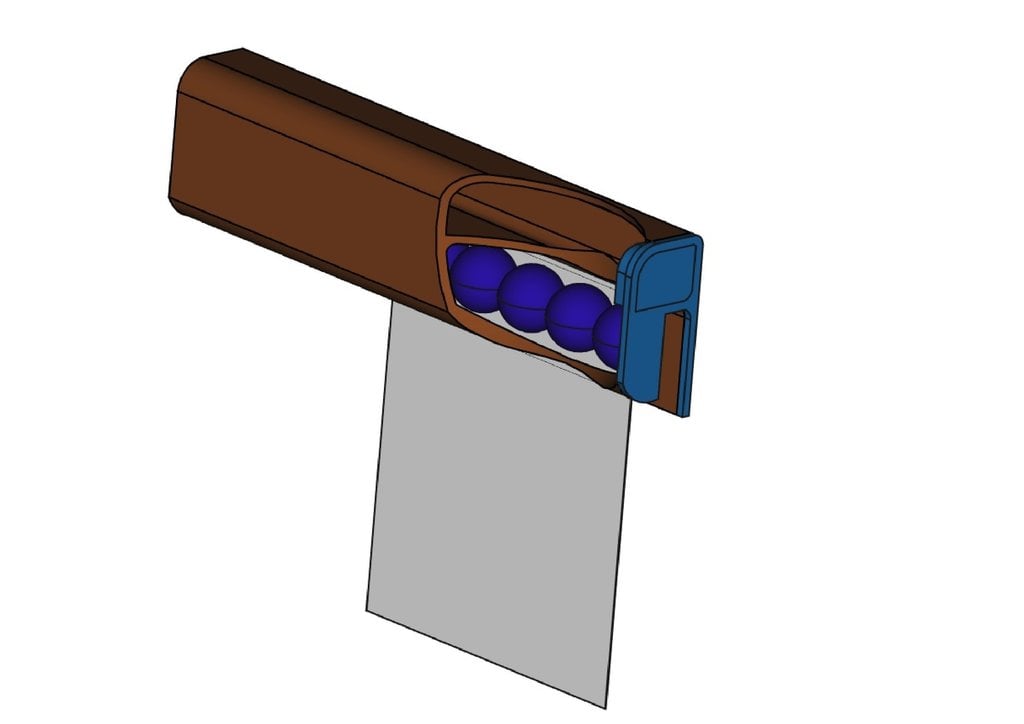

-The marbles inside are just normal glass marbles of 16mm diameter you can find in a kids toy shop. It is better to put glass or stainless marble than plastic or other light material. It will give the weight to catch properly the paper sheet
-It is supposed to be putted in place with double side tape, but if needed you can
make a hole that would go threw in the upper part, and screw it.

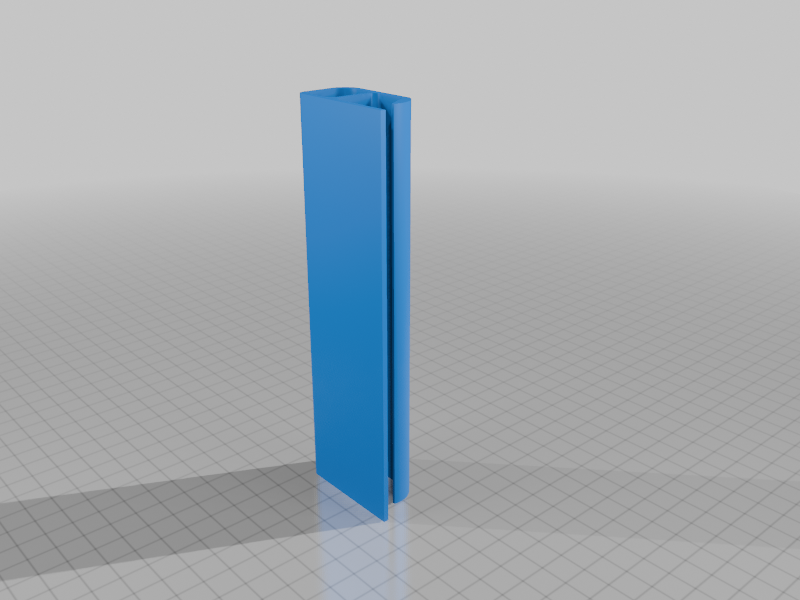

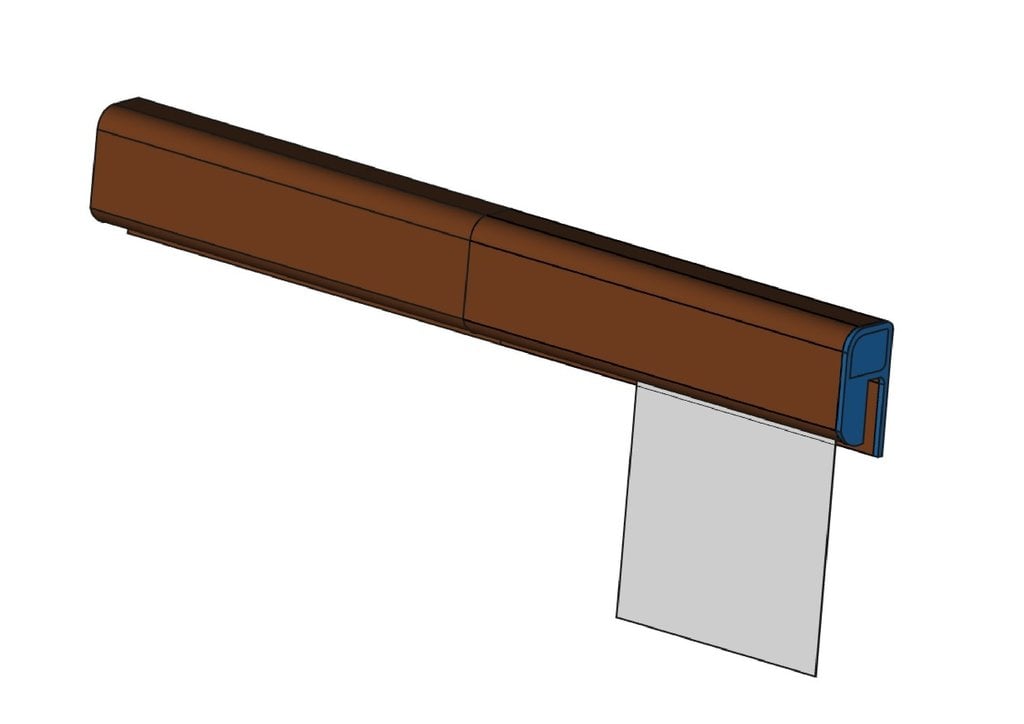

- One body of the note clipper is 150mm. You can adjust it in your slicer if you want

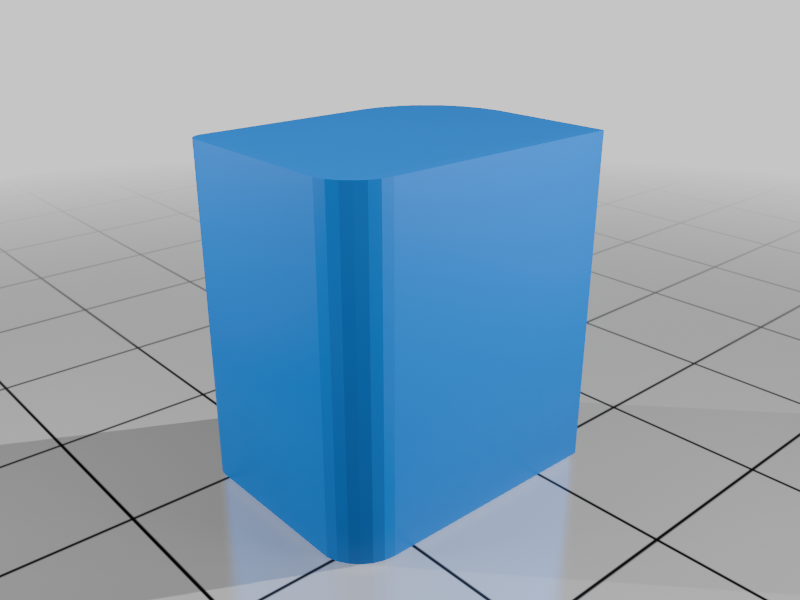

and have a big printer, but you can also print multiple and put them together with the connector.
-When printing the main body, I would recommend to add a brim, and to put paper glue on your surface before printing, or it might fall off because of the height of the part,
and movements during print.
Category: Organization
