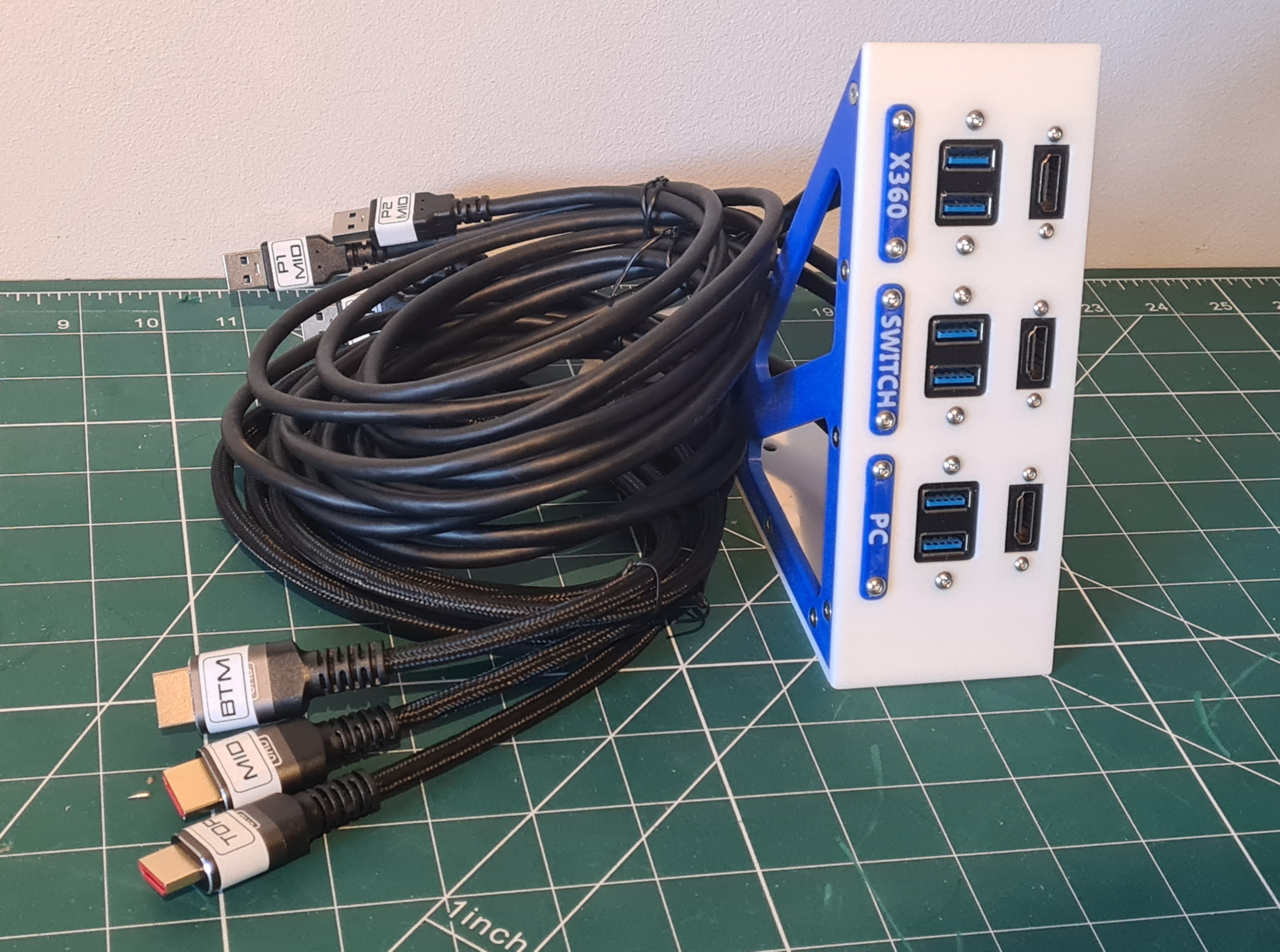

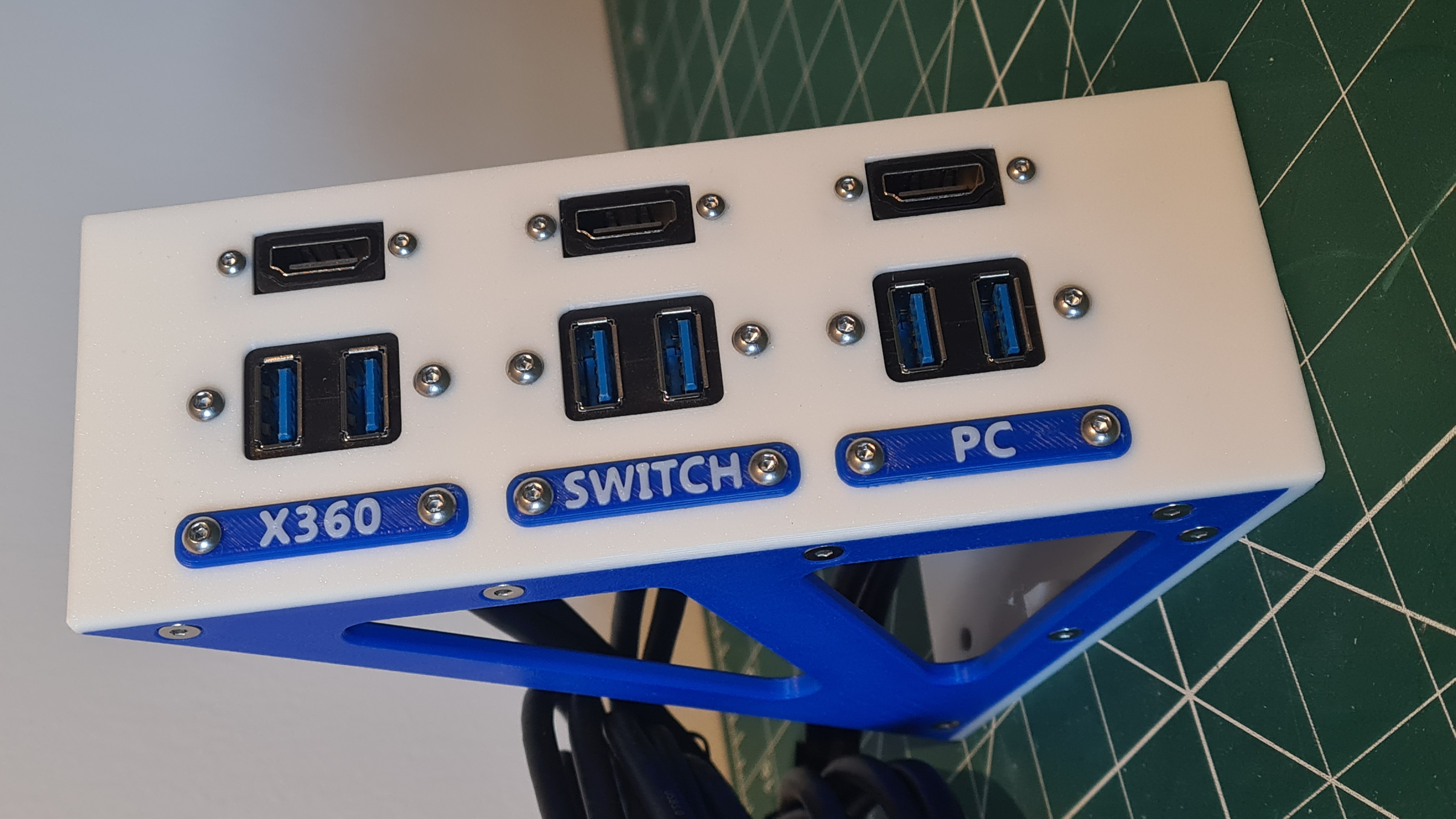

Patch panel to bring USB and HDMI connectors to the front of a Vewlix arcade cabinet to make it easier to swap between systems.

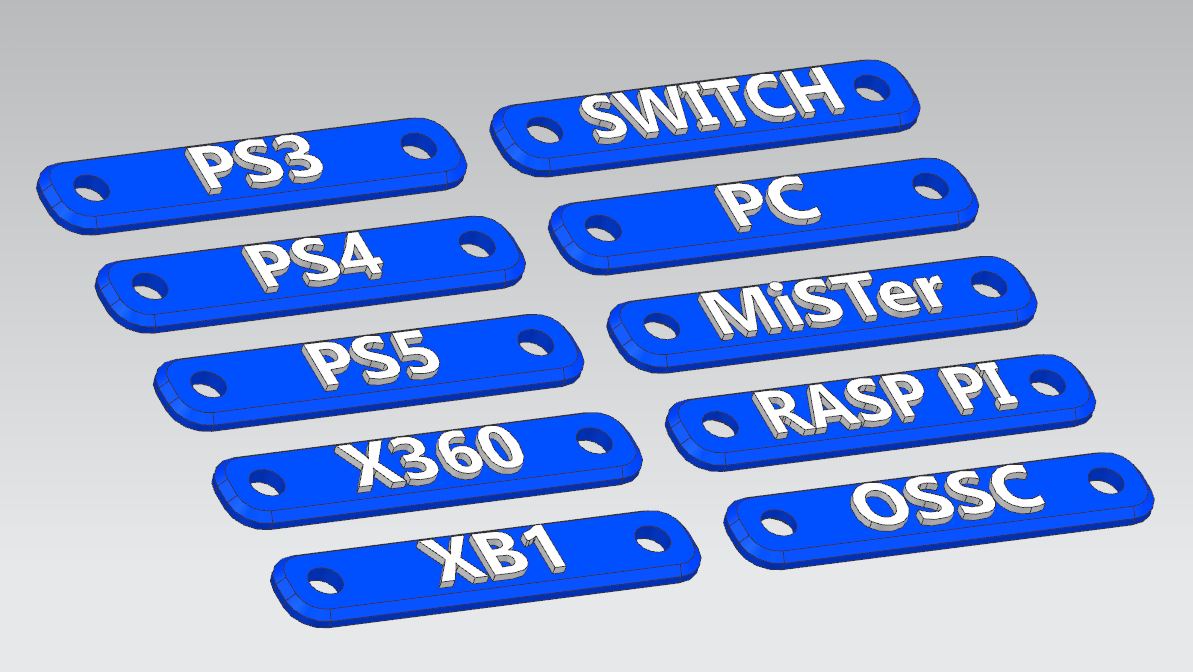

I've created labels for various systems that can be swapped out on the fascia depending on what's being used in the cab. If you need a specific label making let me know.
I used the following panel mount USB extensions and HDMI couplers:
*100cm Dual USB 3.0 Male to Female With Screw Panel Mount Holes Extension Cable High Speed 5Gbps for Computer Case Motherboard
https://www.aliexpress.com/item/1005003765550003.html
*1pcs HDMI-compatible Female to HDMI-compatible Female Socket Panel Mount Adapter Extender for 1080P 3D LCD HDTV
https://www.aliexpress.com/item/32859219984.html

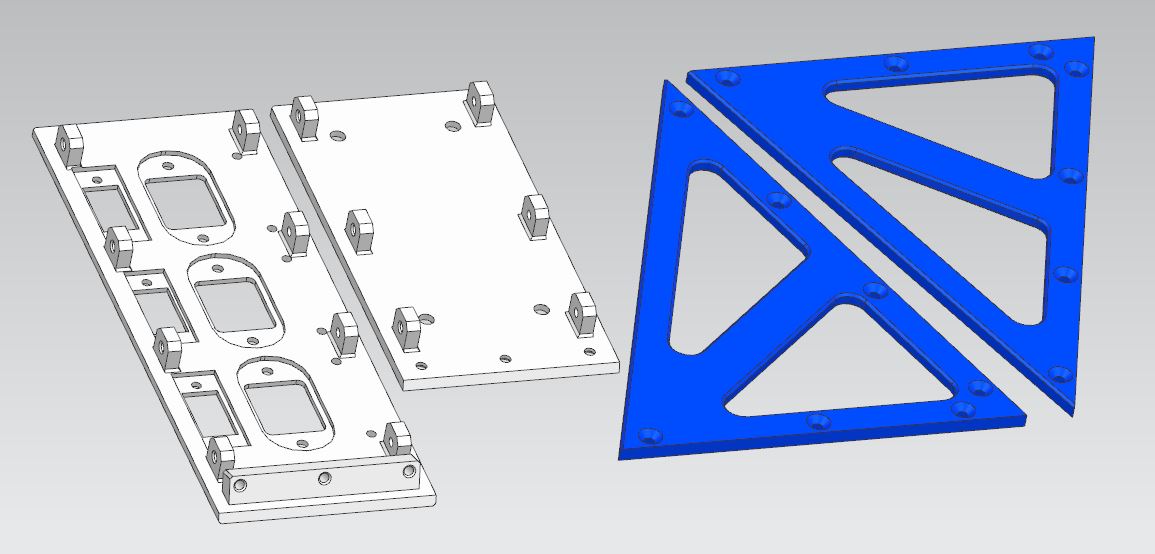

Main assembly bolted together with M3x8mm CSK bolts.
USB extensions mounted with M3x10mm button head allen bolts.
HDMI couplers mounted with M2.5x6mm button head allen bolts.

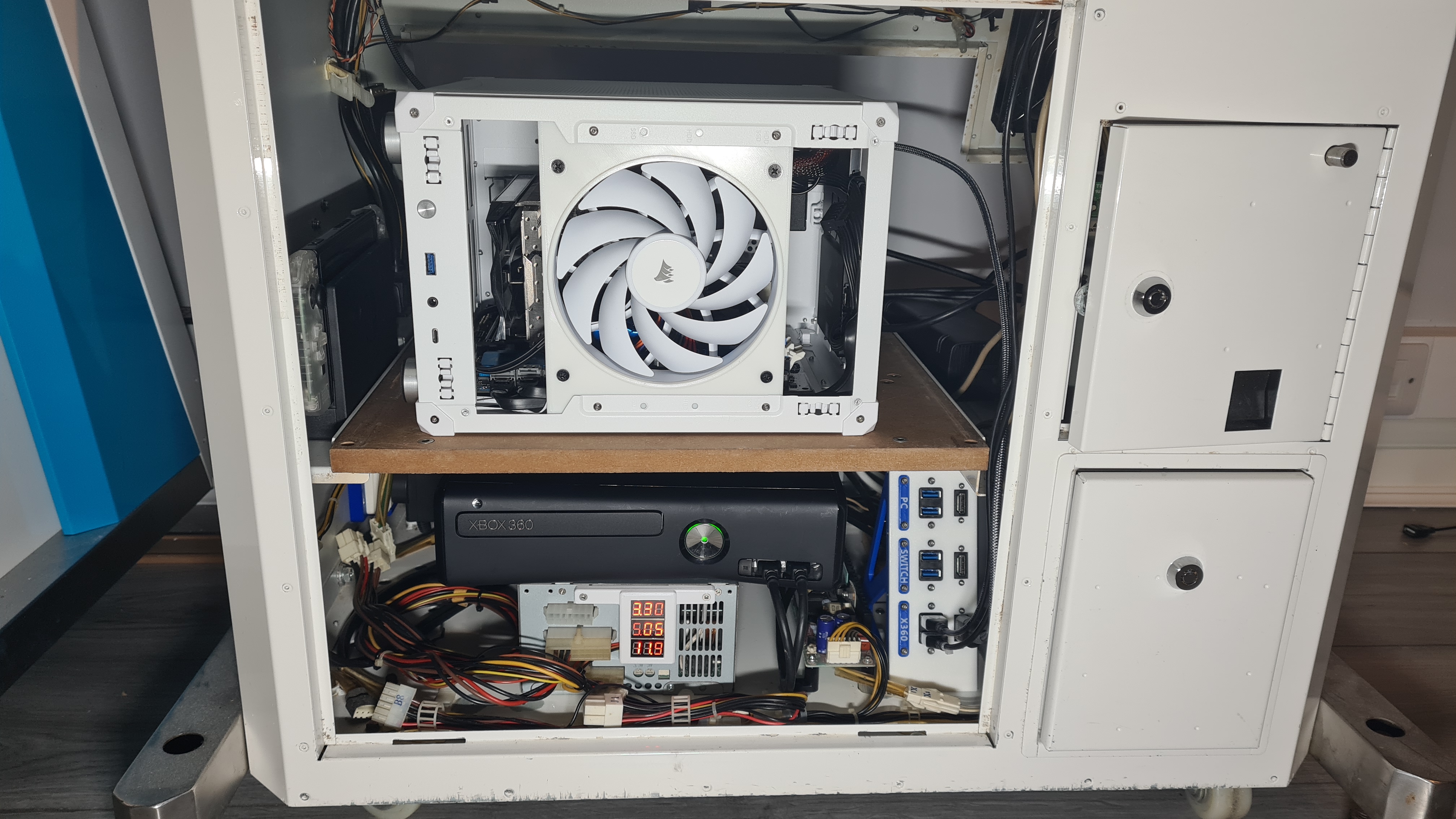

The base could be fitted to the cabinet using double sided tape or velcro but I didn't want it going anywhere so I fitted M4 rivnuts to the bottom of the cabinet. I've included the drilling jig I used to drill four 6mm holes. The holes in the base part have counterbores to give clearance for the rivet flanges.
