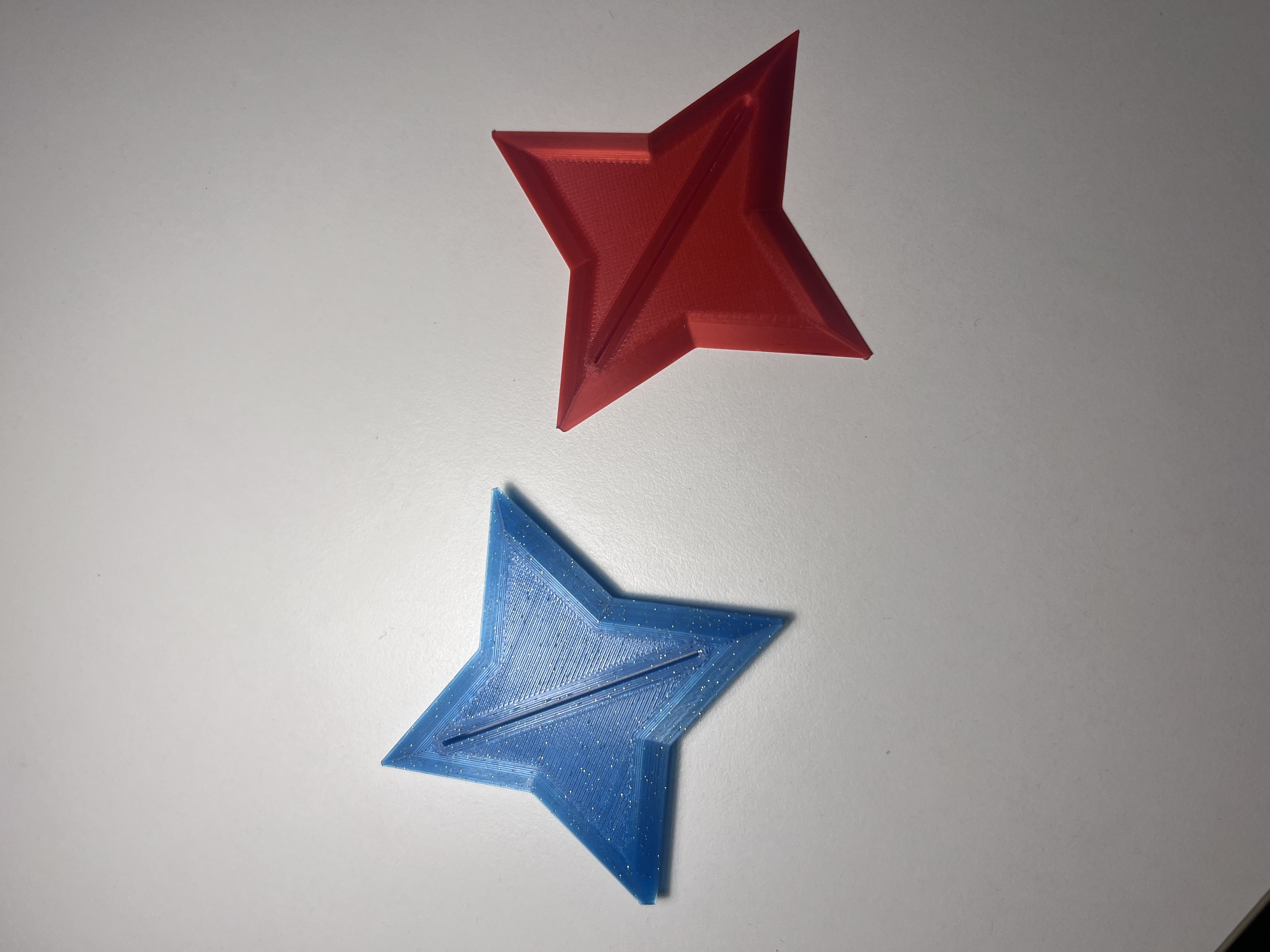

Shuriken Toothpaste Squeezer
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Bathroom
- Licencja
- Creative Commons — Attribution
Provided 3mf files for own slicing and presliced gcode files.
MAKE SURE TO RAISE THE MODEL IN SLICER IF YOUR'E CREATING YOUR WON GCODE
Model size: 90 x 90 x 7mm
Toothpaste insertion hole size: 55 x 1mm or 55 x 0.8mm
Both versions are the exact same just that one of them has a narrower hole to get more out, however it can require more force to use. I suggest to print the one with 1mm wide hole first and if you need something tighter, the option is available.
Print settings:
Material: PLA
Layer height: 0.16
Infill: 30%
Infill pattern: gyroid
wall count: 5
top/bottom layers: 5
supports: better to have so outer edges come out nicer but aren't necessarily mandatory
Models have been oriented so that any possible visual deformities created by overhangs would be at the bottom when it is being used, thus out of sight
Printed on Creality Ender 3 V2 Neo
