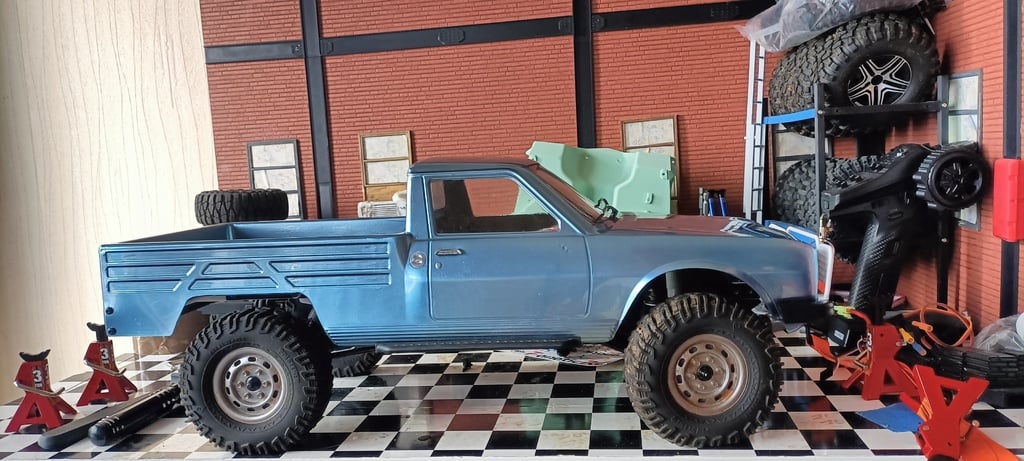

Parts to adapt the Hobbytech 504 pickup/Dangel body to an Element RC Utron chassis.
Wheelbase has to be reduced from 324 to 313, though you'll still need to enlarge the rear opening (sorry, no template)

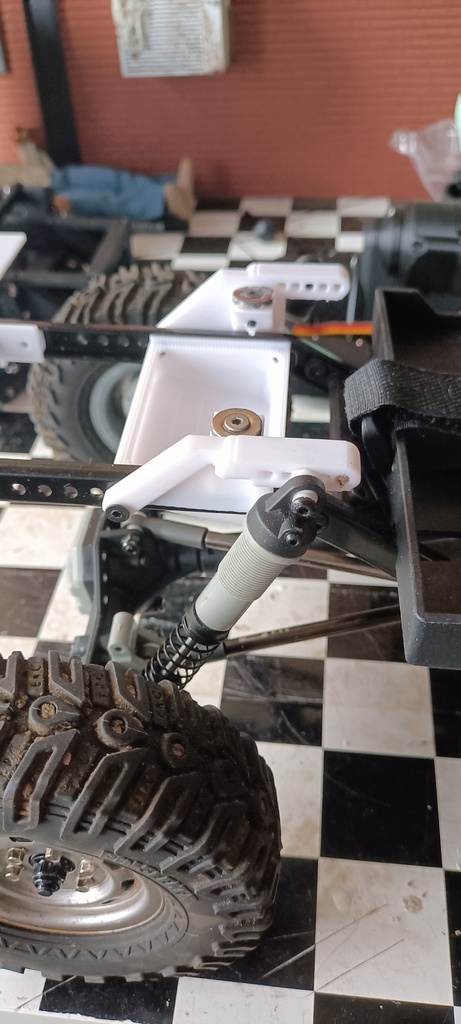

Front is mounted on the 3rd hole from the bottom. Remixed from https://www.thingiverse.com/thing:6223066
Stock "fuel cell" is too high to allow the bed to rest on the frame rails. Either remove its cover, or change it for mine (limits uptravel a tiny bit) or plain brace from parts bag.
Use the magnets that comes with the body for the rear.

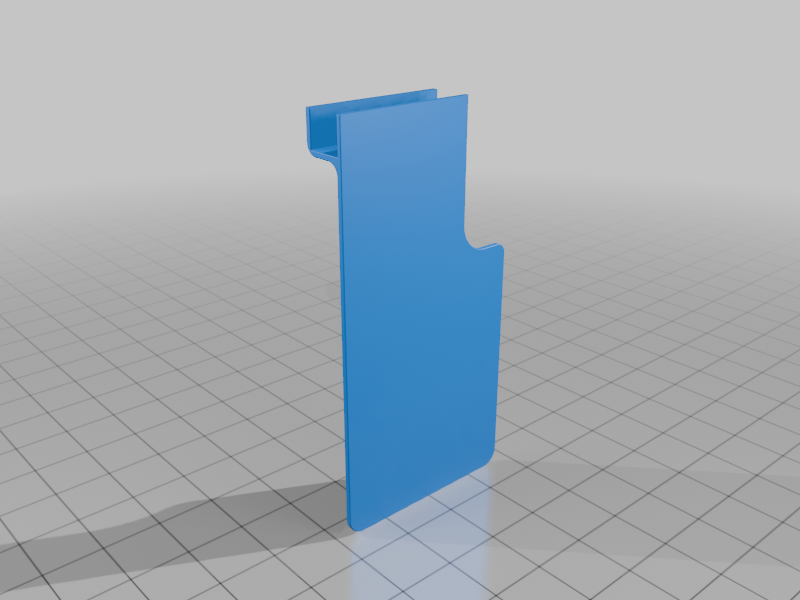

23-10-2024 : added mudflap (print in TPU)

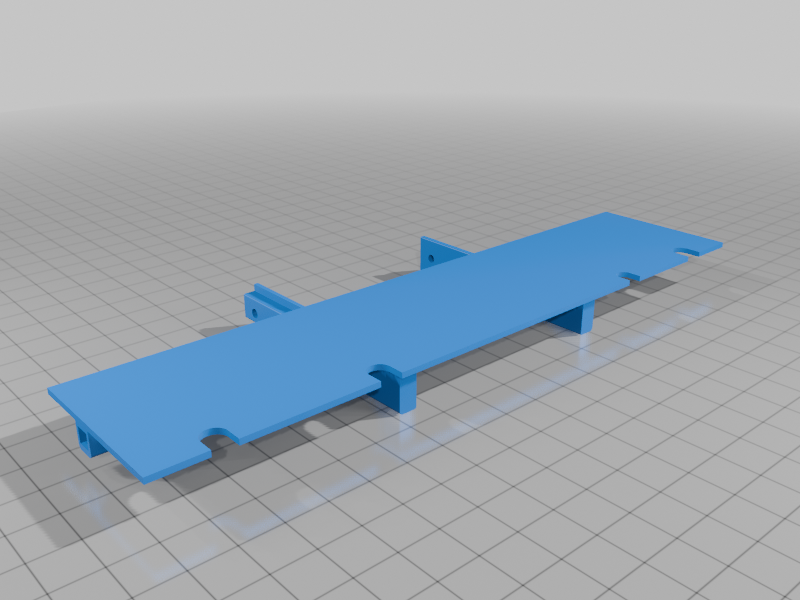

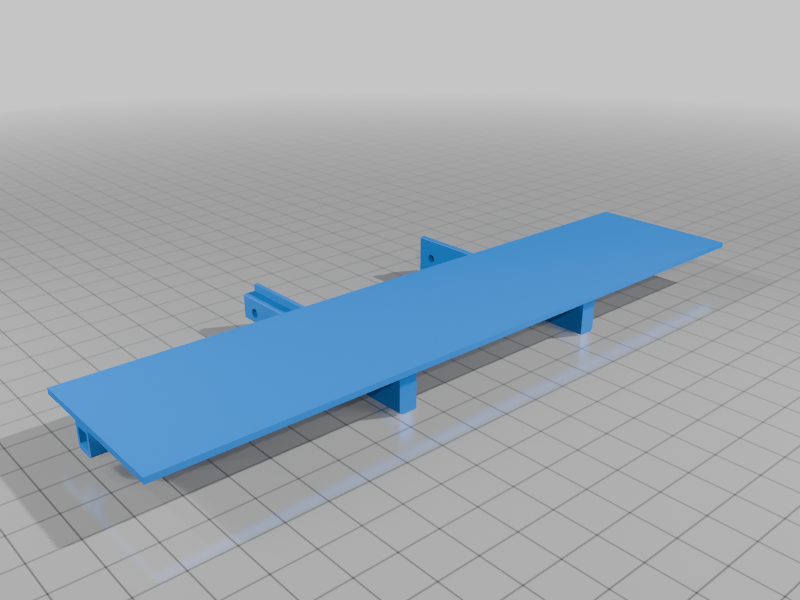

17-11-2024 : new rear extension with some room for taillights wiring.
