3D Printable Notebook
Zamów wydruk tego modelu
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Office
- Licencja
- Creative Commons — Attribution — Noncommercial — NoDerivatives

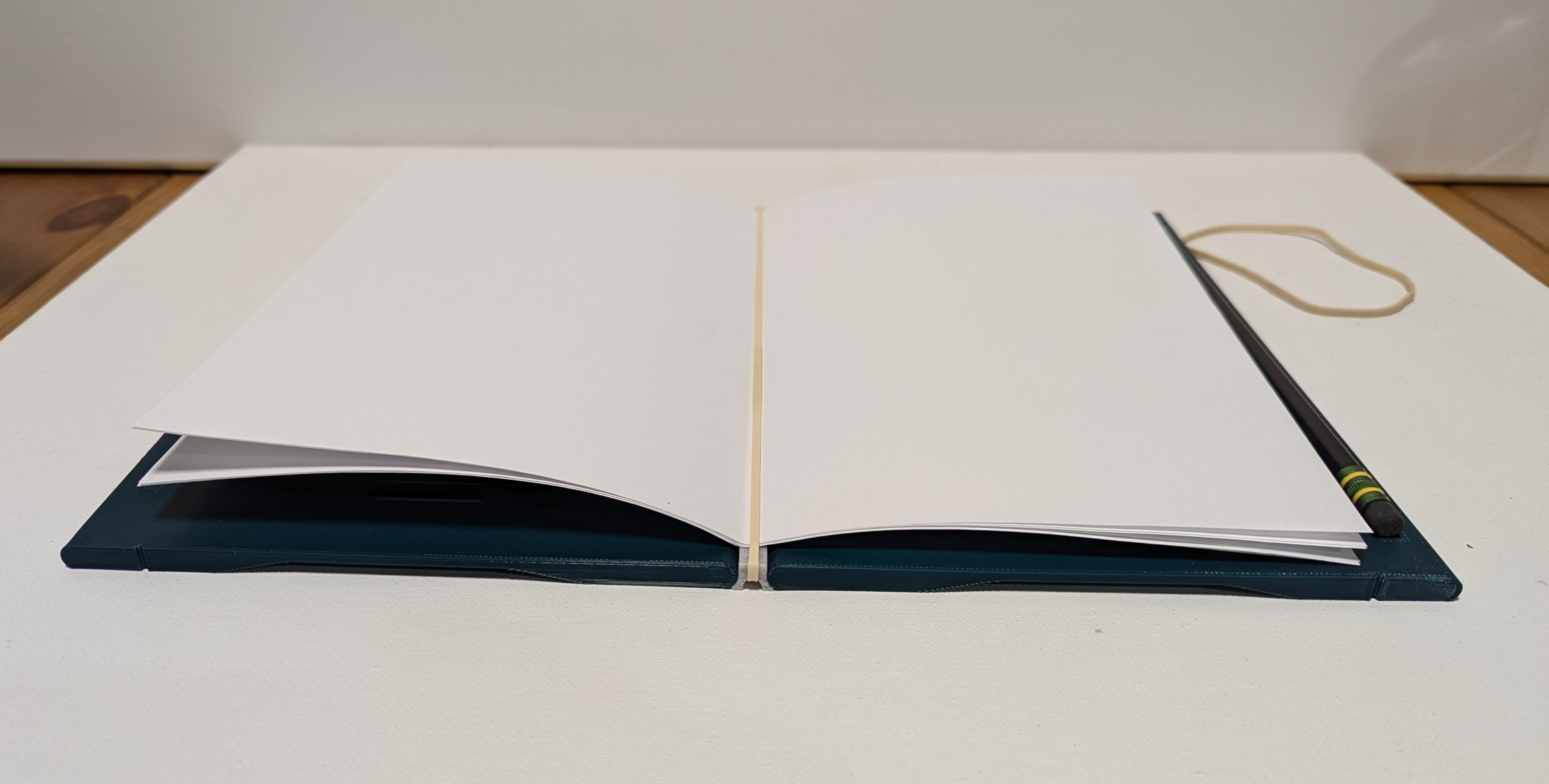

The notebook in the images I made for my self. It was a multi-body part and is not available. The slots look nice…but were not good for writing! So I removed them. The model available for download is blank, like the reference model. Use any 8.5" x 11" piece of paper, fold in half and slip into rubber band along spine. Enjoy!
** 8/30/2025: Added .STEP files for users to customize **

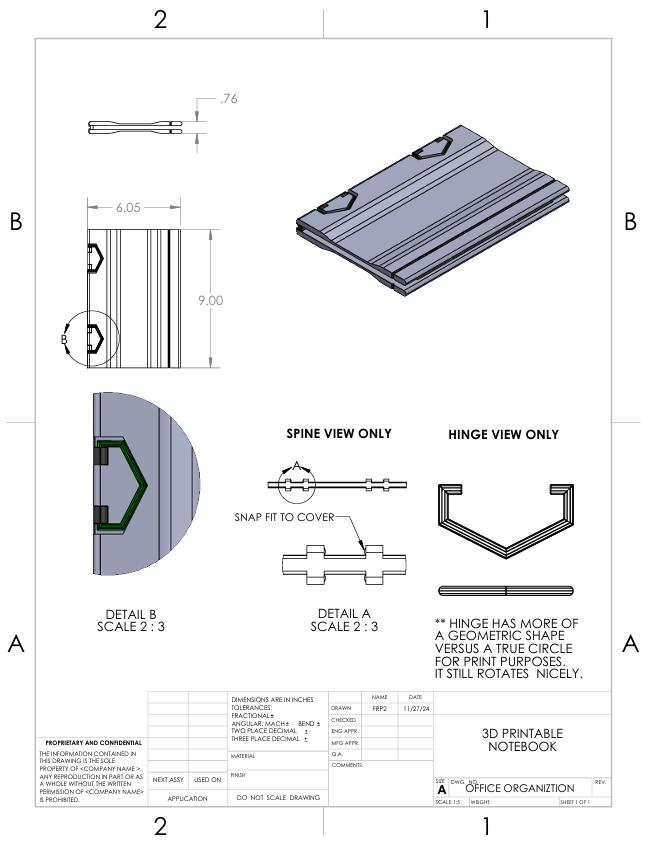

3D Printable Notebook Considerations:
- Snap fit design with rubber bands
- Print two covers.
- Print four hinges. Pay attention in the slicer, the hinge is geometric and has a flat side for printability. Yes it works still.
- Print one spine.
- Attach hinges to spine first.
- Snap hinge to cover first but simultaneously press in the snap fit portion. Get it, it all snaps together like the original creator but ya kind of got to place the hinge before the spine. There is draft on the hinge wall.
Designed in Solidworks
