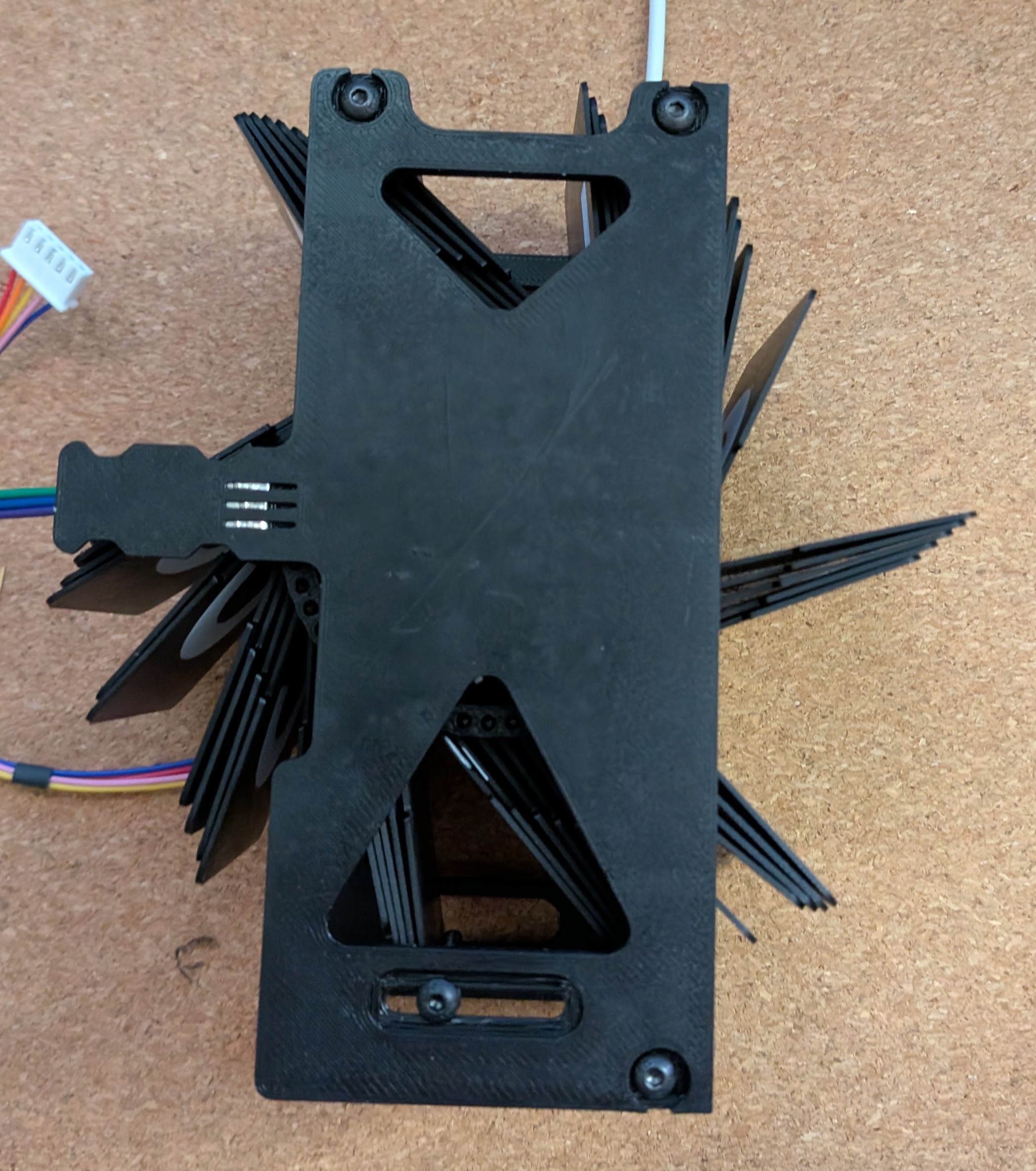

No PCB hall effect sensor mount Split flap — zdjęcie 1
1 / 2

No PCB hall effect sensor mount Split flap

Zamów wydruk tego modelu

Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.

Zapisane na tym urządzeniu.

Informacje o modelu

Źródło
Printables
Kategoria
Electronics
Licencja
Creative Commons — Attribution — Noncommercial

Fully compatible with Denver3D's compact split flap set up. This requires JST-SM female headers: https://www.amazon.com/dp/B0CNT164CD?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1 (are the ones i used).

Instructions:

  1. Crimp on 3 female headers onto 3 wires.
  2. Slide the headers into the slots.
  3. insert the hall sensor pins into the headers.
    1. Ensure that the pins of the sensor do not bend and touch.
  4. press fit the sensor head into the carve out on the plate.
    1. (Optional) A small drop of glue can be placed under the sensor head for added security.
      1. The JST-SM pins should hold the sensor securely in place but vibrations for the flaps rotating may cause it to shift slightly over time.
