Designed to fit a basic single node Rotorhazard timer; built with a generic Arduino nano(de-pinned) and a rx5808. Mounts to ¾" PVC

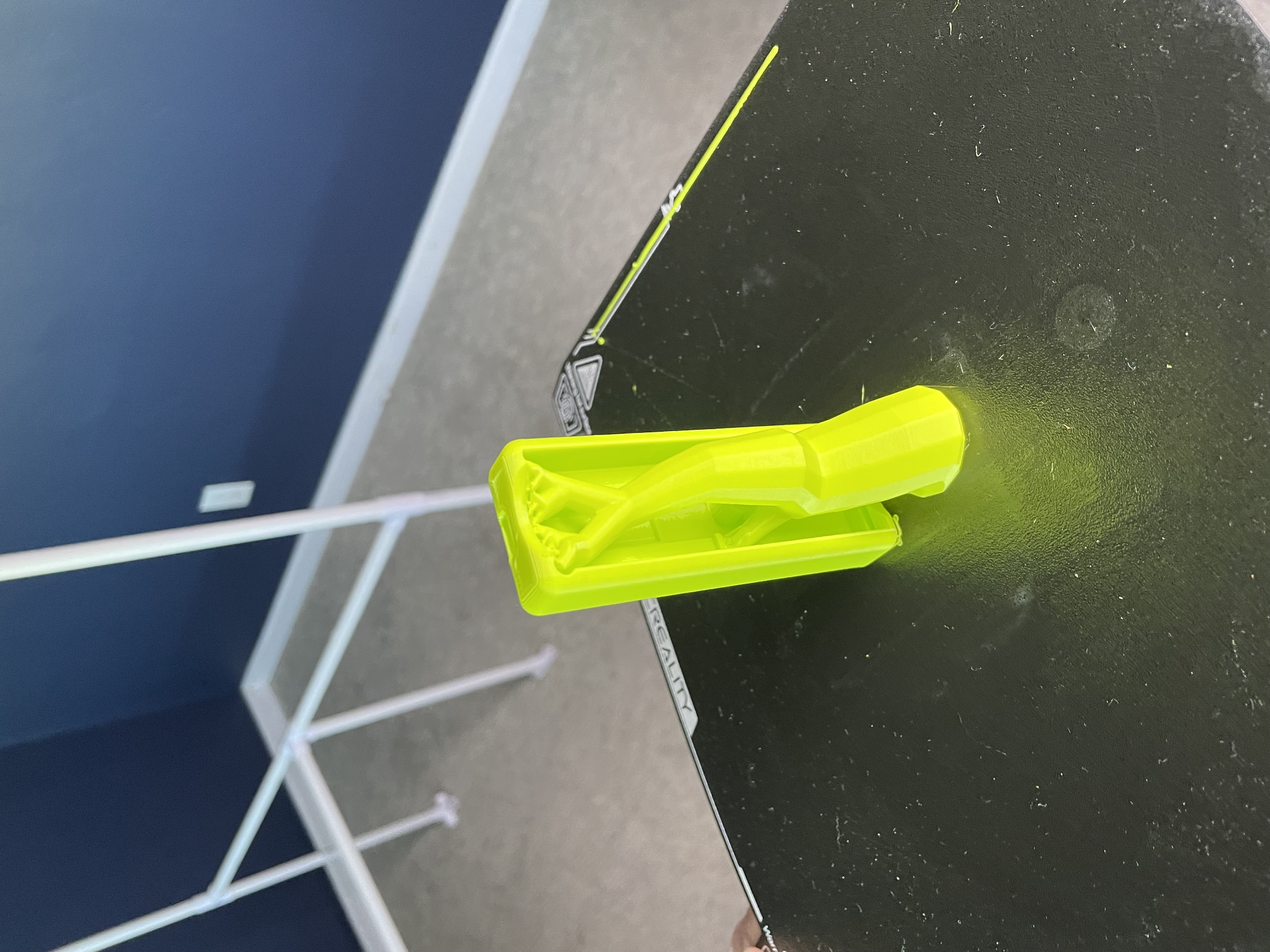

Recommended to print standing up if you need to combat warping - supports required.

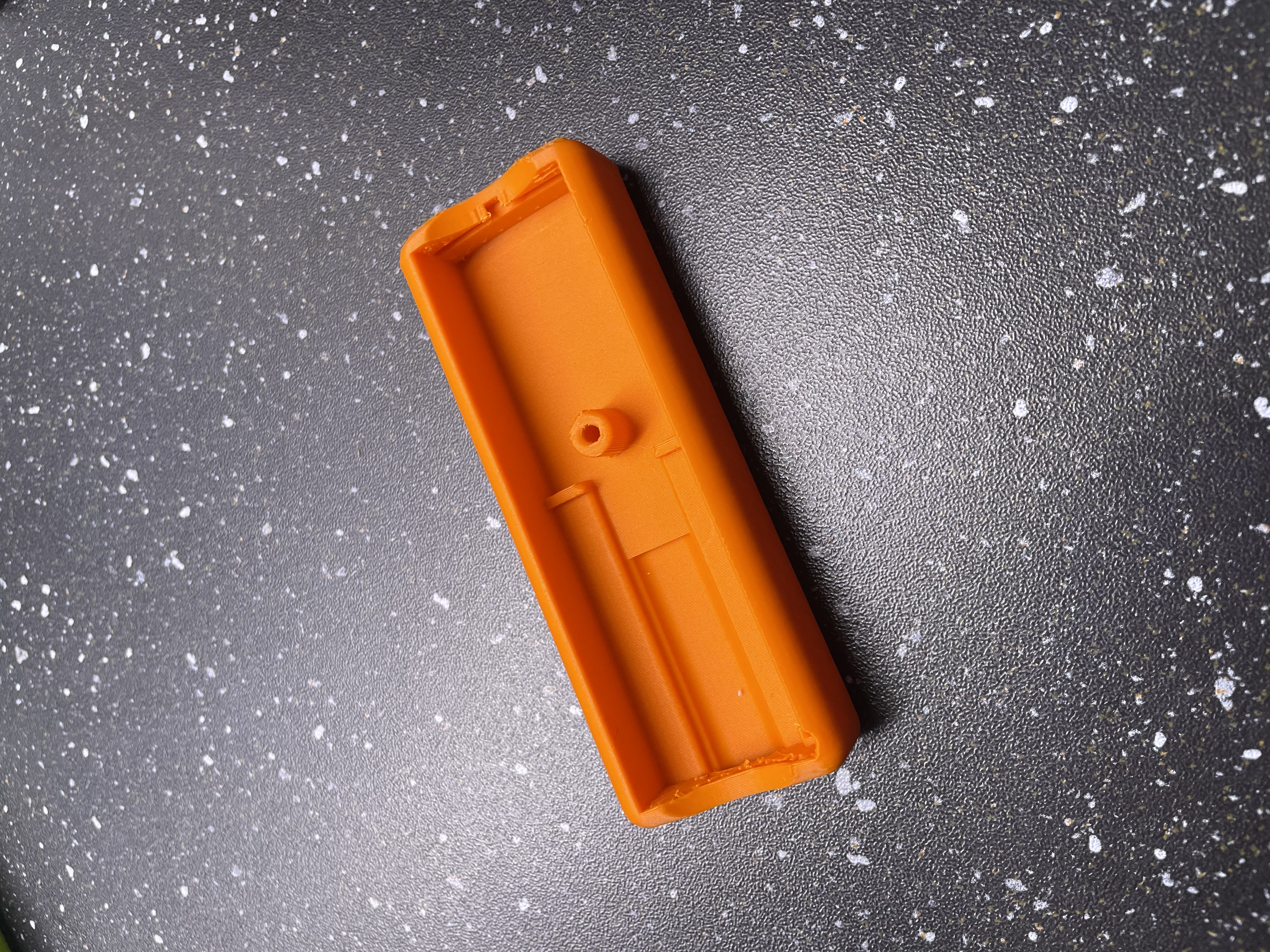

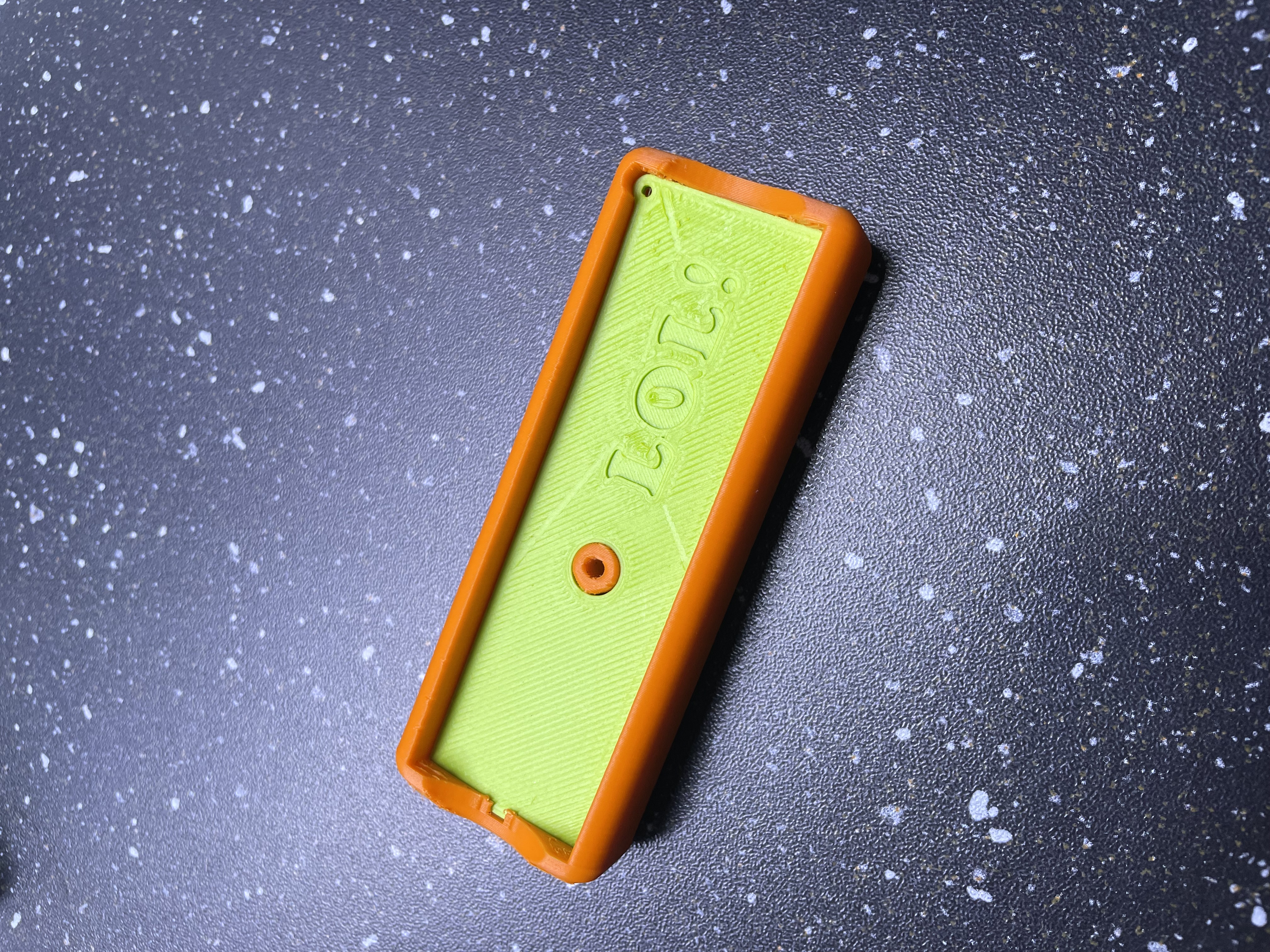

I use a couple dabs of E6000 to secure the components to the body, but this is not required. The cover uses an M2x4 screw.

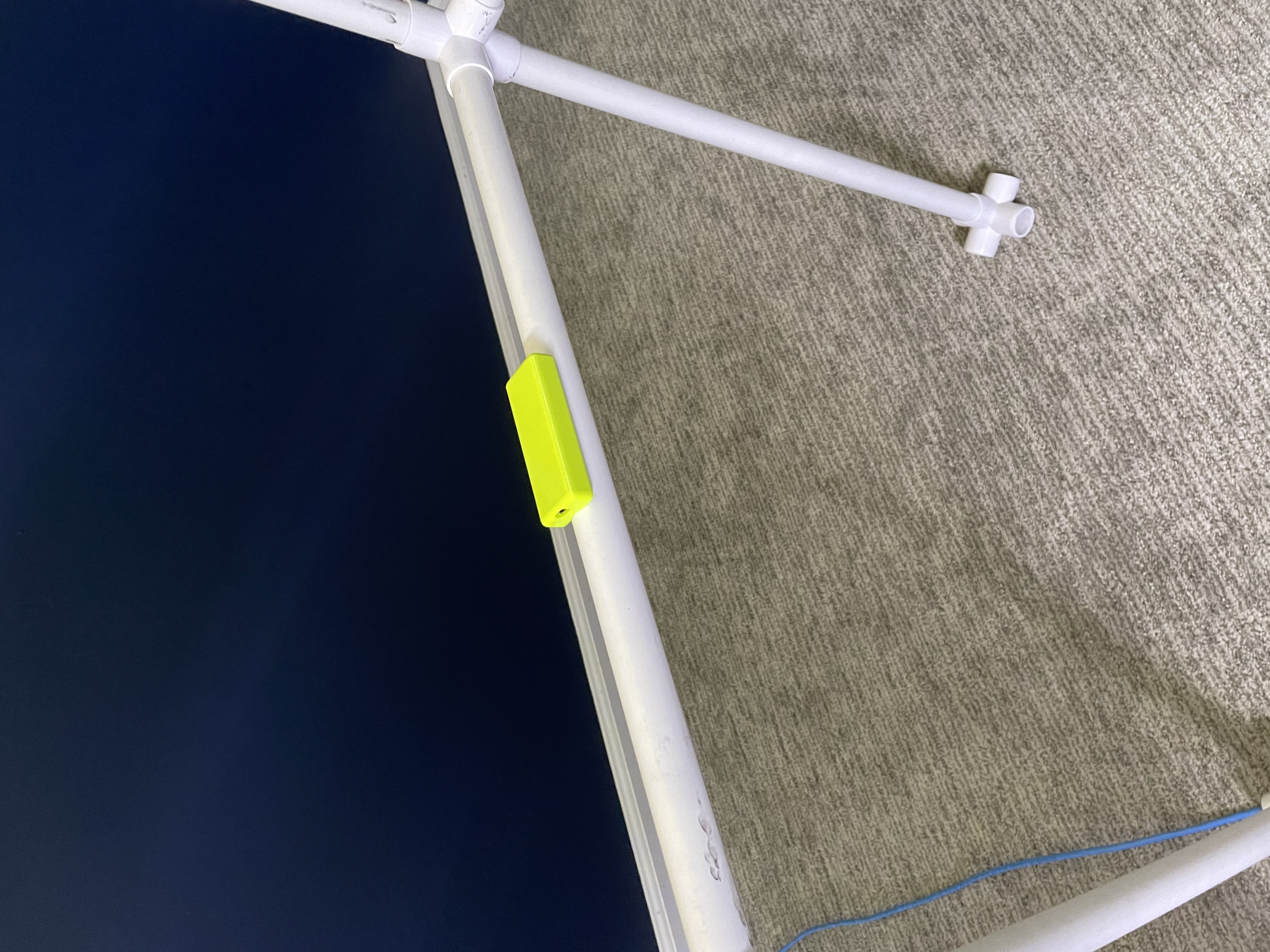

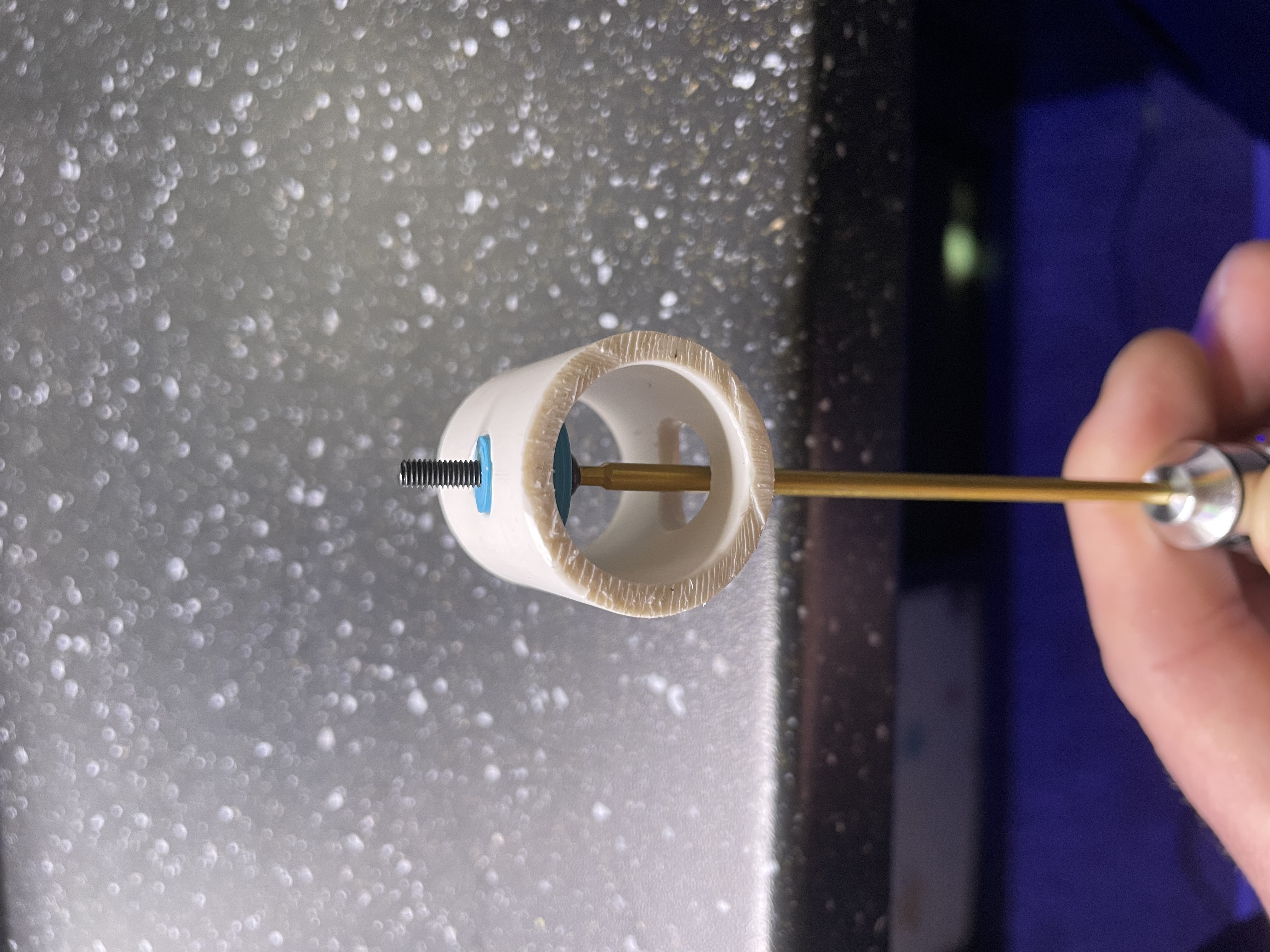

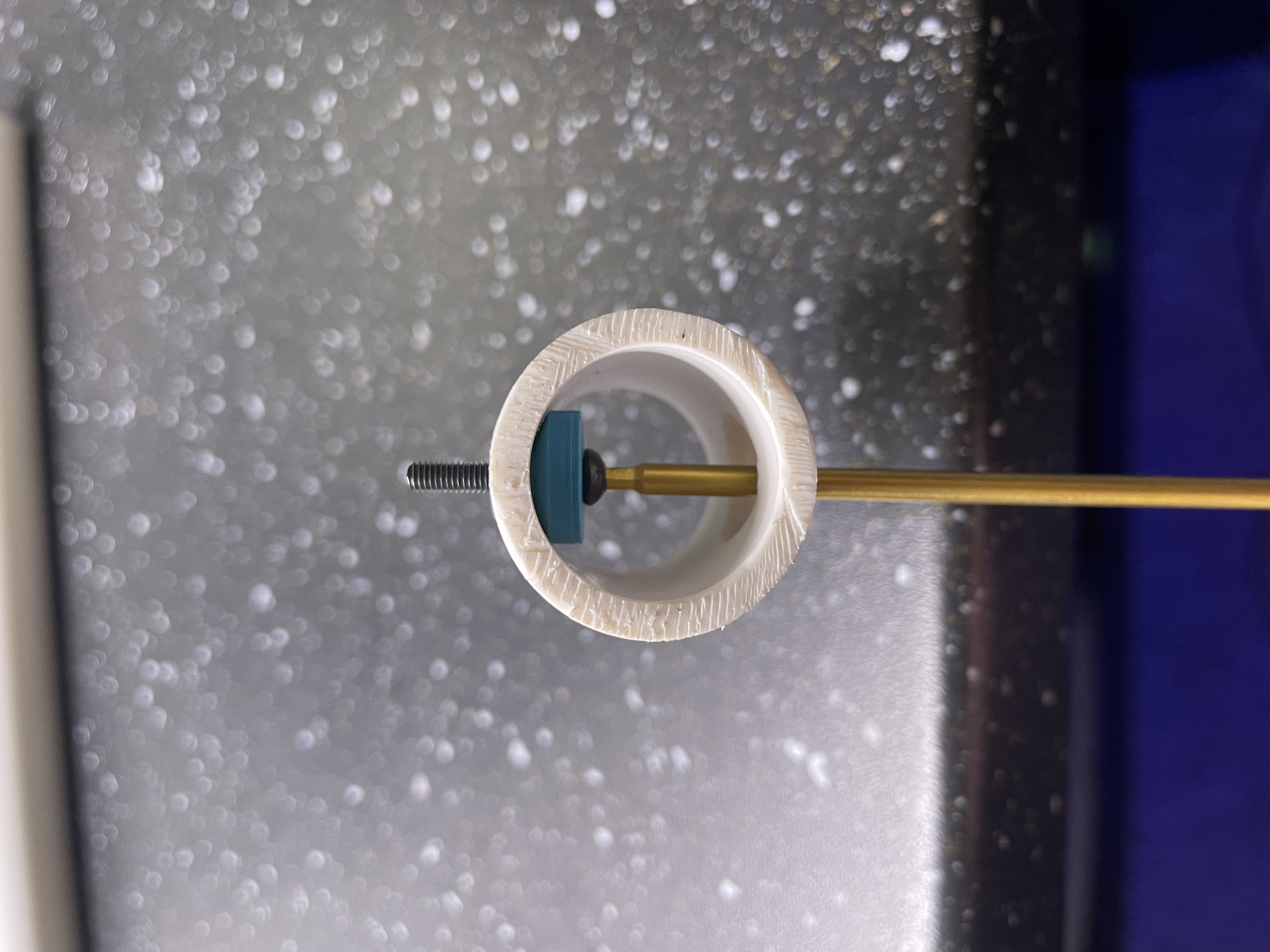

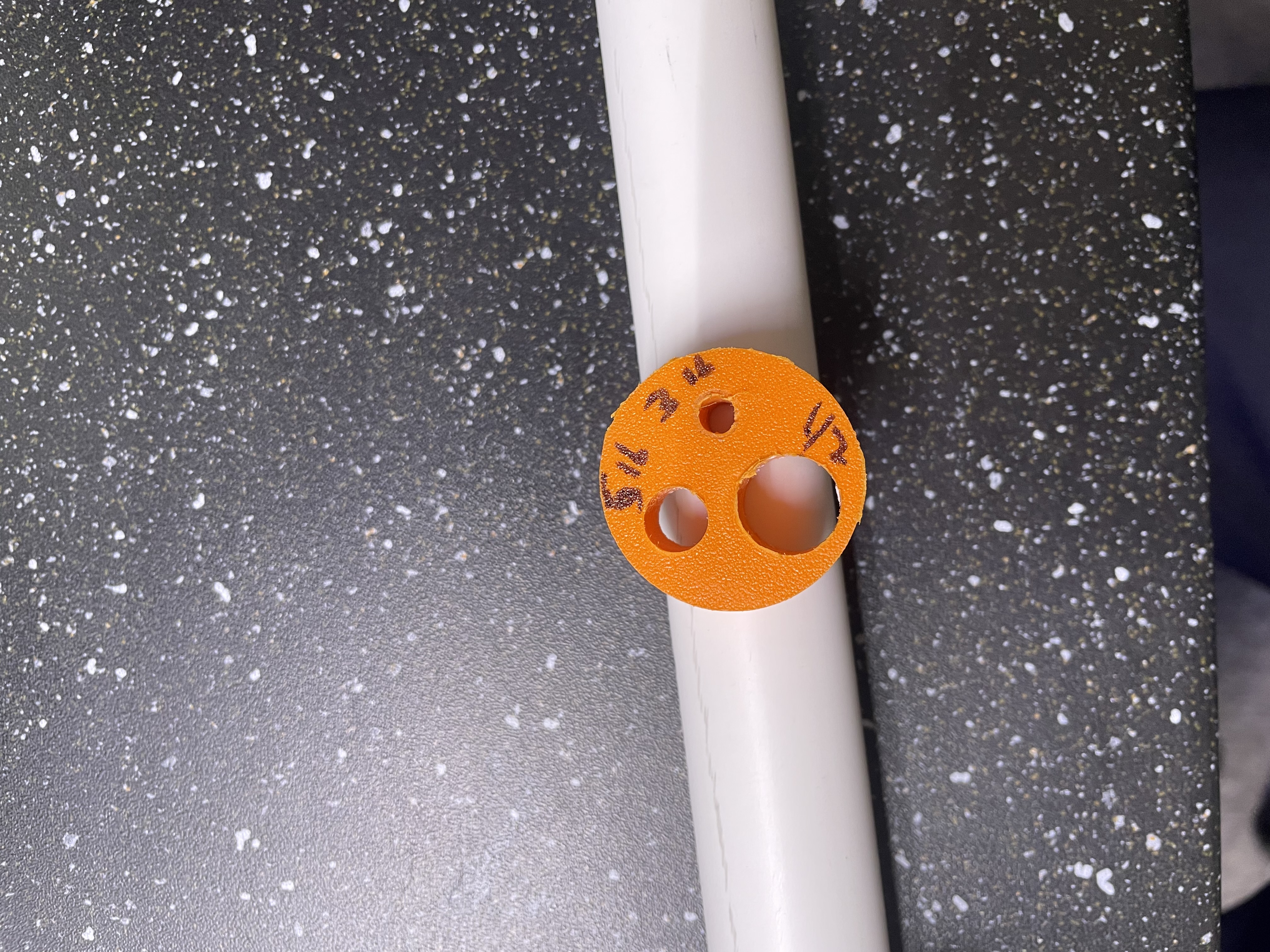

You may use a standard battery strap to mount to ¾ PVC. For a sleeker mounting, Included is a drill guide for 3/16", 5/16", ½" bits (sorry metric). On PVC center, the bottom side is drilled out to ½", while the top is drilled out to 5/16" for the screw collar to sit in. An M3x15 screw is used to secure everything together.
Version 1. Comments and suggestions welcomed. Enjoy!
