Prusa Mini Base vibration suppression leg extensions
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Prusa Parts & Upgrades
- Licencja
- Creative Commons — Attribution — Noncommercial — Share Alike
Helps to make my Prusa Mini+ even quieter.
A light remix of some excellent leg extensions that snap into the legs of the Prusa Mini Base: https://www.printables.com/model/63483-prusa-mini-base)
Remixed from this model: https://www.printables.com/model/70029-mini-base-leg-extensions.

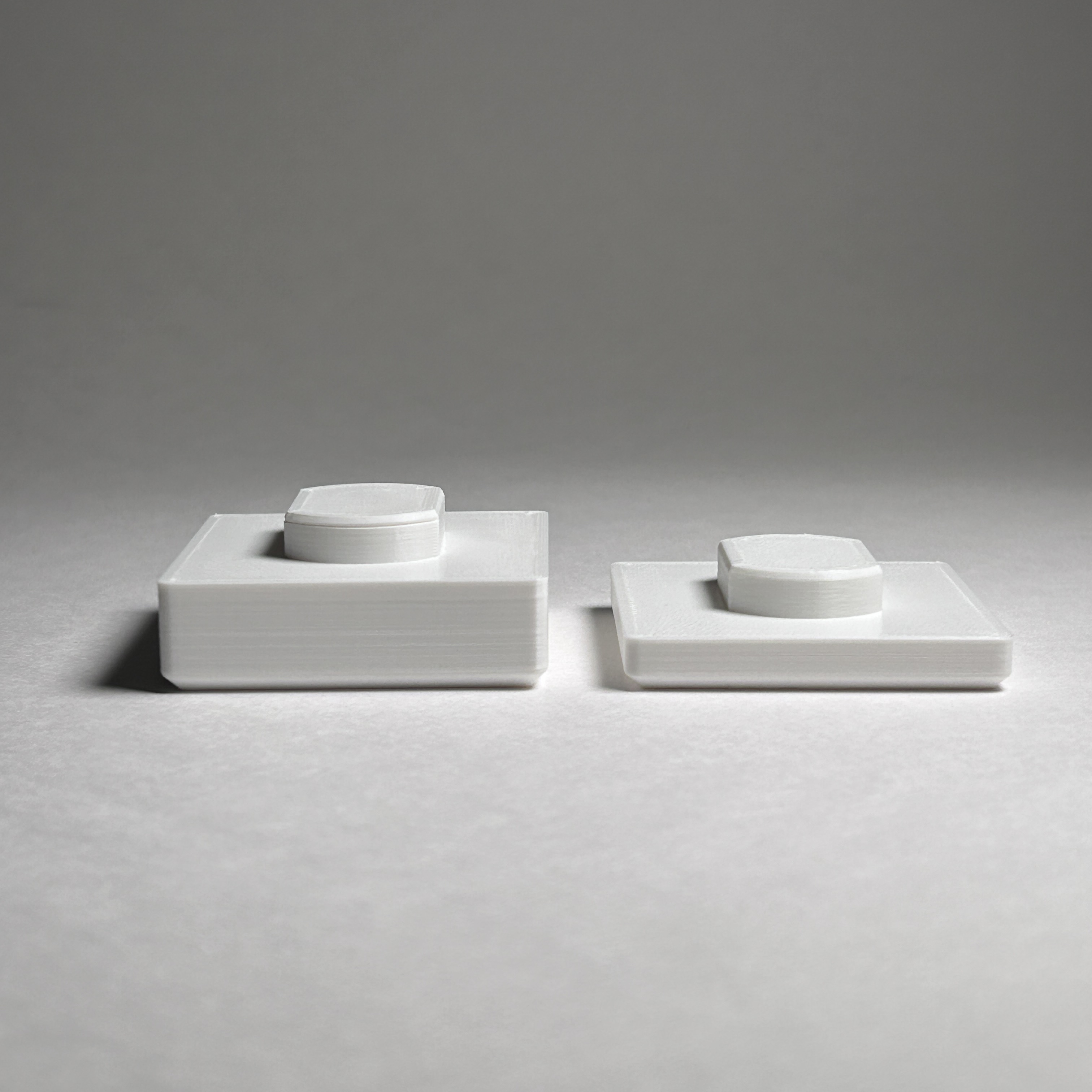

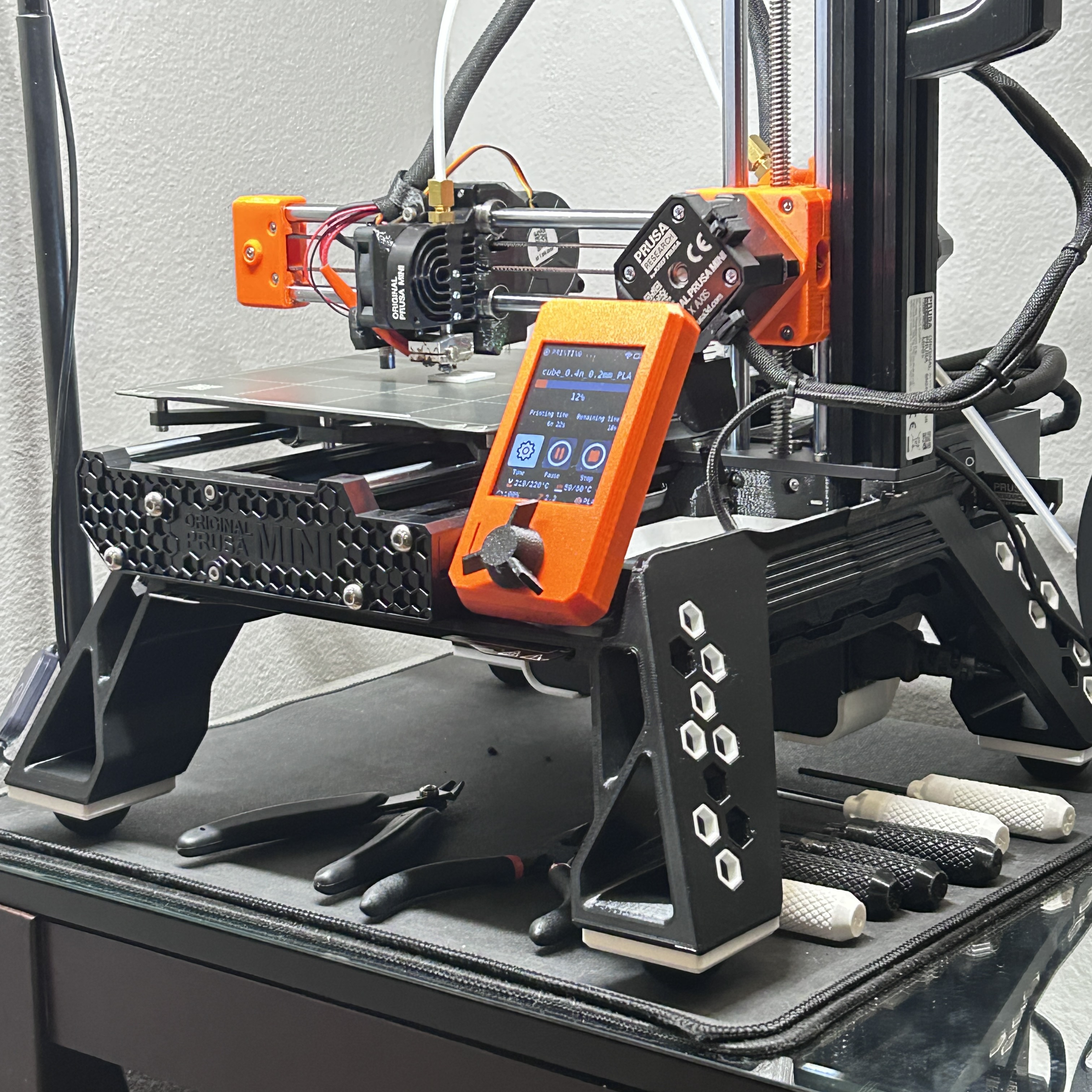

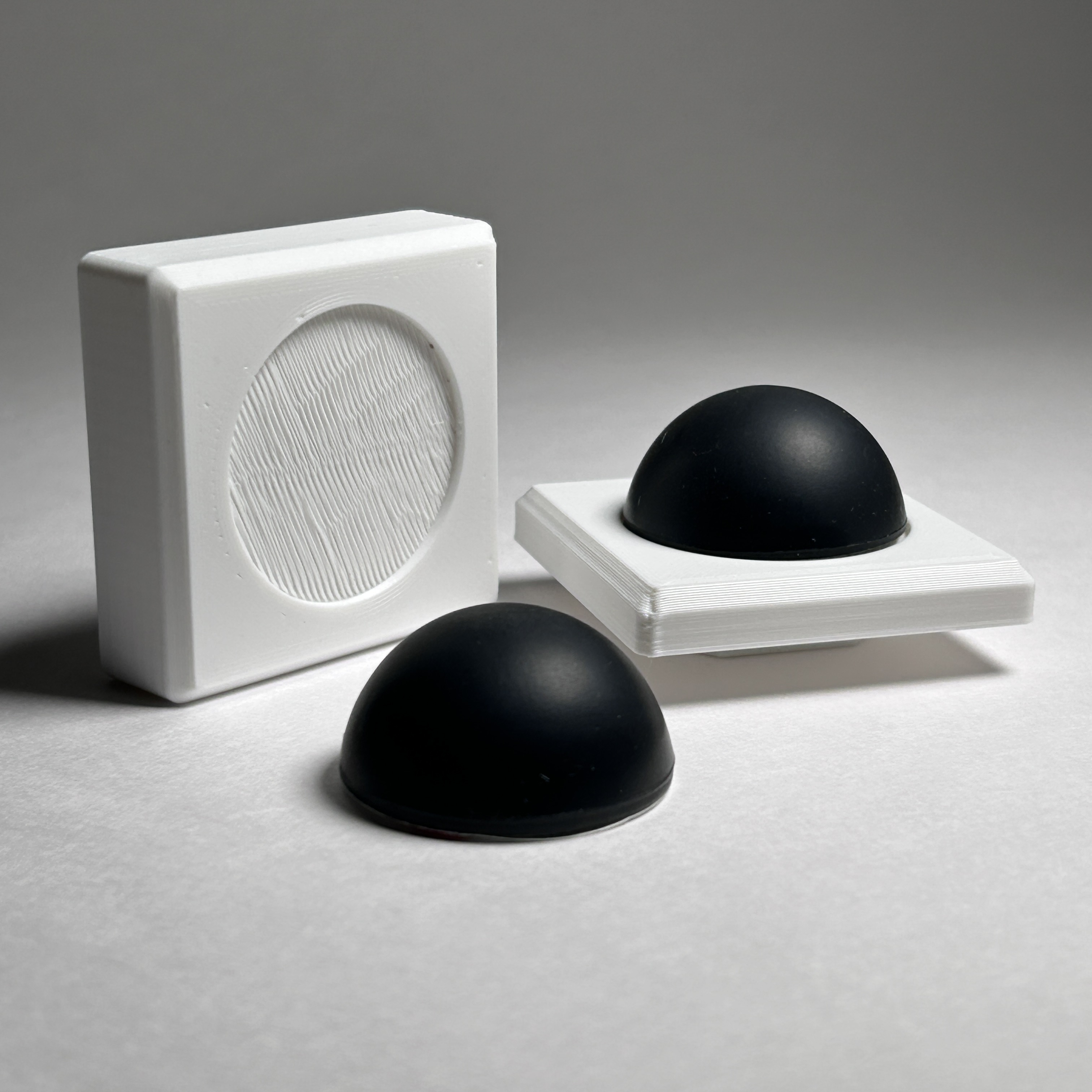

They snap right onto the Prusa Mini Base legs, just remove the foam pads. The circular insets are sized at ~33mm / 1.25" for readily available and cheap hemisphere vibration dampening feet. 14mm and 7mm height models (I use the 7mm, see photos).

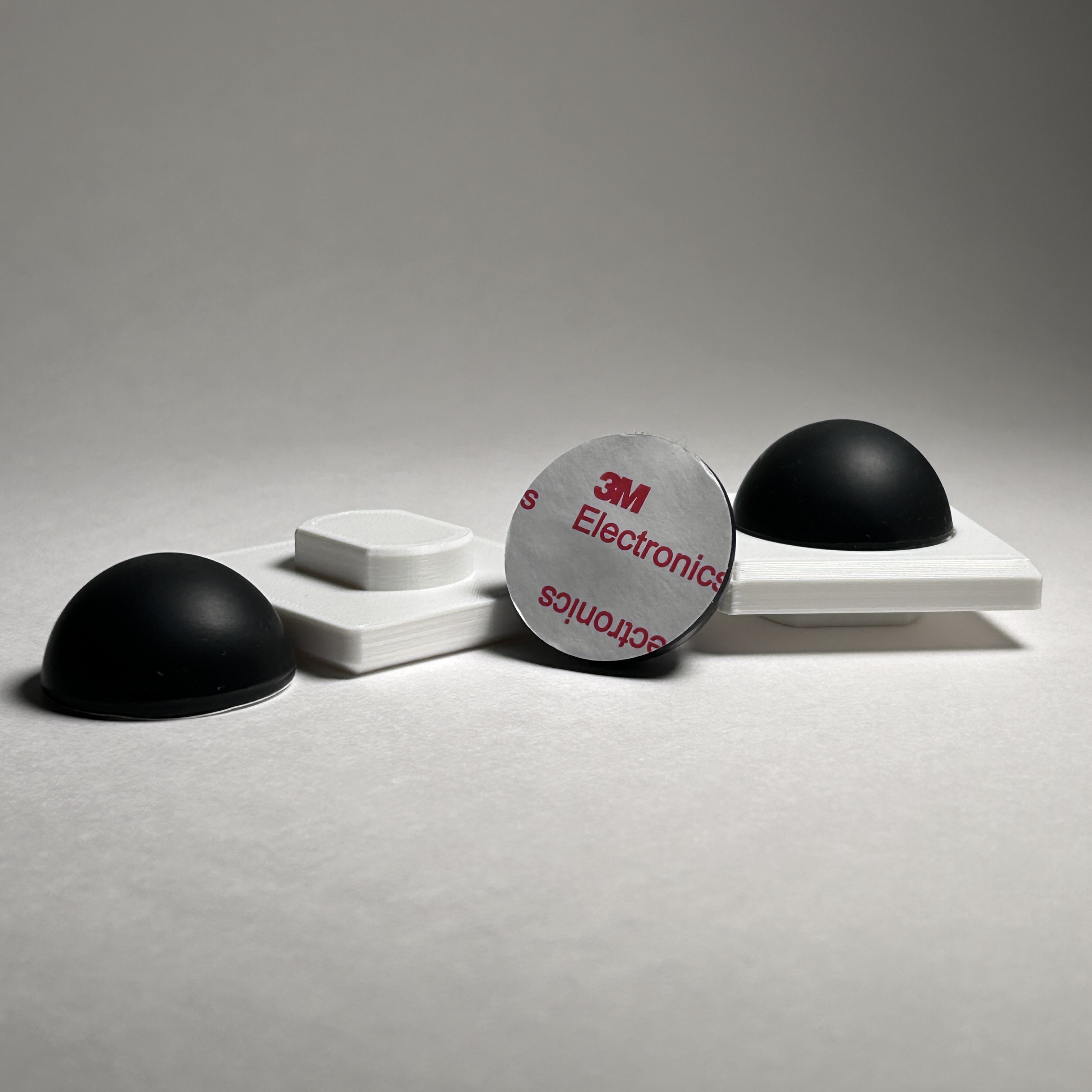

Silicone hemisphere dampening feet I use:
https://www.amazon.com/dp/B0B63BJD5T
Printing tips:
- Print works well placed on the bottom.
- Use one support painted on halfway through the circular cutout (see gcode or .3mf files for examples).
- I printed with PLA and 25% gyroid infill (but, PETG would be better).
There is a .step file available if you want to remix.
