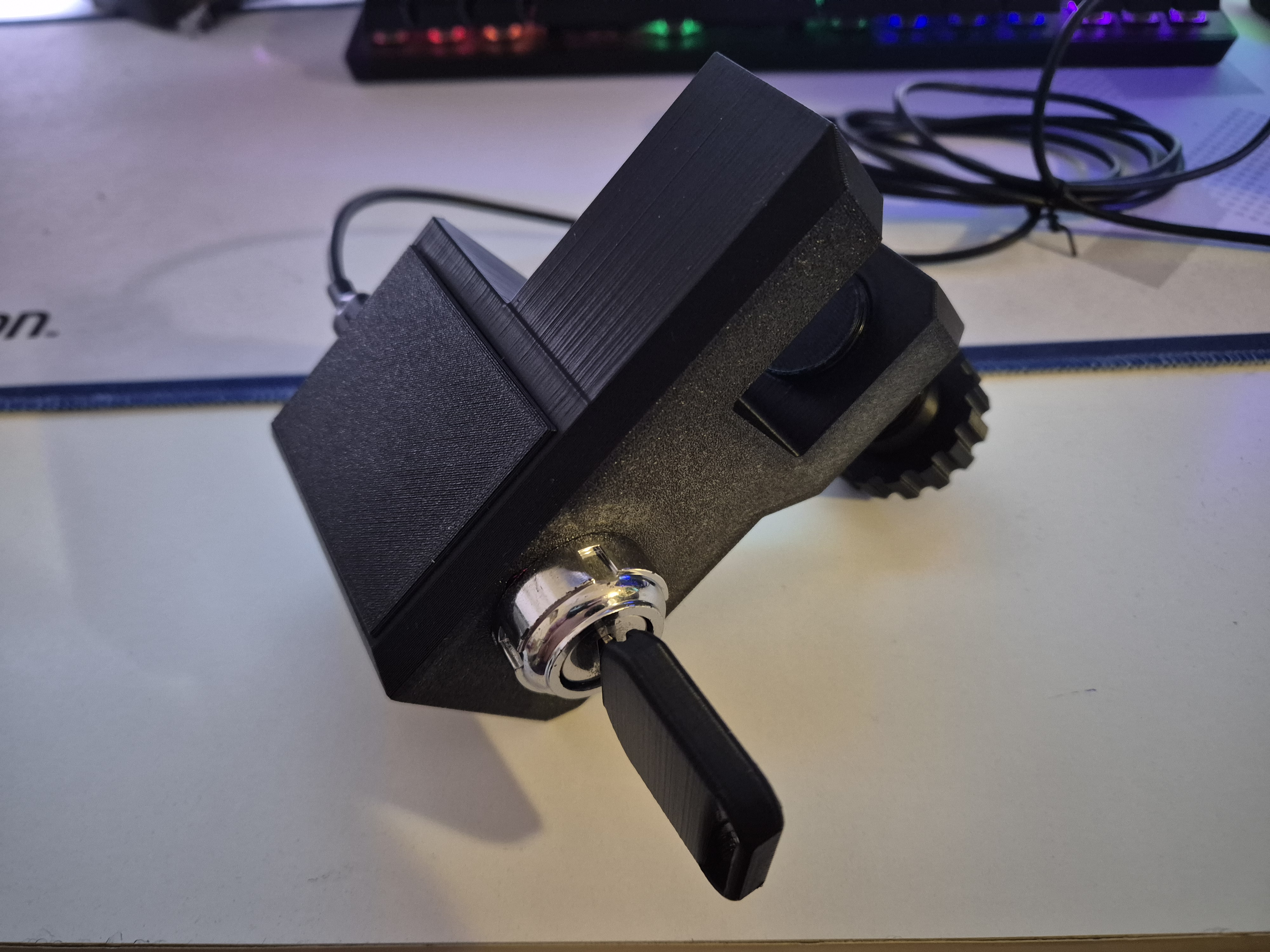

Sim Ignition Starter for games
works on PC as joystick.
Working prototype adjustments may be needed!!!
You need

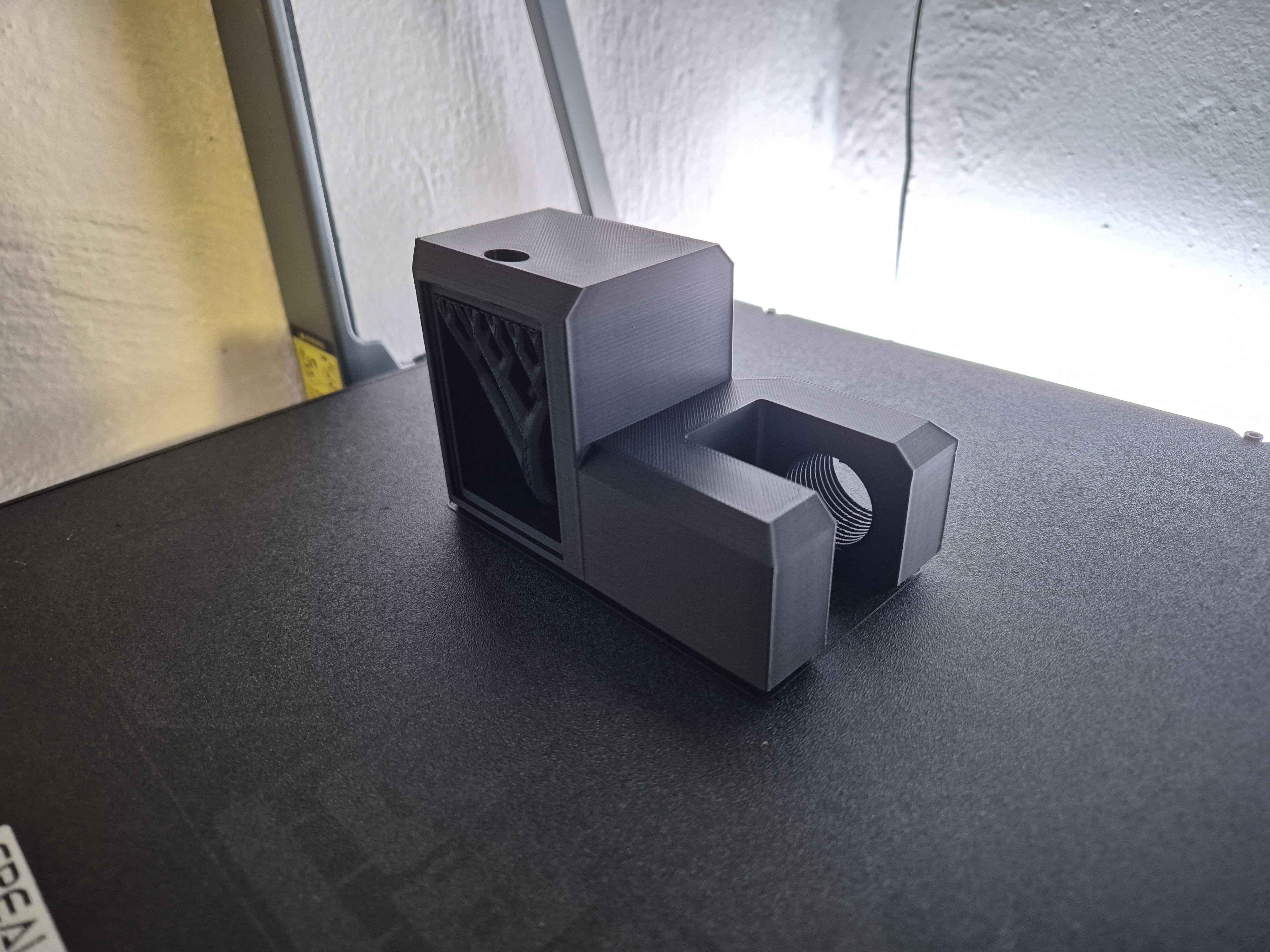

- Printed parts (min. 5 perimeters and 30 gyroid infill)
- Position Ignition ON /OFF /Start https://www.aliexpress.com/item/1005006066936417.html?spm=a2g0o.order_list.order_list_main.16.753e1802gZypZG
- Arduino Pro micro usb C https://www.aliexpress.com/item/1005006160570969.html?spm=a2g0o.order_list.order_list_main.65.a4b51802kbaHZO
- USB C cable (thin plug!)
- Sim Hub for uploading sketch to board (Arduino IDE)
- Soldering iron, wires
- Print parts
- upload sketch to board
- atatch wires to ignition

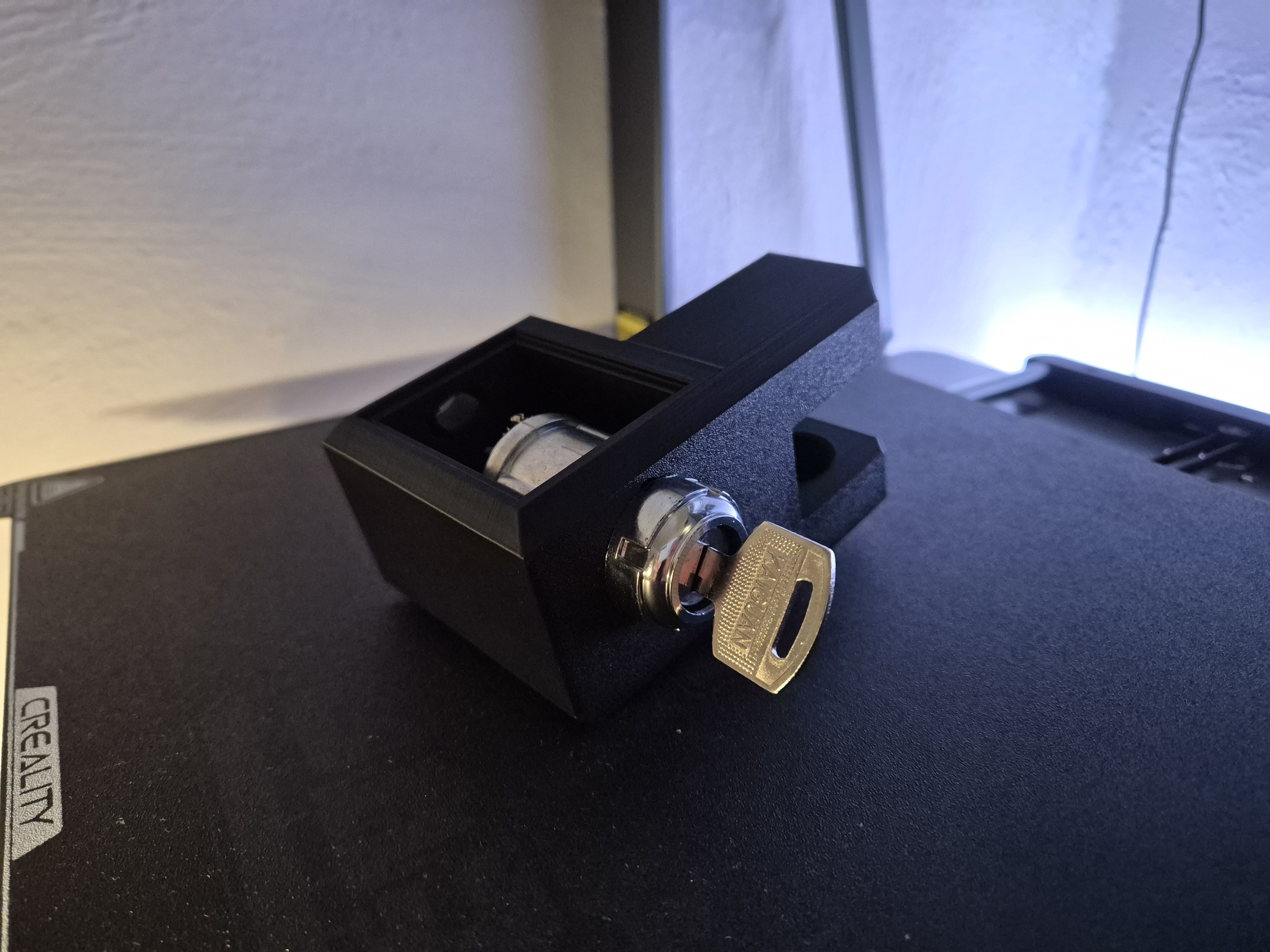

- put it in body and screw nut
- Isolate top of ignition
- solder board pin 2 to GND , pins 1 and 3 to buttons pins
- put in usb C cable trought the hole and plug the board
- put cover and sleeves on keys
- enjoy
