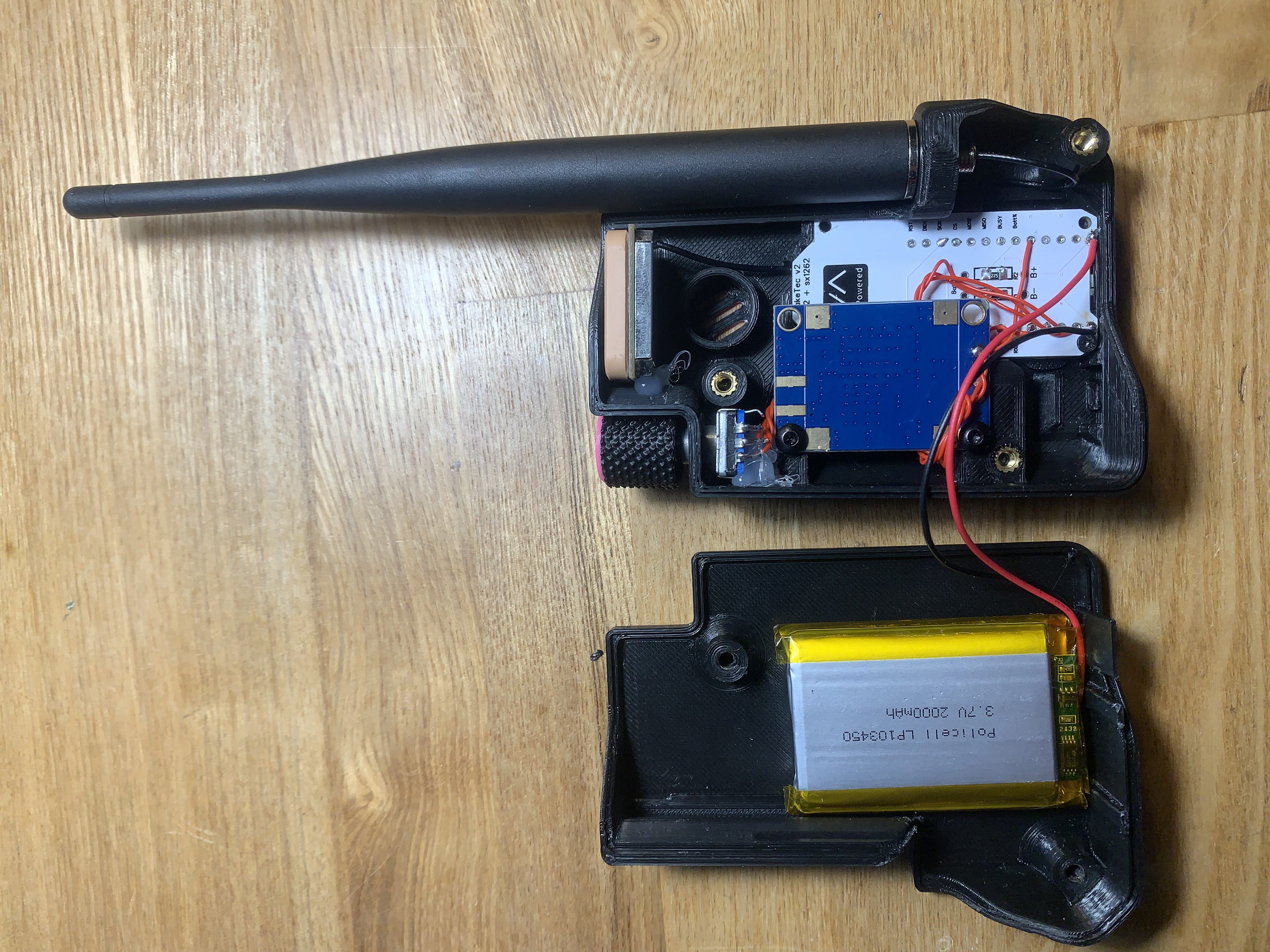

Faketec nrf52 Meshtastic Case with Encoder/Buzzer/GPS/Environment sensor, M5Stack CardKB Keyboard-ready
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Portable Devices
- Licencja
- Creative Commons — Attribution — Noncommercial — Share Alike
09.02.2026 Update:
add new Front part with new necenano support, which uses low-profile USB-C connector.
18.02.2024 Update:
add Base.stl file and upgraded step file
In relation to the original model:
- the profile of the adjoining surface has been changed. A side has been added, which makes the model more rigid.
- the hole for the antenna has been changed, now the mounting hole for the nut is on the inside
- the position of the buttons has been changed, since the faketec pcb has the buttons swapped
- the method of fixing the pcb has been changed from a latch to a screw (M2)
- the position of the display has been changed
- a partition has been added for the cardkb connector, which can be broken off if necessary
- the hole for the usb-c connector has been changed to a tighter one
Connection:
| pcb pin | Config |
GPS TX | D4 | 22 |
GPS RX | D3 | 20 |
GPS_EN | D5 | 24 |
Encoder A | D1 | 6 |
Encoder B | D0 | 8 |
Encoder Button | D9 | 38 |
Supported OLED display: with pcb size 26x26 mm.
PCB gerbers: https://github.com/gargomoma/fakeTec_pcb
Tested with the board version 2. Should be compatible with version 3
