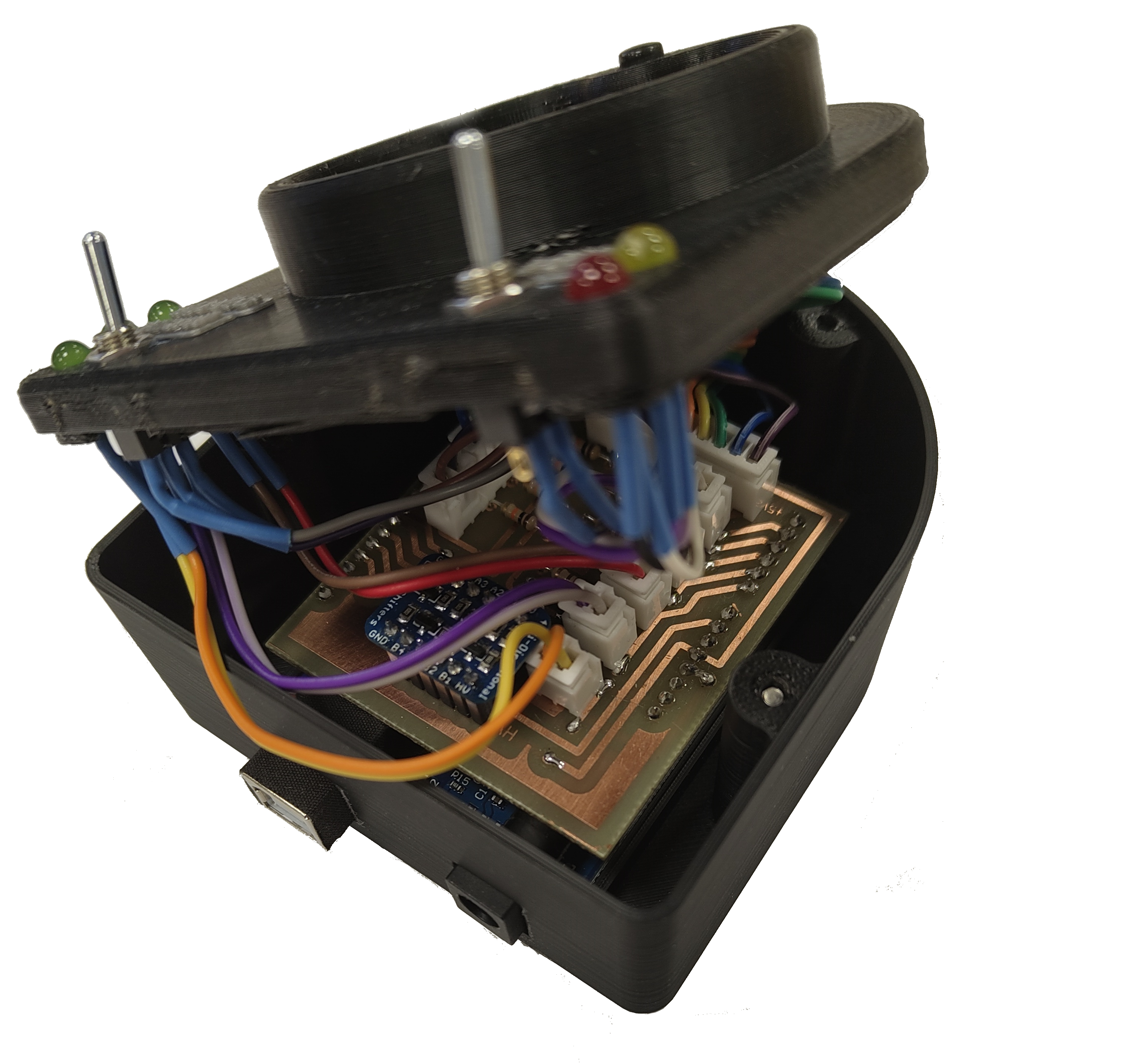

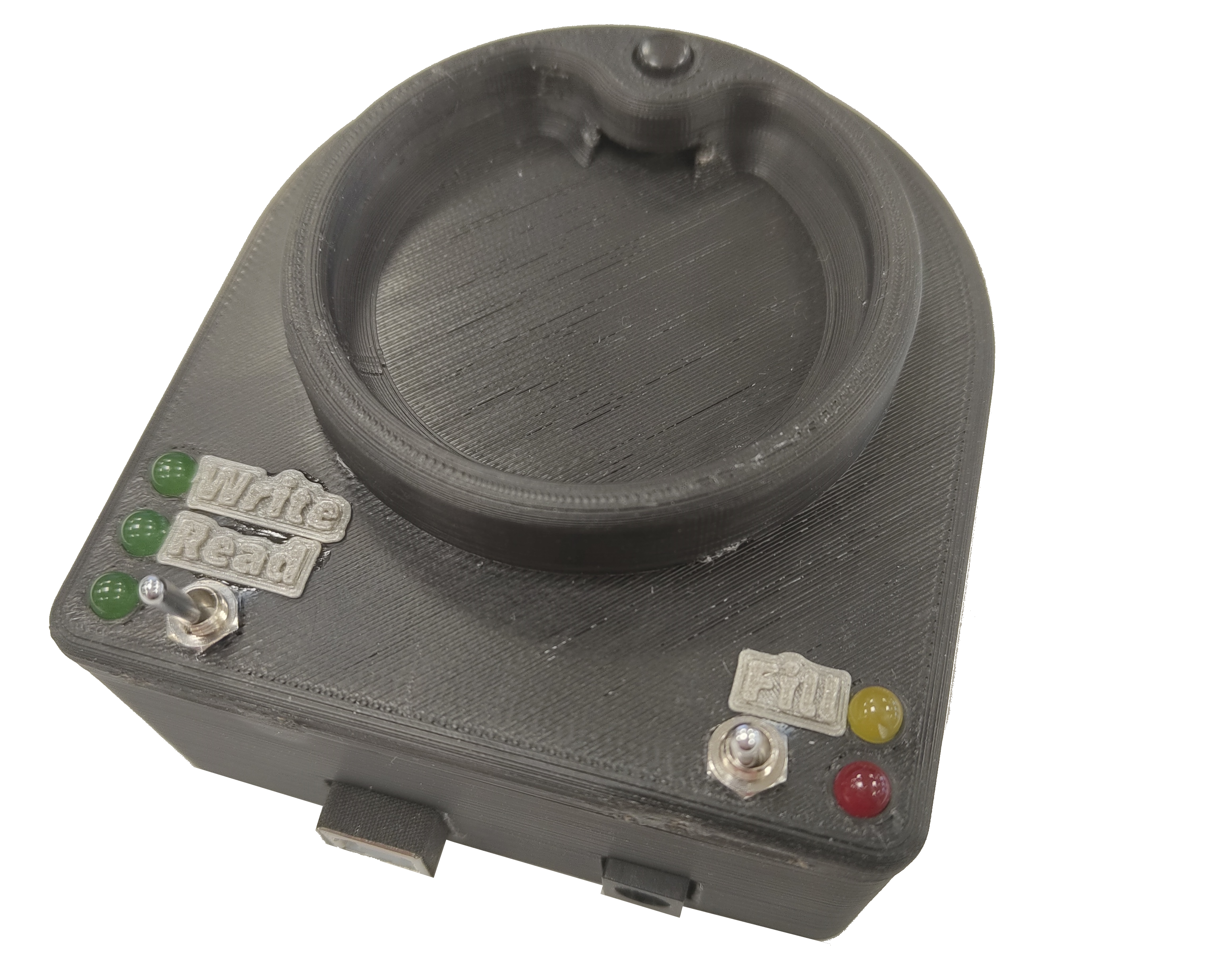

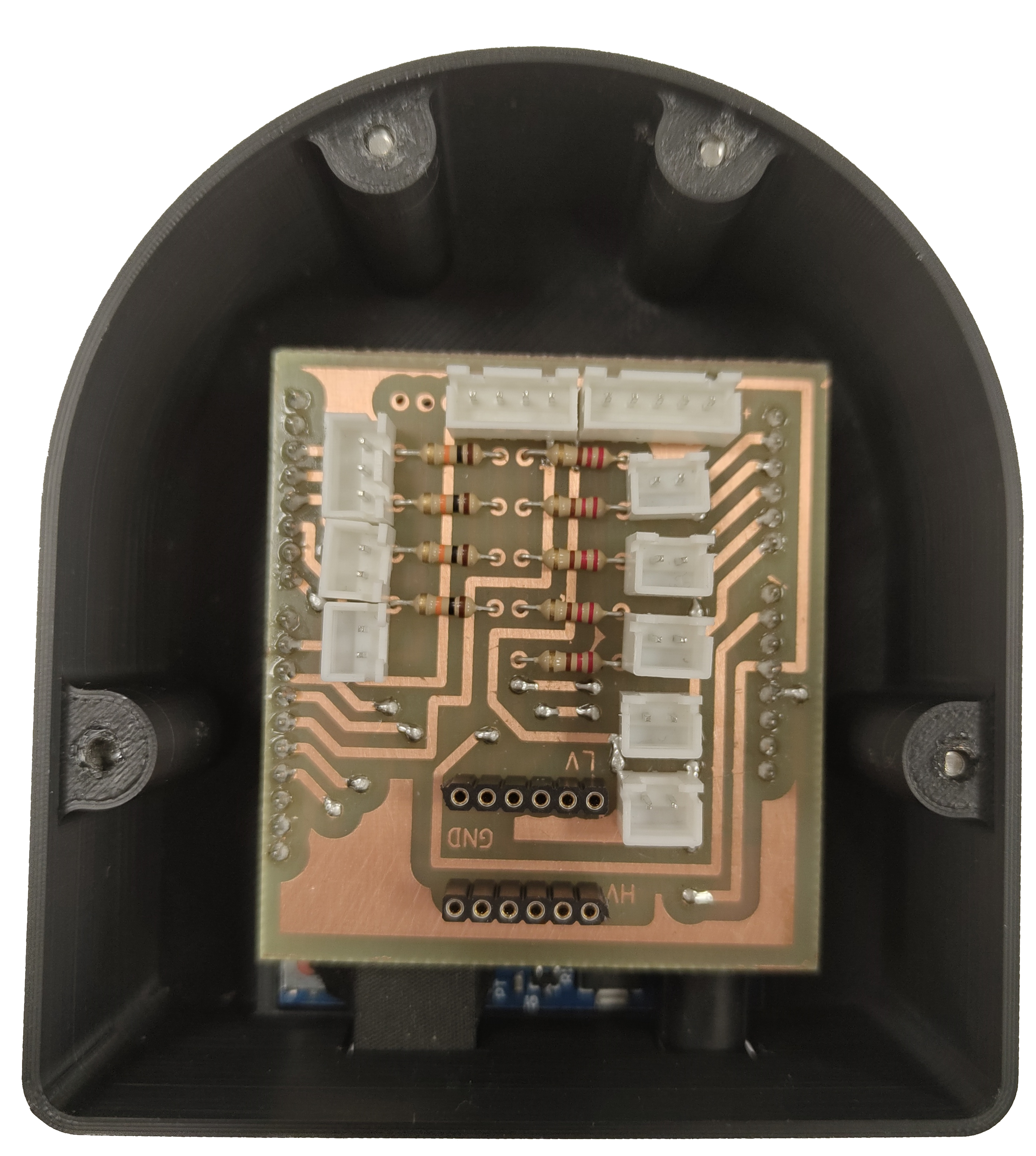

A small, Arduino Uno based ISO15693 RFID Cloner.

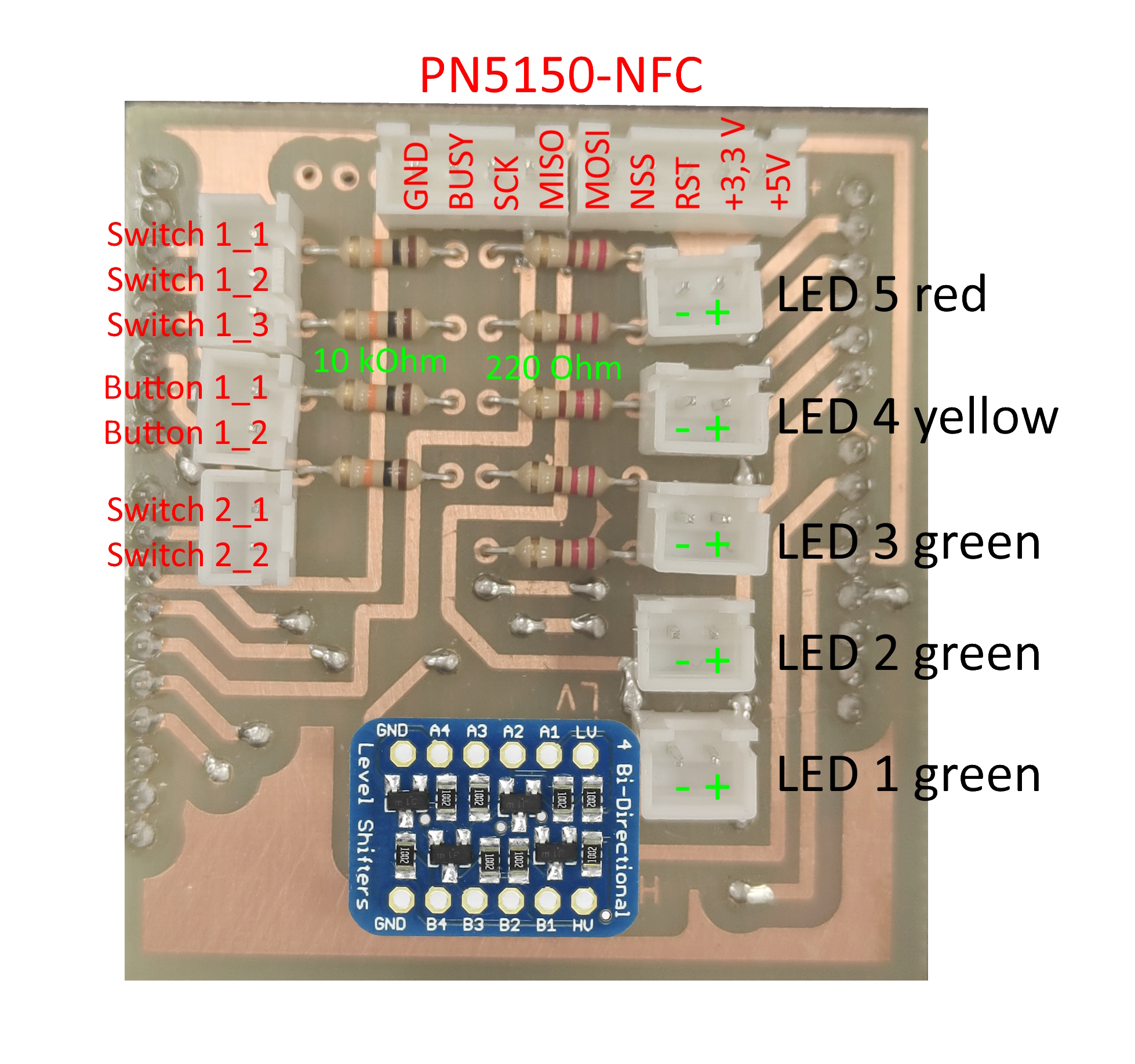

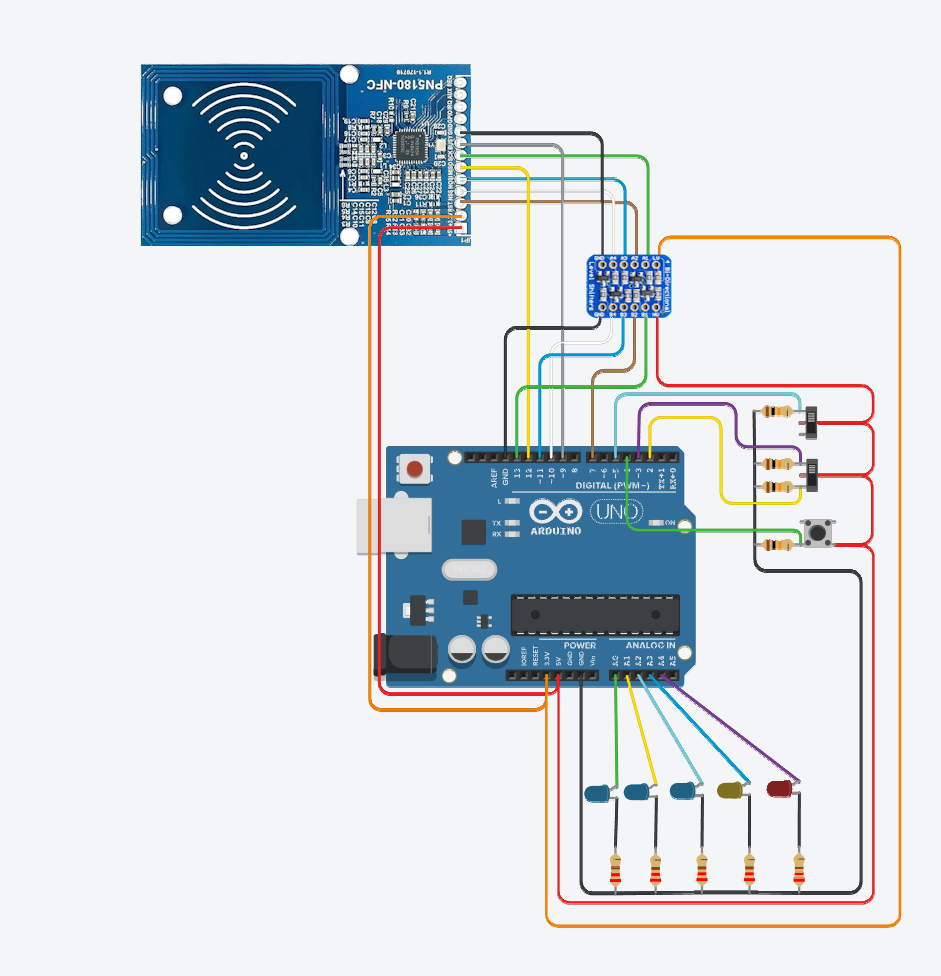

The code is on my Github with the Instructions and BOM in the README.md.
https://github.com/GO3R/Makerbot-RFID-Cloner/

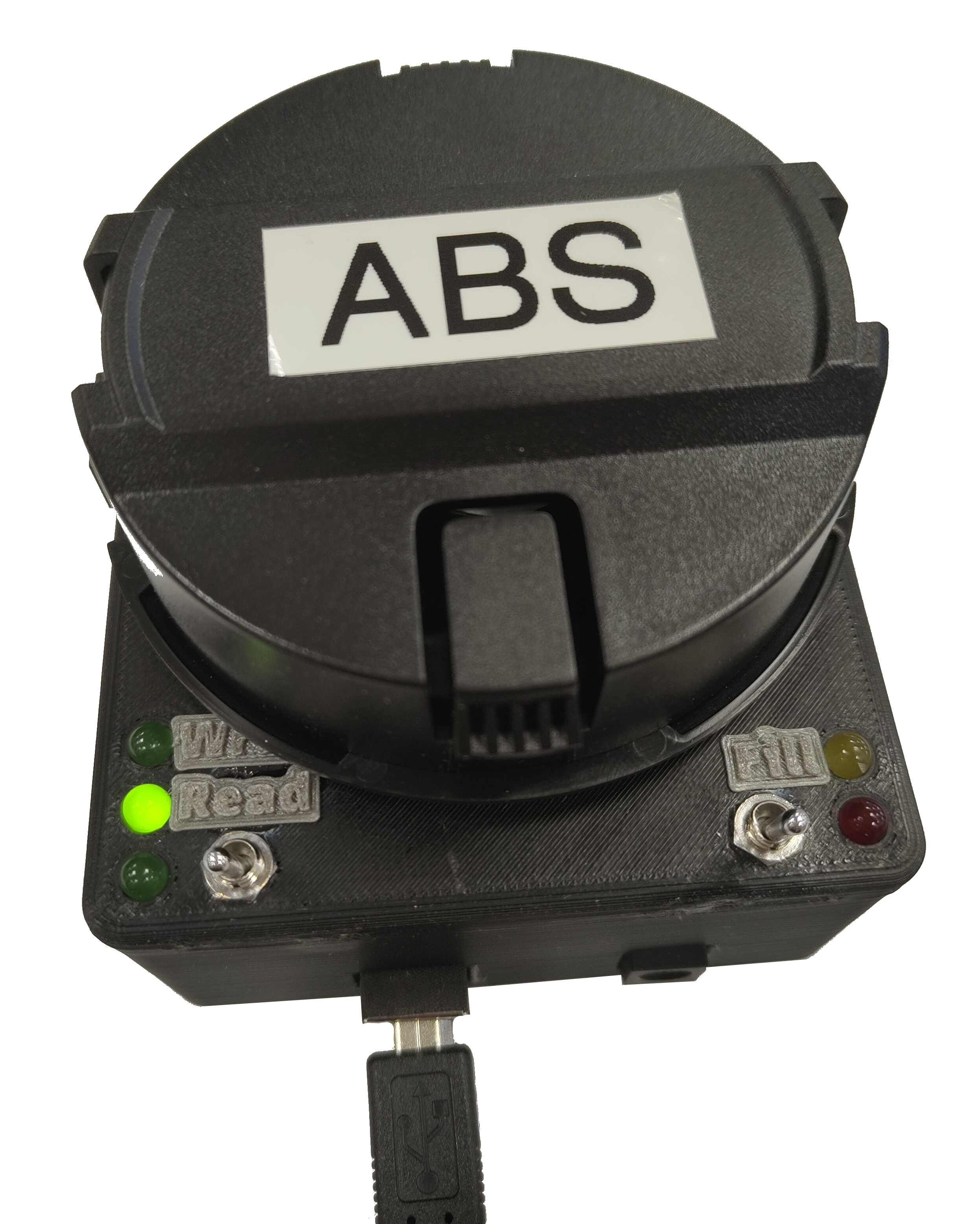

I needet a cloning device for the RFID tags from the Makerbot Method X spools, so i can respool different materials and have more than one RFID tag with ABS for example.
I specifically only let you clone the RFID chips and not emulate any you want. You need to have all materials at least once.
You can read the RFID tag and see the data with the serial monitor from Arduino IDE. For cloning you dont need the PC. You can "fill" the spools or you can clone the tag 1 to 1.
