Sandworm 3D printer - Chassis Bottom:

Signpost:

Non-printed parts used in this section:
- 4x Rubber feet: (FYSETC Anti vibration rubber landing mat feet)
- DIN Rail length 40.8cm
- BTT mini LCD display
- Red light rocker AC switch (34*25mm)
- USB Female front socket conector - 4 wires

- M5 Screws length: 12, 16, 40 mm
- M5 T-nuts
- 4x M5 nuts (into Leg_Back L+R, for DIN clamps)
- 1x M3 Screw + M3 T-nut (Optional for LCD mount)
- 4x M3 Screws L16mm + nuts (For attach BTT mini LCD display to cover)

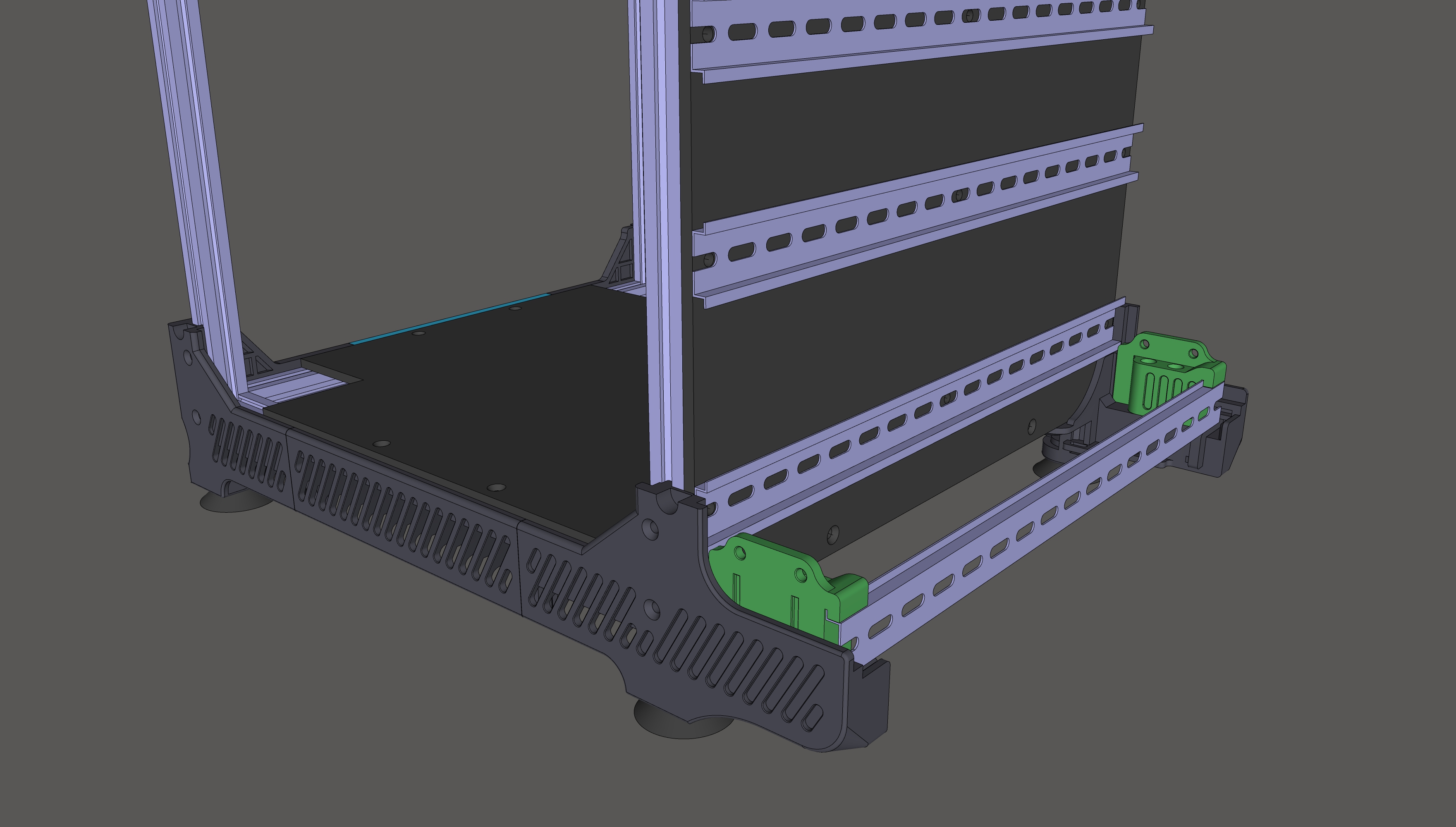

Print the models and place them on the aluminum frame, first place the four corner legs (with rubber feet already attached), then slide the rest on (it's a good idea to turn the frame upside down).

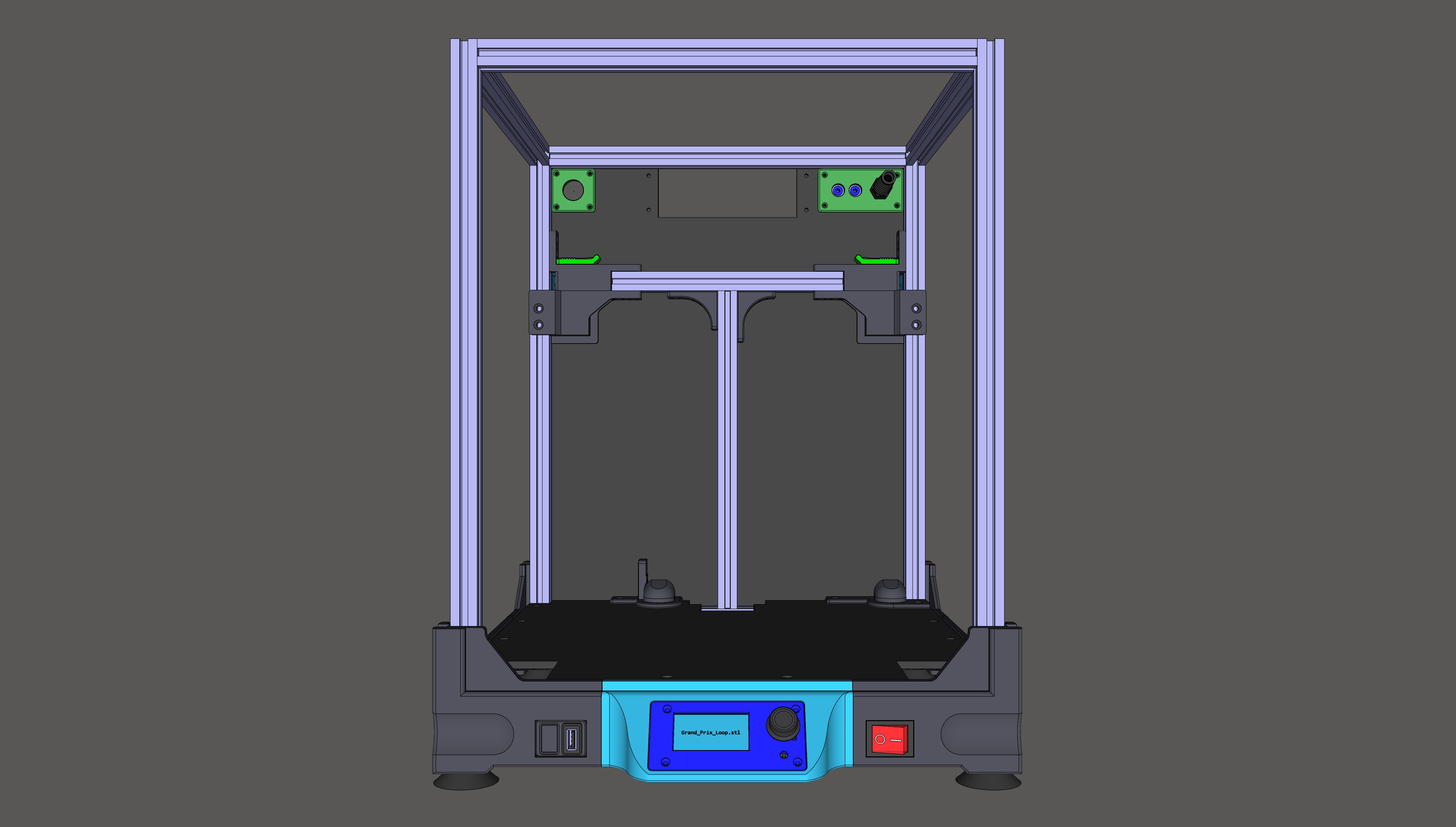

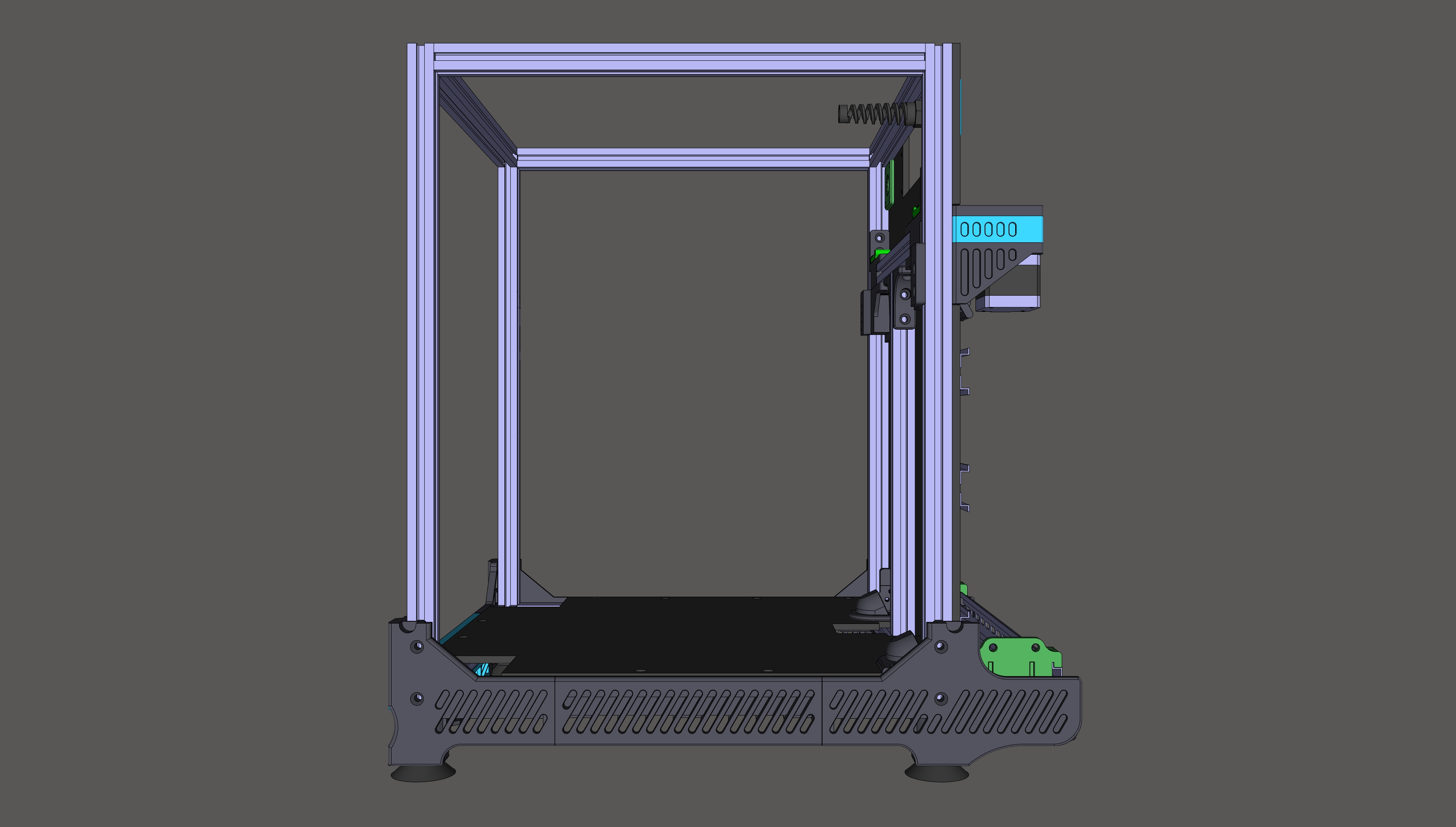

💡At the top image slider there are image exports that will help you with orientation where each part belongs

Roadmap:
Drive Mount → Chassis Bottom → Chassis Top → Chassis Middle → XY Axis → Z Axis → Electronics → Extruder → Filament and Spool → Levelup Addons → PrusaSlicer → GitHub

The next step is the Chassis Top from signpost section…
