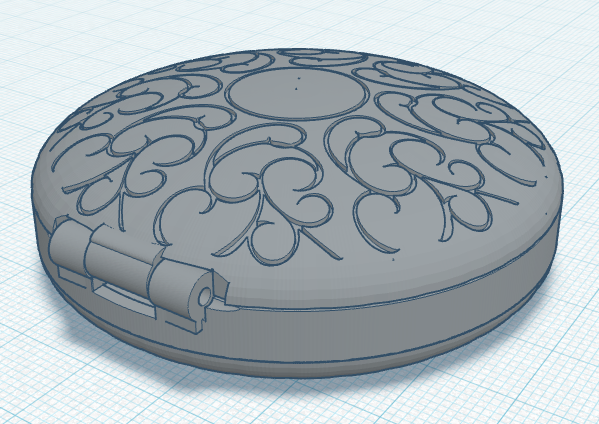

Decorative Container / Pocket Watch Casing.

Originally started out as being a casing to put my old pebble time into, but it ended up being more of a container/pillbox than a pocketwatch casing which is why I left the loop for the watch chain off - You could add it easily enough.

Prints in 2 sections ;

Upper Half / Lid - I recommend you print this as orientated with supports.
I got a good result using a support thickness of 40% less which made them easy to remove and left the patterned surface on top which results in the fine detail looking nice.

Lower Half - Print any way you want - The curve on the bottom shouldn't need supports, but you might need it depending on your printer.
I used supports for the hinges - but I'm not sure it's necessary.

Tolerances are a bit generous which means it should come out reasonably well on most FDM printers.

Hinge pin - I designed this to use a length of 1.75mm Filament as a hinge.

A spot of glue at each end of the hinges should keep it in place while allowing the hinge to work.

Note: there is some reinforcing around where the hinge joins lid and base - I hate hinges ok ?

Designed in TinkerCad.

Pattern - Hand drawn in Sketchbook Pro for the iPad.

Initial versions printed on FlashForge Adventurer 5M / .4 nozzle / Layer Height .10mm
