Pot/Pan Lid Parametric

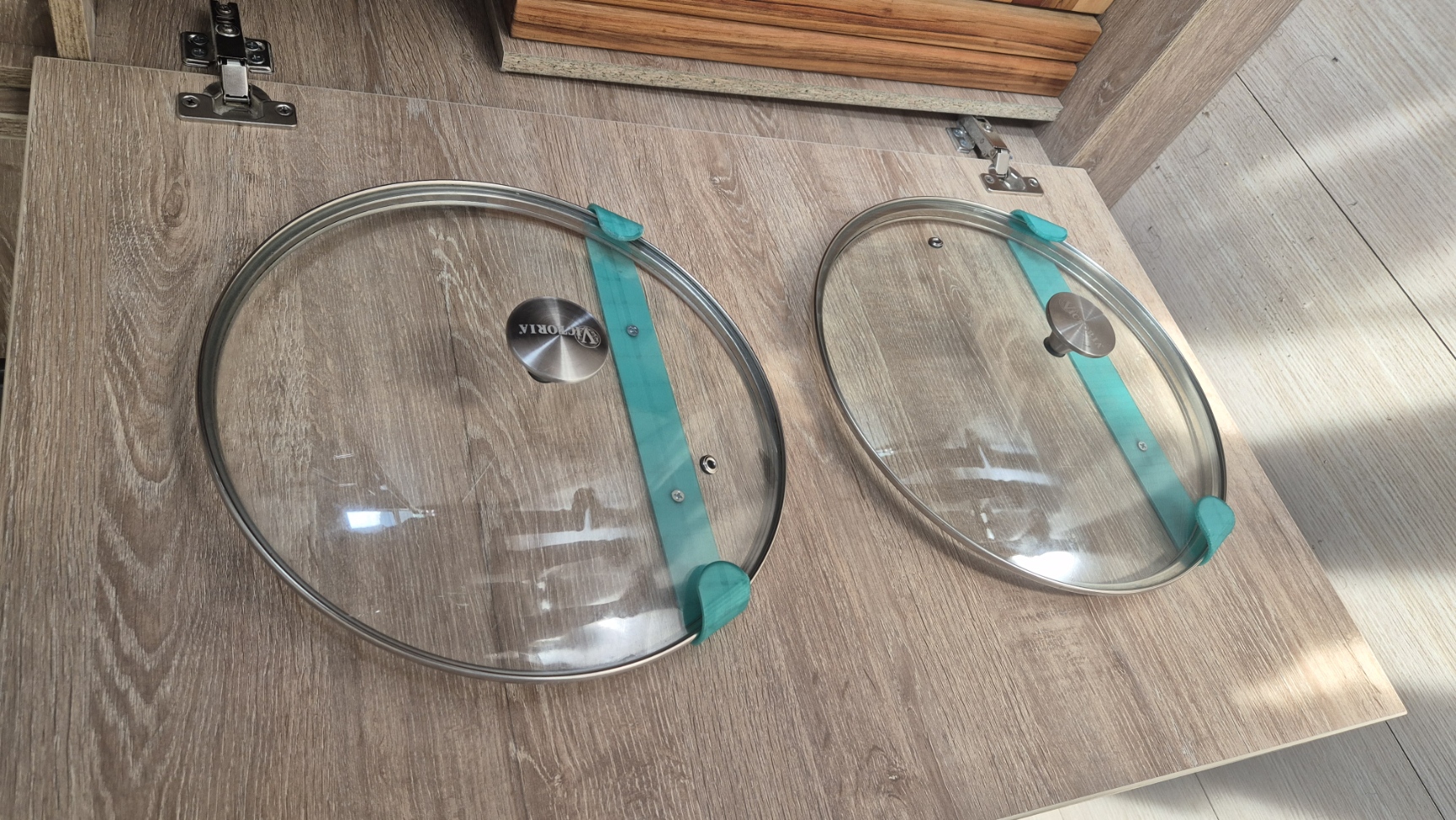

Parametric Pot Lid Holder

This 3D model is a versatile and practical solution for holding pot lids of various sizes. Designed with customization in mind, it provides a balance of functionality, ease of use, and compatibility with popular 3D printers like the Prusa MK4S.

Key Features:

Dynamic Holder Length: The length of the holder is calculated as 90% of the lid diameter. This percentage was chosen after testing different options, as it provides a comfortable experience when reaching for the lid with your hand.

Circular Contact Area: The mount features a circular contact area, ensuring better surface contact with the lid. This design improves stability and minimizes wear over time.

Adjustable Dimensions:

• Holder Length: Dynamically adjusts based on the lid diameter.
• Depth: Set at 20 mm for a solid base.
• Thickness: Fixed at 3 mm but could benefit from being adjustable based on the weight and size of the lid for improved durability with heavier lids.
• Height: Adjustable up to a maximum of 35 mm, allowing it to fit a range of lid profiles while staying within the Prusa MK4S print area.
• Lid Diameter: Supports lids up to 33 cm in diameter, making it compatible with most standard lids and ensuring printability on the Prusa MK4S.

Dynamic Mounting Holes: Screw holes are placed dynamically based on the length of the holder, ensuring stability and ease of installation on any surface.

Printer Compatibility: The design is optimized to fit within the build volume of the Prusa MK4S, making it straightforward to print without adjustments.

User-Friendly Design: The holder is designed with smooth edges and an ergonomic layout, making it easy to use while maintaining a clean and polished appearance.

Areas for Improvement:

To further enhance this model, the thickness could be adjusted dynamically based on the lid’s diameter and weight. This would help ensure the holder remains sturdy and reliable, even with heavier lids.

This model is perfect for anyone looking to create a practical and customizable pot lid holder. It’s easy to print, adaptable to various needs, and designed with usability and durability in mind.
