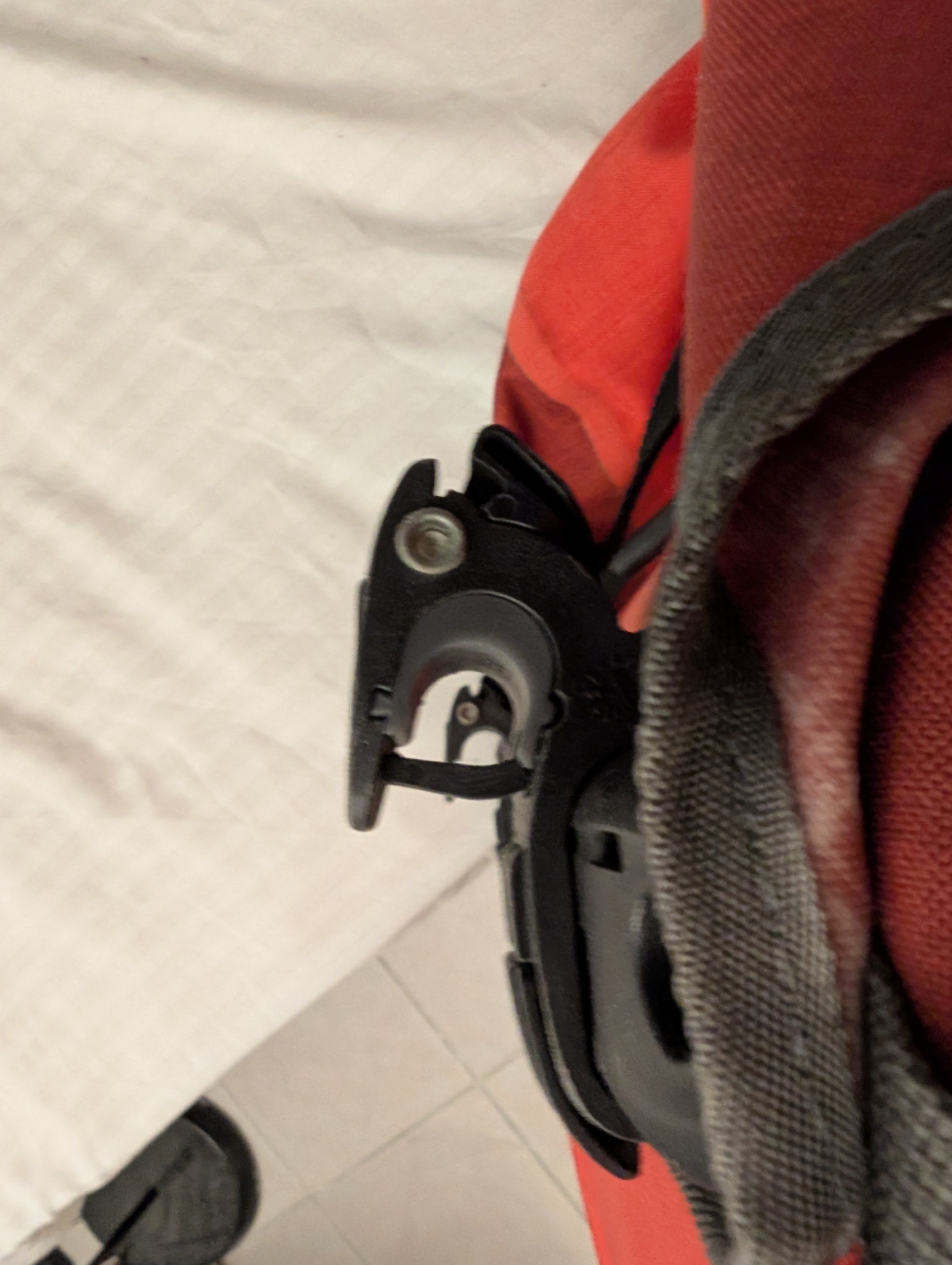

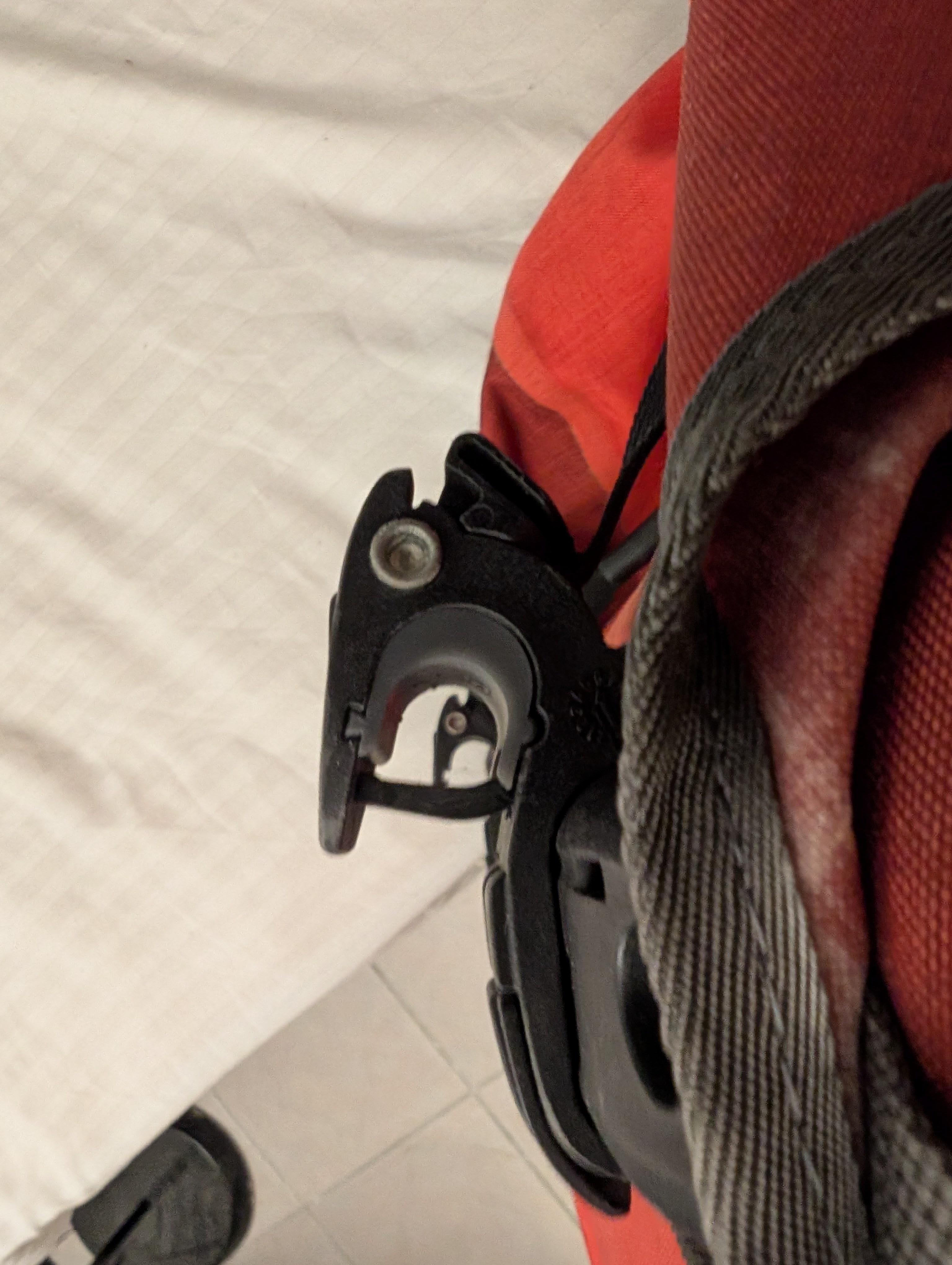

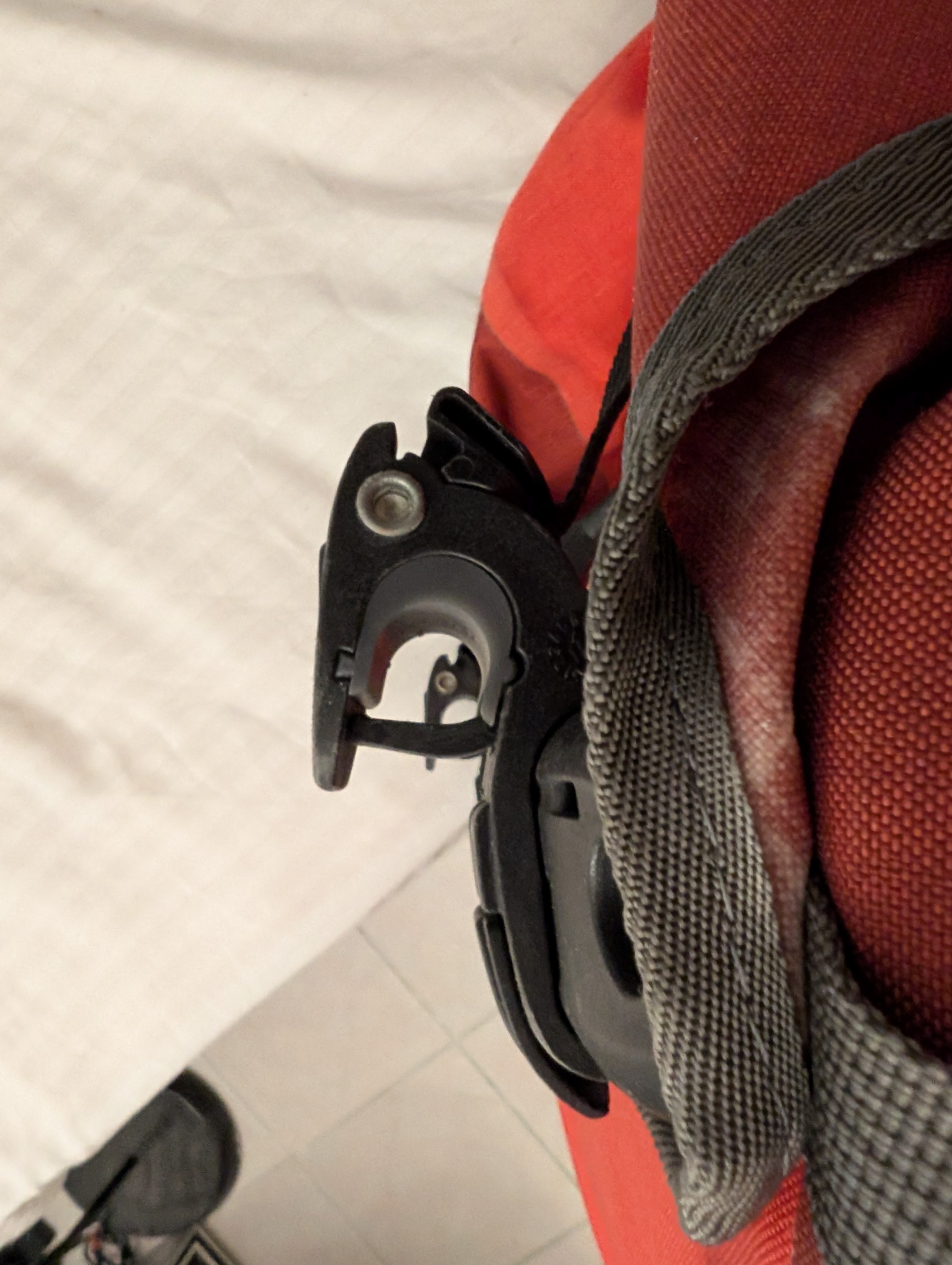

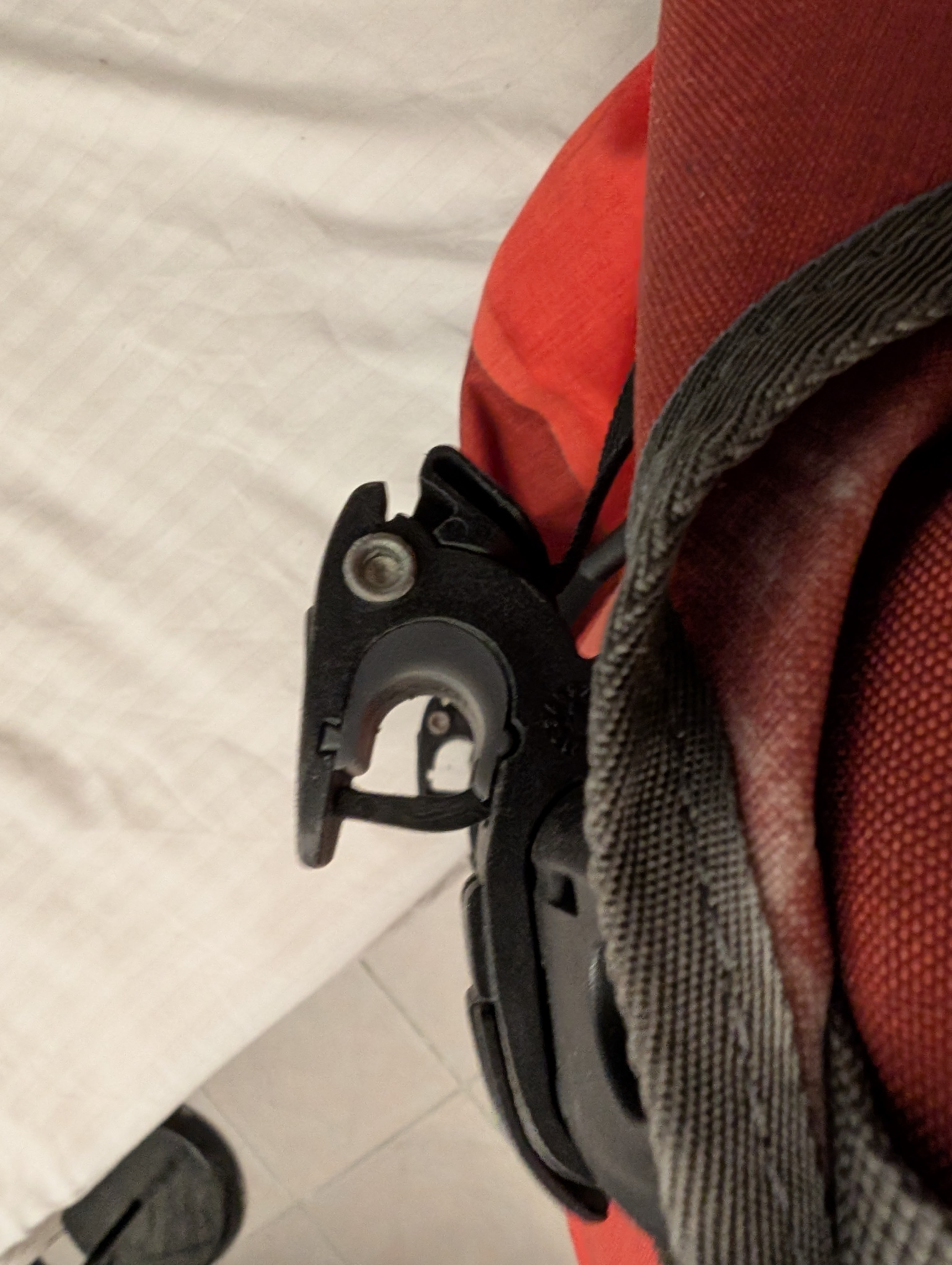

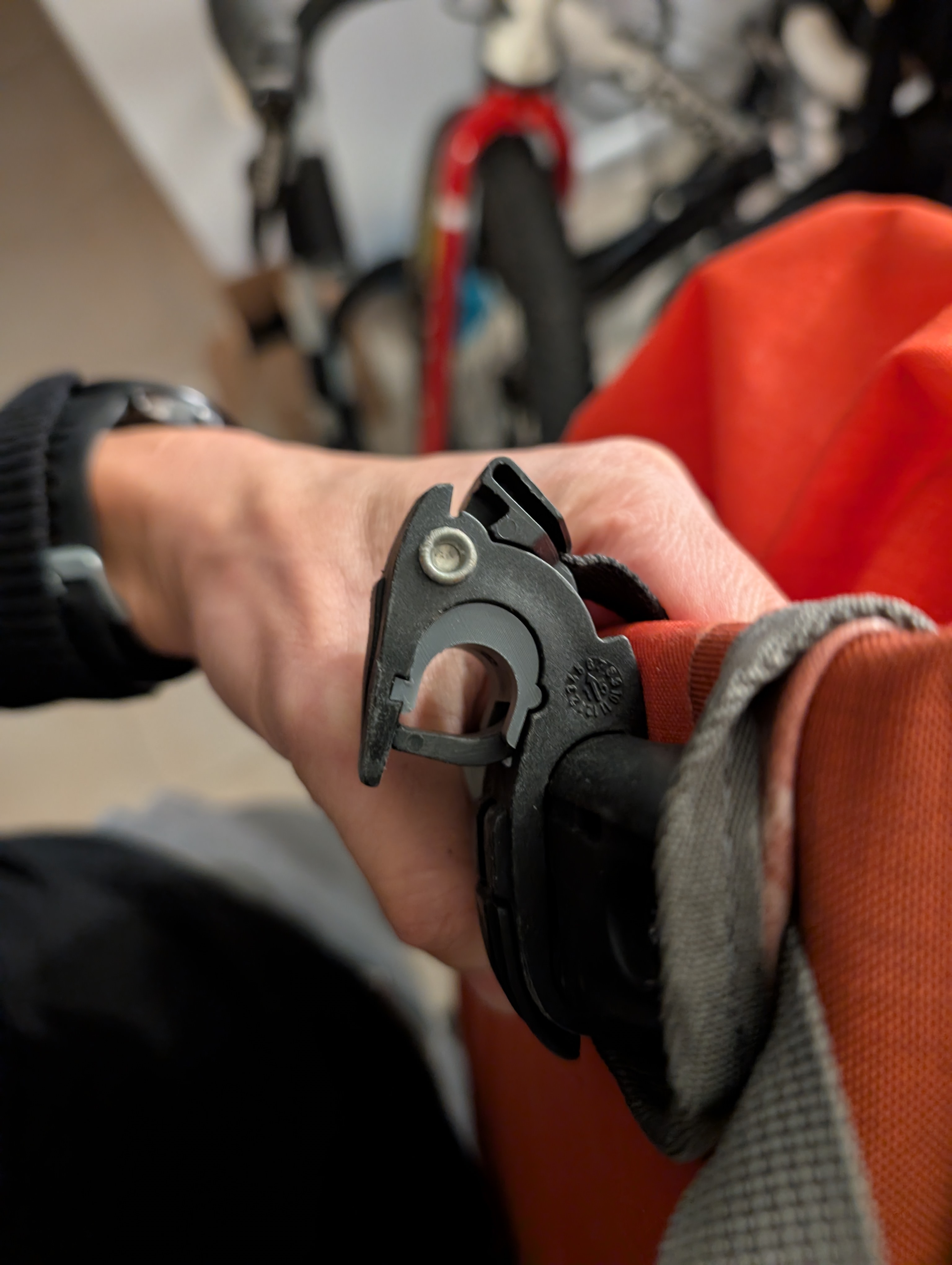

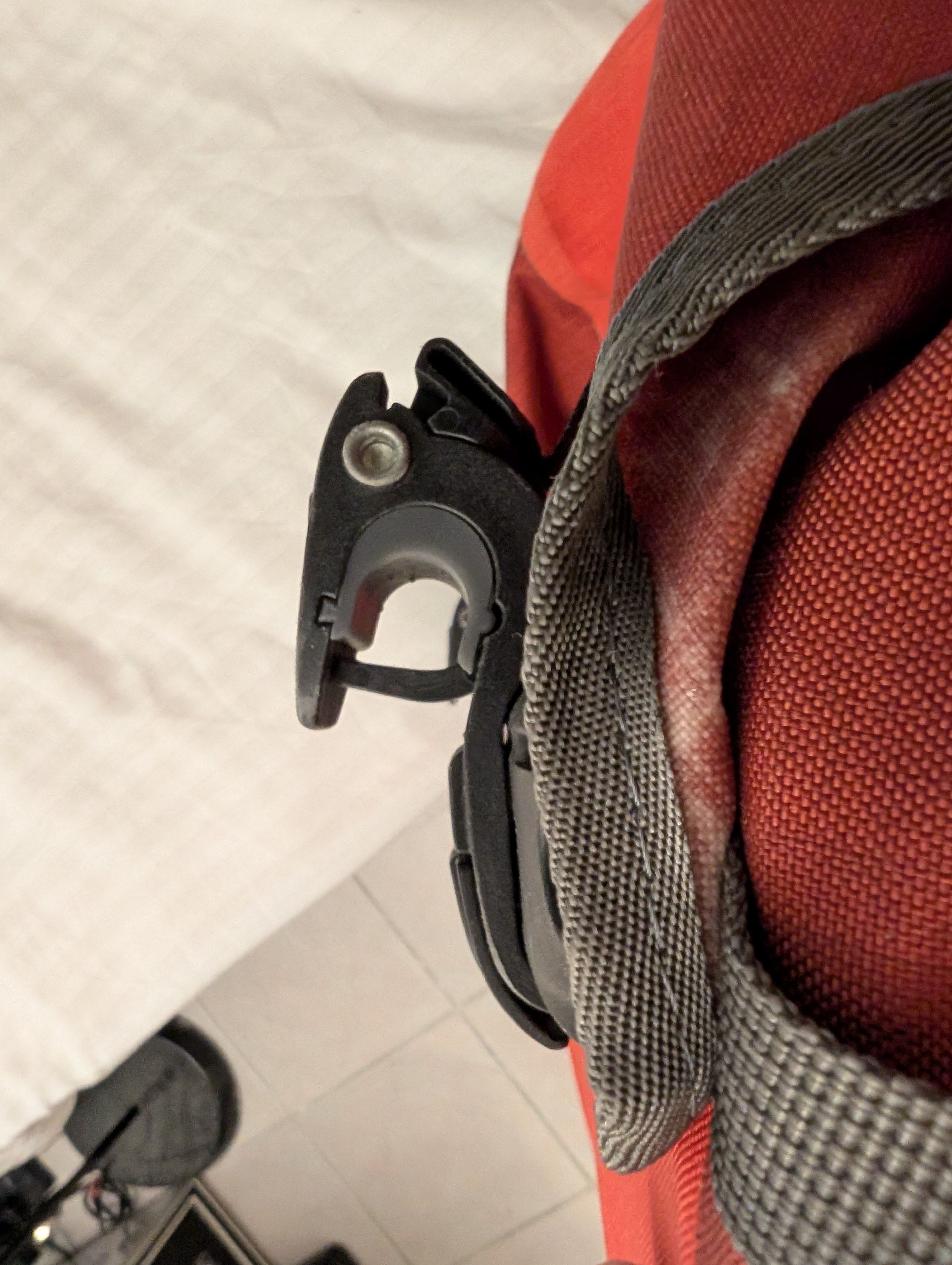

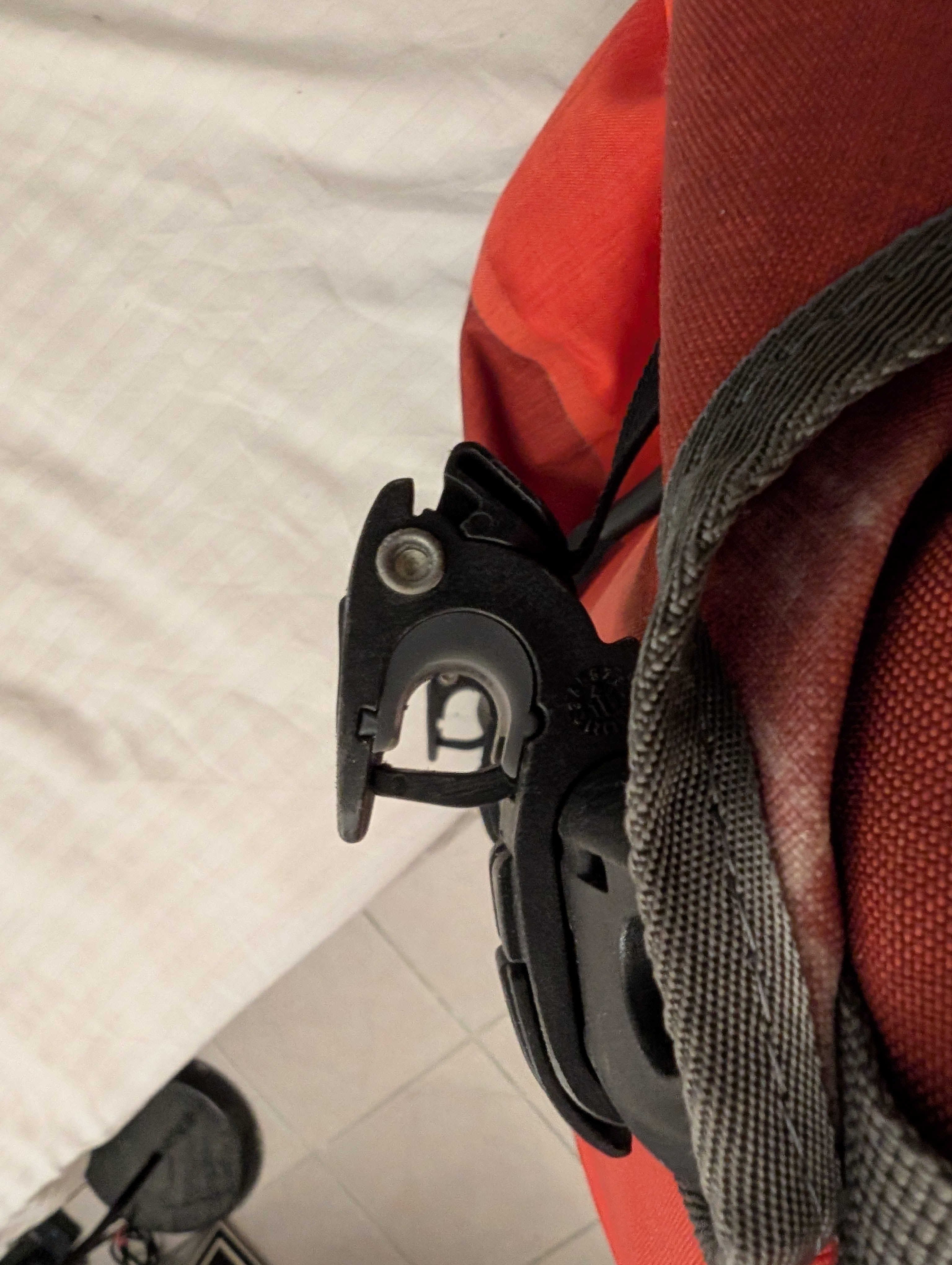

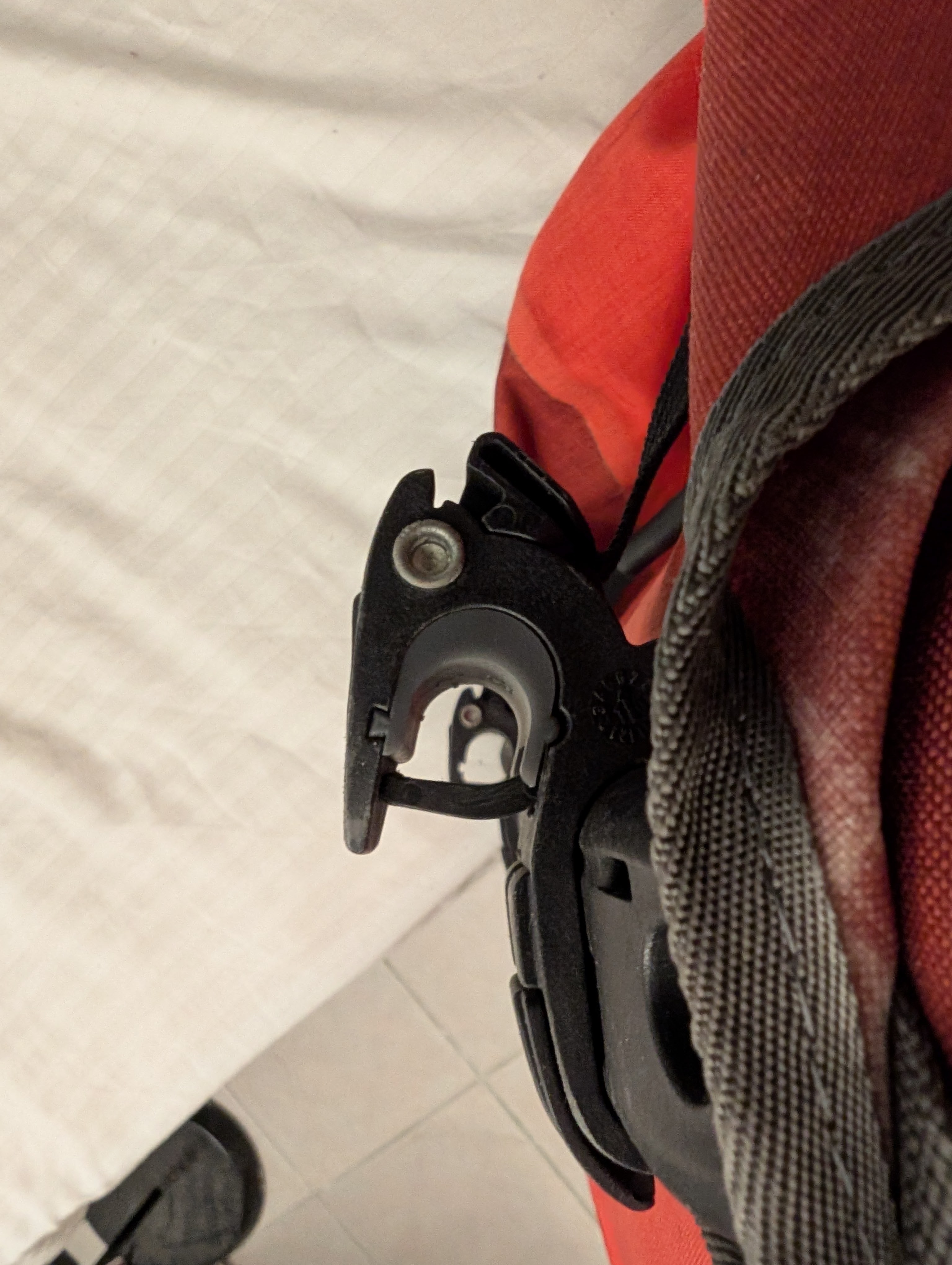

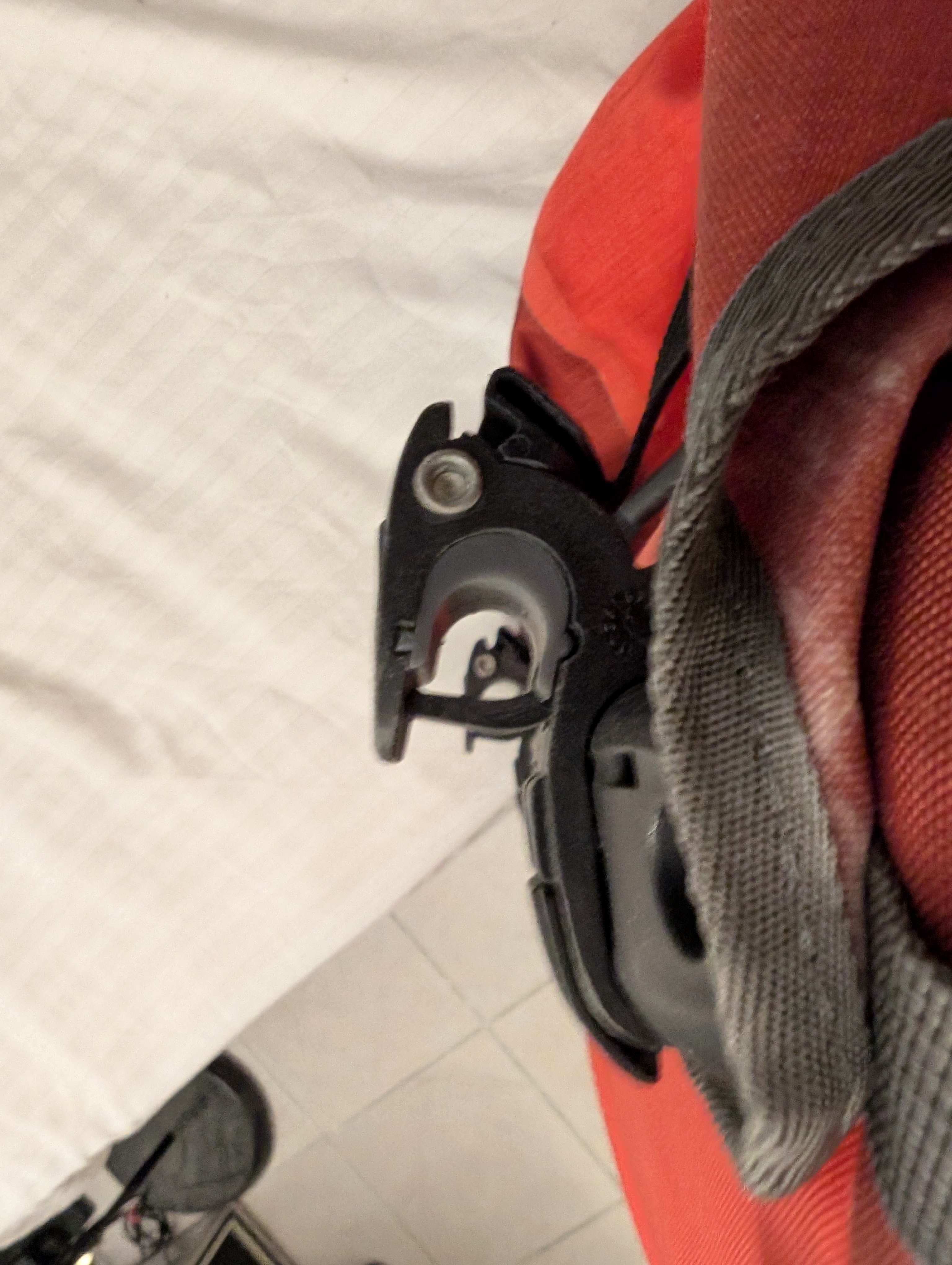

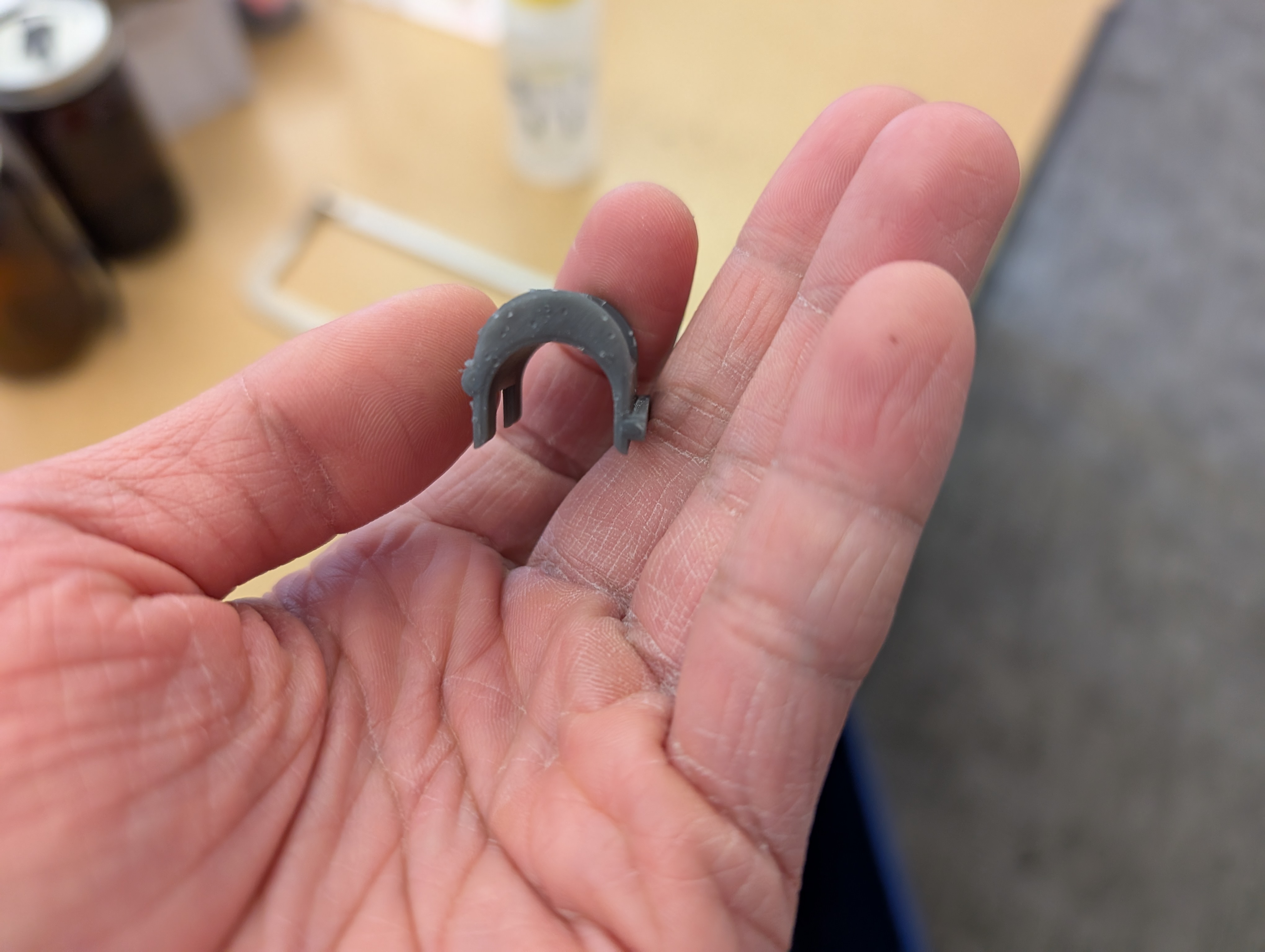

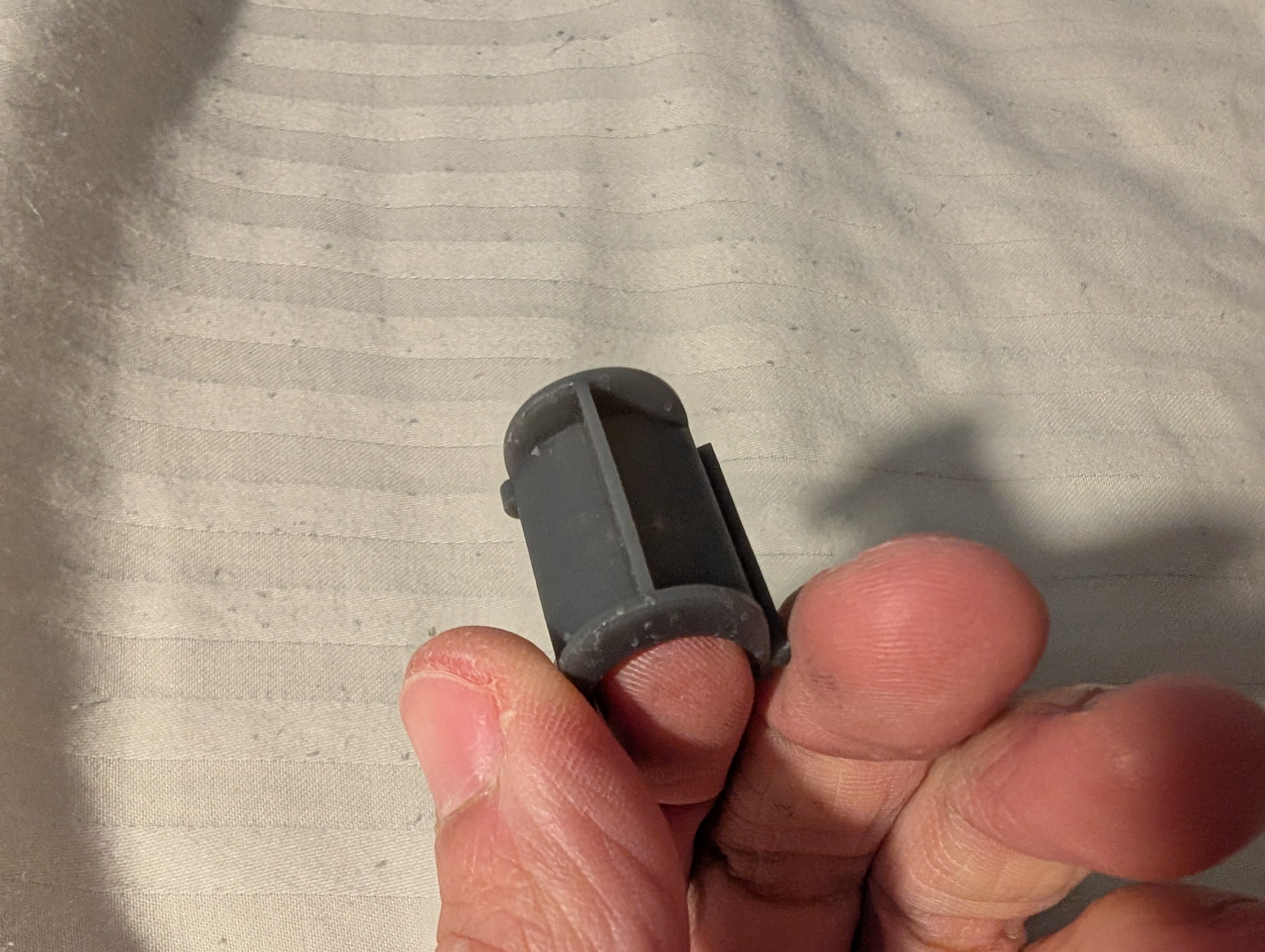

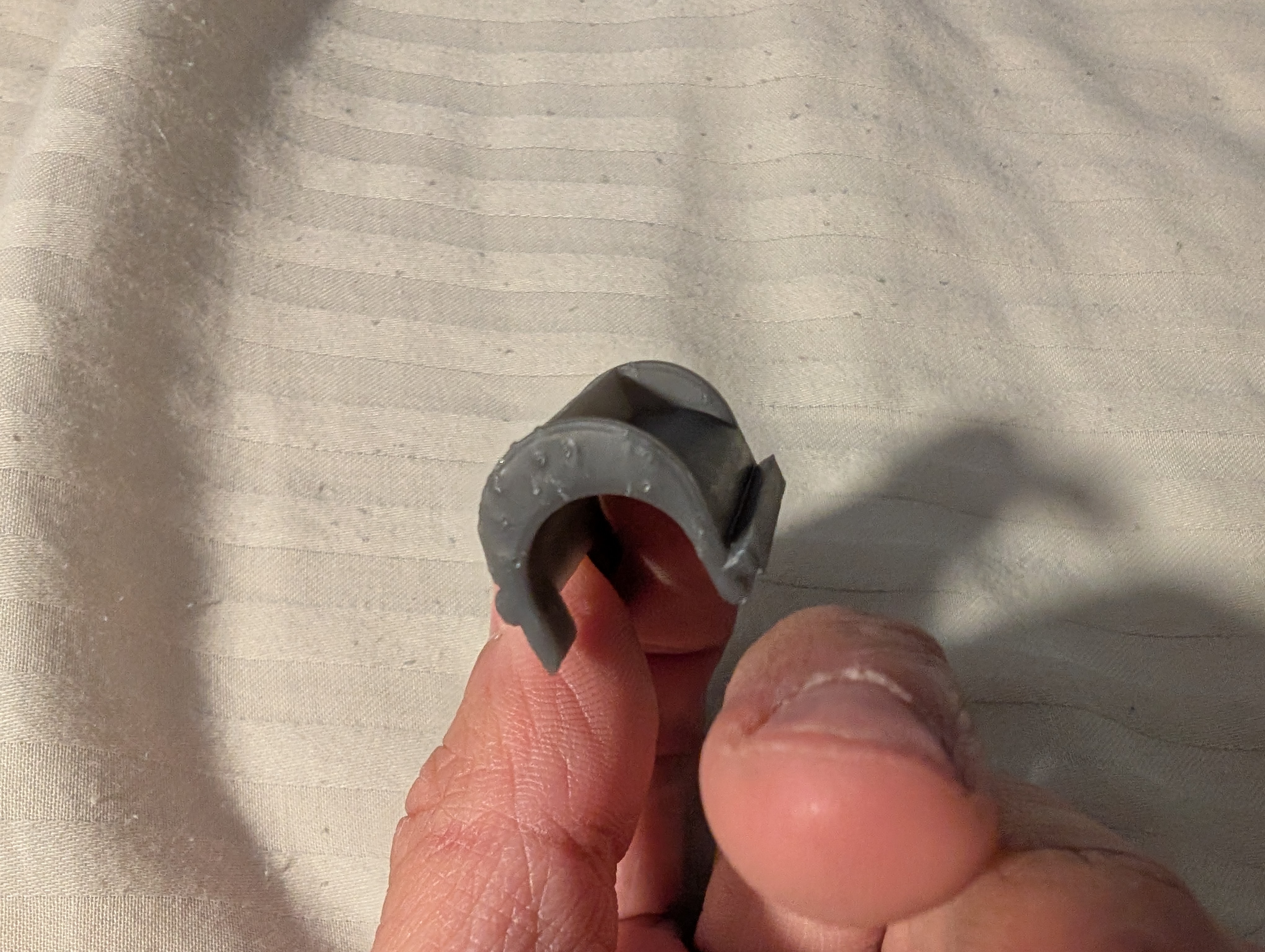

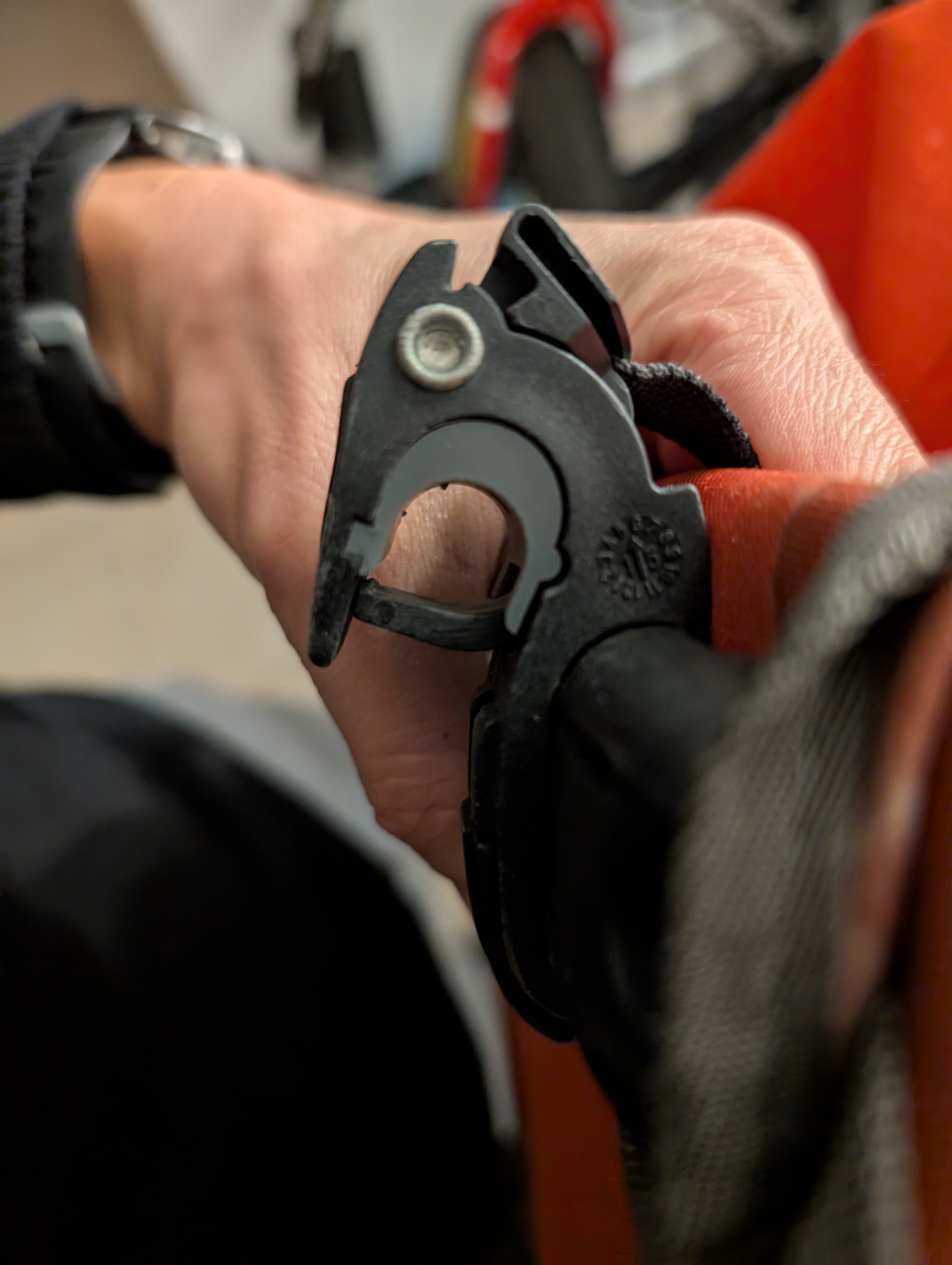

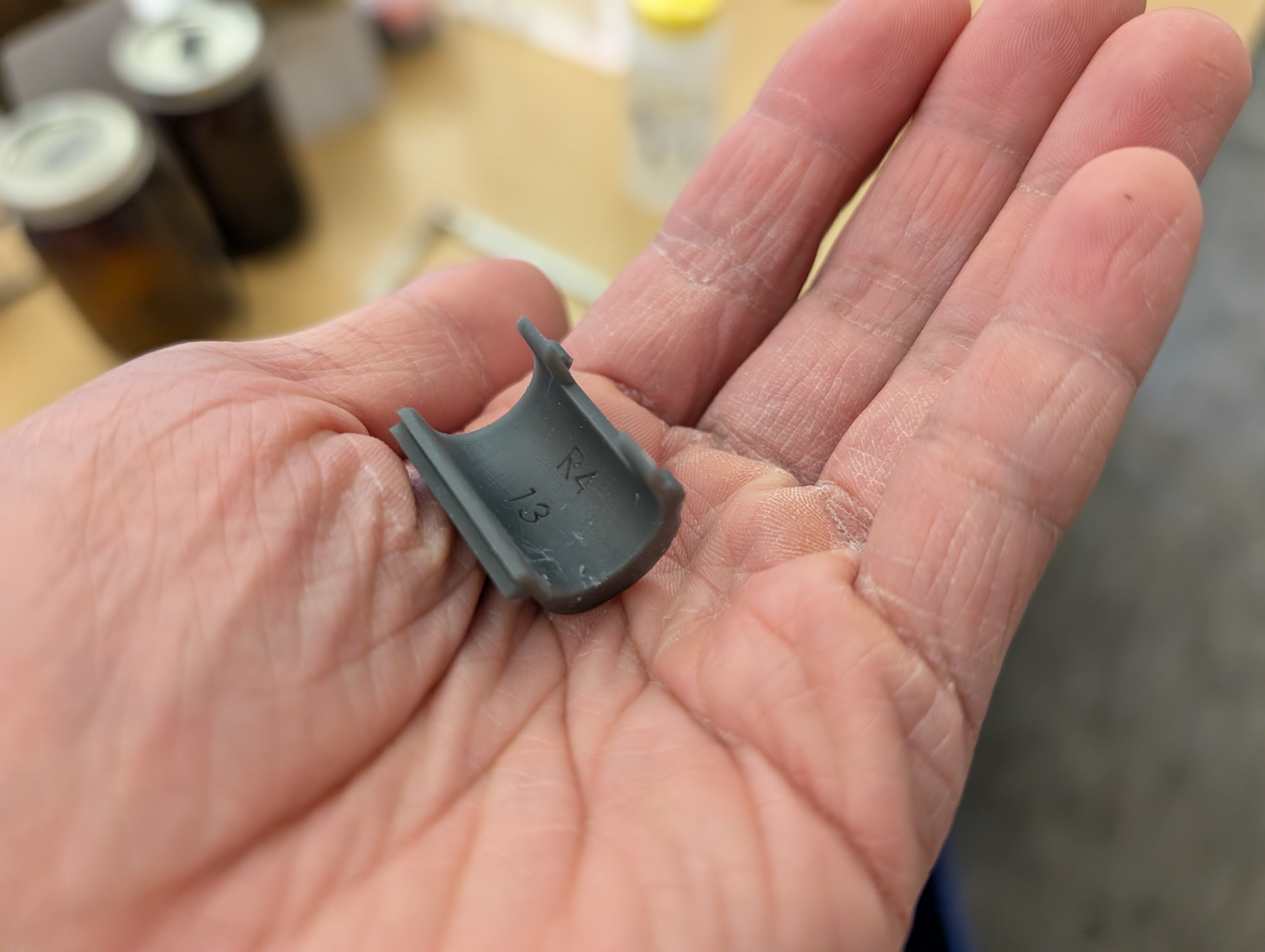

Ortlieb QL2.1 hook insert
Zamów wydruk tego modelu
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Outdoor Sports
- Licencja
- Creative Commons — Attribution — Noncommercial
Motivation
- I wasn't entirely satisfied with the fit of this one by crashoverride after being printed in Grey Pro & I think Durable resin on a Form 3 – it would fall out maybe 1 of 30 rides
- OEM parts cost money
Rev 1
was a modification of this model for a different rail size.

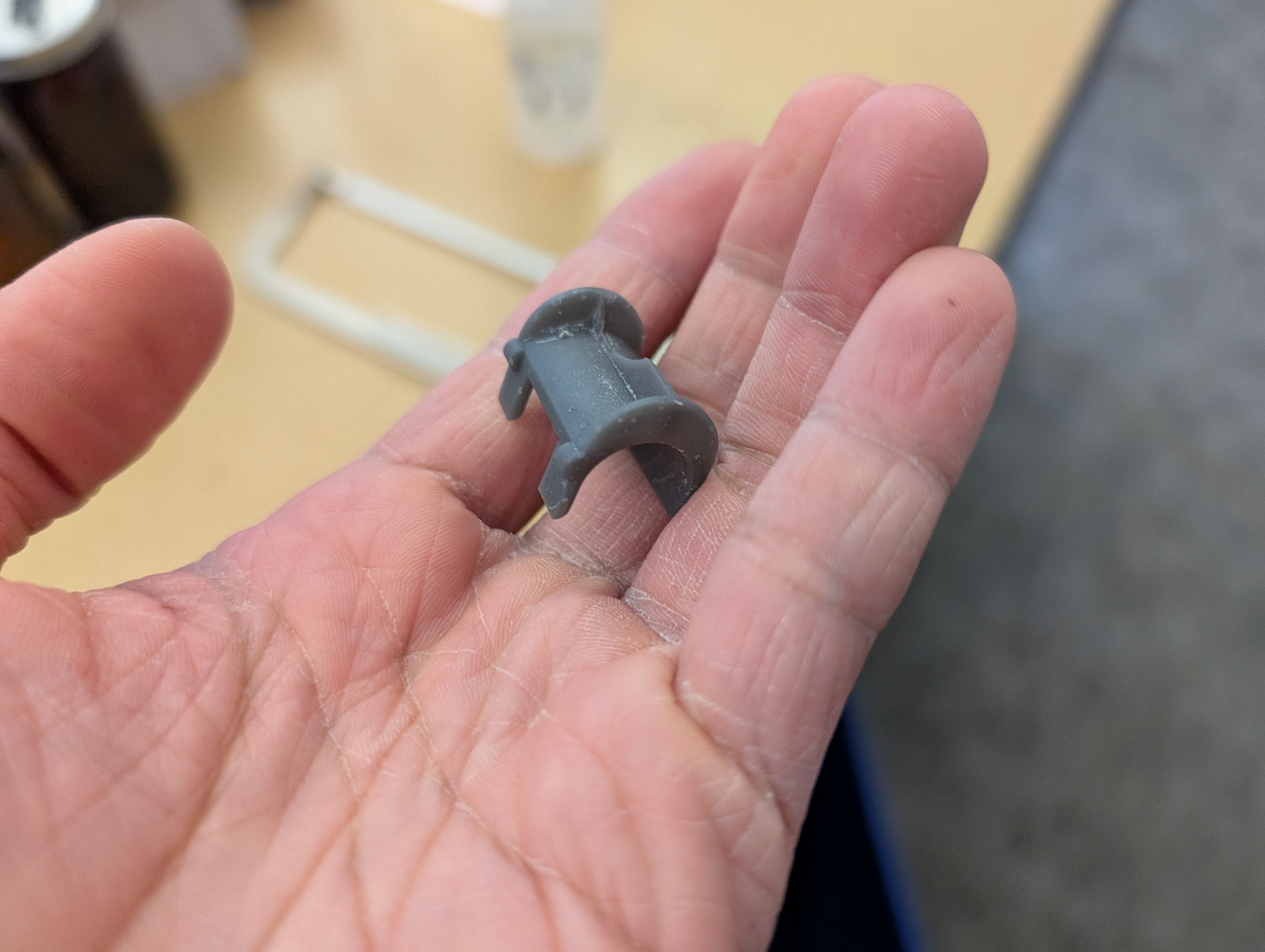

Rev 2

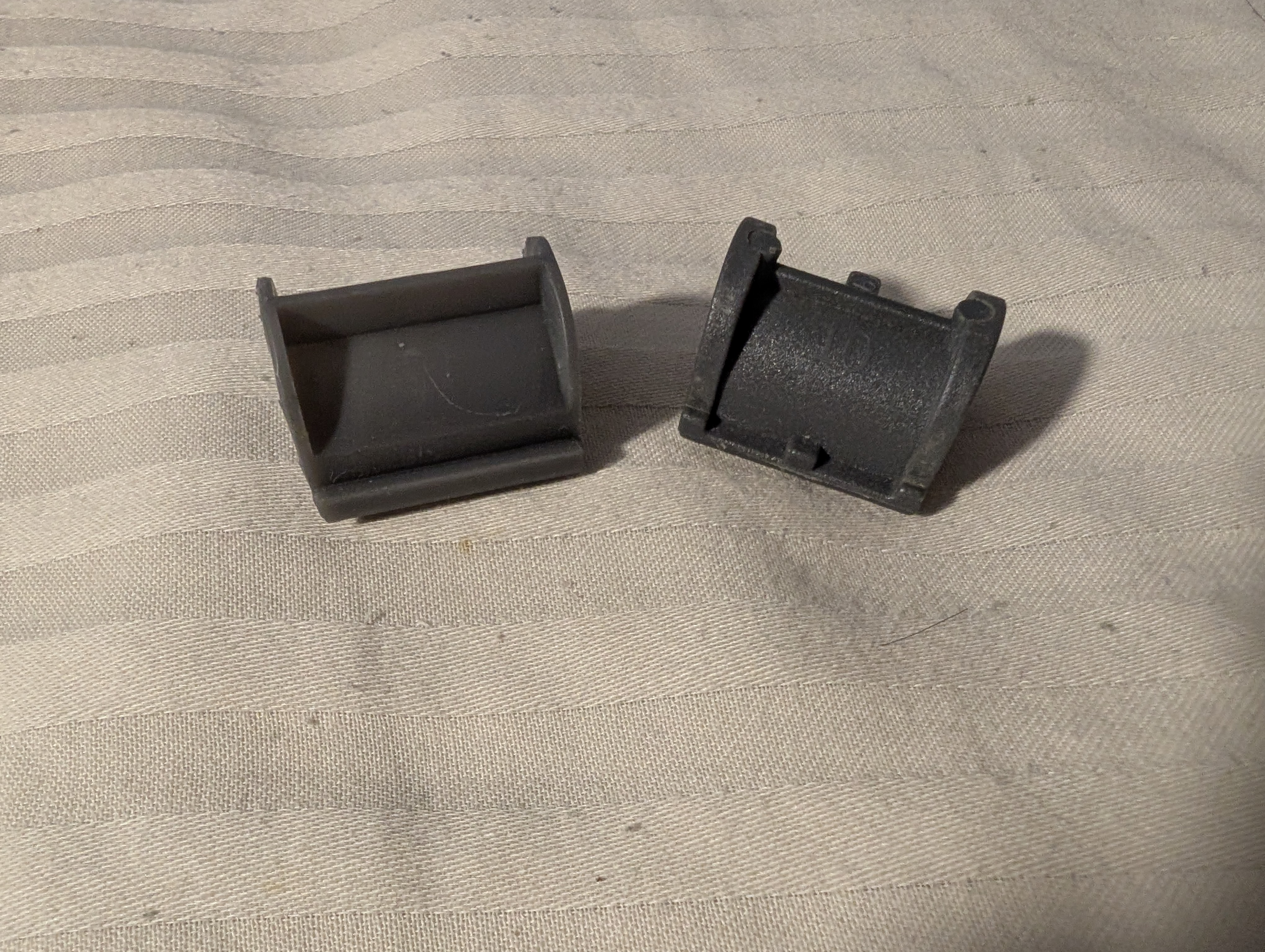

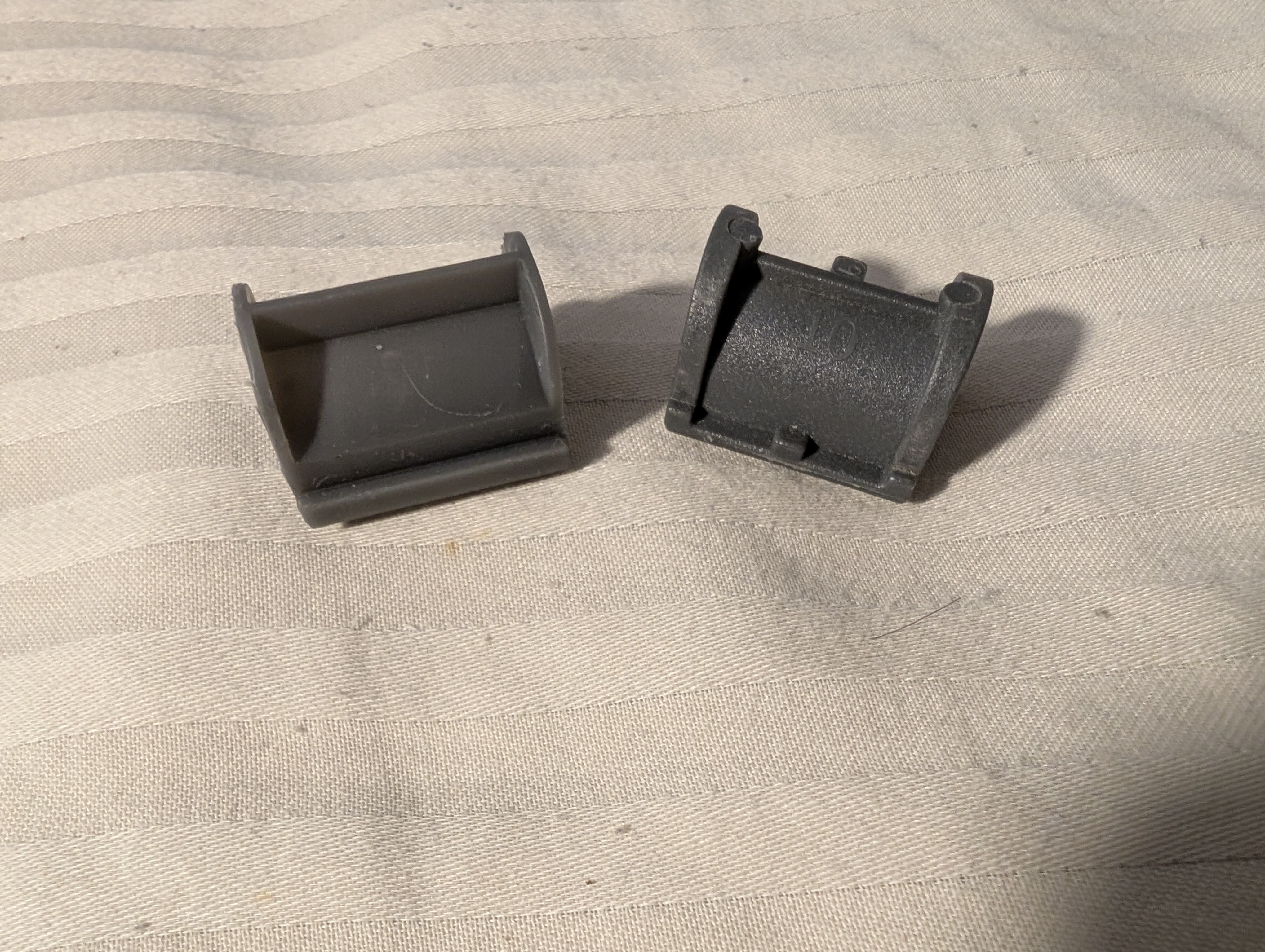

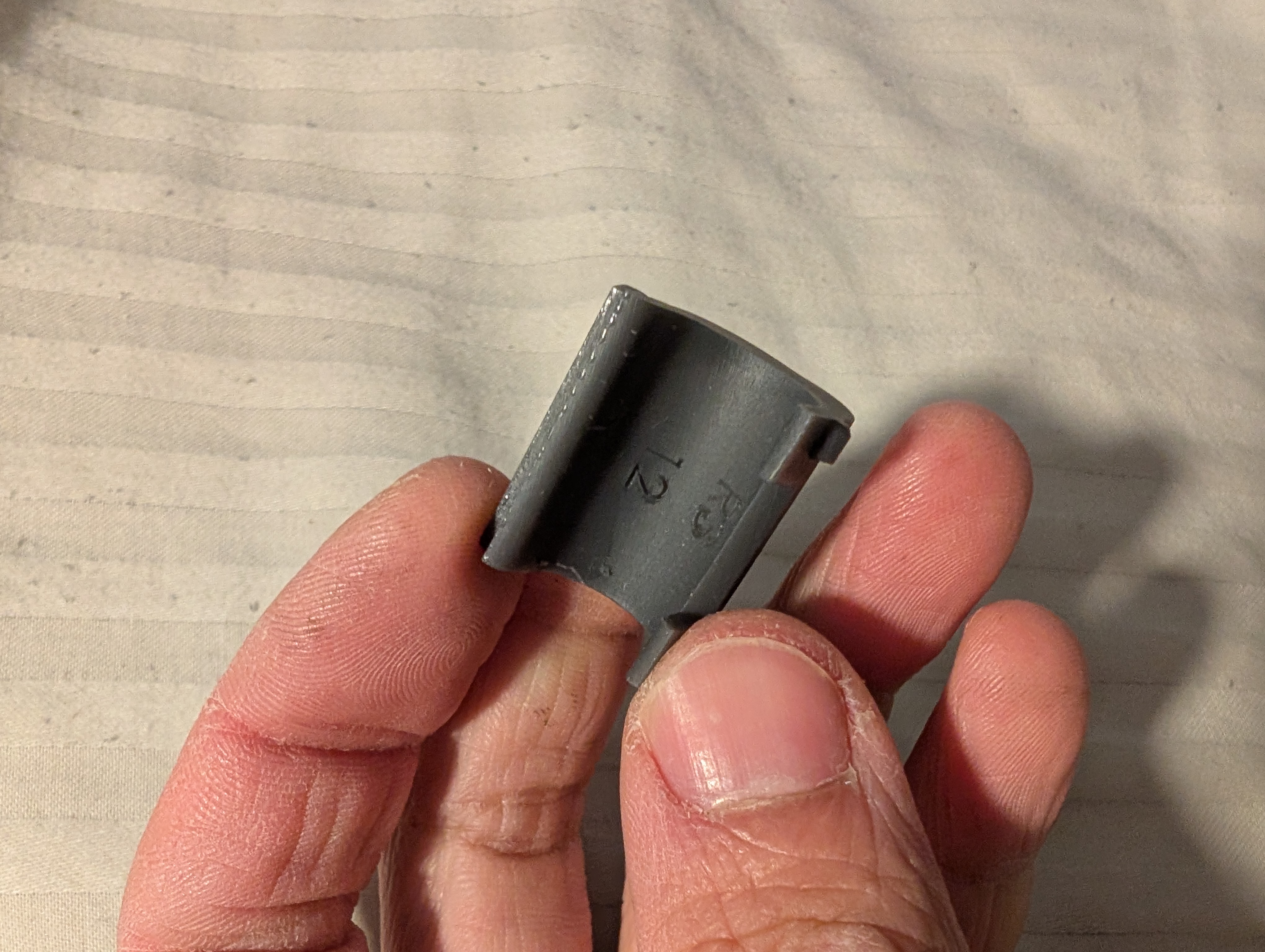

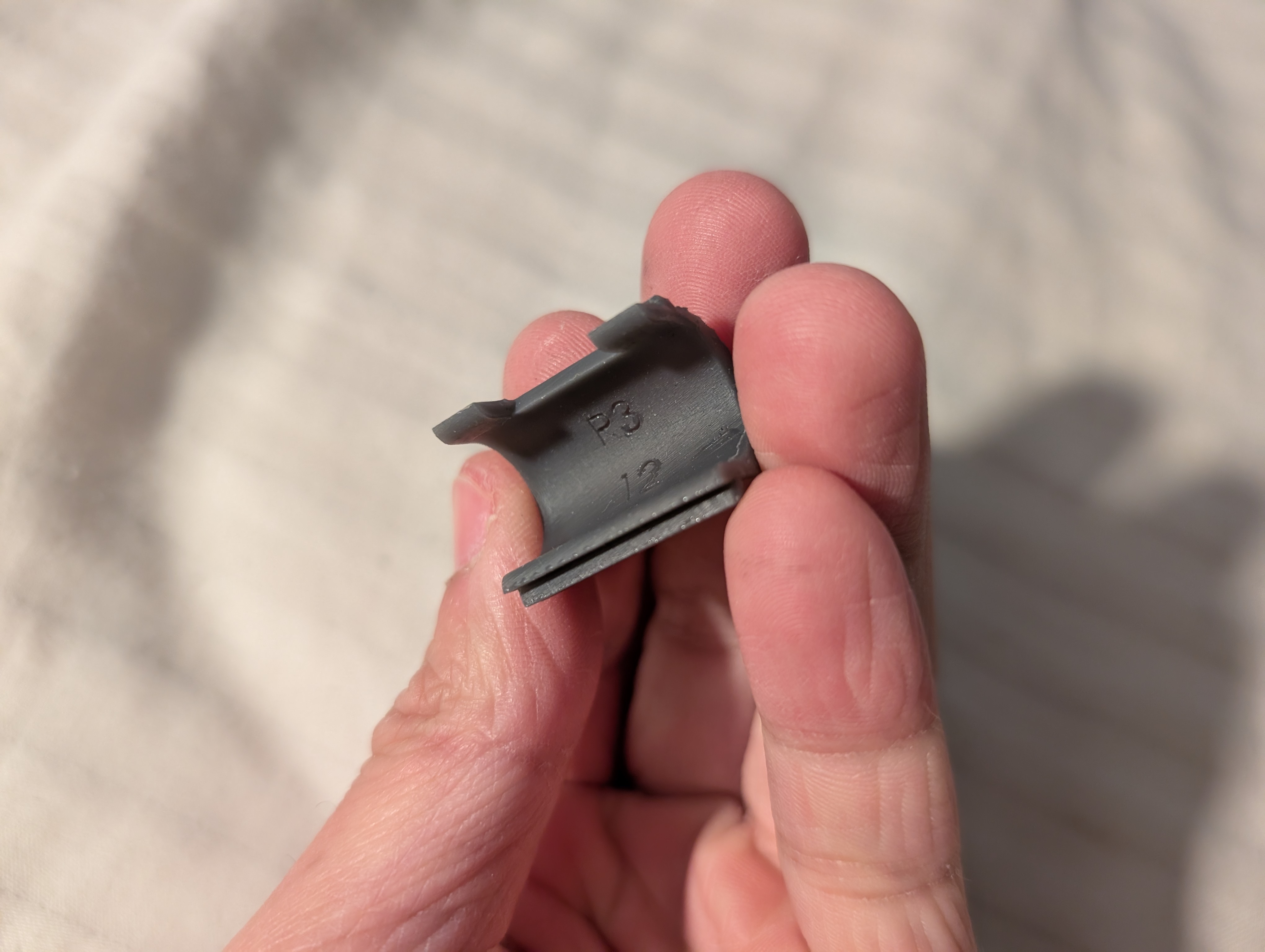

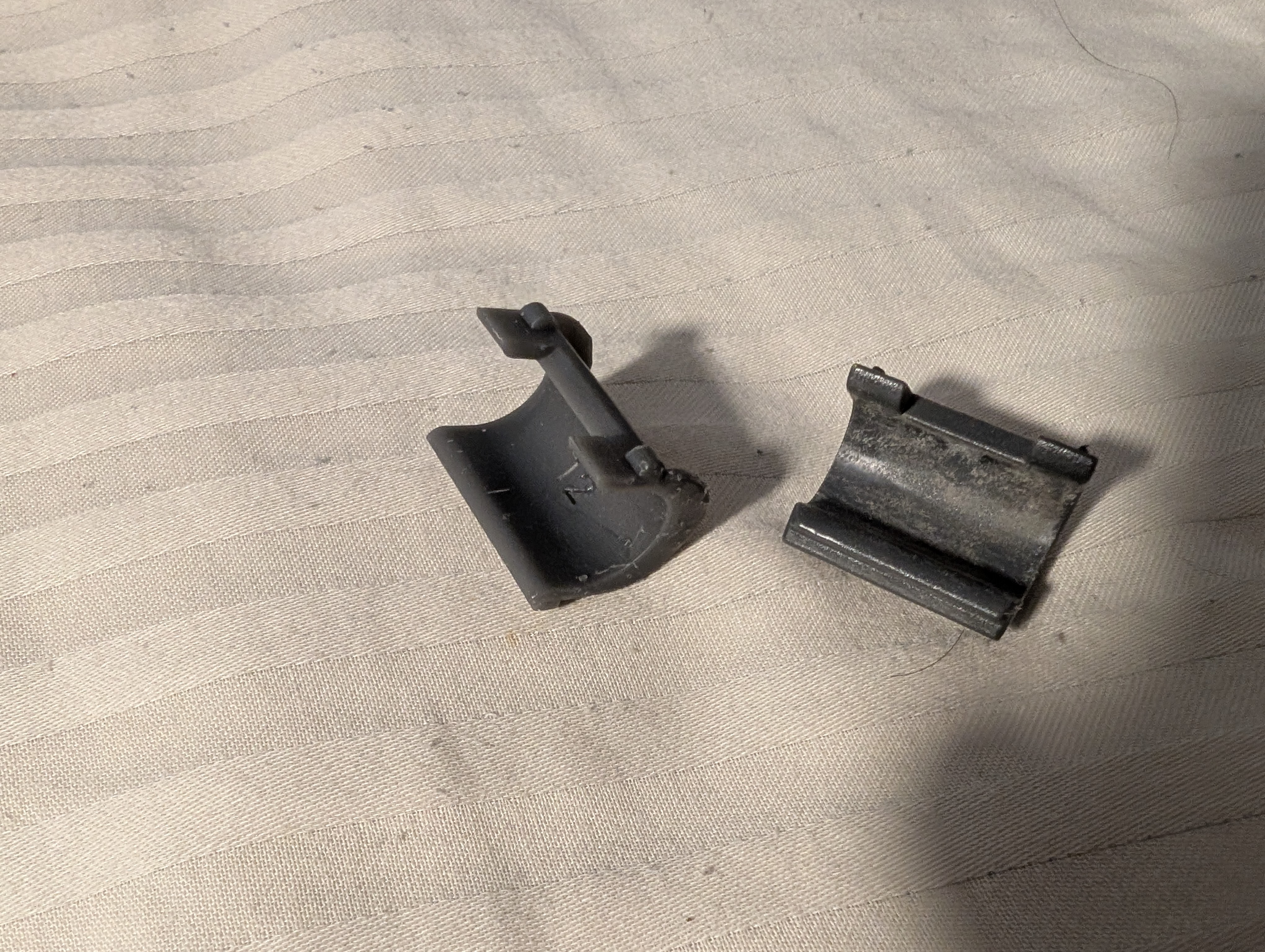

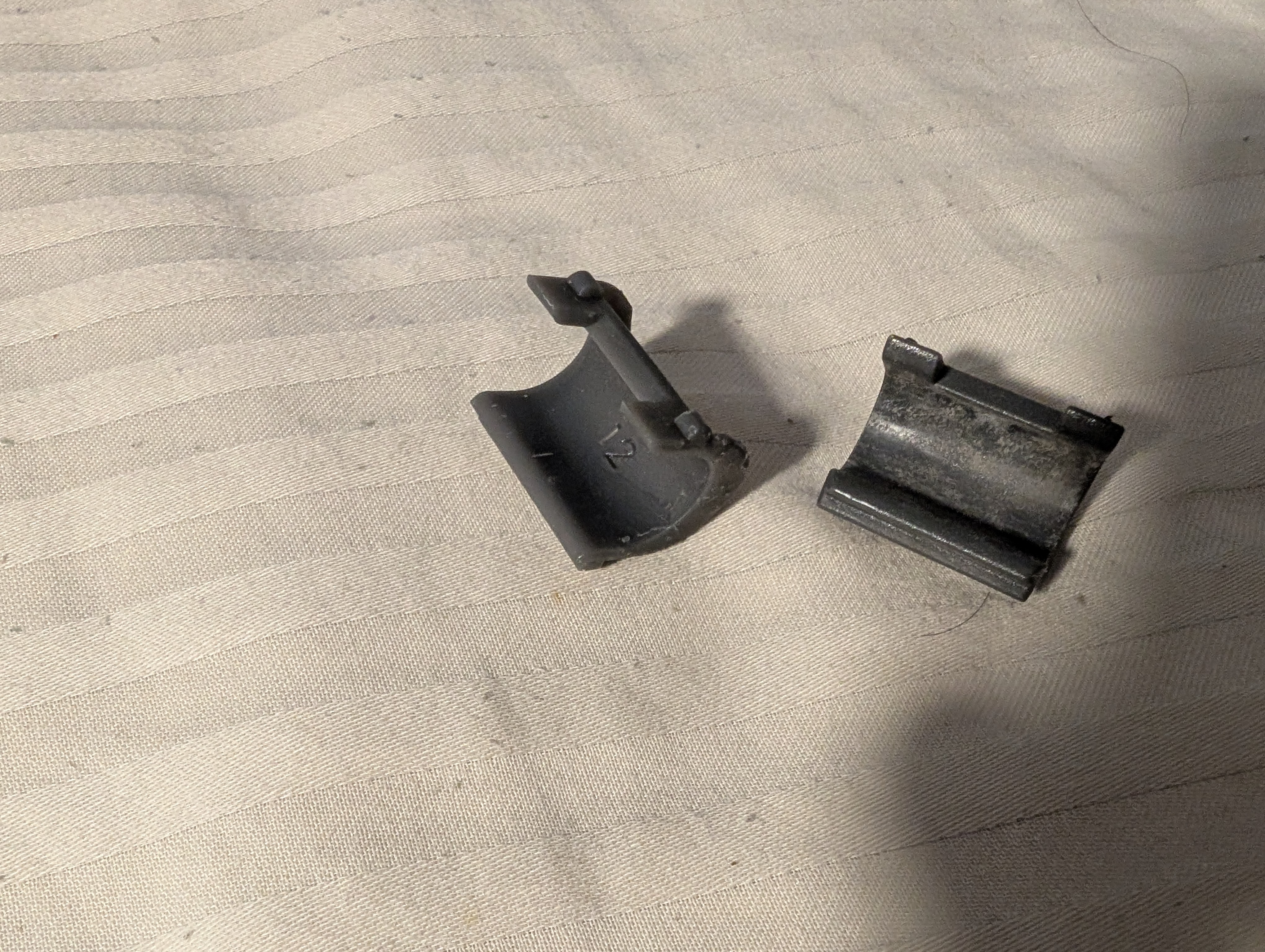

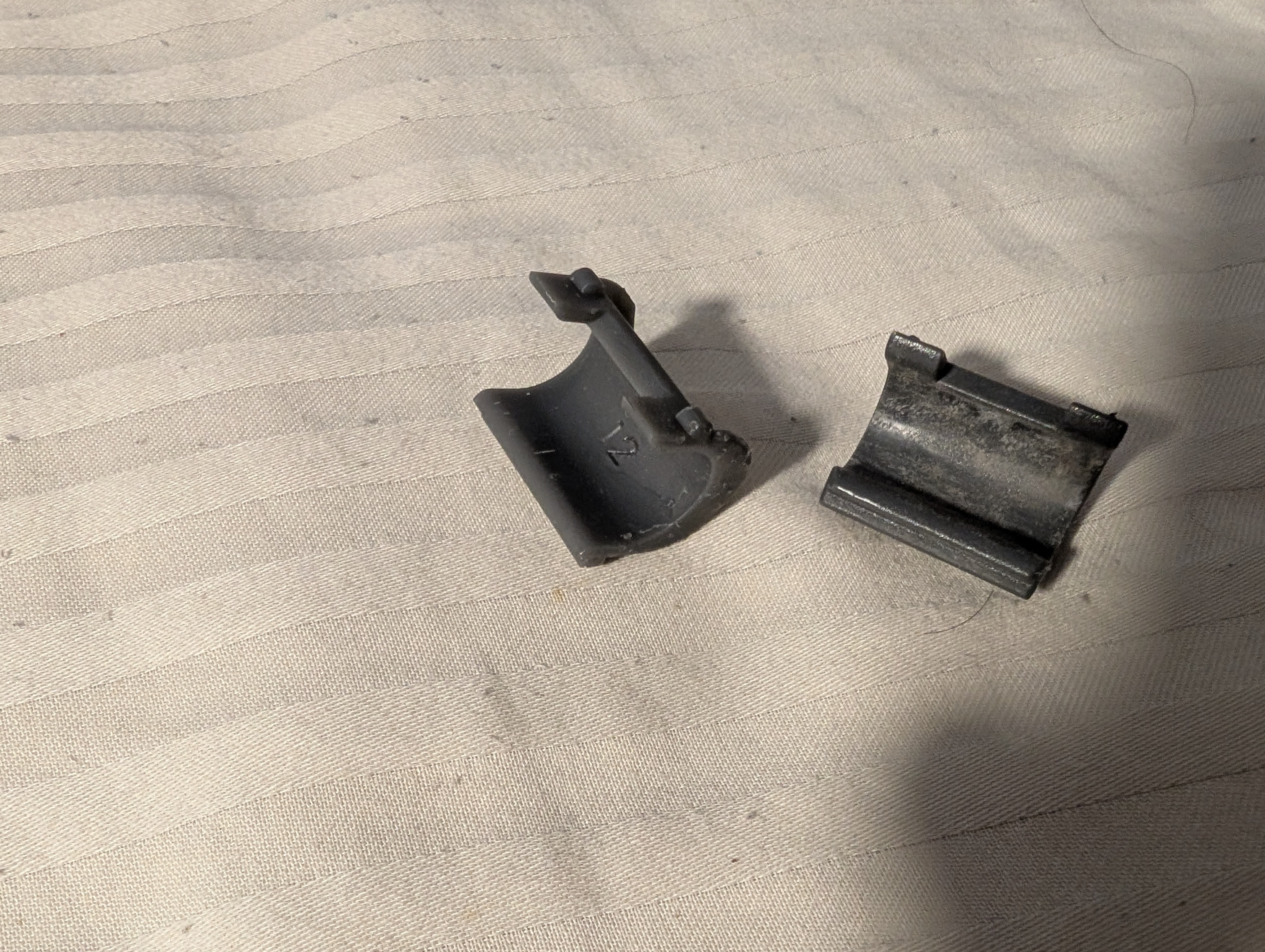

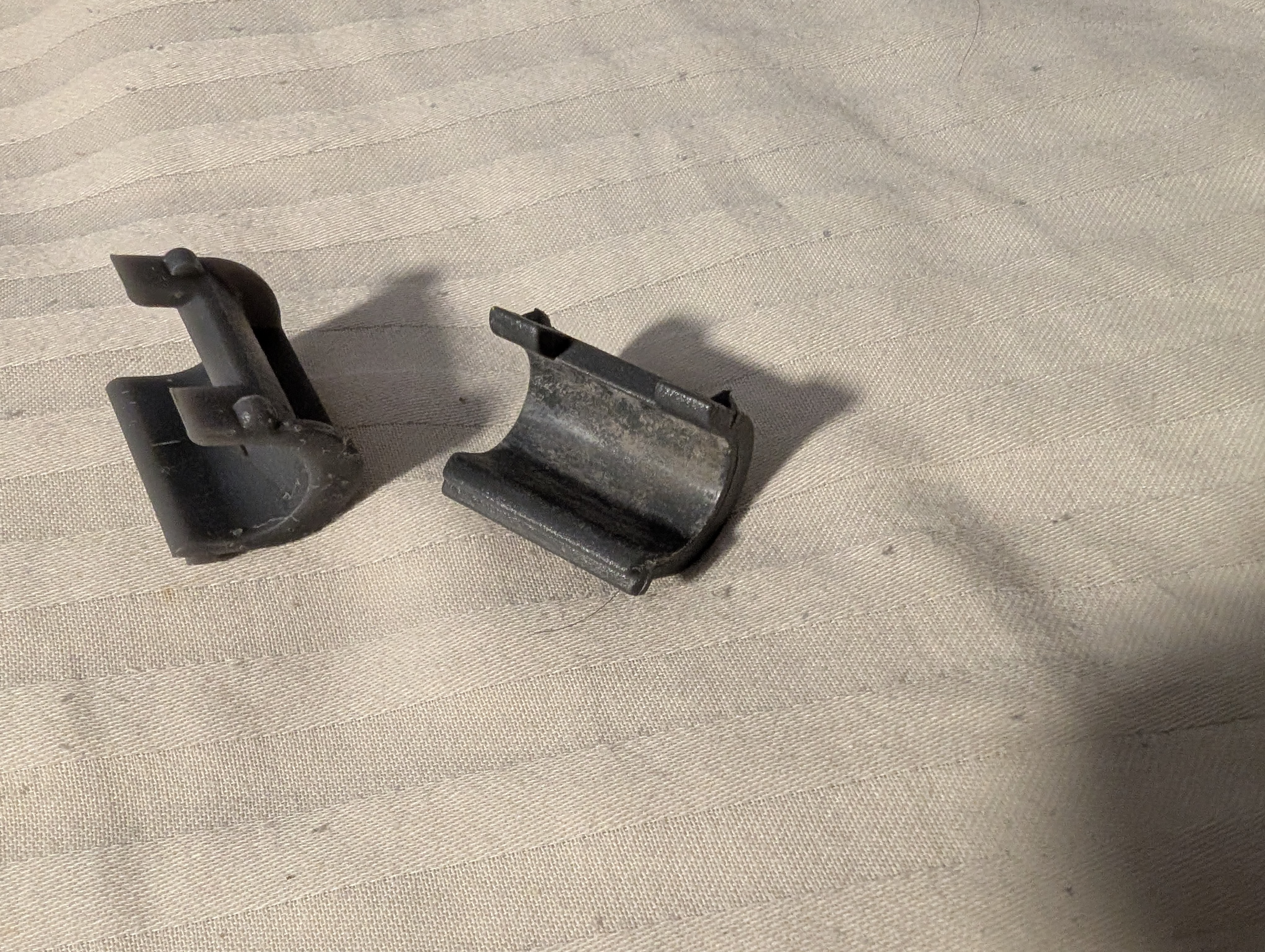

Started from scratch & modeled based on an OEM part I had.

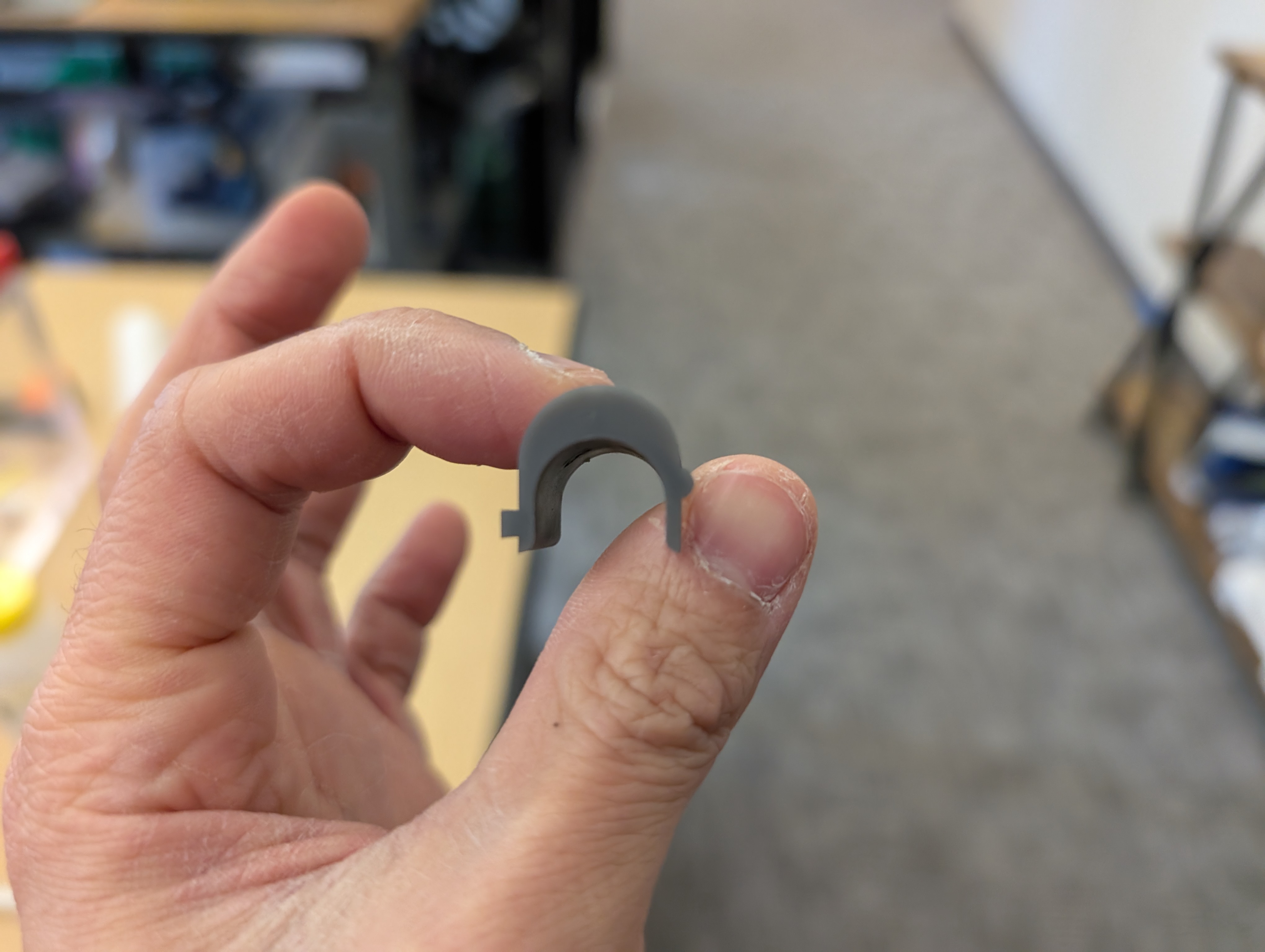

Rev 3

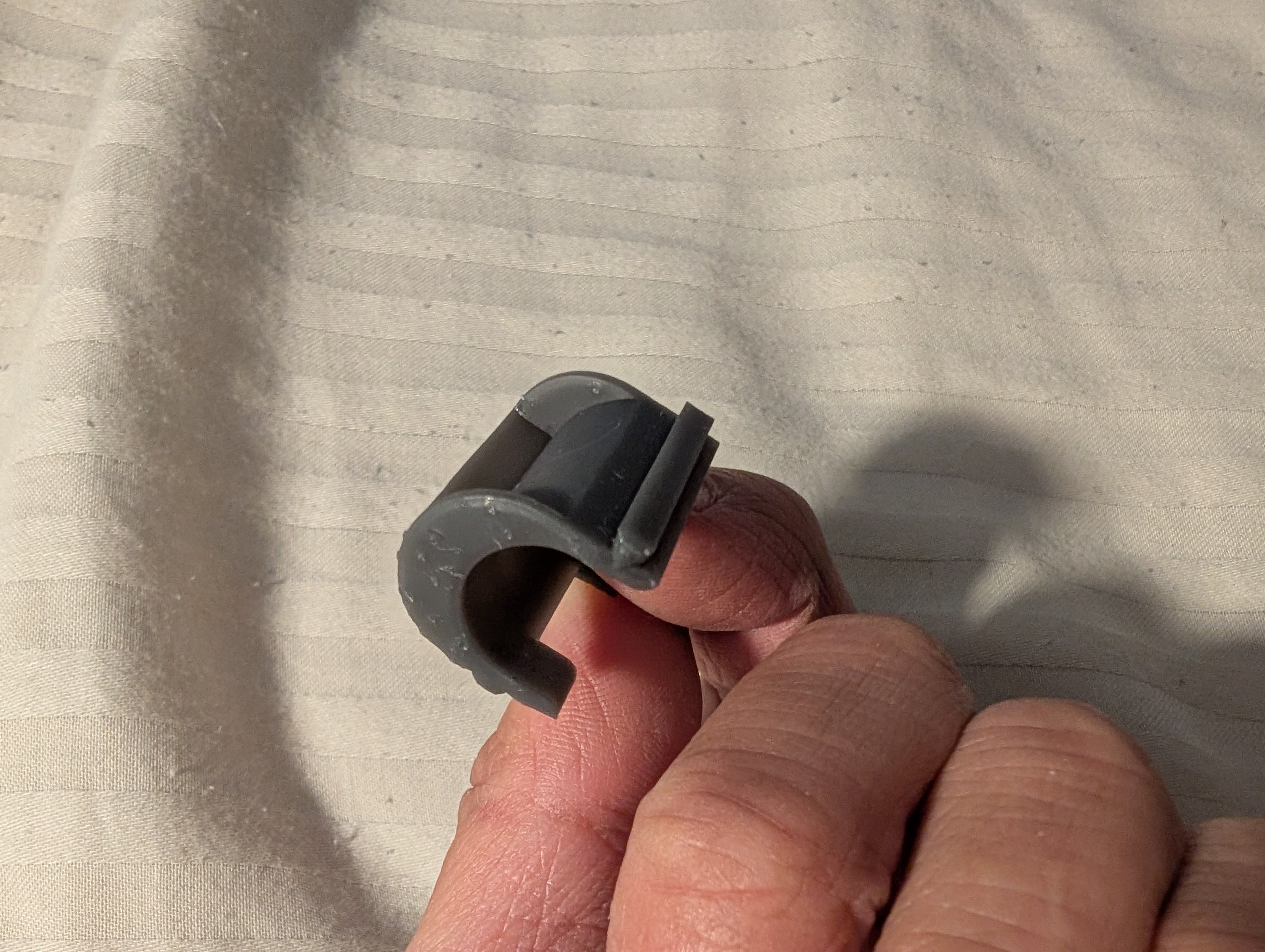

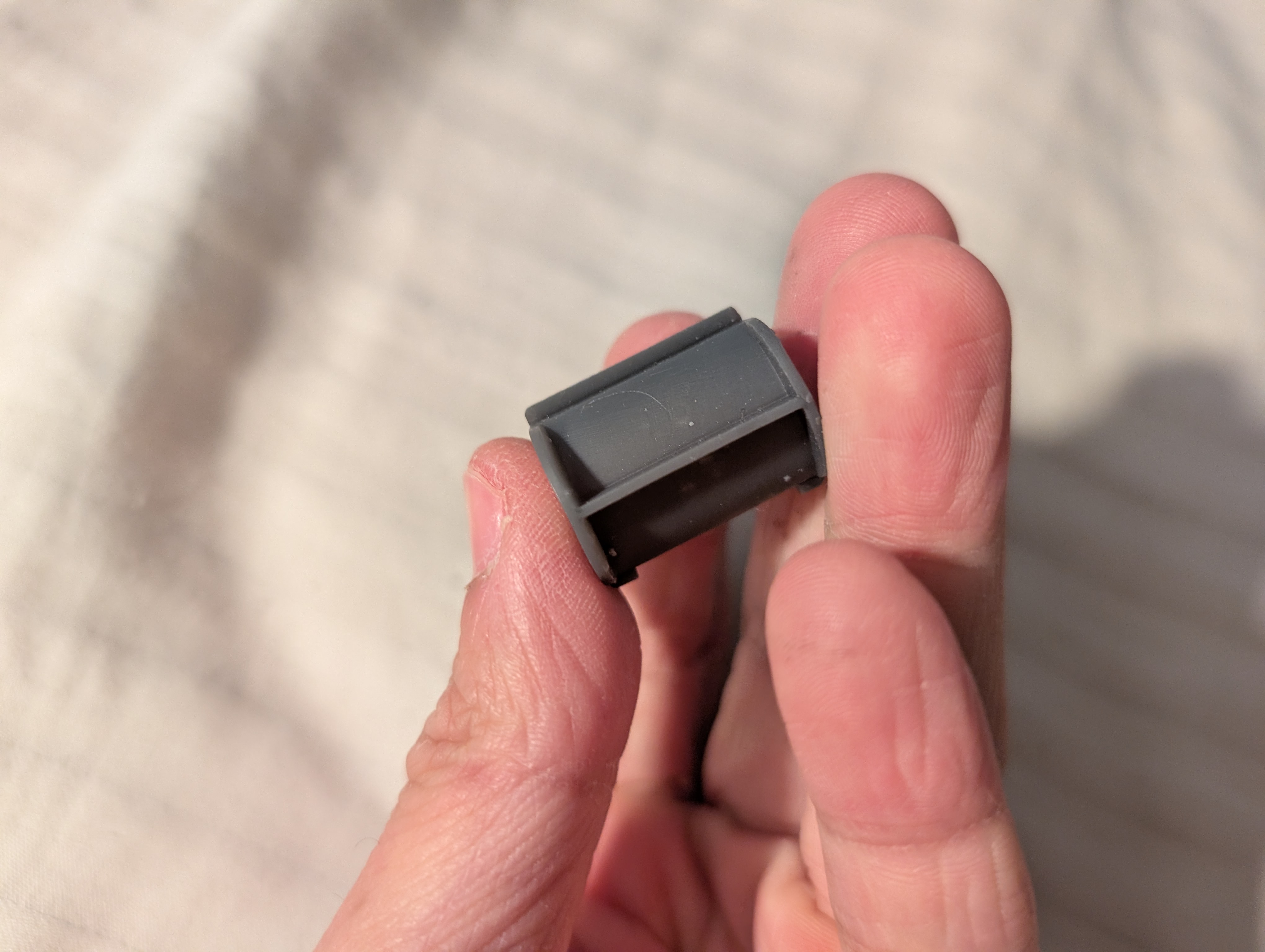

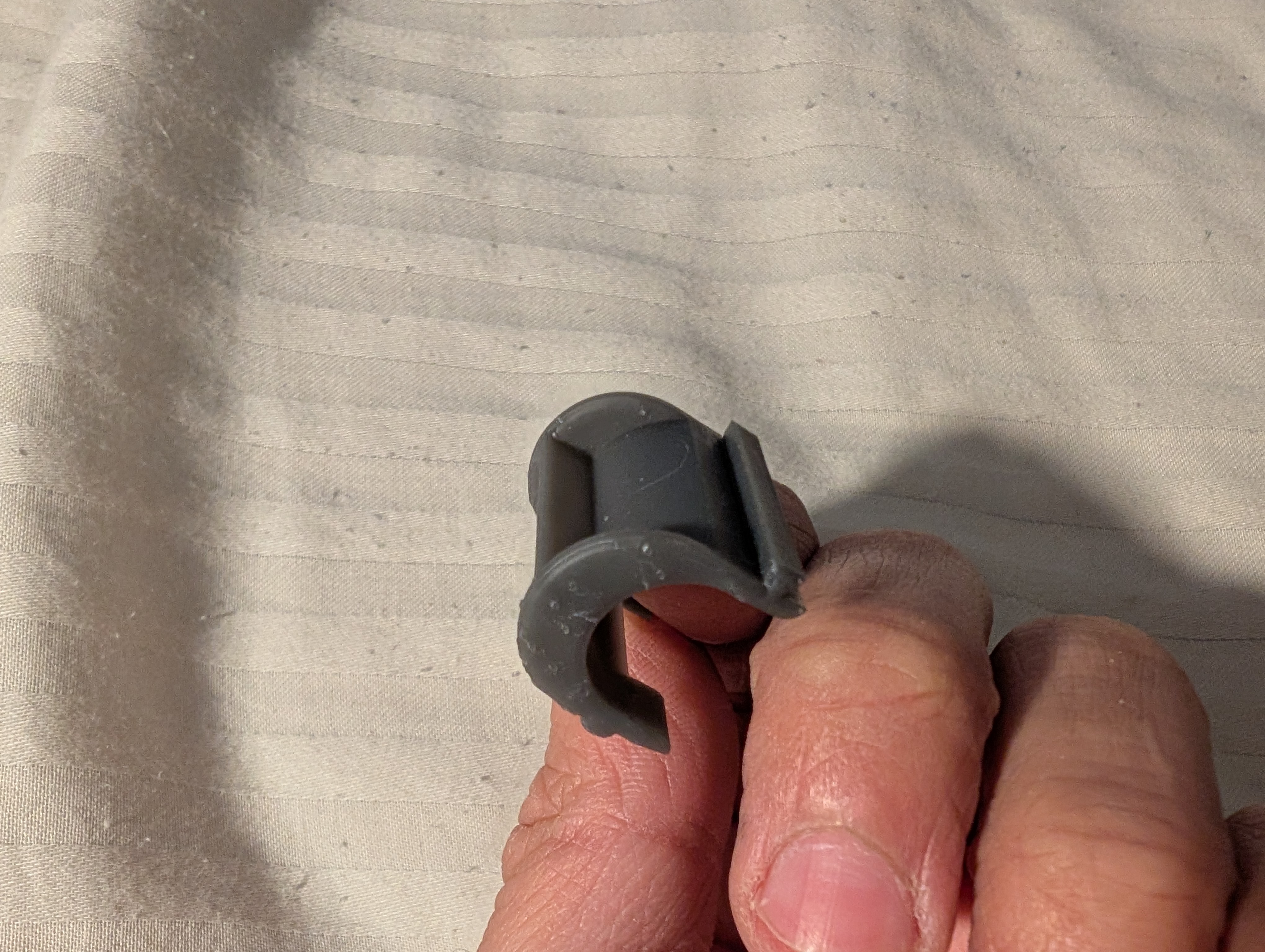

- mostly working after hollowing out a bunch of material to increase flexure necessary for installation
- removed chamfers because intended installation direction became clearer

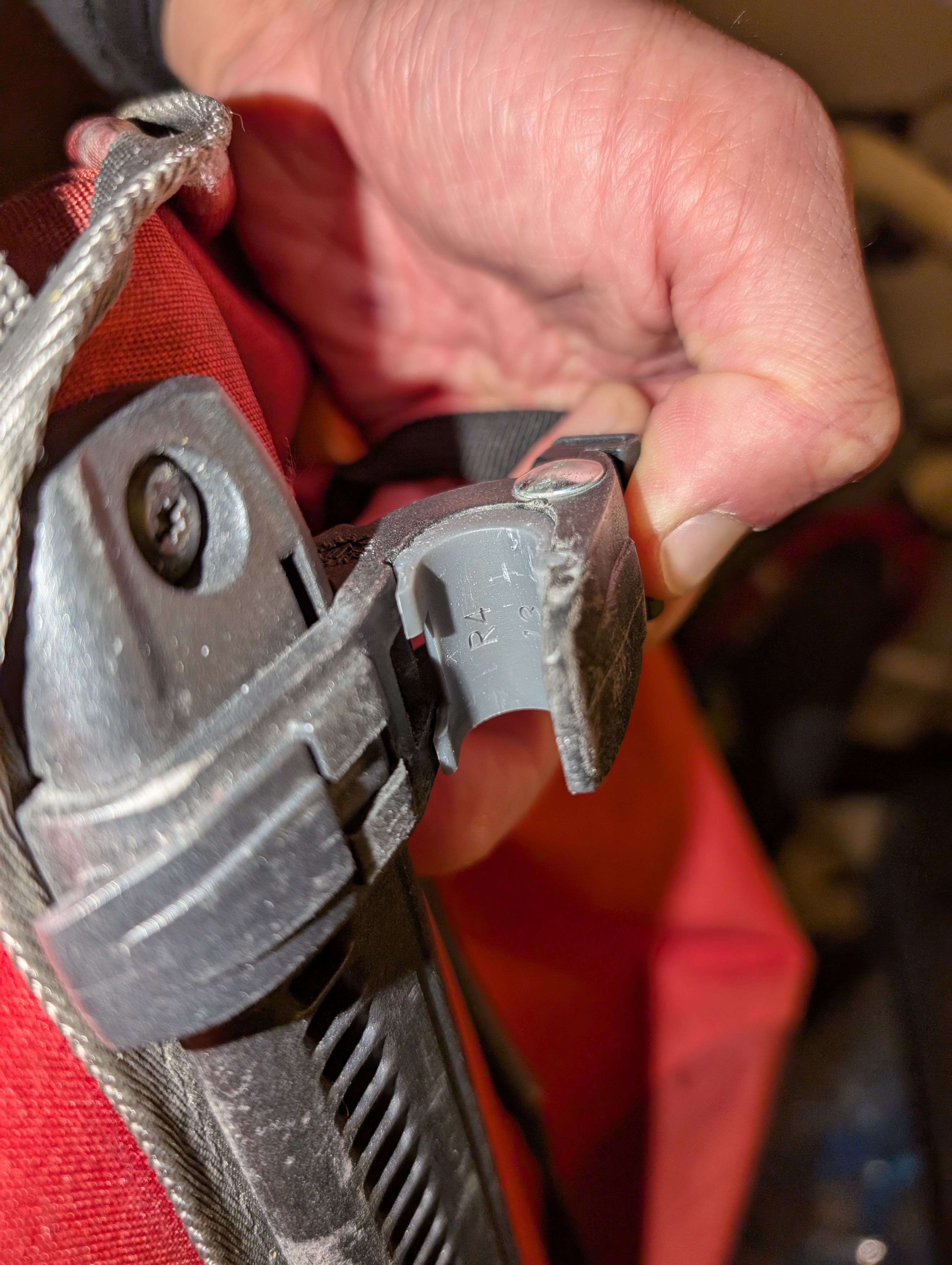

Rev 4
adjusted bump & “dovetail” for better fitment.
