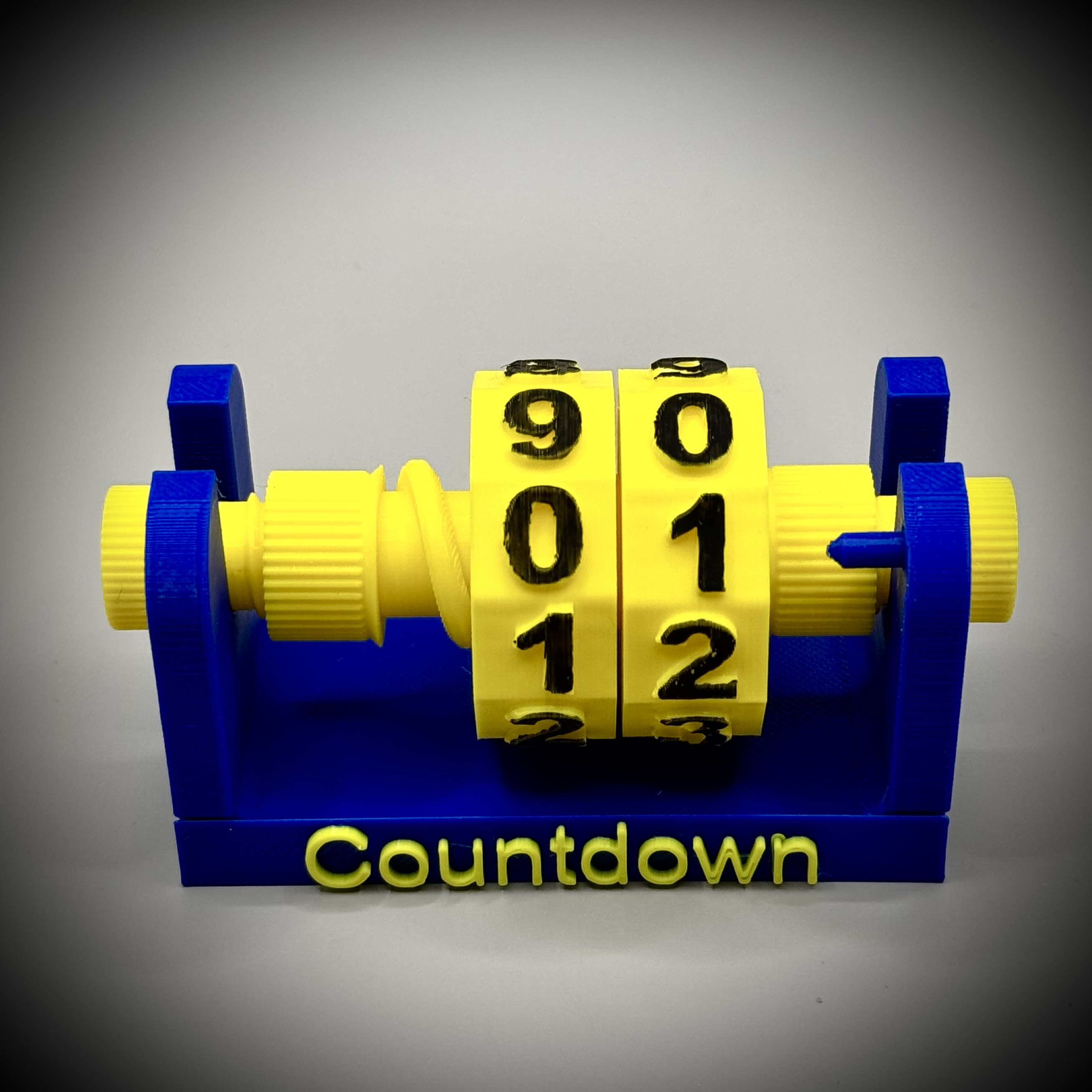

Maximum of 99, no supports needed event countdown with two hexagon wheels that also move closer together as the count reduces.
.stl & .3mf files available.

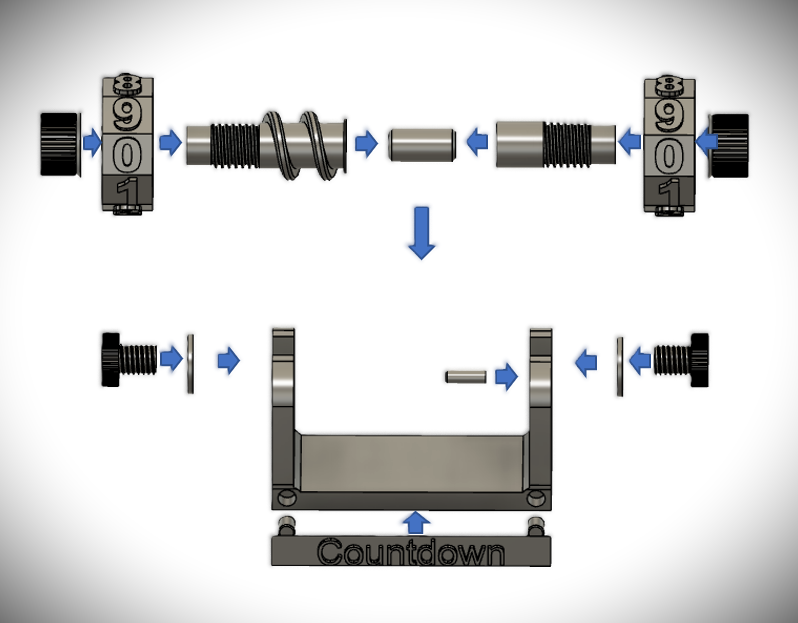

Assembly: see exploded diagram for how parts fit together. Glue is required to join the main shaft together using the dowel.
Set up: To set the starting count wind the left-hand wheel inwards until it stops. Align both wheels to zero and then wind the left-hand wheel backwards to set the “tens” then set the right wheel to the single units. Fine tune the position by loosening the end thumb screws and rotating the main shaft as required. Then you are ready to use.
