AtomRC Swordfish canopy
Zamów wydruk tego modelu
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- RC & Robotics
- Licencja
- Creative Commons — Attribution — Share Alike
I wanted for my Swordfish to have FPV camera with maybe even an instrument panel. After a bit of tinkering, a couple of prints I came up with this.

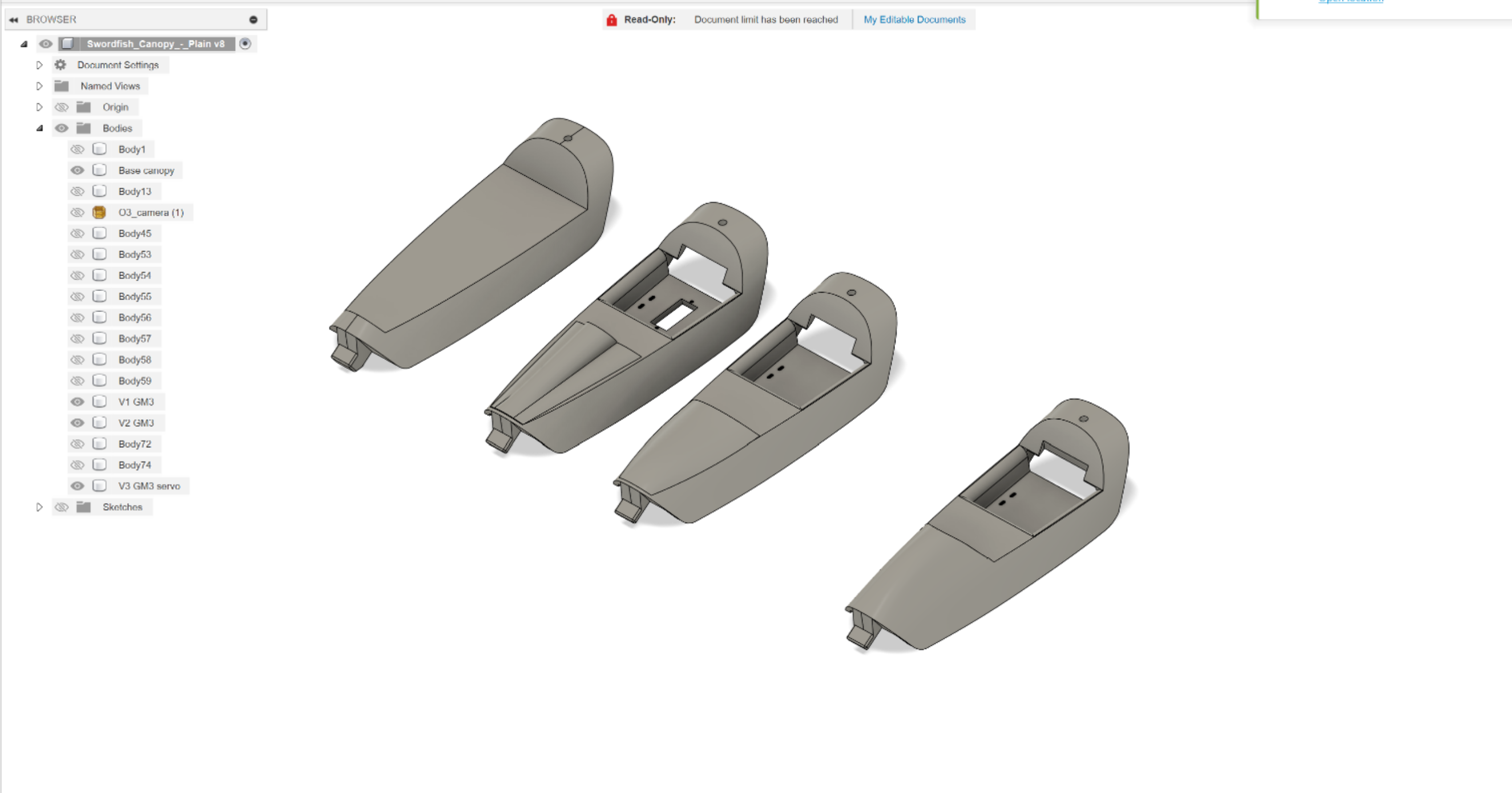

The canopy is designed to be printed as one piece, I used 1wall with 5 - 8 % infill.
It allows for 4s1p 21700 pack in the nose part and made me add about 10g in the tail to compensate.
The holes are for GM3 / C20T gimbal and I also added a servo hole if someone wants to only use a simple servo for panning.
I include STLs and STEP files if anyone wants to tweak the design.
Prints without supports if placed on the back side if your printer is dialled in properly.
