Digital Scoreboard
Zamów wydruk tego modelu
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Electronics
- Licencja
- Creative Commons — Attribution — Noncommercial — Share Alike

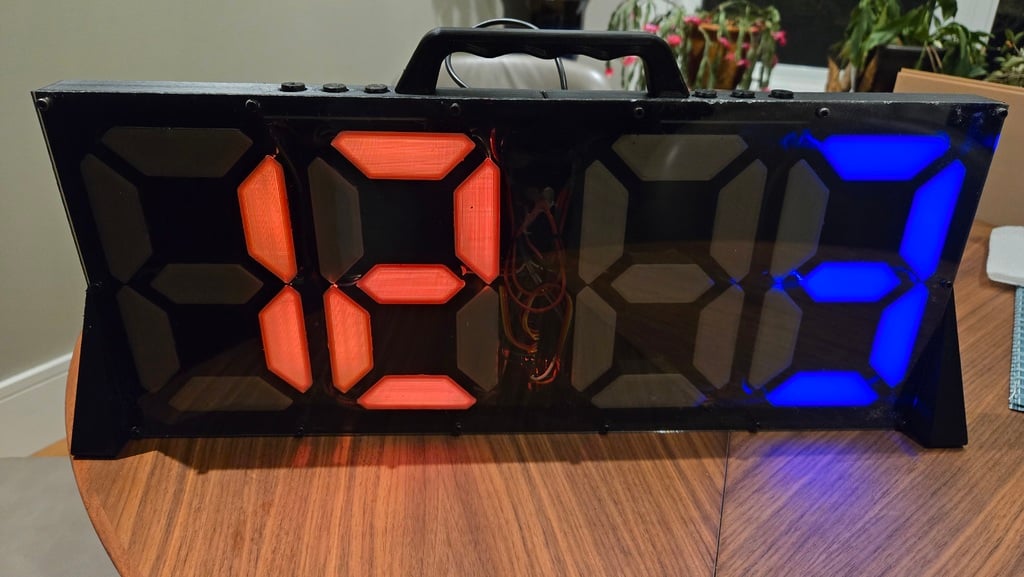

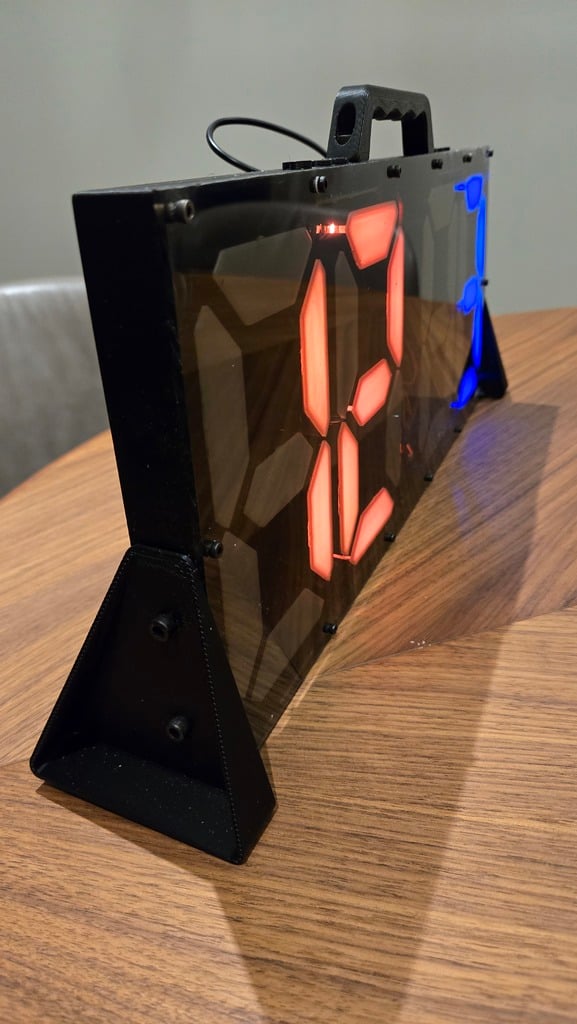

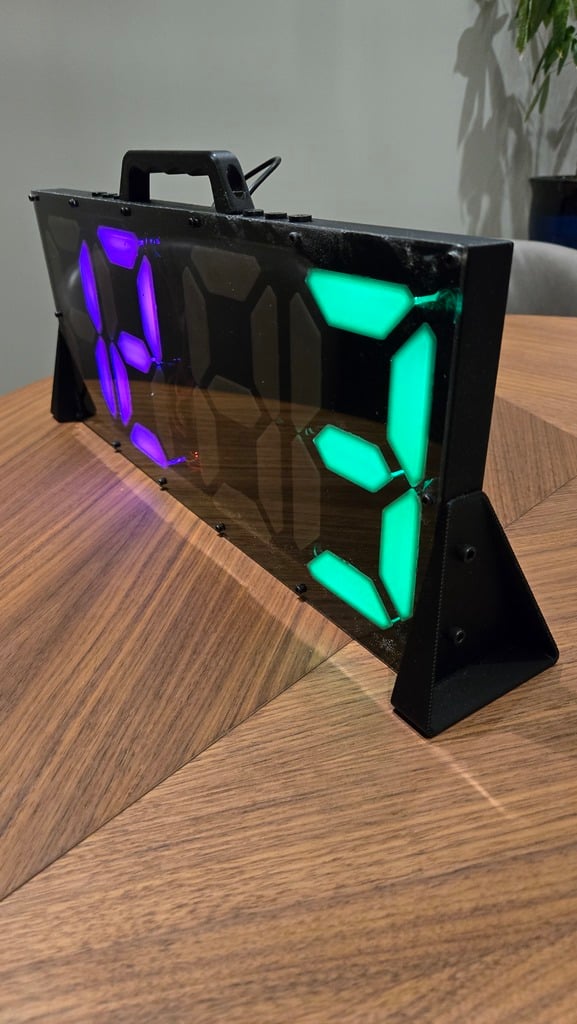

Designed, Built and Code this Digital Scoreboard for my Indoor Hockey Team. I had some SK6812 60leds/Pixels/m LED stripe and designed to build this with a Nano and FastLED.
- https://www.youtube.com/watch?v=sbXR0Sf1Q0w
- https://www.youtube.com/playlist?list=PLJwaixbqRsztkGjnwfwI6ILl8jo3dZsz5

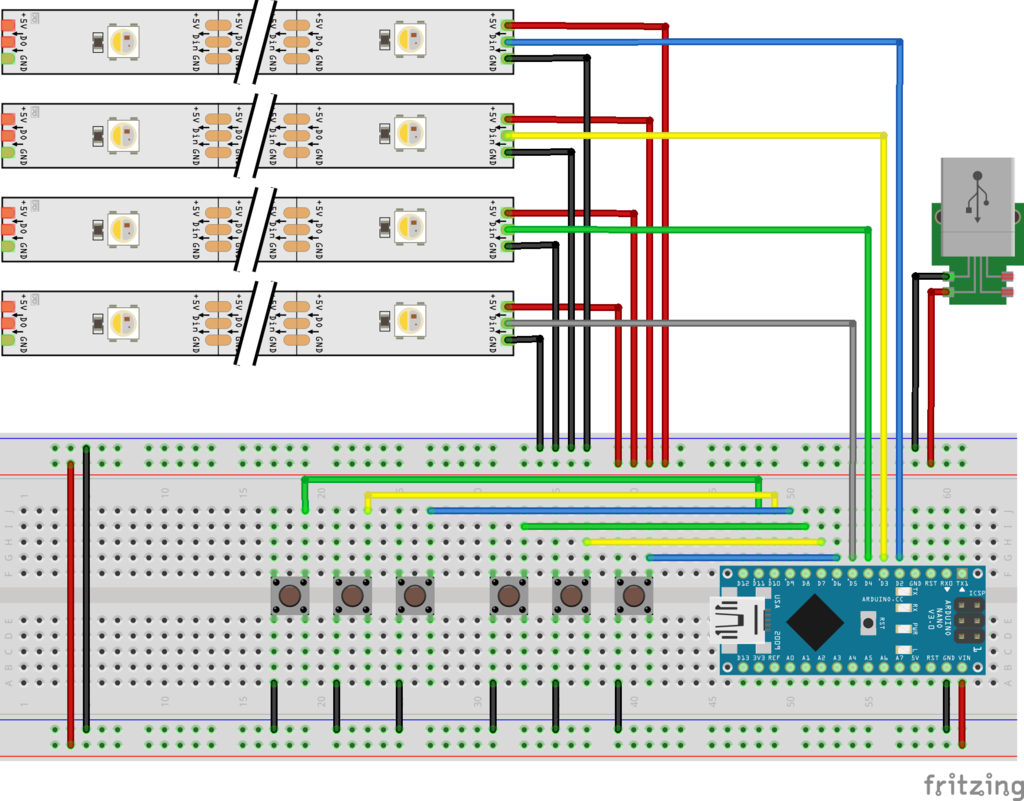

Hardware Require
- Arduino Nano ATmega328P (x1)
- Development Board 2cm X 8cm (x2)
- Tactile Button Switch (x6)

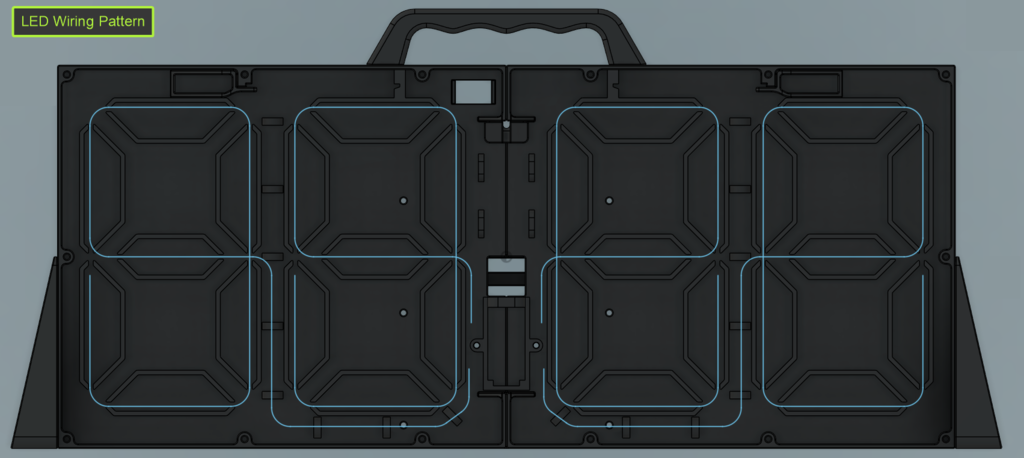

- SK6812 LED stripe 60leds/Pixels/m (x84 leds)
- USB Type A Wiring Whip (x1)
- USB Battery Pack (x1)

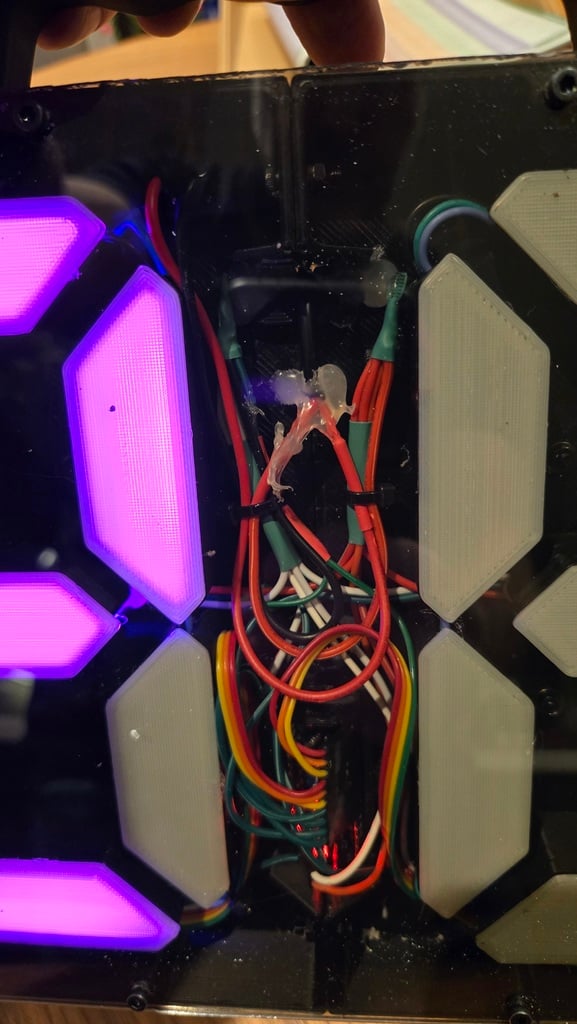

- 22 AWG wirings (multiple)
- M3 8mm Screw for Acrylic Glass (x14)
- M3 8-10mm Screw and Nut for joining main body (x2)

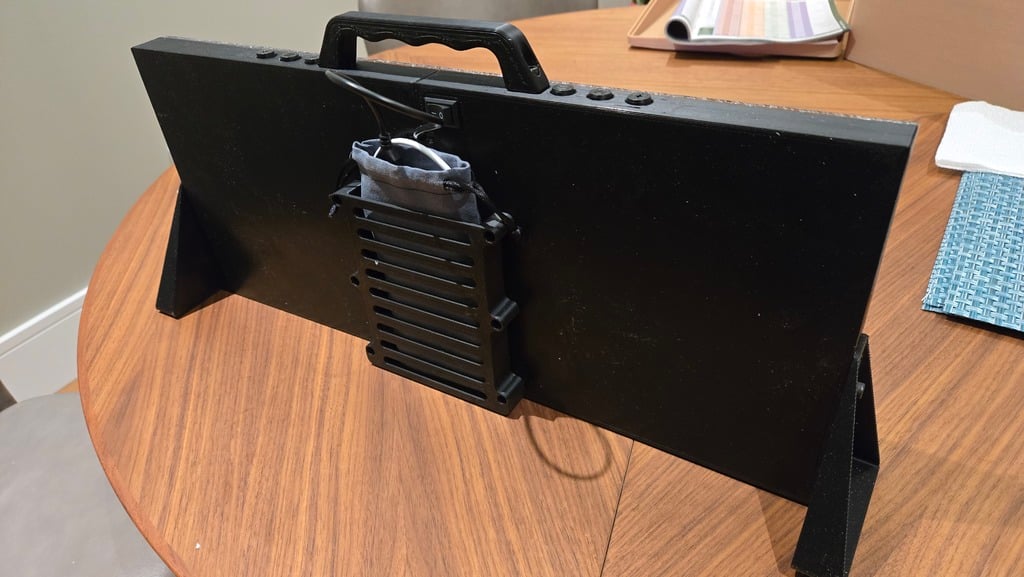

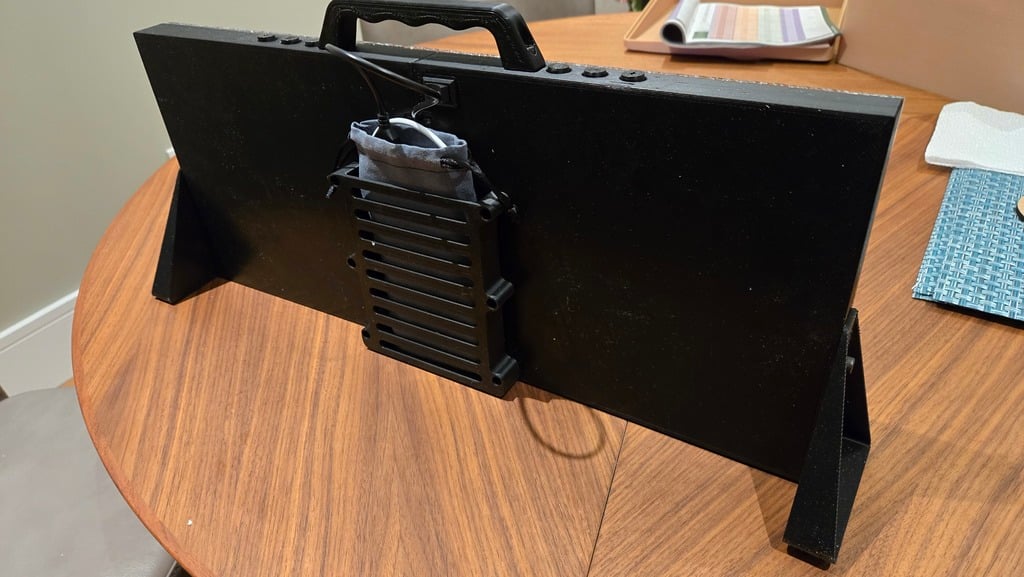

- M3 12mm Screw and Nut for Battery Holder (x6)

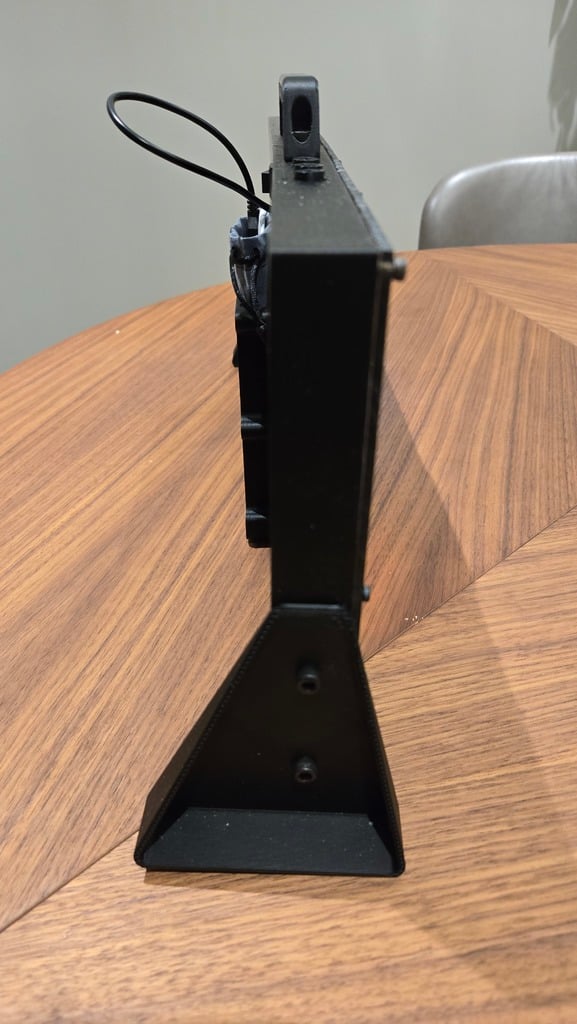

- M5 8mm Screw and Nut for Legs (x6)
- M5 12mm Screw and Nut for Handle (x2)
- 3mm Think Tinted Acrylic (x1)
For the Arduino code, you can do it yourself if you want or send me $5 donation via Paypal and I can either send you the code or will add you to the GitHub project.
Print Settings
Printer Brand:
Eryone
Printer:
Eryone Thinker DirectDrive
**Rafts:**
Doesn't Matter
Supports:
Doesn't Matter
**Resolution:**
0.2
Infill:
20
**Filament:** Eryone PLA+ Tough PLA Black
