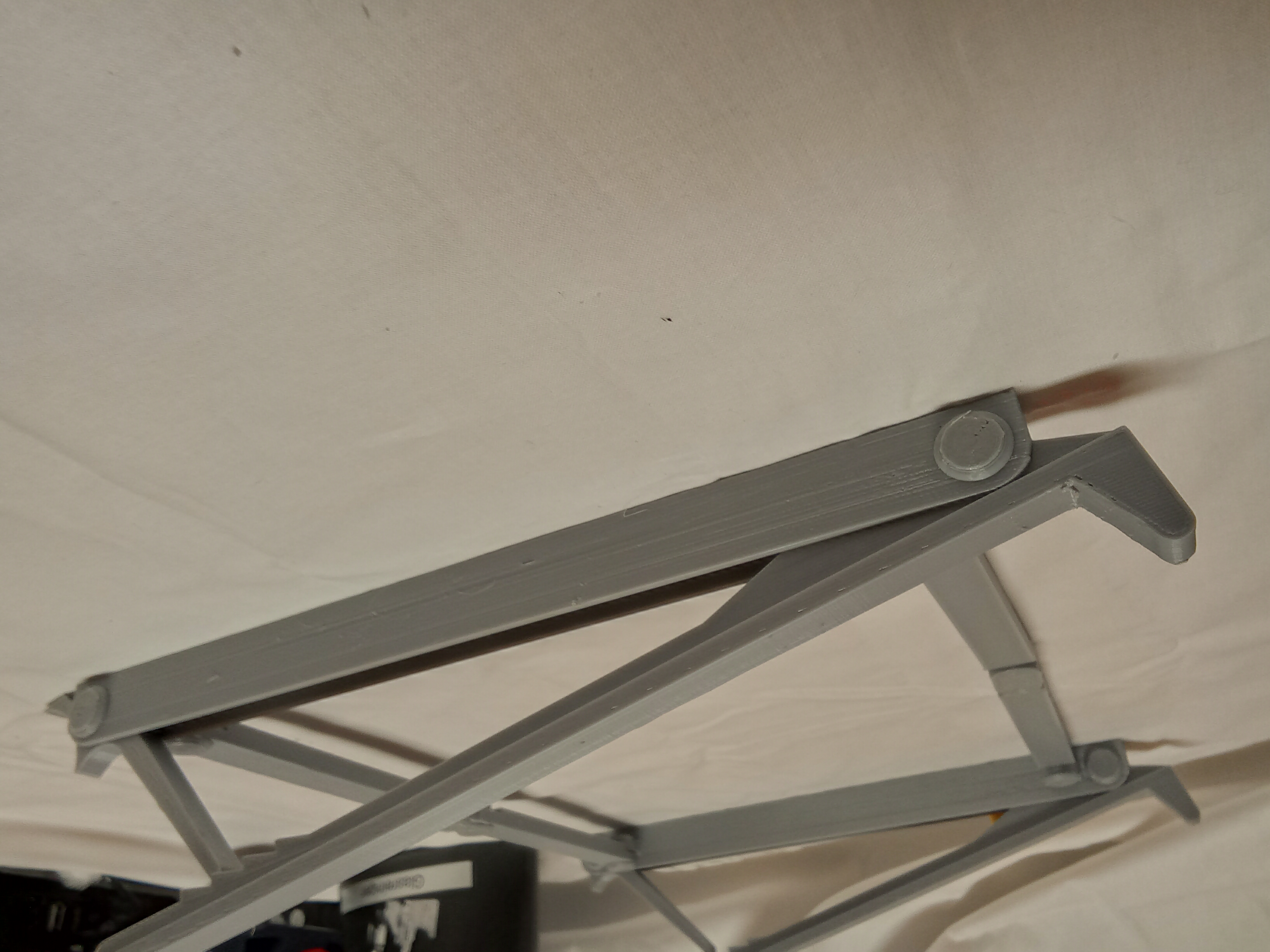

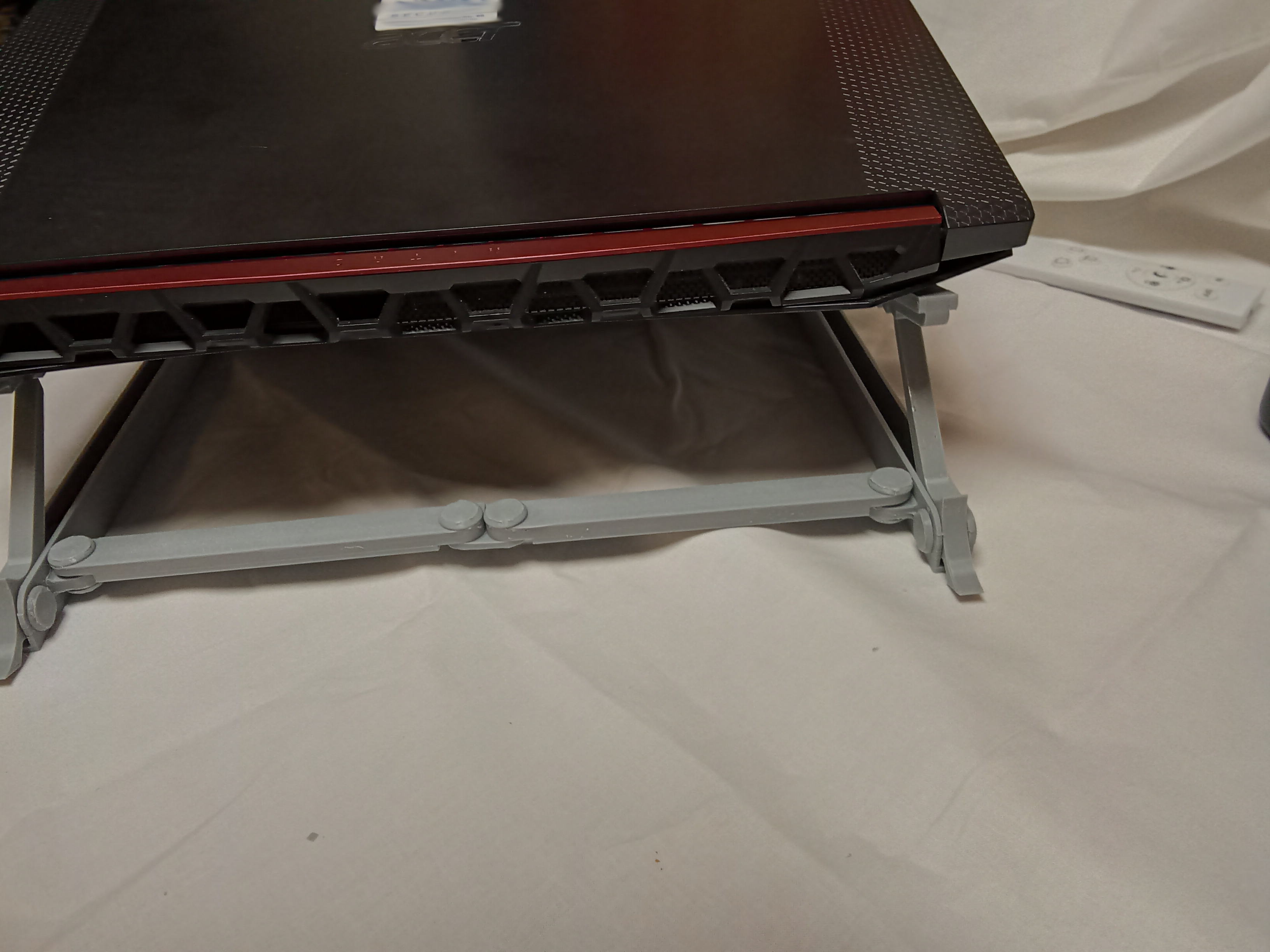

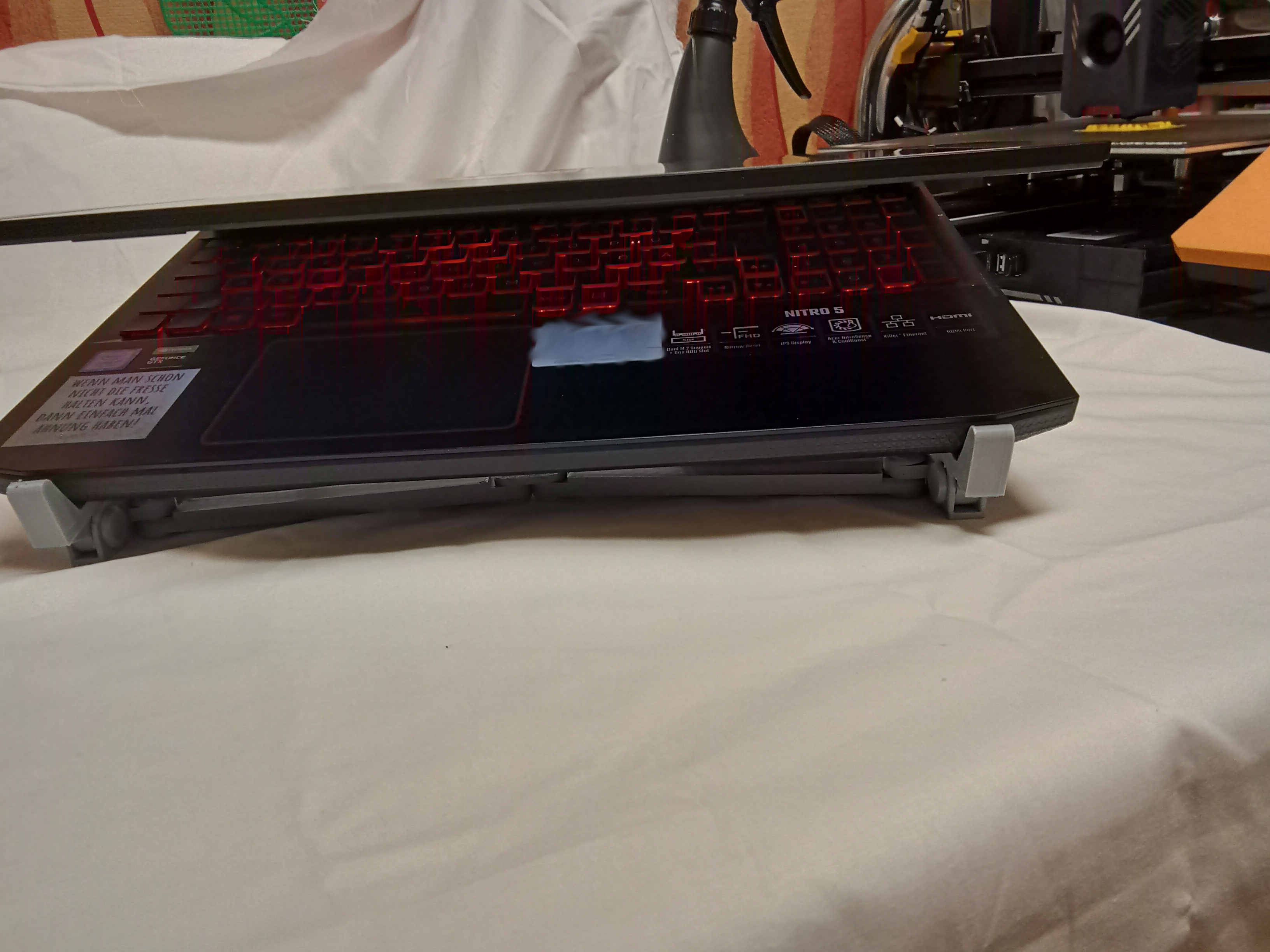

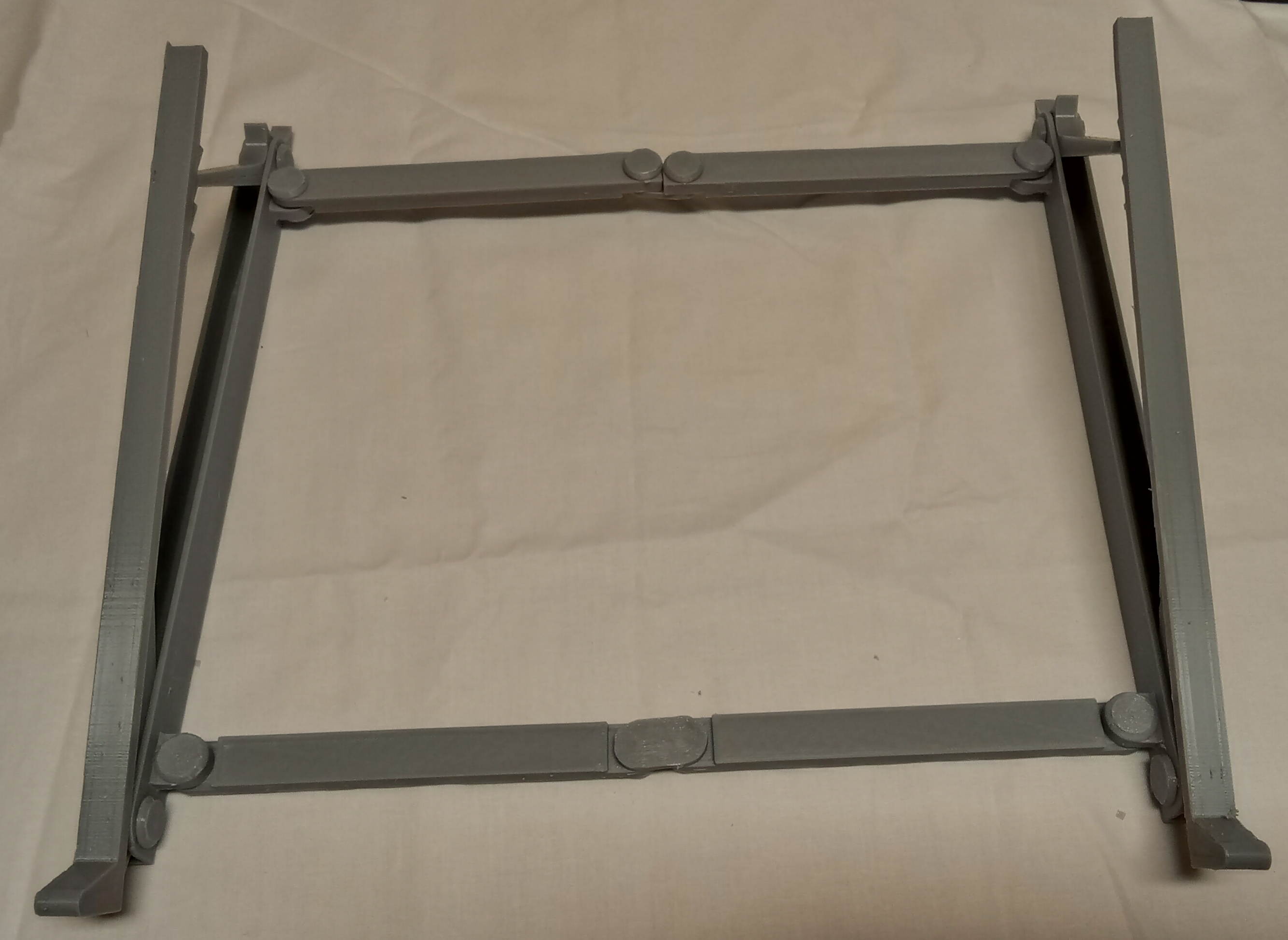

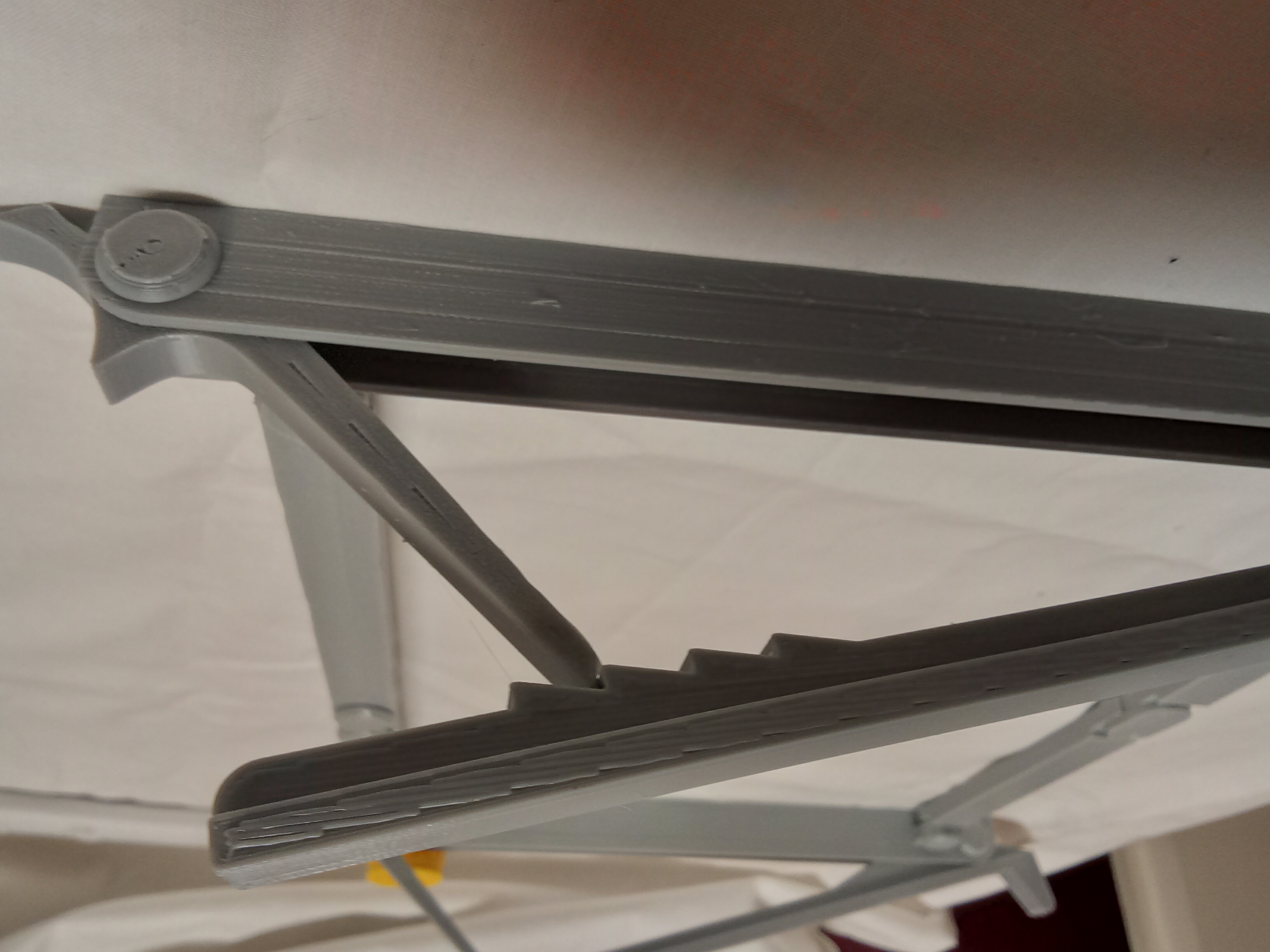

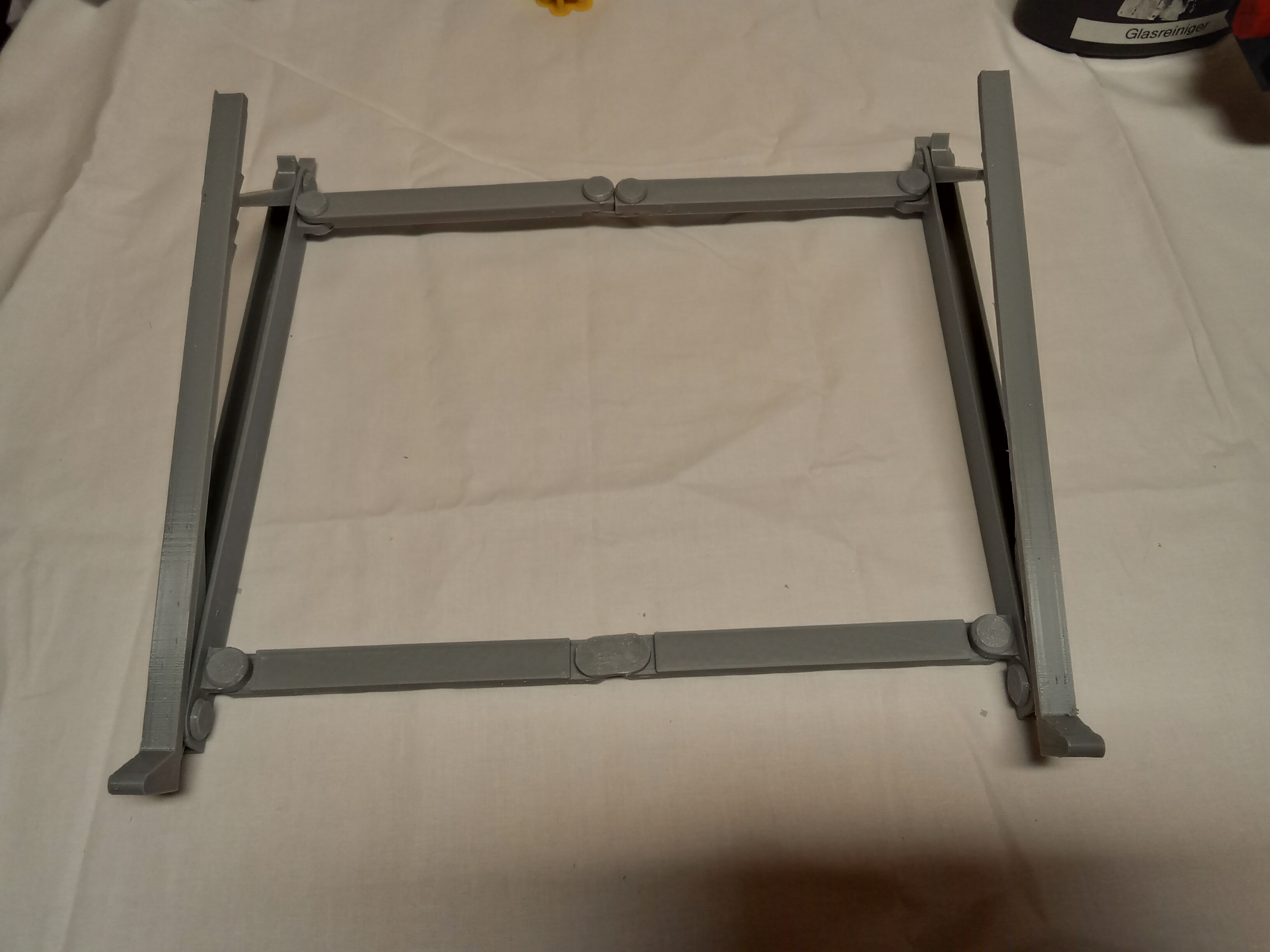

Unfortunately, I couldn't find a suitable notebook stand for my 15-inch and 17-inch notebooks that I liked. So I designed my own, which is foldable and the angle of inclination can be changed.
I have added a test model as a 3mf file for the knobs and the connectors. This allows you to test beforehand whether the dimensions of the connectors fit. In my case it fits perfectly and I didn't need any glue.

Fittings

Possibly some glue.

Temperatures, Speed and Materials.

Filament: PLA
Printing speed: Various, depending on the part.
Layer: 0,2mm
Infill: Various, depending on the part.
Infill pattern: Cubic
Print temperature: 220°C
Temperature hotbed: 65°C
Supports: Sockets

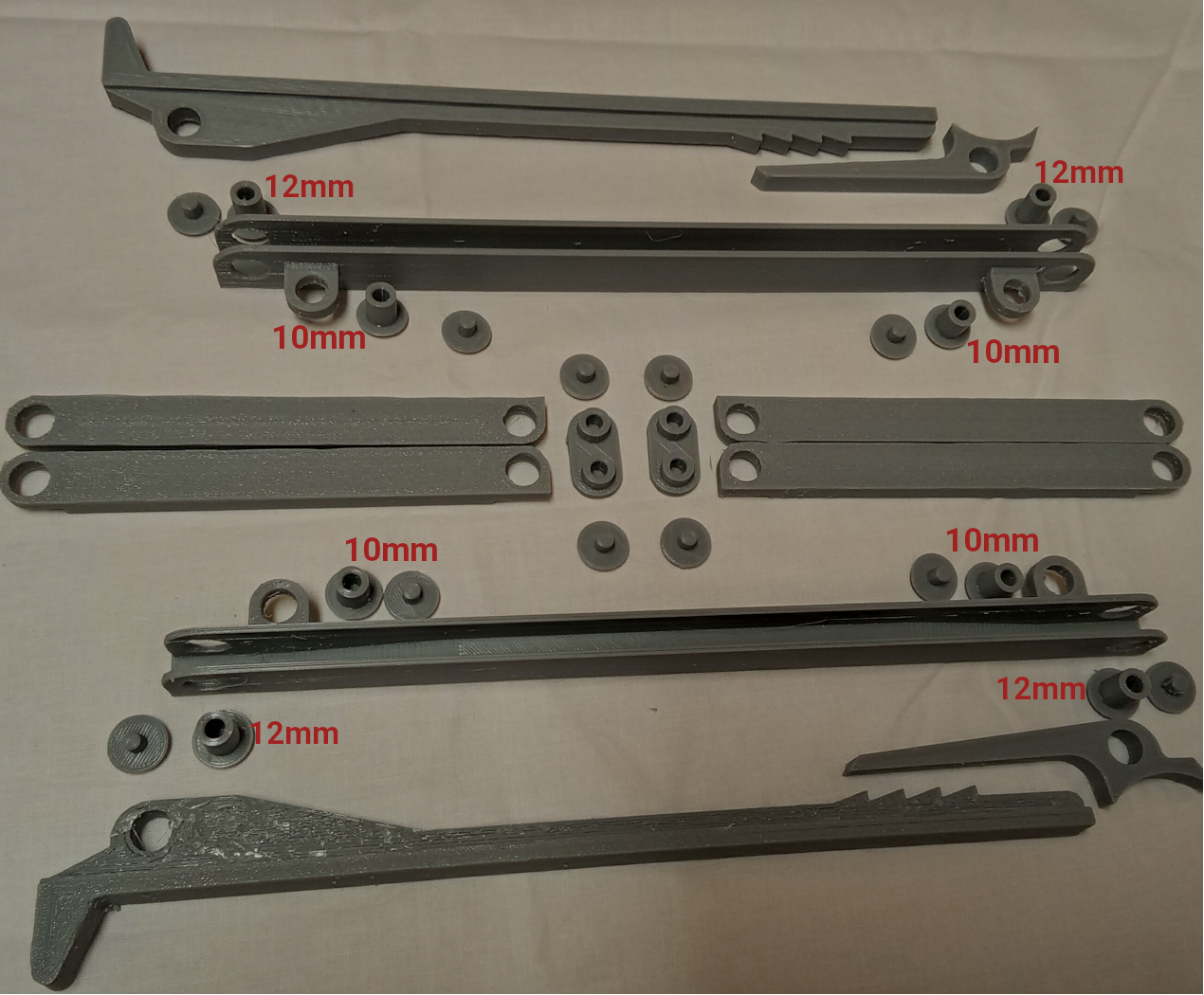

Approximate Printing Times and Filament Quantities.

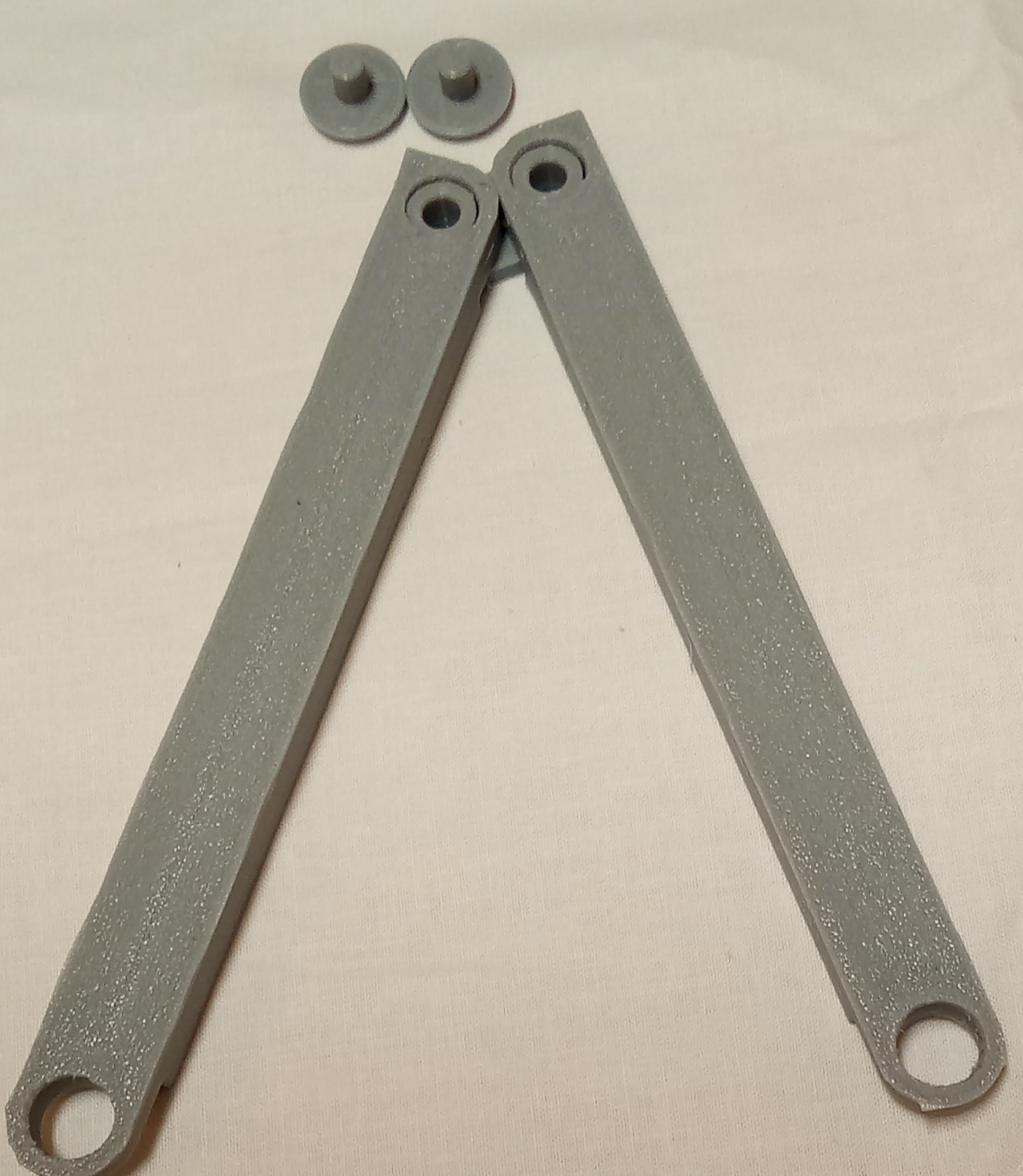

4 Axis: Time: ~3:04h, Quantity: ~56,76gr, ~18,88m, Printing speed: 100,0mm/s, Infill: 30%
1 Cover: Time: ~3:03h, Quantity: ~85,06gr, ~28,29m, Printing speed: 100,0mm/s, Infill: 10%
2 Joints: Time: ~0:12h, Quantity: ~4,71gr, ~1,57m, Printing speed: 50,0mm/s, Infill: 80%
2 Knobs: Time: ~0:32h, Quantity: ~8,17gr, ~2,72m, Printing speed: 50,0mm/s, Infill: 80%
4 Knobs Casings 10mm: Time: ~0:18h, Quantity: ~3,94gr, ~1,27m, Printing speed: 50,0mm/s, Infill: 80%
4 Knobs Casings 12mm: Time: ~0:24h, Quantity: ~5,17gr, ~1,72m, Printing speed: 50,0mm/s, Infill: 80%

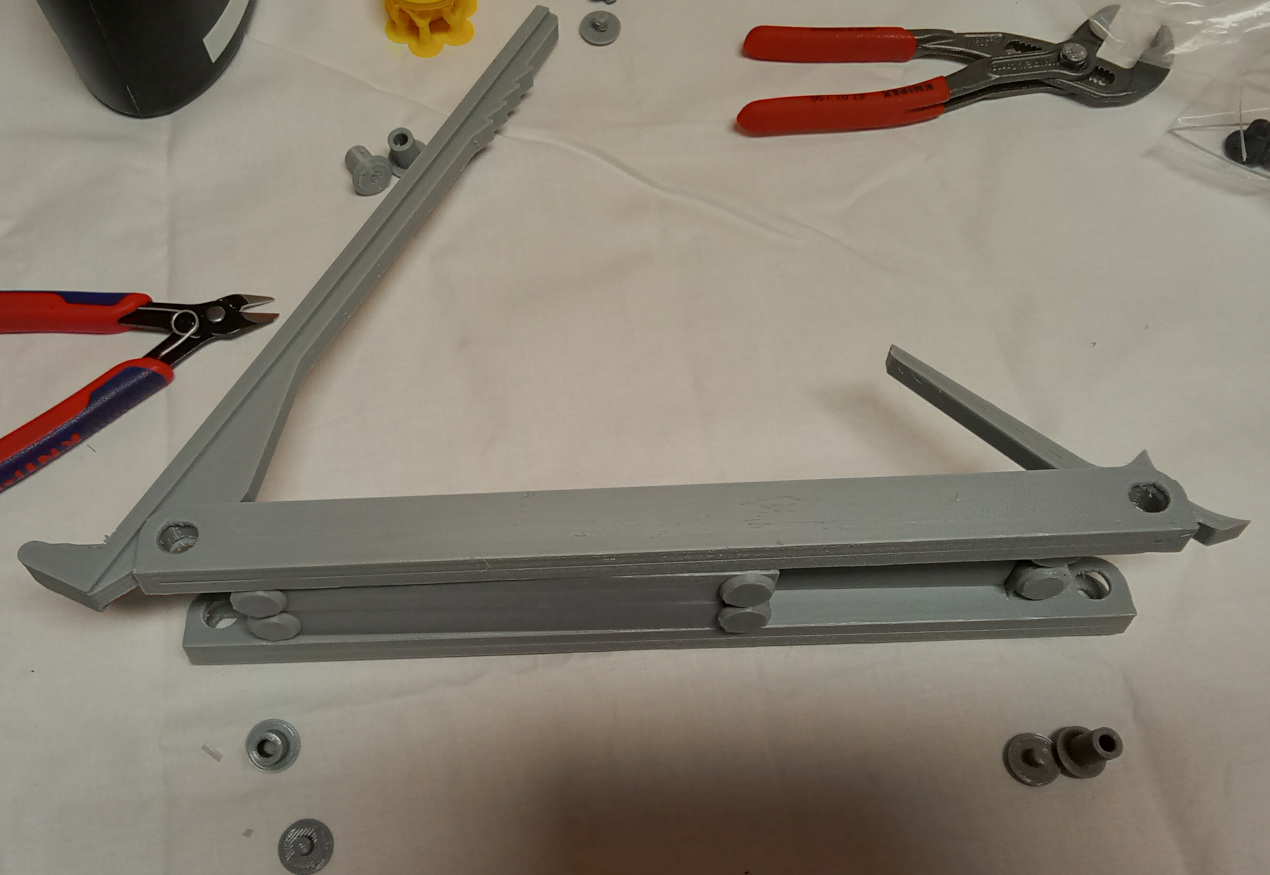

2 Shelfs: Time: ~2:57h, Quantity: ~67,49gr, ~22,45m, Printing speed: 100,0mm/s, Infill: 60%
2 Shelfs Supports: Time: ~0:31h, Quantity: ~11,73gr, ~3,90m, Printing speed: 100,0mm/s, Infill: 60%

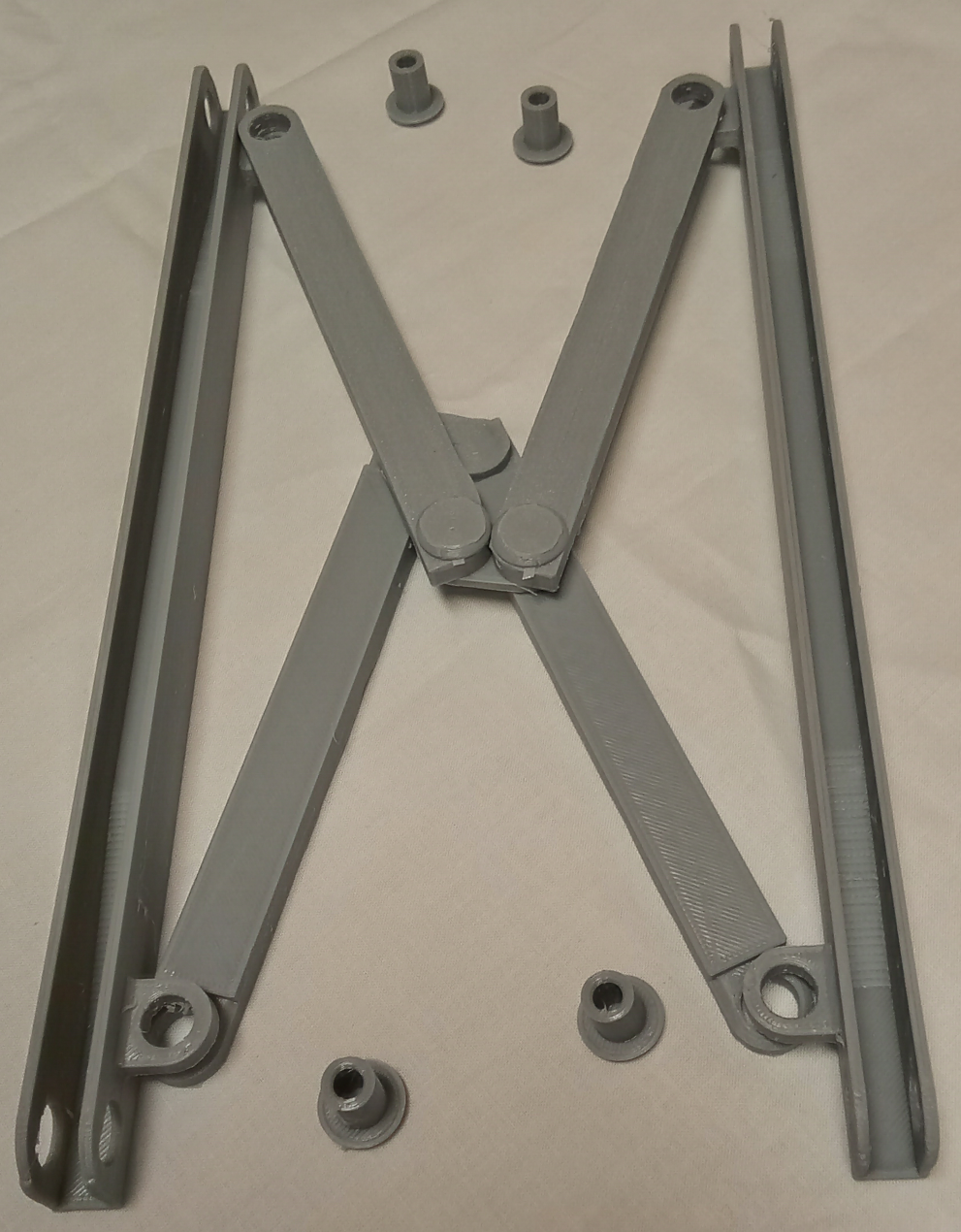

2 Sockets: Time: ~3:08h, Quantity: ~67,84gr, ~22,56m, Printing speed: 100,0mm/s, Infill: 20%
